When using an electrical appliance, basic precautions should

always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS

APPLIANCE.

SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use

of the Appliance in a safe way and understand the hazards

involved. Children shall not play with the Appliance. Cleaning

and user maintenance shall not be made by children without

supervision.

2. Clear the area to be cleaned. Remove power cords and small

rug fringe under the rug base, and lift items such as curtains

3. If there is a drop off in the cleaning area due to a step or

stairs, you should operate the Appliance to ensure that it can

detect the step without falling over the edge. It may become

necessary to place a physical barrier at the edge to keep the

unit from falling. Make sure the physical barrier is not a trip

hazard.

4. Only use as described in this manual. Only use attachments

recommended or sold by the manufacturer.

5. Please make sure your power supply voltage matches the

power voltage marked on the Charging Dock.

6. For INDOOR household use ONLY. Do not use the Appliance

in outdoor, commercial or industrial environments.

7. Non-rechargeable batteries are prohibited. For battery

1. Important Safety Instructions

9. Do not operate the Appliance in an area where there are lit

candles or fragile objects.

10. Do not use in extremely hot or cold environments (below

11.

from any openings and moving parts.

12. Do not operate the Appliance in a room where an infant or

child is sleeping.

13. Do not use Appliance on wet surfaces or surfaces with

standing water.

14. Do not allow the Appliance to pick up large objects like stones,

large pieces of paper or any item that may clog the Appliance.

15. Do not use Appliance to pick up flammable or combustible

materials such as gasoline, printer or copier toner, or use in

areas where they may be present.

16. Do not use Appliance to pick up anything that is burning or

smoking, such as cigarettes, matches, hot ashes, or anything

17. Do not put objects into the suction intake. Do not use if the

suction intake is blocked. Keep the intake clear of dust, lint,

18. Take care not to damage the power cord. Do not pull on or

carry the Appliance or Charging Dock by the power cord, use

the power cord as a handle, close a door on the power cord,

or pull power cord around sharp edges or corners. Do not run

Appliance over the power cord. Keep power cord away from

hot surfaces.

19. If the power cord is damaged, it must be replaced by the

manufacturer or its service agent in order to avoid a hazard.

20. Do not use the Charging Dock if it is damaged.

1. Important Safety Instructions

4EN

21. Do not use with a damaged power cord or receptacle. Do

not use the Appliance or Charging Dock if it is not working

properly, has been dropped, damaged, left outdoors, or come

in contact with water. It must be repaired by the manufacturer

or its service agent in order to avoid a hazard.

22. Turn OFF the power switch before cleaning or maintaining the

Appliance.

23. The plug must be removed from the receptacle before

cleaning or maintaining the Charging Dock.

24. Remove the Appliance from the Charging Dock, and turn OFF

the power switch to the Appliance before removing the battery

for disposal of the Appliance.

25. The battery must be removed and discarded according to local

laws and regulations before disposal of the Appliance.

26. Please dispose of used batteries according to local laws and

regulations.

27. Do not incinerate the Appliance even if it is severely damaged.

28. When not using the Charging Dock for a long period of time,

please unplug it.

29. The Appliance must be used in accordance with the directions

in this Instruction Manual. ECOVACS ROBOTICS cannot be

held liable or responsible for any damages or injuries caused

by improper use.

30. The robot contains batteries that are only replaceable by

skilled persons. To replace or remove the battery, please

contact Customer Service.

31. If the robot will not be used for a long time, fully charge the

robot and power OFF for storage and unplug the Charging

Dock.

32. WARNING: For the purposes of recharging the battery, only

use the detachable supply unit CH1465A provided with this

appliance.

1. Important Safety Instructions

Correct Disposal of this Product

This marking indicates that this product should not be disposed of with

other household waste throughout the EU. To prevent possible harm

to the environment or human health from uncontrolled waste disposal,

recycle it responsibly to promote the sustainable reuse of material

resources. To recycle your used device, please use the return and

collection systems or contact the retailer where the product was

purchased. They can safely recycle this product.

For EU Countries

33. The Remote Control pre-installs two non-rechargeable AAA

batteries. To replace the battery of the Remote Control, please

turn over the Remote Control, press and remove its Battery

Cover. Remove the batteries, and insert the new batteries with

the correct polarity. Reassemble the Battery Cover.

34. Non-rechargeable batteries are not to be recharged.

35. Different types of batteries or new and used batteries are not

to be mixed.

36. Batteries of the Remote Control are to be inserted with the

correct polarity.

37. Exhausted batteries are to be removed from the Appliance

and safely disposed of.

38. If the Remote Control is to be stored unused for a long period,

the batteries should be removed.

39. The supply terminals are not to be short-circuited.

1. Important Safety Instructions

6EN

2.1 Package Contents

Robot

Sponge Filter and

Main Brush Option Battery Pack

Cleaning Cloths

Advanced Wet/Dry

Reservoir

Charging Dock Remote Control Instruction Manual+

Quick Start Guide

Model DB3G.21

Working Voltage 12V DC Rated Power 40W

Battery Model DN700-BYD Ni-MH 12 V DC,

3000 mAh

Charging Dock Model CH1465A

Rated Input Voltage 100-240V AC Rated Output Voltage 20V DC

Rated Output Current 1A Rated Power 20W

Remote Control Model RC1507 Remote Control Battery

Model AAA

Remote Control Battery Input

Voltage 1.5V DC Remote Control working

voltage 3V DC

Frequency bands 2412-2472MHz

Maximum RF power transmitted

in the frequency band

Max PA output power at 72.2 Mbps: 17.5 dBm

Max PA output power in 11b mode: 21.5 dBm

Measuring Cup

2.3 Product Diagram

Robot

1. Top Cover

2. Dust Bin

3. AUTO Mode Button

4. Anti-Collision Sensors

5. Anti-Drop Sensors

6. Charging Contacts

7. Main Brush

8. Driving Wheels

9. Universal Wheel

10. Battery Pack

11. Side Brushes

12. Advanced Wet/Dry Reservoir Slots

13. Multi-Function Cleaning Tool

15. Infrared Receiver for the Remote Control

13 1514

Charging Dock

1. Infrared Signal Generators

2. Charging Dock Pins

1. AUTO Mode Button

2. Wi-Fi Indicator Light

Control Panel

8EN

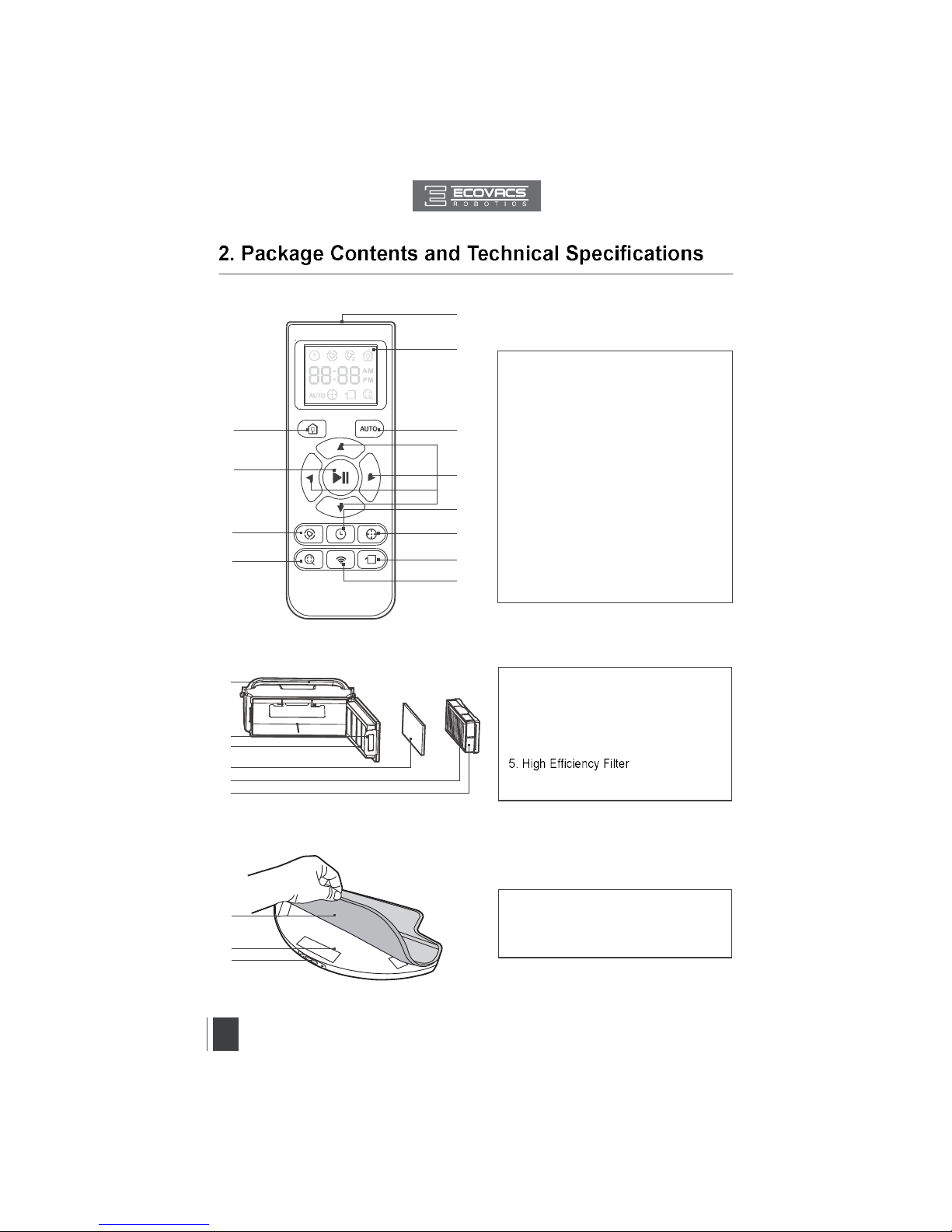

Remote Control

1. LCD Screen

2. Return to Charger Mode Button

3. AUTO Mode Button

4. Direction Control Buttons

5. START/PAUSE Button

6. Time Scheduling Button

7. Set Current Time Button

8. Spot Cleaning Mode Button

9. Intensive Cleaning Mode Button

10. Edge Cleaning Mode Button

11. Network Setup Button

12. Infrared Emitter

Dust Bin

Advanced Wet/Dry Reservoir

1. Dust Bin Handle

2. Dust Bin Lock

3. Filter Net

4. Sponge Filter

6. Dust Bin Cover

1. Advanced Wet/Dry Cleaning Cloth

2. Advanced Wet/Dry Reservoir

3. Water Inlet

3.1 Notes Before Cleaning

Before operating DEEBOT, take a few moments to survey the area to be

cleaned and remove any obstacles.

Remove power cords and small objects from

Please be aware that the robot needs at

furniture without complications.

The product is not suitable for use on long-pile

carpet. Before using the product near an area

rug or on a short-pile area rug with tasseled

edges, please fold area rug edges under

themselves.

If there is a step or stairs in the cleaning area,

please operate DEEBOT to ensure its Anti-

Drop Sensors can detect the drop off. It may

be necessary to place a physical barrier at the

edge of the drop off to keep the unit from falling

over the edge.

3. Operating and Programming

10 EN

3.2 Quick Start

Charging Dock Placement

Place the Charging Dock on a level

floor surface against the wall with the

base perpendicular to the ground. Keep

sides of the charger clear of objects and

Plug the Charging Dock in.

Install the Battery Pack

Place the Battery Pack into the battery slot on the bottom of DEEBOT. Press the Battery Pack

into the slot until it clicks.

Install Side Brushes

Attach Side Brushes to the bottom of

DEEBOT by pressing a brush into each

slot with the matching color until it clicks.

3Power ON

Press and hold the button on the

robot. DEEBOT is powered ON when the

glows a continuous BLUE.

3. Operating and Programming

Tabla de contenidos

Otros manuales de Aspiradora de ECOVACS

ECOVACS

ECOVACS DEEBOT OZMO 930 Manual de usuario

ECOVACS

ECOVACS DEEBOT 601 Manual de usuario

ECOVACS

ECOVACS Deebot D56 Manual de usuario

ECOVACS

ECOVACS DEEBOT N79S Manual de usuario

ECOVACS

ECOVACS DEEBOT M81Pro Manual de usuario

ECOVACS

ECOVACS DEEBOT N79 Manual de usuario

ECOVACS

ECOVACS WINBOT W850 Manual de usuario

ECOVACS

ECOVACS DEEBOT M81 Manual de usuario

ECOVACS

ECOVACS Deebot D56 Manual de usuario

ECOVACS

ECOVACS DEEBOT 601 Manual de usuario

ECOVACS

ECOVACS WINBOT 7 Manual de usuario

ECOVACS

ECOVACS DEEBOT SLIM2 Manual de usuario

ECOVACS

ECOVACS DEEBOT M81Pro Manual de usuario

ECOVACS

ECOVACS DEEBOT N78D Manual de usuario

ECOVACS

ECOVACS Deebot3 Manual de usuario

ECOVACS

ECOVACS Deebot Slim Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO T8+ Manual de usuario

ECOVACS

ECOVACS DEEBOT T9+ Manual de usuario

ECOVACS

ECOVACS 7 Series Manual de usuario

ECOVACS

ECOVACS DEEBOT 710 Manual de usuario

ECOVACS

ECOVACS DEEBOT8 Manual de usuario

ECOVACS

ECOVACS WINBOT Manual de usuario

ECOVACS

ECOVACS Deebot D54 Manual de usuario

ECOVACS

ECOVACS WINBOT 880 Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
