Ebyte E52-400NW22S-TB Manual de usuario

Chengdu Ebyte Electronic Technology Co.,Ltd.

E52-400/900NW22S-TB User Manual

该版权及产品最终解释权归成都亿佰特电子科技有限公司所有

- 1 -

E52-400/900NW22S-TB User Manual

Chengdu Ebyte Electronic Technology Co.,Ltd.

E52-400/900NW22S-TB User Manual

- 1 -

I. Product Introduction

E52-400NW22S-TB：

E52-900NW22S-TB：

1. Used for testing and developing the Ebyte’s E52-400/900NW22S wireless module. The E52-400/900NW22S-TB

has pre welded the E52-400/900NW22S module. Please refer to the module manual for detailed usage.

2.Equipped with a CH340X serial port chip, it can directly develop serial communication.

3.Equipped with a micro USB interface, it can be directly plugged into the computer for use.

4.Users can connect to external power and serial ports on their own.

5. Comes with an 18650 battery box, allowing customers to install the battery themselves for easy development and

testing.

6.Stable work and easy development.

Chengdu Ebyte Electronic Technology Co.,Ltd.

E52-400/900NW22S-TB User Manual

- 2 -

II. Instructions for use

Serial number description：

①

Micro USB interface, USB to UART

interface

②

Battery power switch

③

UART pin jumper cap

④

Power indicator light

⑤

LED2

⑥

Emission indicator light

⑦

Reset button

⑧

BootLoader button

⑨

Module power supply jumper cap

⑩

IPEX antenna base

⑪

0 Ω resistor, used to switch the RF antenna

interface connection, defaults to the

connection state, and outputs using the SMA

antenna interface. If the customer uses an

IPEX antenna, this resistor needs to be

removed.

⑫

SMA antenna base

Please refer to the E52-400/900NW22S module user manual for specific functions.

Chengdu Ebyte Electronic Technology Co.,Ltd.

E52-400/900NW22S-TB User Manual

- 3 -

III. Driver Installation

Using the CH340X chip as the serial port, if the computer cannot recognize the serial port, please download

and use the driver software provided by our company on your own; After installation, the serial number can be

recognized in the device manager.

IV. Technical Support

During the development process, please actively contact our technical support. We only support our modules

and do not include basic usage issues with microcontrollers.

About us

Technical support: support@cdebyte.com

Documents and RF Setting download link: https://www.cdebyte.com

Web：https://www.cdebyte.com

Address：Innovation Center D347, 4# XI-XIN Road,Chengdu, Sichuan, China

Este manual sirve para los siguientes modelos

Otros manuales de Módulo inalámbrico de Ebyte

Ebyte

Ebyte ESP32-S3-WROOM-1 Manual de usuario

Ebyte

Ebyte E18-TBL-01 Manual de usuario

Ebyte

Ebyte E19 Series Manual de usuario

Ebyte

Ebyte E180-Z6907A Manual de usuario

Ebyte

Ebyte E70-868T14S Manual de usuario

Ebyte

Ebyte E180-ZG120B Manual de usuario

Ebyte

Ebyte E103-W01-IPX Manual de usuario

Ebyte

Ebyte E220P-400T22S Manual de usuario

Ebyte

Ebyte E106-868G27P2 Manual de usuario

Ebyte

Ebyte E49-400T20S Manual de usuario

Ebyte

Ebyte E22-900M22S Manual de usuario

Ebyte

Ebyte E22-230T30D Manual de usuario

Ebyte

Ebyte E18-MS1PA1-IPX Manual de usuario

Ebyte

Ebyte E104-BT5032U Manual de usuario

Ebyte

Ebyte E30-400M20S Manual de usuario

Ebyte

Ebyte E10 Series Manual de usuario

Ebyte

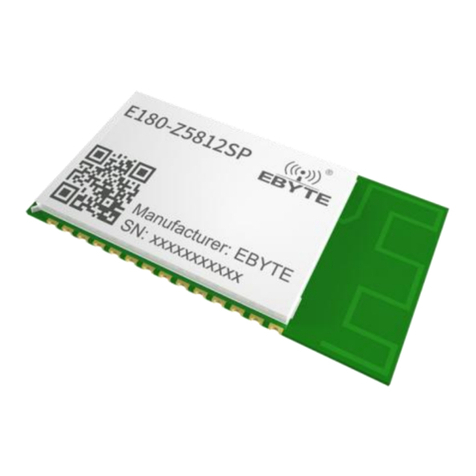

Ebyte E180-Z5812SP Manual de usuario
