Eaton 3S Manual de usuario

ENGLISH

Eaton 3S

Advanced User Guide

614-09406-00_EN

3S ANZ

Page 2 614-09406-00 - 3S ANZ_EN

Special symbols

The following are examples of symbols used on the UPS or accessories to alert you to important

information:

DANGEROUSVOLTAGE - Observe the warning associated with the risk of electric shock symbol.

Important instructions that must always be followed.

Information, advice, help.

Read the documentation provided.

Disconnect input plug.

This equipment should only be used in a dry indoor environment.

+ 40 °C

0 °C Operating range of temperature.

85%

Operating range of humidity.

The UPS and their batteries must be kept in a ventilated place.

Page 3

614-09406-00 - 3S ANZ_EN

ENGLISH

Contents

1. Introduction....................................................................................... 4

2. Presentation ...................................................................................... 5

3. Installation ........................................................................................ 6

3.1 Package contents...........................................................................................................6

3.2 Recommended positions...............................................................................................6

4. Connection ........................................................................................ 7

4.1 Power supply cord .........................................................................................................7

4.2 Protected outlets / Backup & Protected outlets ...........................................................7

4.3 Tel / xDSL surge protection (optional) ............................................................................7

4.4 USB COM port...............................................................................................................8

4.5 USB charging port (optional) ..........................................................................................8

4.6 ON/OFF button ..............................................................................................................8

4.7 Register warranty...........................................................................................................8

5. Operation........................................................................................... 9

5.1 Battery charge ...............................................................................................................9

5.2 AC-power disturbance ...................................................................................................9

5.3 Protected outlets ...........................................................................................................9

5.4 Equipment Care .............................................................................................................9

5.5 Battery replacement .....................................................................................................9

6.Troubleshooting ...............................................................................11

7. Service and support........................................................................ 12

8. Specication and technical characteristics .................................. 13

9. Glossary........................................................................................... 14

Page 4 614-09406-00 - 3S ANZ_EN

1. Introduction

Thank you for selecting an Eaton product to protect your equipment.

The Eaton 3S range has been designed with the utmost care. We recommend that you take the time to read

this advanced user guide and documentations provided to take full advantage of the many features of your

UPS (Uninterruptible Power System).

Before installing your Eaton 3S, please read the information and safety instructions provided. Follow the

instructions in the quick start guide and if necessary, refer to this advance user guide.

To discover the entire range of Eaton products, we invite you to visit our web site at eaton.com or contact

your Eaton representative.

The Eaton 3S Uninterruptible Power System (UPS) is designed for computers and their peripherals, NAS,

televisions, internet gateways, etc... It must not be used to supply other electrical equipment (lighting,

heating, household appliances, etc.). It prevents your critical equipment from power problems such as power

failures and power surges.

Page 5

614-09406-00 - 3S ANZ_EN

ENGLISH

2. Presentation

1 2

1Protected outlets

2Backup & Protected outlets

3UPS status LED

4Protection circuit breaker

5Power supply cord

6USB charging port (optional)

7Tel / xDSL surge protection (optional)

8USB COM port

9ON/OFF button

Page 6 614-09406-00 - 3S ANZ_EN

3.1 Package contents

10 Eaton 3S UPS

11 Quick start

12 Information and safety instruction

13 USB cable

600

850

Quick Start

EWOK

11 12

3.2 Recommended positions

Eaton 3S can be wall-mounted, horizontal or vertical position, the distance between screws are 230 mm for

3S600 models and 240 mm for 3S850 models.

Ø 8 mm max.

230 mm 600 VA

240 mm 850 VA

For 3S600 only do not dispose the product on the side as shown below.

3. Installation

Page 7

614-09406-00 - 3S ANZ_EN

ENGLISH

4. Connection

4.1 Power supply cord

Connect the UPS to the AC-power source through a wall outlet equipped with an earth connector, using the

cord.

OFF

4.2 Protected outlets / Backup & Protected outlets

Plug critical equipment (computer, monitor, modem, etc.) to the backup & protected outlets 2providing

battery backup power and surge protection, taking care not to exceed the rated current indicated in amperes.

Other devices (printer, scanner, fax, etc.) can be connected to the protected outlets 1that provide surge

protection only. The protected outlets are not backed up by battery power in the event of a power outage.

Equipment connected to these outlets is supplied as soon as the AC cord is plugged in.These are not affected

by ON/OFF button 9.

4.3 Tel / xDSL surge protection (optional)

Protect your Tel / xDSL line using a RJ11 cable (not provided) from the wall phone plug to the Eaton 3S

“In”port 7then connect your device to the Eaton 3S “Out” port 7.

Page 8 614-09406-00 - 3S ANZ_EN

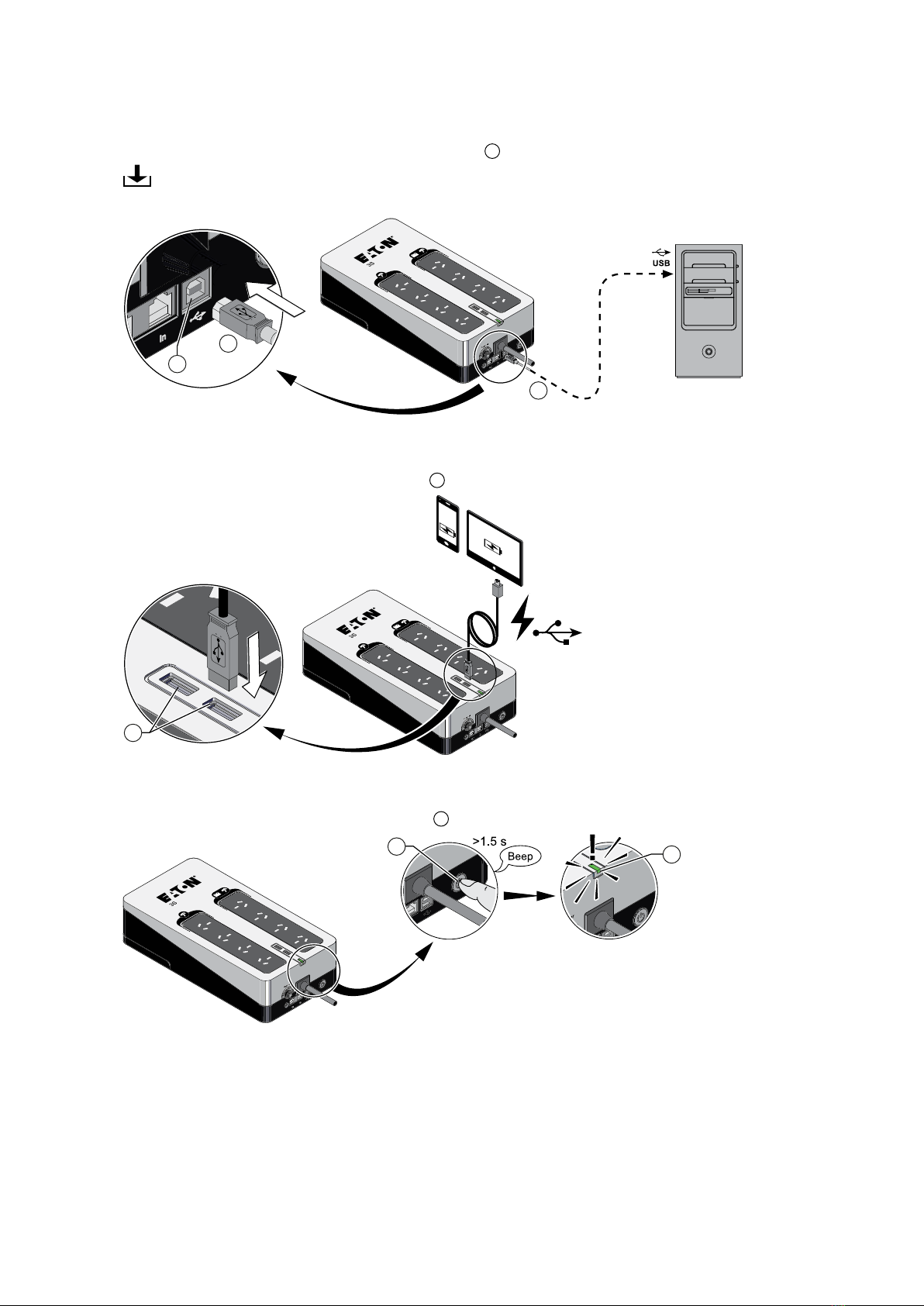

4.4 USB COM port

Connect the UPS to the computer using the USB cable 13 supplied.

Enhance your purchase by downloading the conguration tool software using URL:

http://powerquality.eaton.com/Australia/Support/Software-Drivers/default.asp?cx=22

COM models

4.5 USB charging port (optional)

Connect your device to the USB charging port 6(2A maximum).

USB

4.6 ON/OFF button

Switch on the UPS by pressing ON/OFF button 9during 1.5 second.

4.7 Register warranty

Australia:

http://powerquality.eaton.com/Australia/Product-Registration-Australia/?cx=22

New-Zealand:

http://powerquality.eaton.com/New-Zealand/Product-Registration-NZ/?cx=6

4. Connection

Page 9

614-09406-00 - 3S ANZ_EN

ENGLISH

5. Operation

5.1 Battery charge

The UPS charges the battery as soon as it is connected to the AC outlet, whether ON/OFF button 9is pressed

or not. When used for the rst time, the battery will only provide its maximum autonomy after it has been

charged for 8 hours. It is recommended that the UPS be permanently connected to the AC power supply to

ensure the best possible autonomy.

5.2 AC-power disturbance

If AC power is disturbed or fails, the UPS continues to operate on battery power. UPS status LED 3ashes

green. In normal mode, the audio alarm beeps every ve seconds, then every two seconds when the end of

battery backup time is near.

If the power outage lasts longer than the battery backup time, the UPS shuts down and automatically restarts

when power is restored. Following a complete discharge, 10 hours are required to recharge the battery back

to full backup time.

To save battery power, it is possible to press ON/OFF button 9to cut the supply of power to the devices

connected to the battery backup outlets.

5.3 Protected outlets

All protected outlets 1provide surge protection, whatever the position of ON/OFF button 9.

5.4 Equipment Care

For full battery life, keep the equipment at an ambient temperature of 25 °C (77 °F). Battery service life is

reduced by 50 % for every ten degrees above 25 °C.

If the UPS requires any type of transportation, verify that the UPS is turned off.

5.5 Battery replacement

For battery replacement follow Eaton instructions provided on:

http://powerquality.eaton.com/Australia/Products-services/Services/AU-batteries.asp?cx=22

The following precautions should be observed when working on batteries:

• shut down the UPS (ON/OFF button 9),

• disconnect the source prior to connecting or disconnecting battery terminals,

• do not wear any metal objects including watches and rings,

• do not lay tools or metal parts on top of batteries,

• it is imperative to use the same battery type and number.

CAUTION: Batteries present a risk of electrical shock or burn from high short circuit current. Observe proper

precaution. Batteries may contain HIGH VOLTAGE and CORROSIVE, TOXIC and EXPLOSIVE substances.

Because of the battery the output receptacles may carry high voltages even when the AC supply is not

connected to the UPS. Do not dispose of batteries in a re. When exposed to ame, batteries may explode.

Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes and may

be extremely toxic.

Page 10 614-09406-00 - 3S ANZ_EN

5. Operation

Battery change:

OFF

Warning: take care not to reverse the polarity + (red) and - (black) when connecting the batteries as this will

destroy the device.
