Eaton CWGA-0 Series Manual

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA_xC_LeakageStop_Battery_CWGA-0D.indd / 03.2023c / IL019288ZU / 136211217

www.eaton.com/recycling

Battery LeakageStop Detector

CWGA-0x/xx

Technical Data / Technische gegevens / Tekniske data /

Technische Daten / Technická data

Power supply

Battery CR2477N 3Vdc

Battery service life up to 5 years (TYP, when no alarm)

Alarm LED and Acoustic

Push button Alarm acknowledge

LED Multi-Color operation status

Water sensor

On device 2 contacts at the bottom

External Flat-cable water sensor support

Dimensions 51 x 46 x 18 mm (H x W x D)

RF 868.3MHz (xComfort compatible)

Max RF power 25 mW (ERP)

868.3 MHz

IP20

Instruction Leaflet

Montageanweisung

Notice d’installation

Instrucciones de montaje

Istruzioni per il montaggio



Инструкция по монтажу

Montagehandleiding



Montagevejledning

Οδηγίες εγκατάστασης

Instruções de montagem

Monteringsanvisning

Asennusohje

Návod k montáži

Paigaldusjuhend

Szerelési utasítás

Montāžas instrukcija

Montavimo instrukcija

Instrukcja montażu

Navodila za montažo

Návod na montáž

Монтажни инструкции

Instrucţiuni de montaj

Upute za montažu

Kullanma Talimatı

Инструкција за монтажу

Intruksjonsblad

Монтажна інструкція

ت اة 

On-device operating to

acknowledge alarm

Onboard water sensor or

with external sensor cable

Acoustic and LED alarm

Multi-Color Status LED

Device Color

CWGA-0D/01 Pure white

CWGZ-CB/09 Cover Jet black

CWGZ-CB/03 Cover Silver

Battery 1x CR2477N

Long battery service life

CWGA-00/01 CWGZ-CB/xx

3x 3x 1x 1x 1x 3m 1x

www.eaton.com/LeakageStop

xComfort Bridge Version 3.10

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA_xC_LeakageStop_Battery_CWGA-0D.indd / 03.2023c / IL019288ZU / 136211217

www.eaton.com/recycling

Mounting / Montage / Montage / Montering / Montage / Montáž

Warning! Device contains a small battery (< 32 mm) and should not be installed in a location

likely to be accessible to children. / Waarschuwing! Het apparaat bevat een kleine batterij

(< 32 mm) en mag niet worden geïnstalleerd op een locatie die mogelijk toegankelijk is voor

kinderen. / Advarsel! Enheten inneholder et lite batteri (< 32 mm) og bør ikke installeres på et

sted som sannsynligvis er tilgjengelig for barn. / Warnung! Das Gerät enthält eine kleine Batterie

(< 32 mm) und sollte nicht an einem Ort installiert werden, der für Kinder leicht zugänglich ist /

Varování! Zařízení obsahuje malou baterii (< 32 mm) a nemělo by být instalováno na místě,

které bude pravděpodobně přístupné dětem.

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA_xC_LeakageStop_Battery_CWGA-0D.indd / 03.2023c / IL019288ZU / 136211217

www.eaton.com/recycling

External sensor (optional) / Externe sensor (optioneel) / Ekstern sensor (valgfri) / Externer Sen-

sor (optional) / Externí senzor (volitelně)

Connect sensor cable / Sensorkabel aansluiten / Koble til sensorkabelen / Sensorkabel an-

schließen / Připojení kabelu senzoru

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA_xC_LeakageStop_Battery_CWGA-0D.indd / 03.2023c / IL019288ZU / 136211217

www.eaton.com/recycling

How to apply the sensor cable / Hoe de sensorkabel aan te sluiten / Slik bruker du sensorkabel-

en / Anbringen des Sensorkabels / Jak instalovat kabel senzoru

- Surface must be clean, dry and dust-free / Ondergrond moet schoon, droog en stofvrij zijn /

Overaten må være ren, tørr og støvfri / Oberäche muss sauber, trocken und staubfrei sein /

Povrch musí být čistý, suchý a bezprašný

- Do not to touch the exposed adhesive area at any time / Raak het blootliggende kleefgedeelte

nooit aan / Ikke berør det eksponerte limområdet / Den freiliegenden Klebebereich nicht

berühren / Nedotýkejte se odkryté lepicí plochy

- Press rmly / Druk stevig aan / Trykk fast / Fest andrücken / Pevně přitlačte

- Once mounted, the adhesive tape cannot be reused / Eenmaal gemonteerd, kan de tape niet

opnieuw worden toegepast / Når den er montert, kan ikke klebebåndet brukes på nytt / Nach

der Montage kann das Klebeband nicht wieder verwendet werden / Po namontování nelze

lepicí pásku znovu použít

Remove sensor cable / Sensorkabel verwijderen / Fjern sensorkabelen / Sensorkabel entfernen /

Odpojení kabelu senzoru

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA_xC_LeakageStop_Battery_CWGA-0D.indd / 03.2023c / IL019288ZU / 136211217

www.eaton.com/recycling

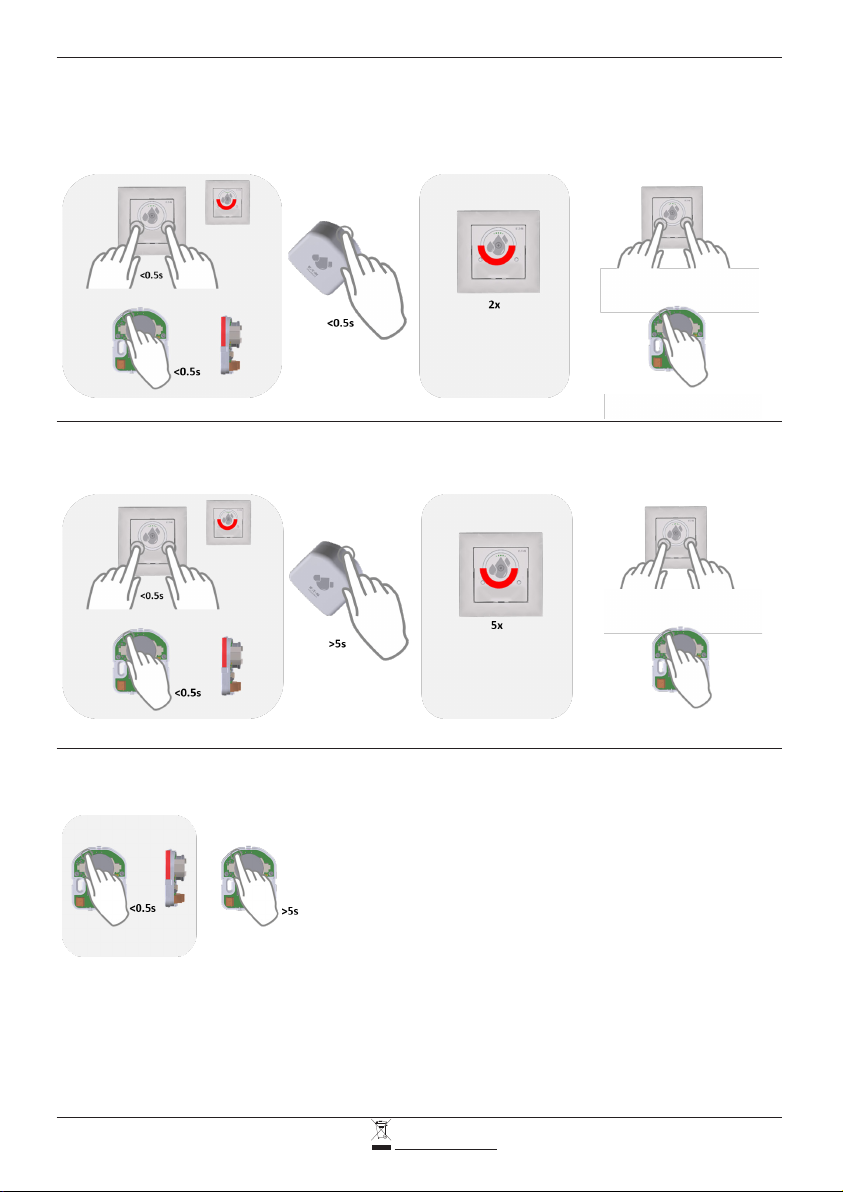

Basic mode

Connect LeakageStop Detector (Battery) / LeakageStop-detector aansluiten (batterij) / Legg til

LeakageStop Detektor (batteri) / LeakageStop-Detektor (Batterie) verbinden / Spárování detekto-

ru zaplavení (bateriový)

Remove LeakageStop Detector (Battery) / Verwijder de LeakageStop-detector (batterij) / Legg til

LeakageStop Detektor (batteri) / LeakageStop-Detektor (Batterie) trennen / Odpárování detektoru

zaplavení (bateriový)

Back to factory Default / Terug naar fabrieksinstellingen /Tilbake til fabrikkinnstilling / Zurück zu

den Werkseinstellungen / Uvedení do výrobního nastavení

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA_xC_LeakageStop_Battery_CWGA-0D.indd / 03.2023c / IL019288ZU / 136211217

www.eaton.com/recycling

LED during operation / LED tijdens bedrijf / LED under drift / LED im Normalbetrieb / LED

během provozu

Replace battery / Vervang batterij / Bytt batteri / Batterie wechseln / Vymĕnit baterii

No RF communication / Geen RF-communicatie / Ingen RF-kommunikasjion /

Keine Funk-Kommunikation / Žádná RF komunikace

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA_xC_LeakageStop_Battery_CWGA-0D.indd / 03.2023c / IL019288ZU / 136211217

www.eaton.com/recycling

Quick User Guide / Beknopte gebruikershandleiding / Hurtigveiledning / Schnellanleitung /

Stručný návod k obsluze

xComfort LeakageStop

What to do if water is detected:

Reset the sound alert by

briey (<0.5s) pressing

button A .

Check for water leakage.

Make sure that the installation

site is dry and in order.

Used with main LeakageStop device.

To open the water valve, follow the steps

for the main LeakageStop device.

Location:

<0.5s

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA_xC_LeakageStop_Battery_CWGA-0D.indd / 03.2023c / IL019288ZU / 136211217

www.eaton.com/recycling

Doc.Id.: CWGA_00-01_111121

Director Operations Director Quality

Friedrich Schröder

Gerhard Dischner

Declaration of Conformity

We, EATON Industries (Austria) GmbH

3943 Schrems, Eugenia 1

Austria

declare under our sole responsibility as manufacturer that the product (family)

Eaton - Battery LeakageStop Detector

CWGA-00/01

(the declaration of conformity applies to all

listed types within our actual product catalogue)

provided that it is installed, maintained and used in the

application intended for, with respect to the relevant manufacturer’s

instructions, installation standards and “good engineering practices”

complies with the provisions of Council directive(s):

RED Directive 2014/53/EU

RoHS Directive 2011/65/EU + 2015/863

based on compliance with following standard(s):

EN 300220-2 V3.2.1, EN 301 489-1 V2.2.3, EN 301489-3 V2.1.1, EN

IEC 63044-5-1:2019, EN IEC 63044-5-2:2019, EN IEC 63044-5-

3:2019, EN IEC 62368-1:2020 + A11:2020, EN 63000:2018

Schrems, 11.11.2021
