Eaton Durant Eclipse Series Manual de usuario
Durant®
Installation and Operation
Manual Number 57700-900-05
Durant
Eclipse Series Digital Panel Meters
Models: 5770X-40X - DC Volts
5770X-41X - AC Volts
5770X-42X - DC Amps
5770X-43X - AC Amps
5770X-44X - 5A AC
5770X-45X - Linear Process ignals
Table of Contents
1 Introduction
1 Description
3 Mounting
4 Wiring
9 Programming
14 Run Mode
14 Diagnostics
17 pecifications
Visit our Web Site
at www.durant.com
Durant
PGM
1
This manual describes the installation of Durant models 5770X-40X through 5770X-
45X digital panel meters (DPMs). This manual steps through the installation of the
DPM in a logical order. First is a brief description of the base unit and the plug-in
option boards. Next comes mounting information, wiring diagrams (including DIP
switch settings), and programming instructions. This is followed by run mode in-
structions that the operator may need. Finally, this manual contains diagnostic test
and calibration information and specifications.
DESCRIPTION
Base Unit
The DPM converts a linear, analog voltage or current input signal into a digital read-
out for the observer. The display can be scaled to read out in units other than volts or
amps. For instance, a pressure sensor may put out a 4-20 mA signal over a range of
0-100 P I. In this case, the DPM could be scaled to show 0 at 4 mA in, and 100 at 20
mA in. The range of the display is full four digits, with sign (-9999 to 9999). In addition
to the present reading, the unit will also display the captured maximum and mini-
mum readings. The base unit contains slots for mounting optional, plug-in circuit
boards for relay output, analog retransmission, and serial communication capabili-
ties.
Relay Output Option Board
The optional relay board contains two form C (normally open and normally closed
contacts) relays, called relay 1 and relay 2. Each relay has an adjustable high and
low setpoint. The relays act as alarms by turning on when the value on the display is
greater than the high setpoint OR is less than the low setpoint. If the low setpoint is
greater than the high setpoint, the relay turns on when the value on the display
meets both conditions; less than the low setpoint AND greater than the high setpoint.
If relay 1 is ON, the digital display will flash, visually indicating the alarm condition to
the operator.
Once a relay turns ON, it stays ON until the displayed value returns back across the
setpoint and then some. The and then some is called hysteresis. Hysteresis is a
programmable value that is common to both setpoints and both relays. This means
that a relay turns OFF when the display is less than or equal to the high setpoint
minus the hysteresis value, or when the display is greater than or equal to the low
setpoint plus the hysteresis value. hould an overlap occur between ON and OFF
conditions, the ON condition overrides the OFF condition.
INTRODUCTION/ DESCRIPTION
2
Example: Relay Output Operation
High etpoint = 4 Relay ON above 4
Low etpoint = -3 Relay ON below -3
Hysteresis = 2 Relay OFF below 2 and above -1
OFF
ON ON
Display
Value
OFF
-5 -4 -3 -2 -1 1 2 3 4 5
0
ON
ON
Analog Retransmission Option Board
The optional analog output board provides linear 0-10 V and 4-20 mA signals. When
the displayed value is equal to the programmed output offset value, the output volt-
age is zero and the output current is 4 mA. When the displayed value is equal to the
programmed output full scale value, the output voltage is 10 V and the output current
is 20 mA.
When the displayed value is between the output offset and output full scale value:
1. The output voltage = 10 X (displayed value - output offset)
(output full scale - output offset) V,
2. The output current = 16 X (displayed value - output offset)
(output full scale - output offset) mA + 4 mA
RS 485 Serial Communications Option Board
The optional serial communication board allows a host device to download and read
programming parameters and to read status information from the DPM, such as
display value, relay status, etc.
This manual does not contain information on the serial communication protocol or
the serial command list. That information is contained in the 57700 serial specifica-
tion and is obtainable by contacting the Durant Literature Department at 800-540-
9242 (U. . and Canada), or 920-261-4070, or by FAX at 920-261-9097.
DESCRIPTION cont.
3
Mounting
Mounting clips and screws shown in installed positions.
Mounting Instructions
1. lide mounting gasket (not shown) over unit body until adhesive surface
makes contact with the front bezel.
2. lide unit into cutout in panel.
3. Attach mounting clips and screws.
4. Tighten screws until unit is firmly in place. DO NOT OVERTIGHTEN screws
to the point of squeezing the gasket out from behind the bezel.
MOUNTING
3.622 .031±
[92.0]
1.772 .024±
[45.0]
PANEL CUTOUT
MAX. PANEL THICKNESS .190 [4.8]
2.19
4.04
.27
3.63
3.31
4
WIRING AND DIP SWITCHES
All wiring to the DPM is done via rear terminal, de-pluggable connectors. Up to five
headers accept the wired connectors on the DPM. All units have at least two head-
ers, power input and signal input. Any combination of three additional circuit boards
with headers may be installed. These option boards are relay output, R 485 serial
communications, and analog retransmission. The option boards occupy specific
locations in the DPM and are not interchangeable. All boards are keyed to prevent
installation in the wrong location.
Disconnect all power efore wiring terminals. A safety hazard exists if
this precaution is not o served. Treat all control and count inputs as haz-
ardous since they may carry line voltage.
Rear Terminal Layout
Relay
Output
Connector
RS485
Communications
Connector
Analog
Output
Connector
DIP Switch
3 Position for 5AAC
and Process DPM
6 Position for AC/DC
Voltage and Current
Signal Input
2 Terminals for AC/DC
Voltage and Current
and 5A AC
4 Terminals for Process DPM
Power Input
2 Terminals for DC
Powered Units
3 Terminals for
AC Powered Units
Durant
®
111
1
11
Terminal Connector Ratings:
AC or DC Power Input / Relay Output / ignal: 10A, 250VAC;
Wire size: 12-24AWG (3.1mm2 - 0.24mm2), 600V.
R 485 / Analog Output / ignal: 8A, 125VAC;
Wire size: 16-28AWG (1.3mm2 - 0.1mm2), 300V.
WIRING
5
Wiring and DIP Switches

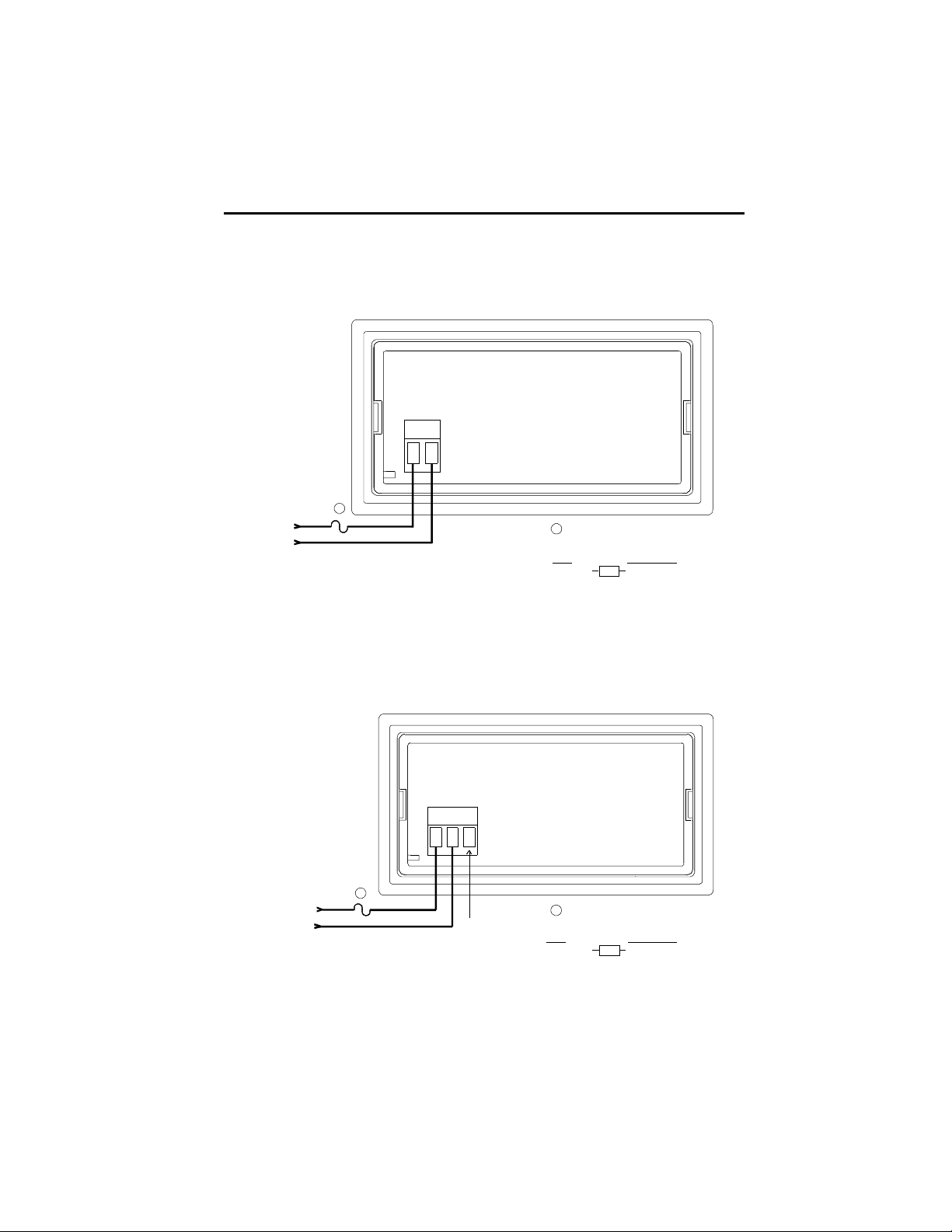

DC Power Input (for DC powered models 57700-4XX)
Durant
®
1
1
Power In
+
9-30 VDC
-
No Internal Fuse
1
{
External Fuse Size
U.S. European
2 AMP, 50 V
Time Delay T2A, 50 V
Time Delay
12 VA
AC Power Input (for AC powered models 57701-4XX)
No Internal Fuse
1
Power In L1
85-265 VAC L2
47-63 Hz
20 VA
Not
Used
1
Durant
®
1
{
External Fuse Size
U.S. European
0.2 AMP, 250 V
Time Delay T200mA, 250 V
Time Delay
WIRING cont.
6
Signal Input for AC/DC Voltage and Current and 5A AC
1
Durant
®
2
3
DIP Switch
Positions
1 4
1
AC L1 or DC +
AC L2 or DC -
4
AC/DC Voltage and Current DIP switch selectable ranges:
witch 4 ON - 200 V / 200 mA witch 2 ON - 2.0 V / 2.0 mA
witch 3 ON - 20 V / 20 mA witch 1 ON - 0.2 V / 0.2 mA
ee pecifications (pages 17-19) for Input Impedances and Overrange
Signal Input for Process DPM Model 5770X-45X
Durant
®
Use shielded cable
for input signal
(not shown)+24 VDC Out
4-20 mA + In
0-10 V/1-5V + In
X
Common
24 VDC - Out
4-20 mA - In
0-10 V - In
()
1
24 VDC Transducer Output Power Ratings:
24 VDC, 90 mA maximum, short circuit protected
ee pecifications (pages 17-19) for Input Impedances and Overrange
WIRING cont.
7
Relay Output Option Board
Typical Wiring
Durant
®
1
Terminal Designation
Relay
2
Relay
1
External
Power
6
5
4
3
2
1
Load
1
6
5
4
3
2
1
Contact Ratings
5 A @250 VAC or 30 VDC maximum
1
An RC surge suppressor is recommended across all inductive loads.
RS 485 Communication Option Board
Durant
®
1
485
+
485
-
Common
To Host Serial Port
WIRING cont.
8
Analog Output Option Board
Durant
®
4-20 mA
+
1
0-10 V
+
Common
4-20 mA
-
0-10 V
-
()
Output Ratings
4-20 mA into 750 W (Ohms) maximum
0-10 V into 2500 W (Ohms) minimum
General Wiring Practices
An emergency stop switch should be included in the installation:
It shall be in close proximity to the equipment and within easy reach of the
operator.
It shall be marked as the disconnecting device for the equipment.
witches and circuit breakers in Europe must comply with IEC 947.
Other considerations:
Use shielded cables for signal and control inputs.
Keep all signal lines as short as possible (< 30 meters or 100 feet).
Do not bundle or route signal lines with power or machine control wiring.
Do not allow signal or control lines to leave the building.
WIRING cont.
9
PROGRAMMING
Entering the Program Mode
Note: If the optional relay output and/or analog output board(s) are installed
in the DPM, entering the program mode will cause both relays to turn off and
the analog output to go to its minimum values (0V and 4 mA) regardless of
the input signal value.
To enter the program mode:
1. Flip the rear terminal program enable DIP witch ON.
Durant
®
3X DIP SWITCH
#3
ON
111
11
1
5A AC / PROCESS
Durant
®
6X DIP SWITCH
#6
ON
11
1
11
1
AC/DC VOLTS, AC/DC CURRENT
2. Press and hold the front panel program key (
PGM
); the display will say run:
Durant
PGM
3. Press the up or down arrow key or while holding (
PGM
); the pro-
gram LED will turn ON and the display will show a parameter name.
PGM
Durant
PROGRAMMING
!
