Eaton CRCA-00/08 Manual

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-crca-00-08/09.qxd/07.2019j / IL019122ZU / 136211189

www.eaton.com/recycling

Instruction Leaflet

Montageanweisung

Notice d’installation

Instrucciones de montaje

Istruzioni per il montaggio



Инструкция по монтажу

Montagehandleiding



Montagevejledning

Οδηγίες εγκατάστασης

Instruções de montagem

Monteringsanvisning

Asennusohje

Návod k montáži

Paigaldusjuhend

Szerelési utasítás

Montāžas instrukcija

Montavimo instrukcija

Instrukcja montażu

Navodila za montažo

Návod na montáž

Монтажни инструкции

Instrucţiuni de montaj

Upute za montažu

Kullanma Talimatı

Инструкција за монтажу

Intruksjonsblad

Монтажна інструкція

ت ا ة 

xComfort Room Controller Touch

CRCA-00/08 ... CRCA-00/13

868.3 MHz

IP20IP20

0oC

+C*40o

-25 C

+70 C

Technical Data / Technische gegevens / Tekniske data /

Technische Daten / Technická data

Power Supply

Batteries 3V via 2x LR03 (AAA)

External power supply 12-24 VDC/AC

Internal Temperature sensor

Range 0 - 40oC

Accuracy + 0.5oC

External Temperature sensor PT-1000

Humidity sensor

Relative humidity range 5 - 95%

Accuracy + 5% rH

Connections

Stripping length 6 mm

Cross section

Solid core 0.14 - 0.5 mm²

Stranded core 0.2 - 0.5 mm²

Dimensions

(H x W x D) 55 x 55 x 21 mm

Controller Type Color

CRCA-00/08 Temperature, Humidity Pure white

CRCA-00/09 Temperature, Humidity Anthracite

CRCA-00/10 Temperature, Humidity Traffic white

CRCA-00/11 Temperature, Humidity Alpine white

CRCA-00/12 Temperature, Humidity Signal white

CRCA-00/13 Temperature, Humidity Jet black

Temperature

Humidity

External (Floor)

Temperature Sensor

Optional: External

Power Supply 24V

AC/DC

LR03 AAA

Compatible

with

55x55mm

MRF Version 2.53

RM Version V41c

SHC-RF Version 2.20

ECI-RF Version 2.10

USB-RF Version 2.10

136211189_136211189 08.07.2019 11:51 Seite 1

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-crca-00-08/09.qxd/07.2019j / IL019122ZU / 136211189

www.eaton.com/recycling

1a 1b

Click

External Power Supply

(Floor) Temperature Sensor

Power Supply

CMMZ-00/12

CMMZ-00/13

Temperature Sensor

CSEZ-01/01

CSEZ-01/36

Merten Gira Busch Jaeger Jung Berker Siemens Elko Kopp

1-M Standard 55 Carat* AS S.1 Delta line RS16 Alaska

Atelier M E2 Pur Edelstahl* A 500 B.1 Delta vita Plus

M-Smart Event Solo* A plus B.3 Delta miro

M-Arc Esprit Future* A creation B.7 Glas Delta profil**

M-Star Profil 55 Future linear*

M-Plan E22 CZ Future*

M-Plan II Busch-balance® SI

M-Plan Metall

M-Plan Glas

* only with intermediate frame Busch&Jäger

** only with intermediate frame Siemens

Mounting / Montage / Montering / Montage / Montáž

Wiring diagram/ Aansluitschema / Koblingskjemaer / Anschlussplan / Schéma zapojení

(Optional / Optioneel / Valgfri / Optional / Volitelné):

- External power supply / Externe voiding/ Ekstern strømforsyning / Externe Stromversorgung / Externí napájení

- (Floor) Temperature sensor / (Vloer) Temperatuur sensor / (Gulv) Temperatur sensor / (Boden) Temperatursensor /

(Podlahové) Teplotní čidlo

LR03 AAA-Micro 1,5V

136211189_136211189 08.07.2019 11:51 Seite 2

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-crca-00-08/09.qxd/07.2019j / IL019122ZU / 136211189

www.eaton.com/recycling

Reference 21 C

Reference - RC = Offset

123

7910

Offset / Offset / Offset / Abgleich / Offset:

Positioning / Positionering / Plassering / Positionierung / Umístění:

136211189_136211189 08.07.2019 11:51 Seite 3

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-crca-00-08/09.qxd/07.2019j / IL019122ZU / 136211189

www.eaton.com/recycling

Press

> 5 Sec.

Back to factory default /

Terug naar fabrieksinstellingen /

Tilbake til fabrikkinstillinger /

In Auslieferungszustand zurücksetzen /

Obnovit tovární nastavení

Assign or Remove device /

Apparaat toewijzen of verwijderen /

Tildele eller fjerne enheten /

Zuweisen oder Entfernen von Geräten /

Přiřazení nebo odebrání zařízení

Stop basic mode or cancel operation /

Stop basic mode of actie annuleren /

Stopp basic mode eller avbryte operasjonen /

Stoppe Basic mode oder Vorgang abbrechen /

Ukončit základní režim nebo zrušit operaci

Select Device / Selecteer apparaat / Velg enhet /

Gerät auswählen / Vybrat zařízení

Device; Function; Type / Apparaat; Functie; Type / Enhet; Funksjon; Type / Gerät; Funktion; Typ / Zařízení; funkce; typ

Heating; Heating Actuator / Verwarming; Verwarmingsactor / Oppvarming; Varmeaktuator /

Heizung; Heizungsaktor / Topení; Aktor topení

Heating; On/Off Actuator / Verwarming, Aan/Uit Actuator / Oppvarming; På/Av-aktuator /

Heizung; Ein/Aus Aktor / Topení; Zapnuto/Vypnuto aktor

60-59-58...

60 Sec.

>5 Sec.

Timeout > 30 Sec.

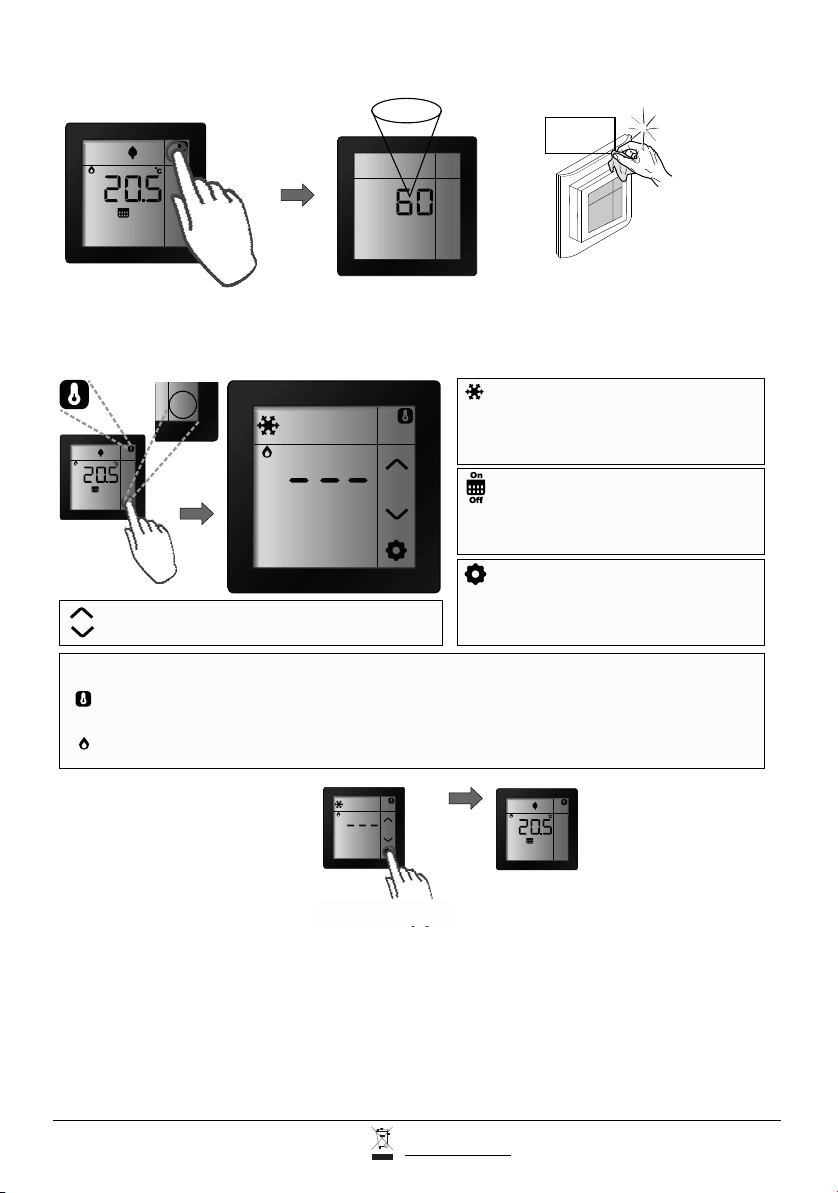

Cleaning / Reinigen / Rengjøring / Reinigung / Čištění:

Basic Mode:

Start basic mode / Start basic mode / Start Basic Mode / Starte Basic Mode /

Spustit základní režim

Stop basic mode /

Stopp Basic Mode /

Stoppe Basic Mode /

Ukončit základní režim

136211189_136211189 08.07.2019 11:51 Seite 4

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-crca-00-08/09.qxd/07.2019j / IL019122ZU / 136211189

www.eaton.com/recycling

Assign or remove device / Apparaat toewijzen of verwijderen / Tildele eller fjerne enheten /

Zuweisen oder Entfernen von Geräten / Přiřazení nebo odebrání zařízení

Select

Device

Assign or

Remove

Actor in

Program

mode

Confirm

Stop

Actuator

Program

mode

Back to factory default / Terug naar fabrieksinstellingen / Tilbake til fabrikkinstillinger / In

Auslieferungszustand zurücksetzen / Obnovení továrního nastavení

Select

Confirm

Cancel

Selected device is blinking /

Geselecteerde apparaat knippert /

Valgt enhet blinker / Ausgewähltes

Gerätsymbol blinkt / Vybrané

zařízení bliká

CON: Assign device / Apparaat toewijzen /

Tildele enheten / Gerät zuweisen /

Přiřazení zařízení

DEL: Remove device / Apparaat verwijderen /

Fjerne enheten / Gerät entfernen /

Odebrání zařízení

136211189_136211189 08.07.2019 11:51 Seite 5

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-crca-00-08/09.qxd/07.2019j / IL019122ZU / 136211189

www.eaton.com/recycling

Week program active

Floor regulation active

Low battery

Status info

Frost protection

Night / Standby

Economy

Day / Comfort

Active operation mode

Frost protection

Night / Standby

Economy

Day / Comfort

Select operation mode

Temperature

Humidity

Clock

Outdoor temperature

Select view

Heating mode

Cooling mode

Off

Select

Enter edit mode

Heating

Cooling

Ventilation

Request status

2 virtual pushbutton

Optional

Program ON

Program OFF

Select week program

Temporaty adjust temperature

Enter operation mode - menu

Quick User Guide / Quick User Guide / Hurtigveiledning /

Schnellanleitung / Stručný návod k obsluze

Main menu

Hoofdmenu / Hovedmeny /

Hauptmenü / Hlavní menu

Operation mode - menu

Operation mode -menu / Driftsmodus - menyen /

Betriebsart - Menü / Provozní režim - nabídka

136211189_136211189 08.07.2019 11:51 Seite 6

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-crca-00-08/09.qxd/07.2019j / IL019122ZU / 136211189

www.eaton.com/recycling

Frost protection

Night / Standby

Economy

Day / Comfort

Edit operation mode

Edit week program

Leave edit mode

Change set-point

Edit mode - menu

Edit mode - menu /Redigeringsmodus - menyen /

Edit-Modus - Menü / Editační režim – nabídka

EN: For the extended user guide and other detailed information about xComfort visit

www.eaton.eu/xcomfort or www.xcomfort.com or use the QR-code

DE: Für das erweiterte Benutzerhandbuch und detaillierte Informationen zum xComfort System

besuchen Sie www.eaton.eu/xcomfort oder www.xcomfort.de oder verwenden Sie den QR-code

AT: Für das erweiterte Benutzerhandbuch und detaillierte Informationen zum xComfort System

besuchen Sie www.eaton.eu/xcomfort oder www.xcomfort.at oder verwenden Sie den QR-code

NO: For en mer omfattende brukerveiledning og mer informasjon om xComfort, besøk

www.xcomfort.no eller ww.eaton.eu/xcomfort, eller bruk QR-koden

NL: Voor de uitgebreide gebruikershandleiding en meer gedetailleerde informatie over xComfort ga

naar www.eaton.nl/xcomfort of www.xcomfort.nl of maak gebruik van de QR-code

CZ: Pro podrobnější návod k obsluze a další podrobné informace o xComfort návštěvy

www.eaton.eu/xcomfort nebo www.xcomfort.cz nebo použijte QR kód

136211189_136211189 08.07.2019 11:51 Seite 7

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-crca-00-08/09.qxd/07.2019j / IL019122ZU / 136211189

www.eaton.com/recycling

- type examination performed by:

TÜV Austria Services GmbH, Notified Body

1230 Vienna, Deutschstrasse 10, Austria

Affixing date of CE mark:

2016

Doc.Id.:

CRCA-00xx_020818

Senior Vice President Director Quality

General Manager & Systems

Friedrich Schröder

Fernando Ceccarelli

Declaration of Conformity

We, EATON Industries (Austria) GmbH

3943 Schrems, Eugenia 1

Austria

declare under our sole responsibility as the manufacturer that the product (family)

Eaton - Room Controller Touch,

CRCA-00/xx (contains RF-Modul CSCZ-01/xx)

(the declaration of conformity applies to all

listed types within our actual product catalogue)

provided that it is installed, maintained and used in the

application intended for, with respect to the relevant manufacturers

instructions, installation standards and “good engineering practices”

complies with the provisions of Council directive(s):

RED Directive 2014/53/EU

RoHS Directive 2011/65/EU

based on compliance with following standard(s):

EN 301489-3 V2.1.1, EN 300220-2 V3.1.1, EN 50491-5-1:2010, EN

50491-5-2:2010, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 +

A2:2013, EN 62479:2010, EN 50581:2012

02.08.2018

136211189_136211189 08.07.2019 11:51 Seite 8

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Eaton

Eaton

Eaton xComfort CSAP-01/XX Manual de usuario

Eaton

Eaton DS7-34 SX041N0 Series Manual

Eaton

Eaton Cutler-Hammer ATC-300 Manual de usuario

Eaton

Eaton S811+N37 series Manual de usuario

Eaton

Eaton CGLine+ Instrucciones de funcionamiento y mantenimiento

Eaton

Eaton XC-303 Series Manual

Eaton

Eaton EM4-201-DX2 Manual de usuario

Eaton

Eaton EC500 Manual de usuario

Eaton

Eaton CGLine+ Web-Controller Manual de usuario

Eaton

Eaton Cutler-Hammer Easy-Start ES Series Manual de usuario

Eaton

Eaton COOPER POWER SERIES Manual de servicio

Eaton

Eaton MMX11 Series Manual de usuario

Eaton

Eaton xComfort CJAU Series Manual de usuario

Eaton

Eaton xComfort CDAE-01/01 Manual de usuario

Eaton

Eaton A200 Manual

Eaton

Eaton FDF120 Manual de instrucciones

Eaton

Eaton XV-102 Series Manual de usuario

Eaton

Eaton Cutler-Hammer LMR Manual de usuario

Eaton

Eaton CDAE-01/05-I Manual de usuario

Eaton

Eaton Cutler-Hammer Pow-R-Command JCI-100 Manual

Eaton

Eaton RMQ-Titan M22 Series Manual

Eaton

Eaton S611 Manual de usuario

Eaton

Eaton xComfort Bridge Manual de lista de piezas

Eaton

Eaton Greengate PPS-5 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
