Chapter 1 Hardware

Overview

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

Chapter 1 Contents

1.1 Syestem Feature ....................................................................................................... 3

1.2 System Unit Components .......................................................................................... 8

1.3 Solid State Drive (SSD)........................................................................................... 13

1.4 Power Supply........................................................................................................... 14

1.5 Batteries ................................................................................................................... 15

1.51

Main Battery................................................................................. 15

1.52

Battery Charging Control ............................................................. 15

Figures

Figure 1-1 ID Parts Description Placement ......................................................................6

Figure 1-2 Computer Block Diagram ...............................................................................7

Figure 1-3 System Board Configurations .........................................................................7

Figure 1-4 System Unit Block Diagram ...........................................................................8

Figure 1-5 Solid state driver ...........................................................................................13

Tables

Table 1-1 SSD Specifications.........................................................................................14

Table 1-2 Battery Specifications.....................................................................................15

Table 1-3 Quick/Normal Charging Time........................................................................16

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

1.1 System Features

Dynabook Satellite C50/Pro C50 is a Slim and Light entry notebook PC based on the

mobile Intel Ice Lake U series Processor, providing high-speed processing capabilities

and advancedfeatures. The computer employs a Lithium Ion battery that allows it to be

battery-operated for a longer period of time. The display uses 15.6-inch FHD and HD

LED panel, at a resolution of 1920x1080 and 1366x768. The CPU package is BGA

type.

The computer has the following features:

Processor

•CPU is mobile Intel Ice Lake U

Processor:

Intel Ice Lake U i3 CPU

i3-1005G1 (1.20G)

Intel Ice Lake U i5 CPU

i5-1035G1 (1.00G)

Intel Ice Lake U i7 CPU

i7-1065G7 (1.30G)

Host Bridge System Controller

System Controller: Intel integrated Host bridge system into CPU.

Graphics

Internal: Intel Ice Lake -U

integrated.

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

Memory

The computer has 1 SO-DIMM DDR4 memory particles which support single

channel. DDR4 is driven at 1.2V. It can incorporate up to 16GB of memory

configuration.

Using the following sizes of memory configuration:

4096 MB SO-DIMM DDR4-3200MHz

8192 MB SO-DIMM DDR4-3200MHz

16384 MB SO-DIMM DDR4-3200MHz

Solid State Drive (SSD)

The computer accommodates SSD with following types:

SATA SSD M.2 128GB/256GB/512GB

Display

LCD displays come in the following type at resolution 1920x1080 and

1366x768:

15.6” FHD 250nits eDP 1920x1080 LED display

15.6" HD 220nits eDP 1366x768 LED display

On-Board LAN

The internal LAN supports 10/100/1Gbit Ethernet, enabling connection to a

LAN at up to 1Gbps. It supports Wake-up on LAN from S3/S4/S5 and PXE

boot support. This internal LAN has RJ45 jack to directly accommodate a LAN

cable.

Wireless LAN

The internal Mini Card slot supports, Intel Jefferson Peak1, 802.11ac+BT5.0

and Intel Harrison Peak2, 802.11ax+BT5.1 Wireless LAN cards. The Antenna

has two wires dual band.

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

Sound System

REALTEK ALC256 integrated audio controller supports multimedia. The sound

system contains the following:

Stereo speakers

External microphone &Headphone combo jack

Integrated microphone (with Webcam)

Keyboard

many kinds’ countries keyboard, which is Non-backlight keyboard with

UK/US/JP keyboard.

Pointing Device

Click Pad pointing device support. Gesture support for precision function as

Tapping/Tap and Drag/Pinch zoom/Up to 4 fingers.

USB Port

The computer has three USB ports, two for USB3.0 type A , Another One is

USB type C (USB3.1 Gen1/DP/PD). High-Speed USB3.0/3.1 allows data

transfers up to 5Gbps

HDMI Out Port

A HDMI monitor can be connected to HDMI Out Port on the computer.

Bridge Media Slot

This slot is for your memory card requirements like SD/Mini SD (need

adaptor)/Micro SD (need adaptor)/SDHC/SDXC and MMC Cards to provide

memory card read on your computer.

Webcam with embedded internal microphone

The computer has an internal camera. It supports HD (0.9M) with Camera

shutter. It also supports Camera LED, LED is on when Camera working. The

internal microphone is embedded in this camera module.

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

Battery

The computer has a 2 Cell (6000mAh) Lithium Ion battery pack.

Figures 1-1/1-2/1-3 and 1-4 show the computer and its system unit

configuration, respectively.

Figure 1-1 ID Parts Description Placement

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

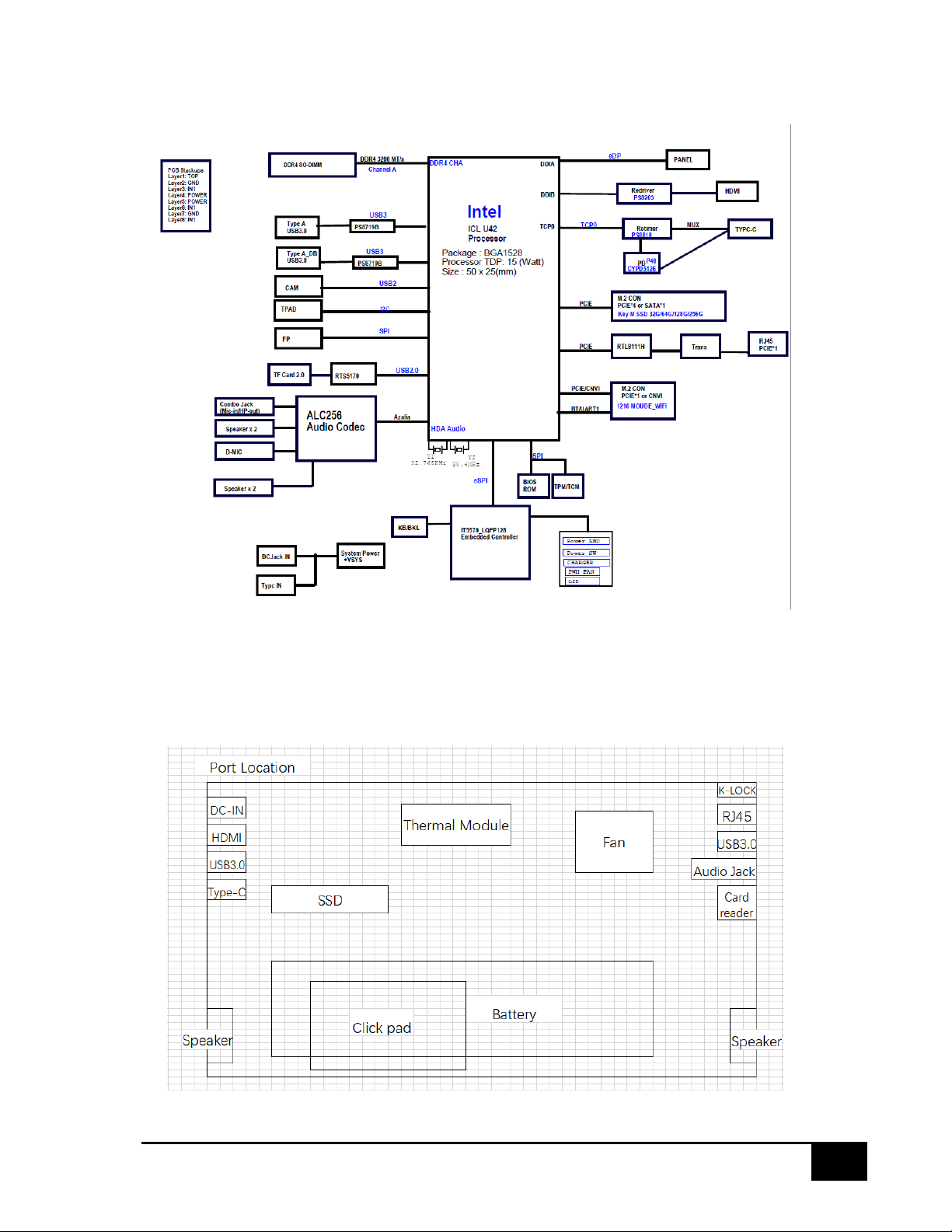

Figure 1-2 Computer Block Diagram

Figure 1-3 System Board Configurations

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

1.2 System Unit Components

Figure 1-4 System Unit Block

Diagram

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

The system unit of the computer consists of the following components:

Processor: CPU is mobile Intel Ice Lake U Processor:

Intel Ice Lake U i3 CPU

i3-1005G1(1.20G)Hz

Intel Ice Lake U i5 CPU

i3-1035G1(1.00G)Hz

Intel Ice Lake U i7 CPU

i7-1065G7(1.30G)Hz

Memory: The computer has 1 SO-DIMM DDR4 memory particles which support

single channel. It can incorporate up to 16GB of memory configuration.

PC4-3200 (3200MHz) SO-DIMM DDR4 supported

DDR4 1.2V operation

Data transfer rates: PC4-3200 on i3/i5/i7 CPU

BIOS ROM (Flash memory)

SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

Storage Size

Nv Storage size: 128K

NVRAM_BACKUP size: 192k

FV_MAIN_WRAPPER size: 4992k

FV_MAIN_WRAPPER free space: 2609k

FV_DATA size: 832k

FV_DATA free space: 3k

FV_NETWORK_WRAPPER size: 2240k

FV_NETWORK_WRAPPER free space: 1648k

FV_BB size: 448k

FV_BB free space: 65k

FV_BB_AFTER_MEMORY_WRAPPER size: 256k

FV_BB_AFTER_MEMORY_WRAPPER free space: 62k

FV_FSP_S size: 576k

FV_FSP_S free space: 215k

FV_FSP size :448K

System Controller

Mobile Intel integrated ICE Lake into CPU.

System Memory Interface

Technology Enhancements of Intel Fast Memory Access

System Memory Frequency

DRAM Clock Generation

DRAM Reference Voltage Generation

Processor Graphics Controller(GT)

Digital Display Interface(DDI)

Platform Environmental Control Interface(PECI)

Advanced Configuration and Power Interface

(ACPI)states supported

Processor Core Power Management

Integrated Memory Controller (IMC) Power Management

Graphics Power Management

Intel Turbo Boost Technology 2.0 Power Control

Configurable TDP (cTDP) and Low Power Mode

Adaptive Thermal Monitor

Digital Thermal Sensor

Intel Memory Thermal Management

Scenario Design Power(SDP)
