Dymo XTL 300 Manual de usuario

No part of this document or the software may be reproduced or transmitted in any form or by any

means or translated into another language without the prior written consent of Sanford, L.P.

Reserved.

Trademarks

DYMO and XTL are trademarks or registered trademarks in the US and other countries. All other

trademarks are the property of their respective holders.

This guide describes some of the features of your XTL™300 label maker. Read

the following sections to start using your label maker.

Registering Your Label Maker

Visit www.dymo.com/register to register your label maker online. During the

registration process, you will need the serial number, which is located inside the

label compartment cover.

Notification of software upgrades by email

Special offers and new product announcements

For complete information on using your label maker, download

the XTL™300 User Guide from one of the following locations:

support.dymo.com



From the

Help

menu within

DYMO ID™

software (free download)

By using the QR code to download to your mobile device.

Download the latest version of

DYMO ID™software from the

DYMO Web site at

support.dymo.com.

You will receive notifications

through DYMO ID™software

when software and label maker

updates are available.

Quick Start Guide

ENG

Unpacking your Label Maker

Do not connect the label maker to your computer until after the software

installation is complete.

1Unpack your label maker and save the packing materials.

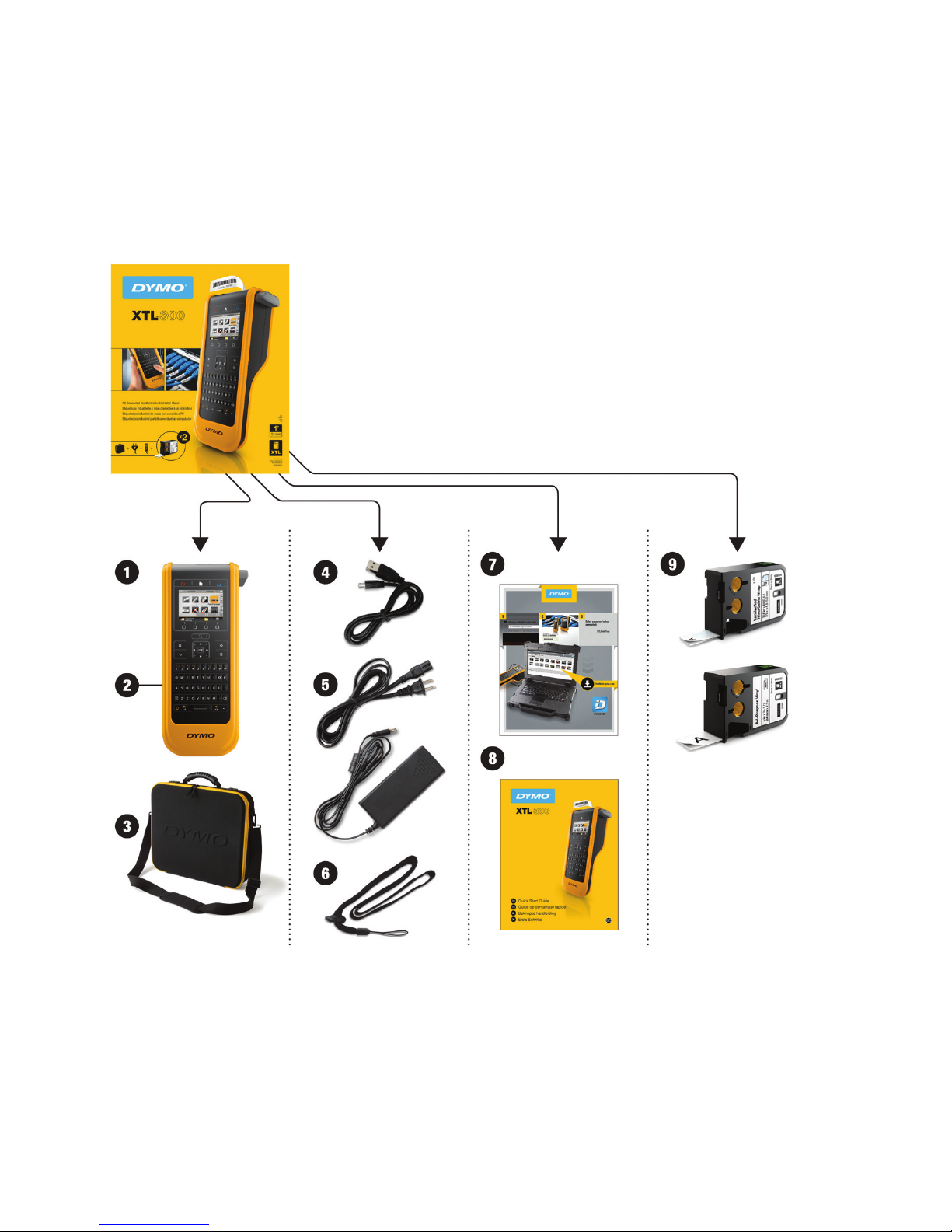

2Make sure you have all the items shown in Figure 1.

Package Contents

1XTL 300 label maker 4USB cable 7Software download card

Rechargeable lithium

polymer battery (installed)

Carrying case

(Kit model only)

AC power adapter

and power cord

Lanyard

Quick Start Guide

XTL label cartridges

(quantity and type may vary)

Figure 1

*Kit model includes

two label cartridges

Inserting the Label Cartridge

Your label maker uses DYMO XTLTM label cartridges, available in a variety of

widths and materials including continuous tape and pre-sized labels. Visit

www.dymo.com for information about purchasing label cartridges.

Press the button on the top of the label

maker and lift the label compartment

cover. See Figure 2.

Make sure the tape and ribbon are taut

across the mouth of the label cartridge

and that the tape passes between the

label guides. See Figure 3.

To tighten the ribbon, turn the ribbon

rewind spool in the direction indicated

by the arrow on the cartridge.

Do not touch the electronic chip on the

side of the label cartridge.

Insert the label cartridge and press

firmly until the cartridge ‘clicks’ into

place.

Close the label compartment cover.

Press

and lift

Figure 2

Figure 3

Do not

touch!

Label

guides

Ribbon

rewind

Charging the Battery

The label maker is powered by a rechargeable, lithium polymer (LiPo) battery. The

battery, included with your label maker, is already installed and is shipped partially

charged.

A power adapter is included with your label maker for recharging the battery. Fully

charging the battery will take approximately 2.5 hours.

Make sure to read the LiPO Safety Precautions found on page 11.

Lift the connector cover on the side

of the label maker and turn

clockwise. See Figure 4.

Plug the power cord into the power

adapter. See Figure 5.

Plug the power adapter into the power connector, and then plug the power cord

into a power outlet. See Figure 5.

Figure 4

Lift and turn

clockwise

Figure 5

Power adapter

Power cord

Power connector

Printing Your First Label

The first time you turn on the power, you are asked to select the languageand

units of measure. These selections remain set until you change them.

Refer to the User Guide available at support.dymo.com for complete details on

using your label maker.

Press to turn on the label

maker.

If necessary, change the

language and units of measure

when prompted.

Using , select

General, and select the label

orientation and length.

Enter some text.

Change the text size and

formatting as desired.

Press .

Press and hold to change

the print and cut options.

Press to cut the label.

Remove the paper backing from

the label to expose the adhesive

and place the label on a clean,

dry surface.

Text size

Format+

Enter text

Press:

Remove split

backing

Continuous labels Pre-sized labels

Peel label

from backing

Getting to Know Your Label Maker

Become familiar with the features shown.

1On/Off 9Save 17 Caps lock

2Home 10 Numeric/Symbol keys 18 Navigation

3Print/Print options 11 Backspace/Delete 19 Back

4Cutter 12 Return 20 New label/Clear

5LCD display 13 Rotate/Align 21 OK

6Function keys 14 Space bar 22 Power

7Zoom 15 Text size/Text style 23 USB

8Favorites 16 Shift

Home Screen

The following figure shows the major features available from the Home screen.

A number of label applications are available for your specific labeling job:

Tips:

Use the navigation and keys to select a label application.

You can create any label by selecting the appropriate label application with a

compatible label cartridge inserted.

A caution symbol appears when a label application and the selected

label cartridge are not compatible.

Label applications appropriate for the currently inserted label cartridge will

appear to the left of those label applications that cannot be printed on the

label cartridge.

Quick Cable wrap Patch panel 110-block Laminated

cable wrap

Terminal

block

Asset

tracking

General Flag Distribution

panel

Horizontal

breaker

Heat-shrink

tube

Vertical

breaker

Materials

management

Open a saved label

Label

applications

Change the

settings

Continue editing

the current label

Current label

cartridge Battery status

Label Editor

The following figure shows the features common to most of the label editors.

Refer to the User Guide available at support.dymo.com for complete details on

using your label maker.

Properties

Change the label properties to customize your label.

Insert

Add a text box, barcode, or image object (the objects available depend

on the label type selected).

Serialize

Automatically fill panel labels, or automatically create a series of single

labels.

Go to

View a series of labels, one at a time. Locate label errors.

Set label

properties Add text,

barcode,

or image

Create a

series of

labels

View

labels

Current label/Number of labels Label length

Text object

border

Using the Label Maker with Your Computer

Your label maker can be used as a standalone label maker or you can print

labels directly from your computer using the latest version of DYMO ID™

software.

Downloading and Installing DYMO ID™Software

Do not connect the label maker to your computer until after the software

installation is complete.

To install the software

1Download the latest version of DYMO ID™software from the DYMO Web

site at support.dymo.com.

2Follow the instructions in the installer.

Connecting the Label Maker to your Computer

The label maker connects to your computer using the USB connection located

on the left side of the label maker.

Do not connect the label maker to your computer until after the software

installation is complete.

To connect the label maker to your

computer

1Lift the connector cover on the left

side of the label maker and slide the

cover clockwise to expose the

connectors.

2Plug the USB cable into the USB

connector on the label maker and

into an available USB port on your

computer.

You can now print directly from DYMO ID™software or transfer labels to the label

maker for printing later.
