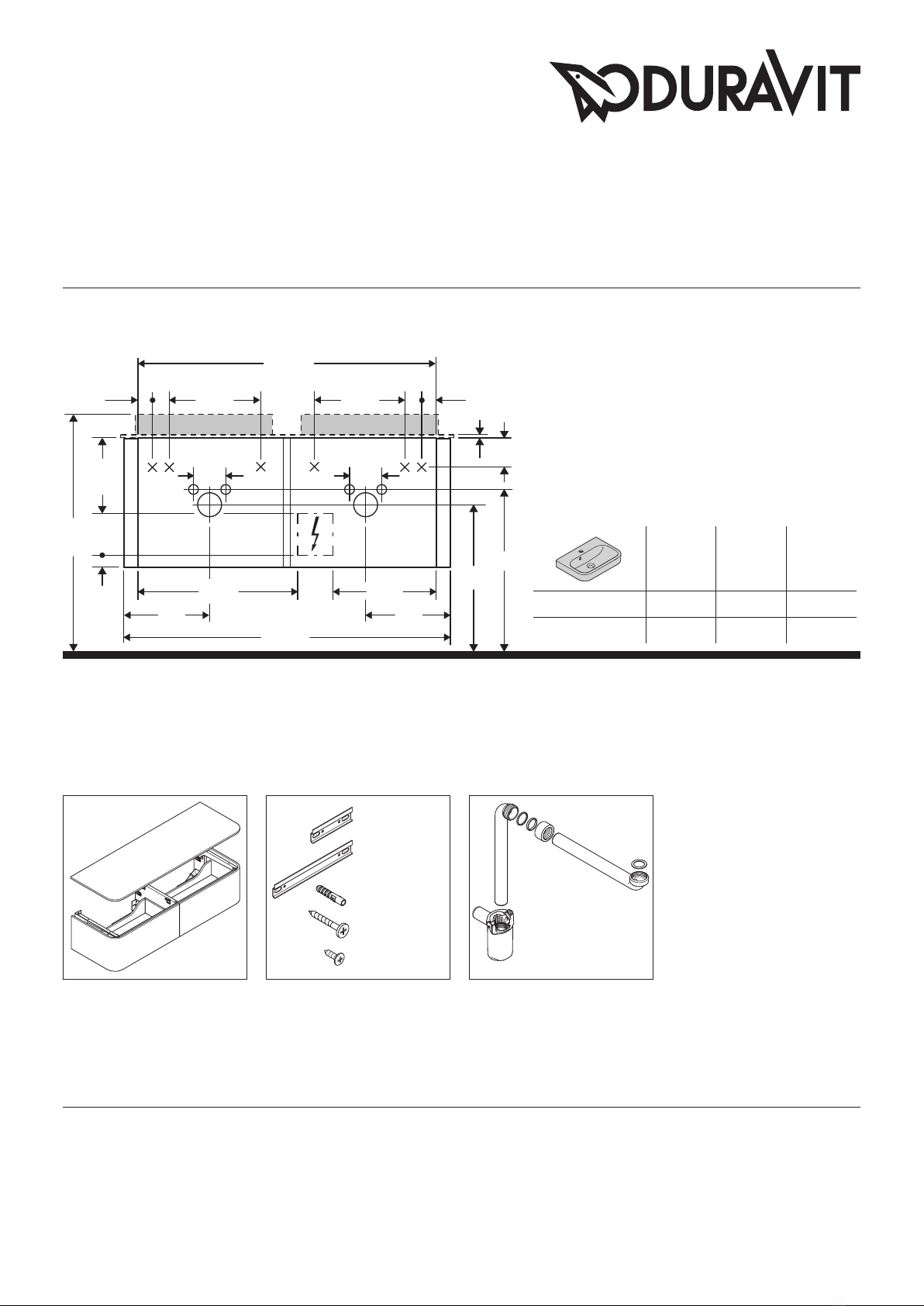

DURAVIT Happy D.2 Plus HP 4936 Manual de usuario

8080

142

47 47

820

512 512

1600

1500

100 580

50 100 204

900

234

4x 4x15

8x S8

2x 100

1x 260

8x 5,5x50

Instructions for use

The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.

Direct contact with water should be avoided, for example, when showering.

We reserve the right to make technical improvements and design modifications to the products illustrated.

Mounting instructions

#231860 400 690 640

#231865 400 690 640

MAL_Happy D.2 Plus_HP4936/19.02.1

# 0050760000

Happy D.2 Plus # HP 4936

2x S82x 5,5x50

click

Ø 8 mm

6x S8 6x 5,5x50

Ø 8 mm

2x S8

4x 4x15

Order no. HP4936/19.02.1

MAL_Happy D.2 Plus_HP4936/19.02.1

Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone +49 78 33 700, Fax +49 78 33 70 289, inf[email protected], www.duravit.de

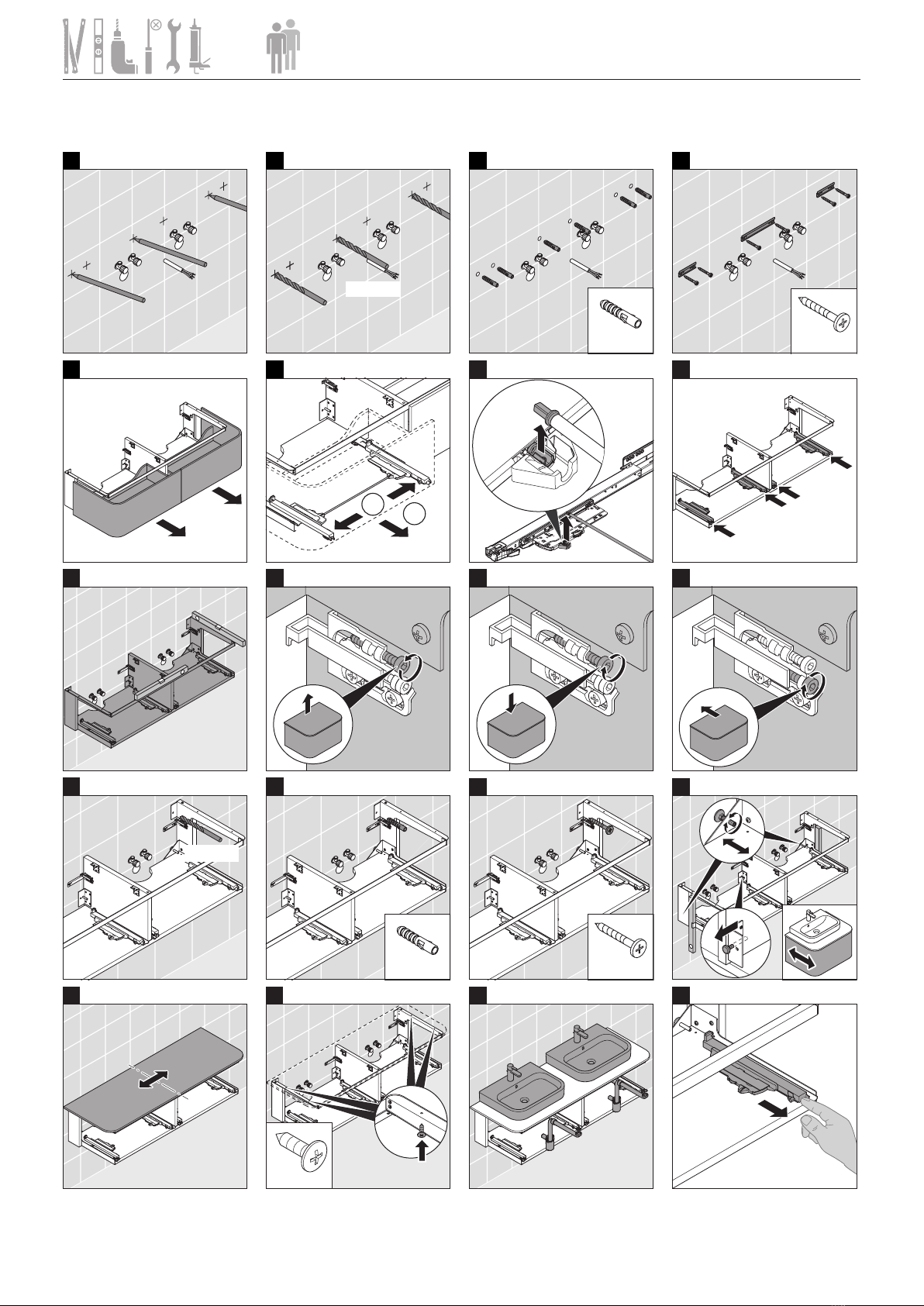

1 2 3 4

5 6 7 8

9 10 12

13 14 15 16

17 18 19 20

click 2x click

Order no. HP4936/19.02.1

MAL_Happy D.2 Plus_HP4936/19.02.1

Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone +49 78 33 700, Fax +49 78 33 70 289, inf[email protected], www.duravit.de

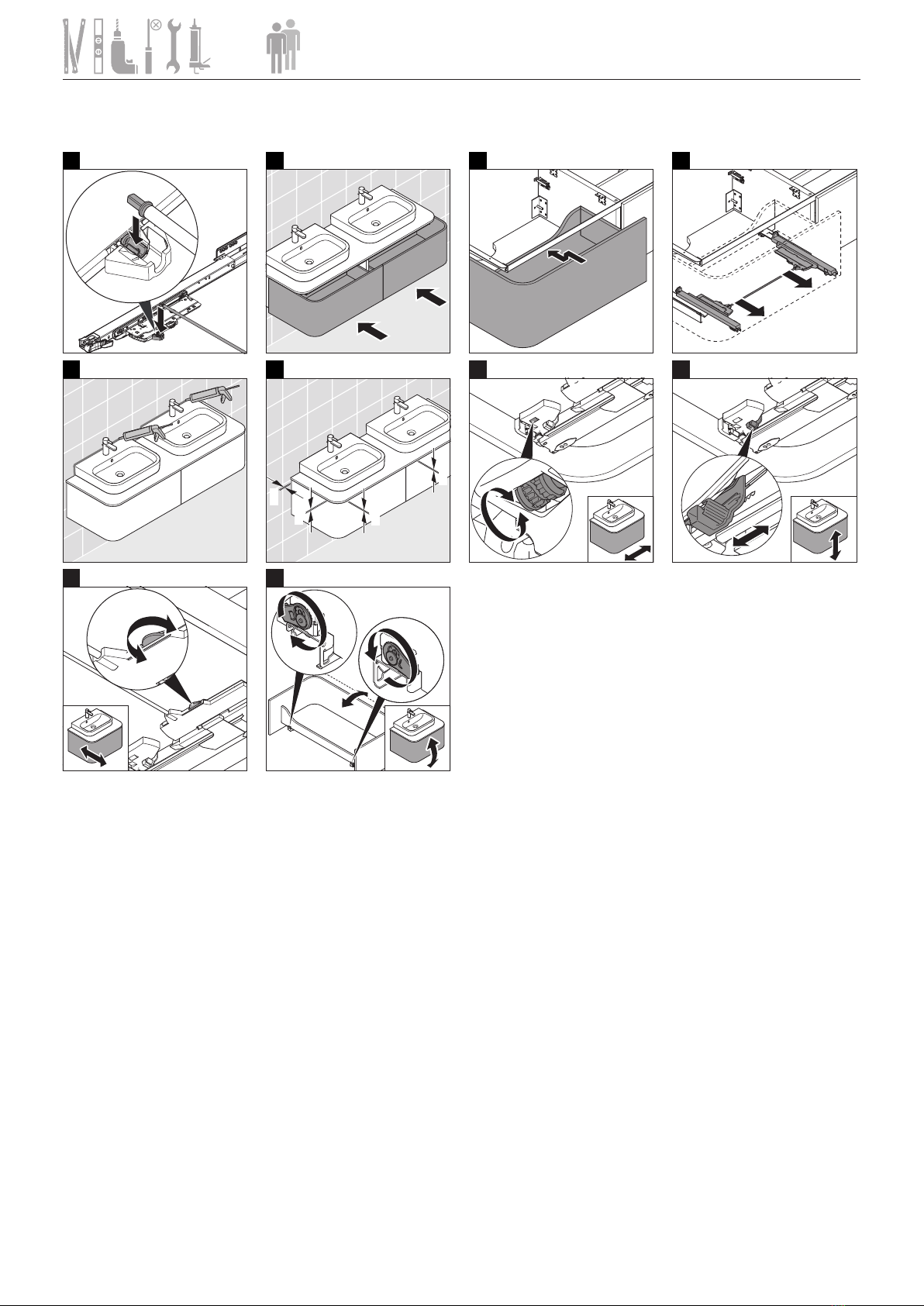

21 22 23 24

25 26 27 28

29 30

35 36

3433

3231

37 39 40

3635

3131 32

Order no. HP4936/19.02.1

Duravit AG

P.O. Box 240

Werderstr. 36

78132 Hornberg

Germany

Phone +49 78 33 70 0

Fax +49 78 33 70 289

info@duravit.com

www.duravit.com

Mounting instructions for bathroom furniture with a power supply

Safety 2

Electrical installation 3

Intended use

The mounting instructions come as part of the Duravit

product and are aimed at people who carry out the

electrical installation for the product. You must read

through the mounting instructions carefully and they must

be available at all times.

Target readership and qualifications

The electrical installation may only be carried out by

qualified electricians.

Protection rating of Duravit products

The protection rating of Duravit products with a power

supply complies with the IP 44 standard as a minimum.

Protection class of wall lights

Protection class Connecting cable

I H05VV-F, 3x 1.5 mm2

II H03VV-F, 2x 0.75 mm2

Standards and directives

Duravit products comply with the CE marking

directives:

Icons and symbols

Symbol Meaning

> Action required

Safety instructions

Danger to life

Contact with electricity may lead to an electric shock.

>Carry out the electrical installation in accordance with

the national, European and international directives and

standards.

>Observe protection zones for wet rooms in accordance

with country-specific standards, local regulations and

low voltage guidelines.

>Connect the electrics using a ground fault circuit

interrupter (GFCI) in wet rooms or other specially

equipped rooms.

>Disconnect electrical components from the power supply

before the installation.

>Check that all components are de-energised.

>Prevent the power supply from being switched on

accidentally.

Penetration of foreign bodies and water

Foreign bodies or water in equipment lead to a short circuit

that may cause damage to the product.

>Observe the protection zones for Duravit products.

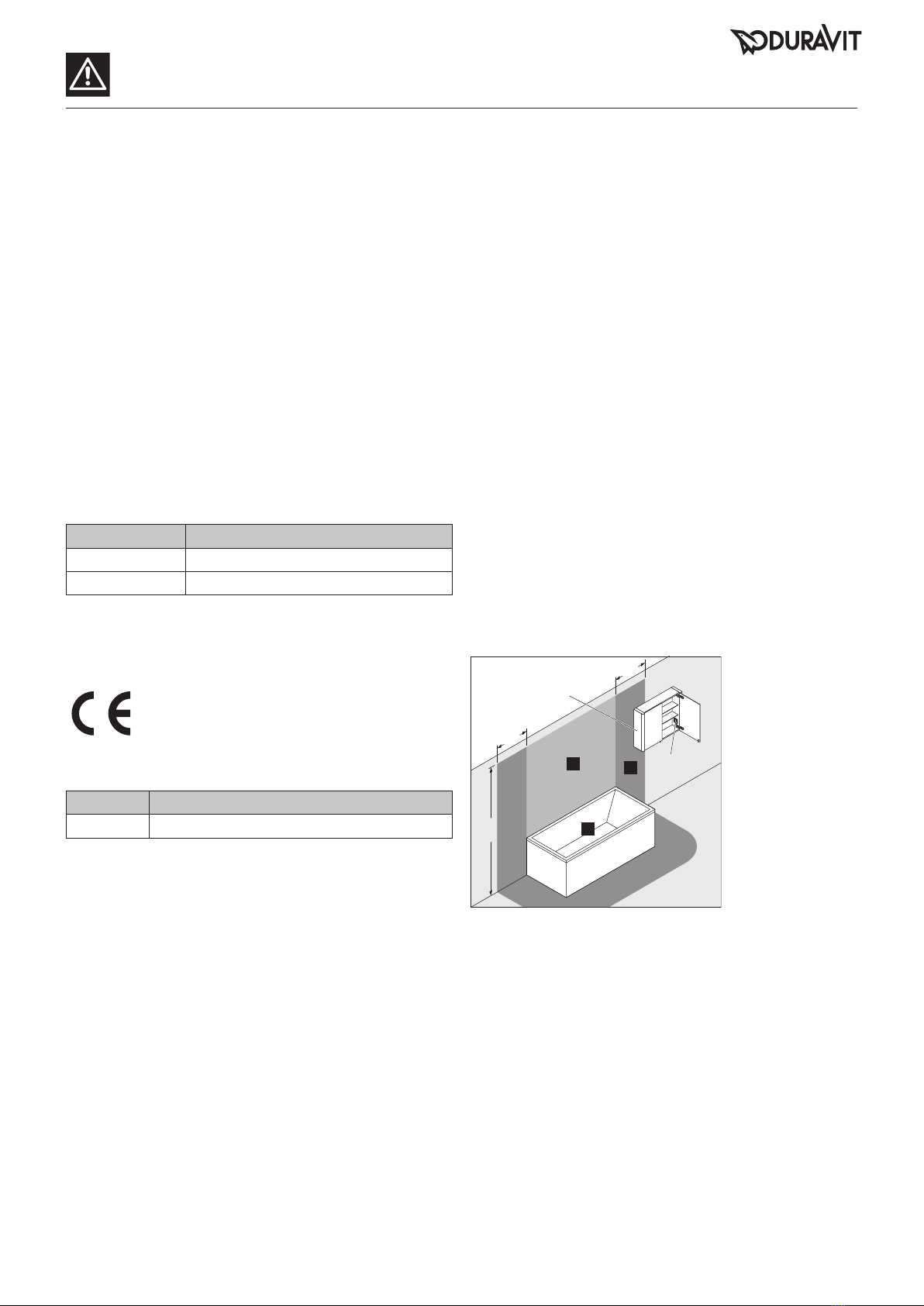

Protection zones

600 600

2250

AA mirror cabinet with an IP 44 rating may protrude into zone 2.

BA socket in a mirror cabinet must be mounted outside the zones.

2MAL_51240/18.10.4

Safety

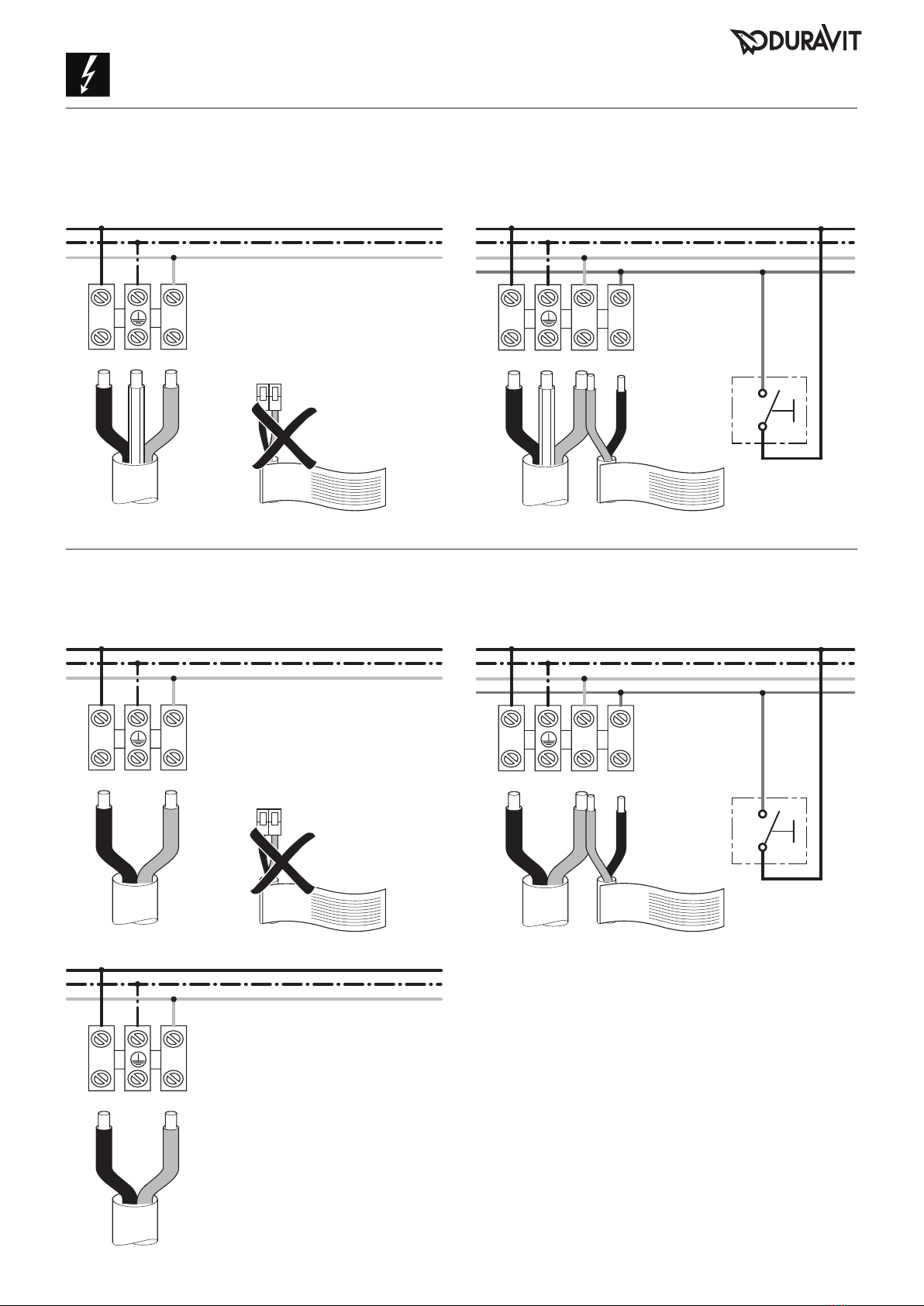

Electrical installation for protection class I

Electrical connection Optional connection of an external button

LNLNL'

Electrical installation for protection class II

Electrical connection Optional connection of an external button

LNLNL'

MAL_51240/18.10.4 3

Electrical installation

Order no. 51240/18.10.4 We reserve the right to make technical improvments and design modiﬁcations to the products illustrated.

DURAVIT AG

P.O. Box 240

Werderstr. 36

78132 Hornberg

Germany

Phone +49 7833 70 0

Fax +49 7833 70 289

info@duravit.com

www.duravit.com
