Dual XDMA690 Instrucciones de funcionamiento

INSTALLATION/OWNER'S MANUAL

AM/FM/CD/MP3/WMA/iPod™ Ready Receiver with Detach Face

XDMA690

XDMA690 INSTALLATION

Preparation

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

• Remove 2 transit screws located

on top of the unit.

• Insert the supplied keys into the

slots as shown, and slide the unit

out of the mounting sleeve.

• Install mounting sleeve into

opening, bending tabs to secure.

• Connect wiring harness and

antenna. Consult a qualified

technician if you are unsure.

• Certain vehicles may require an

installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide

into mounting sleeve to secure.

• Snap trim ring into place.

• Mount the iplug™ adapter to any

smooth clean surface using the

supplied double-sided tape or

#2 x 3/8” Phillips head screws.

XDMA690 INSTALLATION

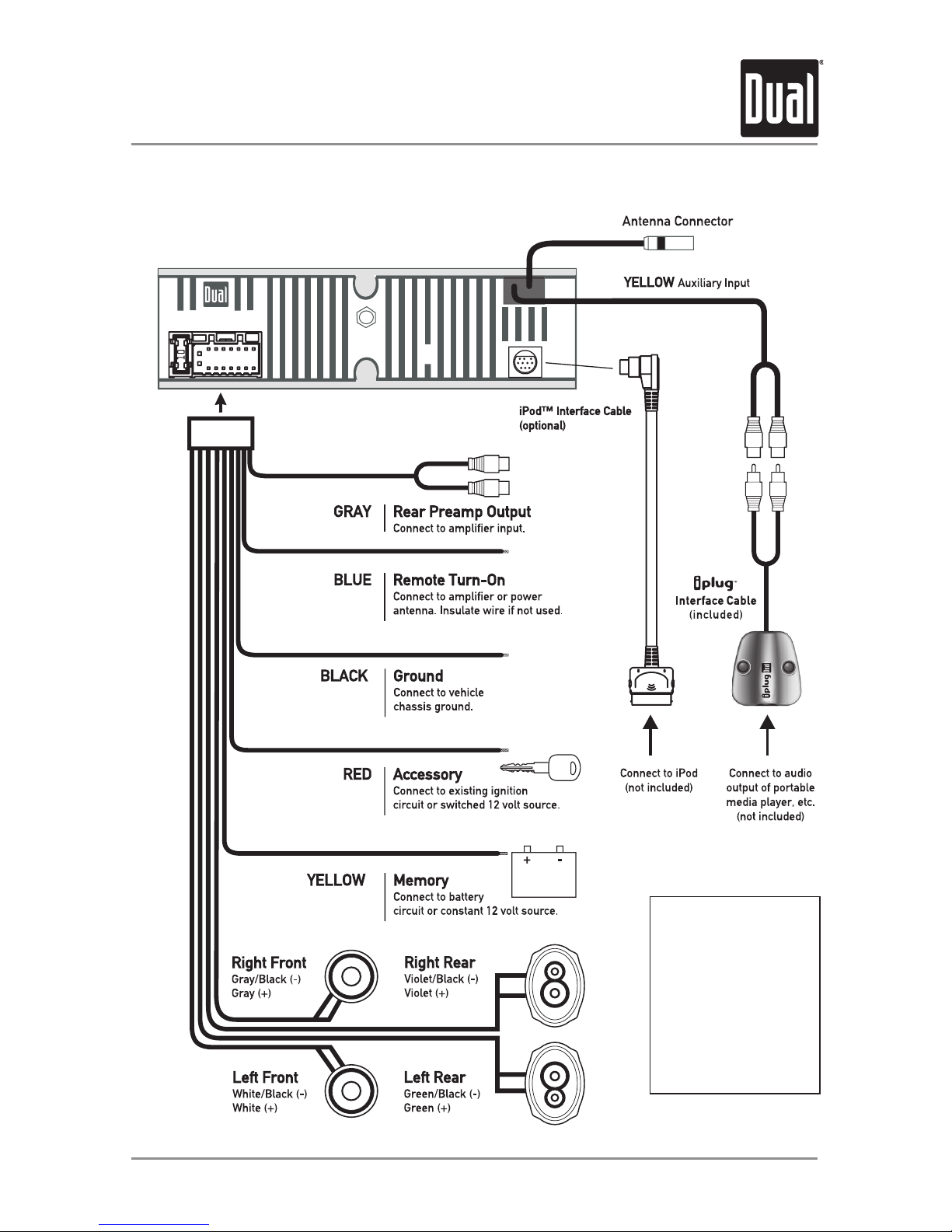

Wiring Diagram

FUSE

When replacing the fuse,

make sure new fuse is the

correct type and amperage.

Using an incorrect fuse

could damage the radio.

The XDMA690 uses one

10 amp ATM fuse located

beside the wiring connector.

XDMA690 OPERATION

Control Locations

Release

Band/Play/Pause

Volume

Mode/Search

Preset 4/Menu

Preset 1/Repeat

Preset 5/Folder Down

Preset 2/Random

Preset 3/Intro

Eject

Preset 6/Folder Up

EQ/9

Loudness

Display/0

Tuner Scan/8

Mute

Return/7

Auto Store/Preset Scan/Enter

Power

Tune/Track Down

Tune/Track Up

1921 18 17 16 15 14 13 12

1 2 35 6 789 10 11

The XDMA690 allows playback of your favorite MP3 and WMA files recorded on CD-R and

CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while

maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic

Skip Protection) to virtually eliminate skipping and allows alphanumeric or direct track

search - even while a song is currently playing!

XDMA690 OPERATION

General Operation

Press RELEASE and pull away from the left side to remove.

To re-install, insert right side of faceplate first then push

left side to secure.

Remove trim ring and install supplied #1 x 7/32” Phillips

head screw through left side of mounting frame into faceplate.

Press POWER or any other button (except eject) to turn the

unit on. Inserting a disc will turn the unit on automatically.

Press POWER to turn the unit off.

Press MODE to select between tuner, CD player, auxiliary

input and iPod mode. Modes of operation are indicated in the

display.

Press LOUD to activate and deactivate the loudness contour

curve. Activating this feature will enhance the bass and

treble frequencies when listening to music at low volumes.

Adjust volume using rotary encoder (00-46).

Press and hold POWER for 3 seconds to program currently

selected volume level. "P-VOL" and the current volume level

will momentarily appear in the display.

Press EQ to select between POP, JAZZ, CLASSIC, BEAT,

ROCK and OFF (default) equalization curves. Any adjustment

to the Bass or Treble settings automatically cancels the

current EQ curve (if one is selected).

Press DISP to select between clock and different types of

information, such as radio frequency, CD track/elapsed time,

or MP3/WMA/iPod song information.

With the unit on, press and hold DISP until the clock begins

to flash, then release. Press TUNE

to adjust the

hours and TUNE

to adjust the minutes. Press DISP

momentarily to save the selected time.

The clock will display 12-hour AM/PM time in USA frequency

spacing mode (PM 10:00). In European frequency spacing

mode, the clock will display 24-hour time (22:00).

Faceplate Removal

Semi-permanent

Faceplate Installation

Power On/Off

Mode

Loudness

Volume

Programmable

Turn-On Volume

Preset EQ Curves

Display

Set the Clock

12/24-hour Clock

XDMA690 OPERATION

General Operation - Setup Menu

Menu Function Options Action

Tuner Frequency

Spacing

FREQ USA Programs the unit to USA tuner spacing.

(200kHz for FM and 10kHz for AM)

FREQ EUR Programs the unit to European tuner spacing.

(50kHz for FM and 9kHz for AM)

Clock Display CLK OFF Programs the unit to not display the clock when the

power is off.

CLK ON Programs the unit to display the clock when the

power is off.

Auxiliary Mode AUX ON Enables access to auxiliary mode.

AUX OFF Disables access to auxiliary mode.

Beep

Confirmation

BEEP OFF Disables the confirmation beep.

BEEP ON Enables the confirmation beep.

Local/Distance

Tuning

LOC OFF Activates Distance tuning.

LOC ON Activates Local tuning for strong station reception

only.

Power on

Message

MSG OFF Disables power on message.

MSG ON Enables power on message to be displayed.

Made for iPod

Message

DEMO ON Enables Made for iPod message to be displayed

every 60 seconds in Tuner and Aux modes.

DEMO OFF Disables Made for iPod message.

Reset

Mute

Setup Menu

Press to RESET the unit upon initial installation or if

abnormal operation occurs. The reset button is located

behind the faceplate.

Press MUTE to silence the audio. “MUTE” will flash in the

display. Press MUTE again to cancel.

Press and hold the rotary encoder for more than 3 seconds

to access the setup menu. Press the rotary encoder

momentarily to select between the menu functions and

rotate the rotary encoder left/right to adjust or activate the

desired function.

Press rotary encoder to select between Volume (default),

Bass, Treble, Balance & Fader.

Press rotary encoder until BAS appears

Rotate encoder left/right to adjust

( -6 minimum / +6 maximum)

Press rotary encoder until TRE appears

Rotate encoder left/right to adjust

( -6 minimum / +6 maximum)

Press rotary encoder until BAL appears

Rotate encoder left/right to adjust

(BAL L 12-BAL 00-BAL R 12)

BAL 00 represents equal balance

Press rotary encoder until FAD appears

Rotate encoder left/right to adjust

(FAD F 12-FAD 00-FAD R 12)

FAD 00 represents equal fader

Individual Bass and Treble settings are retained in memory

for AM, FM, CD, AUX and iPod modes. This allows you to

save the Bass and Treble settings separately for each mode.

Example:

FM tuner mode can have Bass +3 and Treble -1 while CD

mode can have Bass +2 and Treble +2.

Note:

Any adjustment to the Bass or Treble settings automatically

cancels the current EQ curve (if one is selected).

XDMA690 OPERATION

BASSVOLUME TREBLE BALANCE FADER

General Operation

Audio

Bass

Treble

Balance

Fader

Source Audio Memory

Press TUNE

or TUNE

momentarily to seek the

next strong station.

Press TUNE

or TUNE

until "MANUAL"

momentarily appears in the display, then release. Press

TUNE

or TUNE

momentarily to move radio

frequency up or down one step at a time. Press and hold to

advance quickly. If tuning is not adjusted for 5 seconds, the

unit will return to seek tuning mode (default). "AUTO" will

momentarily appear in the display.

Press SCN to preview strong stations on the current band,

pausing for 5 seconds at each. Press SCN again to cancel.

Press BAND to select between FM1, FM2, FM3, AM1 and AM2

bands.

Up to 18 FM stations and 12 AM stations can be stored. To

store a station, select the desired band and station. Press

and hold the desired preset button (1-6) for more than

2 seconds. When stored, the preset number will appear in

the display. The station can be recalled anytime by pressing

the corresponding preset button.

Note:

Function buttons 7, 8, 9 and 0 apply to MP3 and WMA

playback only.

Press AS/PS for more than 2 seconds to automatically store

the six strongest stations in the current band. Automatic

Distance tuning is activated during the initial band scan.

Press AS/PS for less than 2 seconds to scan presets 1-6 on

the current band, pausing for 5 seconds at each. Press

AS/PS again to cancel.

XDMA690 OPERATION

Tuner Operation

Seek Tuning

Manual Tuning

Scan Tuning

Band

Storing and Recalling

Station Presets

Automatically Store

Stations

Preset Scan

Insert CD

Eject CD

Track Select

Fast Forward and Reverse

Pause

Intro

Repeat

Random

CD-R/CD-RW Compatibility

With the label facing up, insert a standard size CD into the

CD slot. The CD will automatically begin playback.

Press EJECT to eject the CD. The unit will change to previous

mode of operation (Tuner, Aux, or iPod mode). If the disc is

not removed within 10 seconds, the unit will reload the disc.

The unit does not have to be turned on to eject CD.

Press TRACK

to skip to the beginning of the next track.

Press TRACK

to return to the beginning of the current

track. Pressing TRACK

again skips to the beginning of

the previous track.

Press and hold TRACK

or TRACK

to fast forward

or reverse a track.

Press

to temporarily stop CD playback.

Press

again to resume playback.

Press INT to play the first 10 seconds of each track.

Press INT again to cancel.

Press RPT to continuously repeat selected track.

Press RPT again to cancel.

Press RDM to play all tracks in random order. Press RDM

again to cancel. Random mode is retained in memory when

selecting between tuner, CD player, auxiliary input and iPod

modes and when the unit is turned on/off.

Some CD-Rs and CD-RWs may be incompatible with this

unit, depending on media type and recording method. In

addition, the following CDs may be incompatible with this

unit:

CDs exposed to extreme temperatures or direct sunlight for

extended periods of time, CDs recorded in which a recording

session failed or a re-recording was attempted and, or

encrypted or copy-protected CDs which do not conform to

the audio CD-DA red book recording standard.

XDMA690 OPERATION

CD Player Operation

XDMA690 OPERATION

CD Player Operation - MP3/WMA Files

Playing an MP3/WMA Disc

MP3 Icon

WMA Icon

Folder Icon

Displaying Information

Character Support

When an MP3/WMA encoded disc is first inserted,

“READING” will appear in the display. Depending on the

number of files and folders, this may take several seconds.

The icon will illuminate anytime a valid MP3 encoded

disc is inserted and flash in MP3 search/navigate modes.

The icon will illuminate anytime a valid WMA encoded

disc is inserted and flash in WMA search/navigate modes.

The icon will illuminate anytime a folder is selected in

the file/folder search modes.

Press DISP to select between track number/elapsed time

(default), clock, track name, directory name, title, artist and

album.

“NO ID3 TAG” will be displayed if the MP3 file contains no

ID3 tag information.

“UNKNOWN” will be displayed if the WMA file contains no

WMA tag information.

“ROOT” will be displayed if the directory name of a root

folder is not labeled.

Maximum character display information

• Track name – 32 character maximum

• Directory name – 23 character maximum

• *Song title – 30 character maximum

• *Artist name – 30 character maximum

• *Album name – 30 character maximum

*Song title, Artist Name and Album name will only be

displayed if included with the MP3/WMA file.

When referring to MP3/WMA playback, the following terms

are synonymous:

• File name and track name

• Folder name and directory name

Tabla de contenidos

Otros manuales de Receptor de coche de Dual

Dual

Dual X2DMA400 Instrucciones de funcionamiento

Dual

Dual DV725BH Instrucciones de funcionamiento

Dual

Dual XDMA350 Instrucciones de funcionamiento

Dual

Dual XDMR6850 Instrucciones de funcionamiento

Dual

Dual XDVD1265BT Instrucciones de funcionamiento

Dual

Dual XDVD8285 Instrucciones de funcionamiento

Dual

Dual AXXERA XDMA7200 Instrucciones de funcionamiento

Dual

Dual XDM7615 Instrucciones de funcionamiento

Dual

Dual DC416BT Instrucciones de funcionamiento

Dual

Dual MXD420 Instrucciones de funcionamiento

Dual

Dual MXD26 Instrucciones de funcionamiento

Dual

Dual DXDM227BT Instrucciones de funcionamiento

Dual

Dual XDMA6540 Instrucciones de funcionamiento

Dual

Dual DXDM228BT Instrucciones de funcionamiento

Dual

Dual MGH30BT Instrucciones de funcionamiento

Dual

Dual ZDMR7710 Instrucciones de funcionamiento

Dual

Dual DV714BH Instrucciones de funcionamiento

Dual

Dual XHD7714 - V3 Instrucciones de funcionamiento

Dual

Dual DM90MIR Instrucciones de funcionamiento

Dual

Dual DCBT304U Instrucciones de funcionamiento

Dual

Dual XML8110 Instrucciones de funcionamiento

Dual

Dual XRM49BT Instrucciones de funcionamiento

Dual

Dual MXD105 Instrucciones de funcionamiento

Dual

Dual XDVD1175BT Instrucciones de funcionamiento

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
