DRIFT HD Ghost Manual de usuario

facebook.com/driftinnovation

vimeo.com/driftinnovation

twitter.com/driftinnovation

DRIFTINNOVATION.COM

Thank you for purchasing the Drift HD Ghost

CUSTOMER SUPPORT

Check our ocial website for ﬁrmware updates, customer

support, news about our products and videos from our users.

If you have any suggestions, comments or concerns, please

contact our customer support team at:

[email protected]

WARRANTY

To obtain our warranty service, register your product at:

driftinnovation.com/warranty

contents

about your camera | initial setup 3—4

package contents | getting started 5—6

mode selection & settings 7—8

playback & camera settings 9—10

using the two-way remote | mounting the camera 11—12

wiﬁ | connecting the camera 13—14

specifications 15—16

disclosures 17—18

about your camera

MENU / Tag / Back Button

LEFT Button / Zoom Out

RIGHT Button / Zoom In

ACTION Button

(On/O/Rec/Stop)

Status LED

Rear Hatch

2.0” LCD Screen

300° Rotating Lens

USB Port (Mini-B)

HDMI Port (Mini-C)

3.5mm Microphone Input

Micro SD Card Slot

Battery Slot Cover

CB E

F G H

initial setup

IJK L

1. Unscrew and remove the

rear hatch

2. Insert a Class 6 or higher

micro SD card

3. Lift the hinged battery

slot cover and insert the

battery as shown (below)

4. Connect the camera

via mini USB cable to a

powered USB port and

charge the battery for 4

hours before ﬁrst use

5. Replace the rear hatch

and screw shut to secure

package contents

Connector Hatch

Remote Control Rechargeable Battery

Universal Clip Mount Kit Goggle Mount

getting started

Wrist Strap

Microphone Extension Cable

USB Cable (Mini-B)

POWER ON AND OFF

1. Press and hold the

ACTION button to

power on

2. The screen will power

on, show the welcome

display, then Live Preview

3. The camera is now ready

to record video, or take

still photos

4. The current camera mode

is indicated by the icon in

the top left of the display

and by the LED indicator

(for details, see p7-8)

5. To power o, press

and hold the ACTION

button for 3 seconds

MAIN MENU

Press the MENU button to

enter the Main Menu. The

screen will display the icons

of the four menu options.

Use the LEFT/RIGHT buttons

to highlight menu options;

press the ACTION button to

select an option.

Mode Selection

Mode Settings

Playback

Settings

mode selection & settings

VIDEO MODE

(Green LED) The camera

will record video when

ACTION is pressed on the

camera or remote. The LED

will turn solid red while

recording. Press ACTION on

the camera, or STOP on the

remote, to end recording.

MODE SELECTION MENU

The Mode Selection menu

displays the icons for the

four camera modes.

Highlight the desired mode

and press ACTION.

The screen will return

to Live Preview and the

camera is ready to record.

MODE SETTINGS

The Mode Settings menu

displays the icons for the

settings of the four camera

modes. Highlight the

desired mode and press

ACTION. The screen will

show the list of settings for

the chosen mode.

VIDEO SETTINGS

• Video Resolution

• Frame Rate

• FOV

• Exposure

• Self-Timer

• Video Tagging (see p10)

• Video Format

Video

Timelapse


Photoburst

TIMELAPSE MODE

(Purple LED) The camera

will capture a series of still

images at a speciﬁed rate

when ACTION is pressed

on the camera or remote.

To stop recording, press

ACTION on the camera or

STOP on the remote.

PHOTO MODE

(Yellow LED) The camera

will capture still images

when ACTION is pressed

on the camera or remote.

The LED will blink red every

time a photo is taken (this

applies for Timelapse and

Photoburst modes also).

PHOTOBURST MODE

(Cyan LED) The camera

will capture a burst of still

images for an allotted

duration, at a speciﬁed

rate, when ACTION on the

camera or remote is pressed

(for best results, use a Class

6 or higher micro SD card).

PHOTO SETTINGS

• Photo Resolution

• FOV

• Exposure

• Self-Timer

TIMELAPSE SETTINGS

• Photo Resolution

• FOV

• Exposure

• Sequence Interval

• Self-Timer

PHOTOBURST SETTINGS

• Photo Resolution

• FOV

• Capture Rate

• Burst Duration

• Exposure

• Self-Timer

• Default Settings

Otros manuales para HD Ghost

Tabla de contenidos

Idiomas:

Otros manuales de Cámara de acción de DRIFT

DRIFT

DRIFT Stealth 2 Manual de usuario

DRIFT

DRIFT GHOST 4K Manual de usuario

DRIFT

DRIFT GHOST N2 Manual de usuario

DRIFT

DRIFT HD170 Manual de usuario

DRIFT

DRIFT HD Manual de usuario

DRIFT

DRIFT Ghost XL Manual de usuario

DRIFT

DRIFT GHOST X Manual de usuario

DRIFT

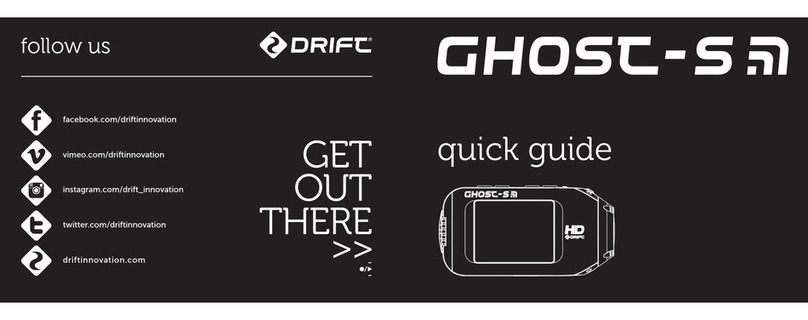

DRIFT GHOST-S Manual de usuario
