Draytek VigorSwitch P2280x Manual de usuario

VigorSwitch P2280x / G2280x

L2+ Managed Switch

Quick Start Guide

Version: 1.1

Firmware Version: V2.6.6

(For future update, please visit DrayTek web site)

Date: July 12, 2021

VigorSwitch P2280x (with PoE) VigorSwitch G2280x (without PoE)

Rack Mount Kit (brackets) &

Quick Start Guide

Console Cable

The type of the power cord depends on the country that the switch will be

installed.

UK-type Power Cord EU-type Power Cord

USA/Taiwan-type Power Cord AU/NZ-type Power Cord

If any of these items is found missing or damaged, please contact your local

supplier for replacement.

LED Status Explanation

On (Red) An alert for system failure due to overheating

or wrong voltage.

Monitor Off The device is in normal condition and running

normally.

Blinking

(Green) The power is over (>) 80% watts PoE power

budget.

Alert

(for P2280x) Off The power is under (<) 80% watts PoE power

budget.

On (Green)

The switch finishes system booting and the

system is ready.

Blinking

(Green) The switch is powered on and starts system

booting.

SYS

Off The power is off or the system is not ready /

malfunctioning.

On (Green)

The device is powered on and running

normally.

PWR Off The device is not ready or is failed.

On (Green)

The port is supplied with PoE power.

Port 1 ~ 24

(PoE, for P2280x)

Off No PoE power is supplied on the port.

On (Green)

The device is connected with 1000Mbps.

(Amber) The device is connected with 10/100Mbps.

Blinking The system is sending or receiving data

through the port.

Port 1 ~ 24

(GbE RJ45)

Off The port is disconnected or the link is failed.

Port 25 ~ 28 On (Green)

The device is connected with 1000Mbps.

Port 25 to 28

(SFP+)

Port 1 to 24 (GbE RJ45)

Port 1 to 24 (PoE)

On (Blue) The device is connected with 10Gbps.

(Amber) The device is connected with 10/100Mbps.

Blinking The system is sending or receiving data

through the port.

(SFP+)

Off The port is disconnected or the link is failed.

Interface Description

Port 1 ~ 24 (GbE RJ45)

Port 1 ~ 24 (PoE, for P2280x)

Port 1 to Port 24 can be used for Ethernet

connection and PoE connection, depending on

the device connected.

Port 25 ~ 28 (SFP+) Port 25 to Port 28 are used for fiber

connection.

Console Used to perform telnet command control.

Power inlet for AC input (100~240V/AC,

50/60Hz).

Note

The following limitation is suitable for VigorSwitch P2280x

Power Output --

IEEE 802.3af Max. 15.4W Output Supported

IEEE 802.3at Max. 30W Output Supported

PoE Power Budget –-

400 Watts (Max)

This section will guide you to install the switch through hardware connection and

configure the switch’s settings through web browser.

Before starting to configure the switch, you have to connect your devices

correctly.

Note

Power the device to this switch and get 54V power source through

Cat. 5e Cable.

Use a Cat. 5e twisted-pair cable to connect a PoE device to the port (1~24)

of this switch.

The switch will supply power to PoE Device over the twisted-pair cable.

Please note that Power Device must comply with IEEE 802.3af/at.

Other PCs, servers and network devices can be connected to the switch using

a standard ‘straight through’ twisted pair cable.

(Take VigorSwitch P2280x as an example)

-M

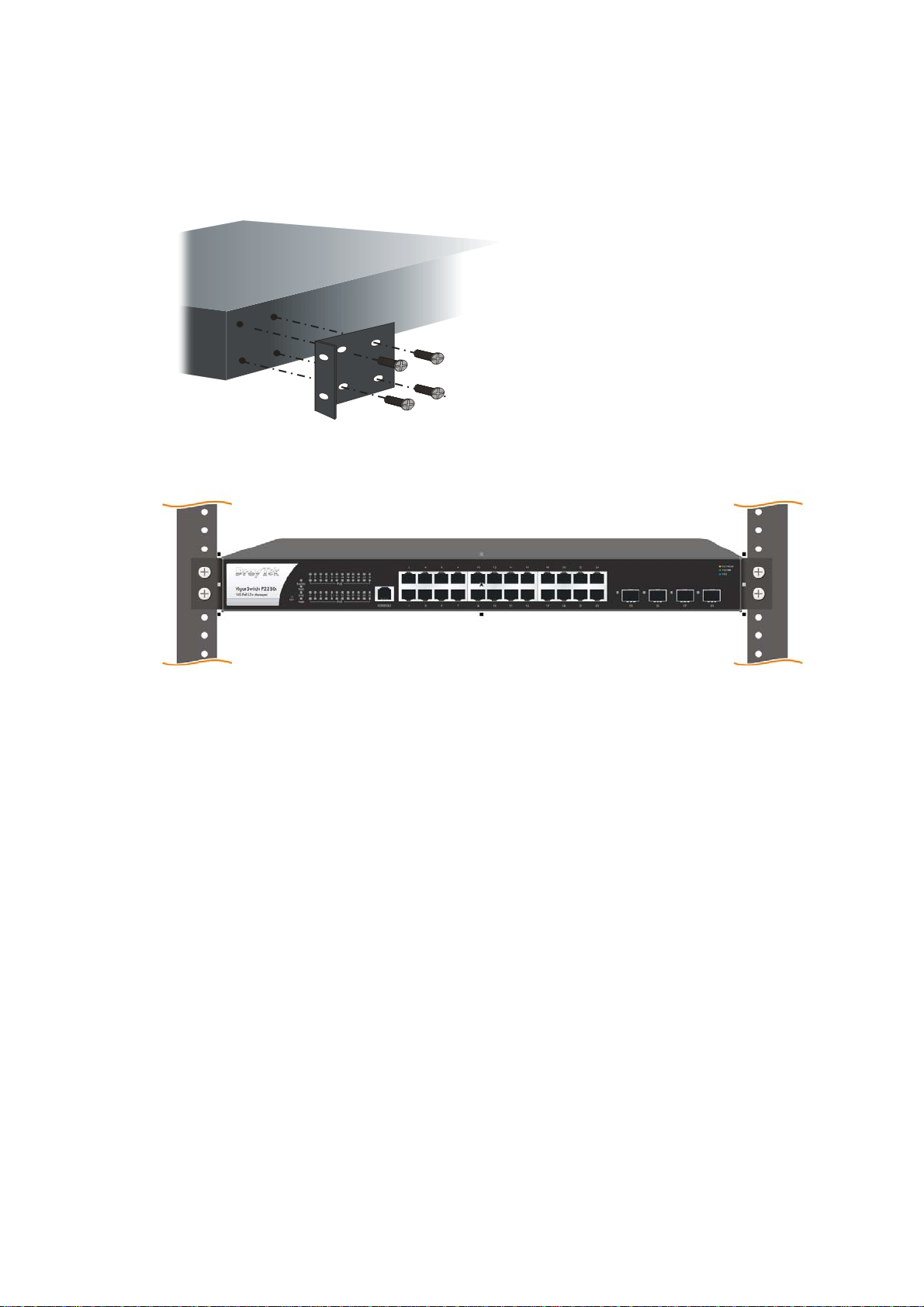

The switch can be installed easily by using rack mount kit.

1. Fasten the rack mount kit on both sides of the VigorSwitch using specific

screws.

2. Then, install the VigorSwitch (with rack mount kit) on the 19-inch chassis by

using other four screws.

In this section, we take VigorSwitch G2280x as an example:

Before using the switch, perform the following steps:

1. Set up a physical path between the configured the switch and a PC by a

qualified UTP Cat. 5e cable with RJ-45 connector.

If a PC directly connects to the switch, you have to setup the same subnet mask for

PC and the switch. Default values of the managed switch are listed as follows:

IP Address 192.168.1.224

Subnet Mask

255.255.255.0

DHCP Client Enabled (On)

Username admin

Password admin

2. After configuring correct IP address on your PC, open your web browser and

access switch's IP address.

The home page of VigorSwitch will be shown as below:

If the switch cannot work correctly after trying many efforts, please contact your

dealer for further help right away. For any questions, please feel free to send

e-mail to [email protected].

GPL Notice This DrayTek product uses software partially or completely licensed under

the terms of the GNU GENERAL PUBLIC LICENSE. The author of the software

does not provide any warranty. A Limited Warranty is offered on DrayTek

products. This Limited Warranty does not cover any software applications or

programs.

To download source codes please visit:

http://gplsource.draytek.com

GNU GENERAL PUBLIC LICENSE:

https://gnu.org/licenses/gpl-2.0

Version 2, June 1991

For any question, please feel free to contact DrayTek technical support at

[email protected] for further information.

Web registration is preferred. You can register your Vigor router via

https://myvigor.draytek.com.

Due to the continuous evolution of DrayTek technology, all switches will be regularly upgraded.

Please consult the DrayTek web site for more information on newest firmware, tools and

documents. https://www.draytek.com

EU Declaration of Conformity

We DrayTek Corp. , office at No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole

responsibility that the product

Product name: PoE 24+4 port 10G up-link Switch

Model number: VigorSwitch P2280x

Manufacturer: DrayTek Corp.

Address: No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan.

is in conformity with the relevant Union harmonisation legislation:

EMC Directive 2014/30/EU , Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU with reference to the following standards

Standard Version / Issue date

EN 55032 2015+AC:2016 class A

EN 61000-3-2 2014 Class A

EN 61000-3-3 2013

EN 55035 2017

EN 62368-1 2014 +A11:2017 (Second Edition)

EN IEC 63000:2018 2018

Hsinchu January 30, 2019 Calvin Ma / President .

(place) (date) (LegalSignature)

Declaration of Conformity

We DrayTek Corp. , office at No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole

responsibility that the product

Product name: PoE 24+4 10G up-link Switch

Model number: VigorSwitch P2280x

Manufacturer: DrayTek Corp.

Address: No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan.

Importer: SEG, 11 Capital Business Park, Borehamwood, Herts, WD6 1GW

is in conformity with the relevant UK Statutory Instruments:

The Electromagnetic Compatibility Regulations 2016 (SI 2016 No.1091), The Electrical Equipment (Safety) Regulations 2016 (SI

2016 No.1101), and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

2012 (SI 2012 No. 3032) with reference to the following standards:

Standard Version / Issue date

EN 55032 2015+A1:2016 class A

EN 61000-3-2 2014

EN 61000-3-3 2013

EN 55035 2017

EN 62368-1 2014+A11:2017

EN IEC 63000:2018 2018

Hsinchu 24th June , 2021 Calvin Ma / President .

(place) (date) (LegalSignature)
