Draytek VigorSwitch FX2120 Manual de usuario

iii

VigorSwitch FX2120

L2+ Managed Switch

Quick Start Guide

Version: 1.0

Firmware Version: V3.7. 0

(For future update, please visit DrayTek web site)

Date: April 27, 2022

VigorSwitch FX2120 Quick Start Guide

Rack Mount Kit (brackets) DAC Cable

The t ype of t he power cord depends on t he count ry t hat t he swit ch will be inst alled.

UK-type Power Cord EU-type Power Cord

USA/ Taiwan-type Power Cord AU/ NZ-type Power Cord

If any of t hese it ems is f ound missing or damaged, please cont act your local supplier

for replacement .

LED Status Explanation

On (Red) An alert for syst em failure due t o overheat ing or wrong volt age.

Blinking The syst em is (TBD)

Moni t or

Of f The device is in normal condi t ion.

On (Green) The swit ch f inishes syst em boot ing and t he syst em is ready.

Blinking (Gr een) The swit ch is powered on and st art s syst em boot ing.

SYS

Of f The power i s of f or t he syst em is not ready / malf unct ioning.

On The device is powered on.

PWR Of f The device is powered off or f ail ed.

On (Bl ue) The device is connect ed wit h 10Gbps.

On (Green) The device is connect ed wit h 1000Mbps.

Blinking The syst em is sending or receiving dat a t hrough t he port .

Port 1 ~ 12

SFP LNK/ ACT

Of f The port is disconnect ed or t he link is f ailed.

Interface Description

RST Fact ory reset but t on.

Press it t o reboot t he syst em. (<5 seconds)

Press it t o reset t he syst em wit h f act ory def ault set t ings. (5~20 seconds)

Port 1 ~ 12 Port 1 t o Port 12 can be used f or f iber connect ion.

Consol e Used t o perf orm t elnet command cont rol.

Console

SFP LNK/ ACT, Port 1 t o Port 12

12V DC Input

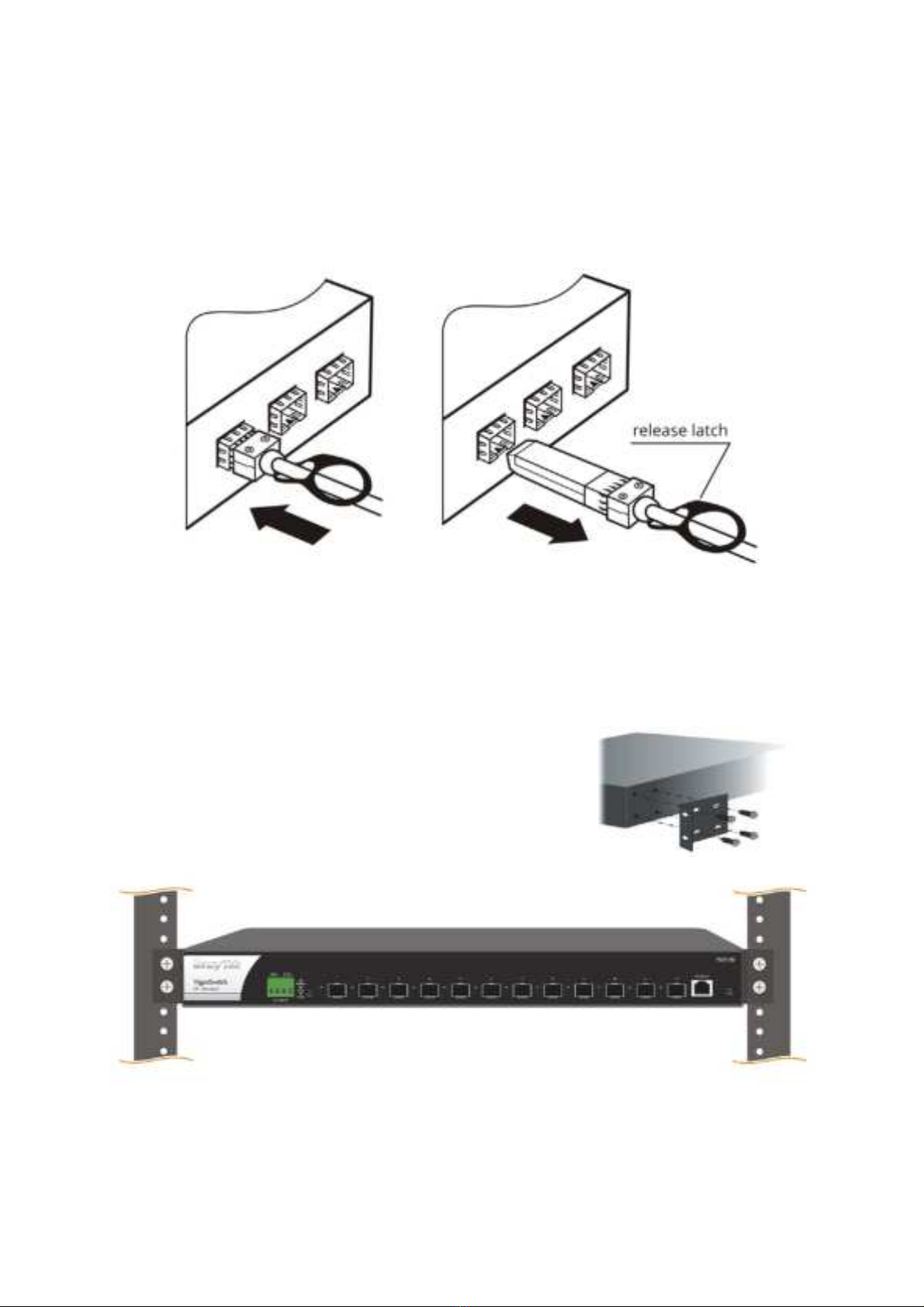

1. Insert t he connect or int o t he slot (port 1~12 of t his swit ch).

2. Pull t he release lat ch t o remove it .

-M

The swit ch can be inst alled easily by using rack mount kit.

1. Fast en t he rack mount kit on bot h sides of t he

VigorSwit ch using specif ic screws.

2. Then, inst all t he VigorSwit ch (wit h rack mount

kit ) on t he 19-inch chassis by using ot her f our

screws.

Bef ore configuring t he swit ch, perform t he f ollowing st eps:

1. Set up a physical pat h bet ween t he swit ch and a PC. Insert one end of t he

DAC cable connect or int o t he slot (port 1~12 of t his swit ch); and insert t he

ot her end of t he DAC cable int o t he slot on t he net work card on your PC.

If a PC direct ly connect s t o t he swit ch, you have t o set up t he same subnet mask f or

PC and t he swit ch. Default values of t he managed swit ch are list ed as f ollows:

IP Address 192. 168. 1. 224

Subnet Mask

255. 255. 255.0

DHCP Client Enabled (On)

Username admin

Password admin

2. Af t er conf iguring correct IP address on your PC, open your web browser and

access swit ch's IP address.

The home page of VigorSwit ch will be shown as below:

If t he swit ch cannot work correct ly af t er t rying many ef fort s, please cont act your

dealer f or f urt her help right away. For any quest ions, please f eel f ree t o send

e-mail t o support @drayt ek.com.

Web regist rat ion is pref erred. You can regist er your Vigor device via

ht t ps: / / myvigor. drayt ek. com.

Due t o t he cont inuous evolut ion of DrayTek t echnology, all swit ches will be

regularly upgraded. Please consult t he DrayTek web sit e f or more inf ormat ion on

newest firmware, t ools and document s. ht t ps: / / www.drayt ek. com

GPL Notice This DrayTek product uses sof t ware part ially or complet ely licensed

under t he t erms of t he GNU GENERAL PUBLIC LICENSE. The aut hor of

t he sof t ware does not provide any warrant y. A Limit ed Warrant y is

of fered on DrayTek product s. This Limit ed Warrant y does not cover

any soft ware applicat ions or programs.

To download source codes please visit :

ht t p: / / gplsource. drayt ek. com

GNU GENERAL PUBLIC LICENSE:

ht t ps:/ / gnu.org/ licenses/ gpl-2.0

Version 2, June 1991

For any quest ion, please f eel f ree t o cont act DrayTek t echnical

support at

support @drayt ek. com f or f urt her inf ormat ion.

EU Declaration of Conformity

We DrayTek Corp. , office at No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan,

declare under our sole responsibility that the product

Product name: 12 ports x 10Gb SFP Switch

Model number: VigorSwitch FX2120

Manufacturer: DrayTek Corp.

Address: No.26, Fushing Rd, Hukou, Hsinchu Industrial Park,

Hsinchu 303, Taiwan.

is in conformity with the relevant Union harmonisation legislation:

EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU with reference

to the following standards

Standard Version / Issue date

EN 55032 2015+AC:2016 class A

EN 61000-3-2 2014 Class A

EN 61000-3-3 2013+A1:2019

EN 55035 2017

EN 62368-1 2014 +A11:2017 (Second Edition)

EN IEC6300:2018 2018

Hsinchu June 24, 2021 Calvin Ma / President

(place) (date) (Legal Signature)

Declaration of Conformity

We DrayTek Corp. , office at No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan,

declare under our sole responsibility that the product

Product name: 12 ports x 10Gb SFP Switch

Model number: VigorSwitch FX2120

Manufacturer: DrayTek Corp.

Address: No.26, Fushing Rd, Hukou, Hsinchu Industrial Park,

Hsinchu 303, Taiwan.

is in conformity with the relevant UK Statutory Instruments:

The Electromagnetic Compatibility Regulations 2016 (SI 2016 No.1091), The Electrical Equipment

(Safety) Regulations 2016 (SI 2016 No.1101), and The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 No. 3032) with reference

to the following standards:

Standard Version / Issue date

EN 55032 2015+A1:2016 class A

EN 61000-3-2 2014

EN 61000-3-3 2013+A1:2019

EN 55035 2017

EN 62368-1 2014+A11:2017

EN IEC 63000:2018 2018

Hsinchu 24th June, 2021 Calvin Ma / President

(place) (date) (Legal Signature)
