Draytek Vigor2866 Series Manual de usuario

Vigor2866 Series

G.Fast Security Firewall

Quick Start Guide

(for RF Model)

Version: 1.0_(03)

Firmware Version: V4.2.2

(For future update, please visit DrayTek web site)

Date: March 12, 2021

Intellectual Property Rights (IPR) Information

by copyright. No part may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language without written

permission from the copyright holders.

Trademarks The following trademarks are used in this document:

Microsoft is a registered trademark of Microsoft Corp.

Windows 8, 10 and Explorer are trademarks of Microsoft Corp.

Apple and Mac OS are registered trademarks of Apple Inc.

Other products may be trademarks or registered trademarks of their

respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

Read the installation guide thoroughly before you set up the router.

The router is a complicated electronic unit that may be repaired only be

authorized and qualified personnel. Do not try to open or repair the

router yourself.

Do not place the router in a damp or humid place, e.g. a bathroom.

Do not stack the routers.

The router should be used in a sheltered area, within a temperature

range of +5 to +40 Celsius.

Do not expose the router to direct sunlight or other heat sources. The

housing and electronic components may be damaged by direct sunlight

or heat sources.

Do not deploy the cable for LAN connection outdoor to prevent

electronic shock hazards.

Keep the package out of reach of children.

When you want to dispose of the router, please follow local regulations

on conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free

from any defects in workmanship or materials for a period of two (2) years

from the date of purchase from the dealer. Please keep your purchase

receipt in a safe place as it serves as proof of date of purchase. During the

warranty period, and upon proof of purchase, should the product have

indications of failure due to faulty workmanship and/or materials, we will, at

our discretion, repair or replace the defective products or components,

without charge for either parts or labor, to whatever extent we deem

necessary tore-store the product to proper operating condition. Any

replacement will consist of a new or re-manufactured functionally

equivalent product of equal value, and will be offered solely at our

discretion. This warranty will not apply if the product is modified, misused,

tampered with, damaged by an act of God, or subjected to abnormal working

conditions. The warranty does not cover the bundled or licensed software of

other vendors. Defects which do not significantly affect the usability of the

product will not be covered by the warranty. We reserve the right to revise

the manual and online documentation and to make changes from time to

time in the contents hereof without obligation to notify any person of such

revision or changes.

Declaration of Conformity

Hereby, DrayTek Corporation declares that the radio equipment type Vigor2866 is in compliance with

Directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available at the following internet address:

http://www.draytek.com.tw/ftp/Vigor2866/Document/CE/

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu County,

Taiwan 303

Product: Vigor2866 Series

Frequency Information for Europe area:

2.4G WLAN 2412MHz - 2472 MHz, max. TX power: 19.98dBm *1

5G WLAN 5160MHz - 5340 MHz, max. TX power: 22 dBm *2

5480MHz - 5720 MHz, max. TX power: 27 dBm

(*1: for 2.4G WLAN model; *2: for 5G WLAN model)

This product is designed for DSL and 2.4GHz /5GHz WLAN network throughout the EC region.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) This device may accept any interference received, including interference that may cause

undesired operation.

iii

User Manual Information Agreement

This equipment complies with Part 68 of the FCC rules. Located on the equipment is a label that

contains, among other information, the ACTA registration number and ringer equivalence number

(REN.) If requested, this information must be provided to the telephone company.

The REN is used to determine the quantity of devices which may be connected to the telephone line.

Excessive REN’s on the telephone line may result in the devices not ringing in response to an incoming

call. In most, but not all areas, the sum of the REN’s should not exceed five (5.0). To be certain of the

number of devices that may be connected to the line, as determined by the total REN’s contact the

telephone company to determine the maximum REN for the calling area.

This equipment cannot be used on the telephone company-provided coin service. Connection to Party

Line Service is subject to State Tariffs.

If this equipment causes harm to the telephone network, the telephone company will notify you in

advance that temporary discontinuance of service may be required. If advance notice isn’t practical,

the telephone company will notify the customer as soon as possible. Also, you will be advised of your

right the file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures

that could affect the operation of the equipment. If this happens, the telephone company will

provide advance notice in order for you to make the necessary modifications in order to maintain

uninterrupted service.

If trouble is experienced with this equipment, please contact:

Company Name: ABP International Inc.

Address: 13988 Diplomat Drive Suite 180 Dallas TX75234

TEL: 1-972-831-1600

FAX:

If the trouble is causing harm to the telephone network, the telephone company may request you to

remove the equipment from the network until the problem is resolved.

This equipment uses the following USOC jacks: RJ11

It is recommended that the customer install an AC surge arrester in the AC outlet to which this device

is connected. This is to avoid damaging the equipment caused by local lightening strikes and other

electrical surges.

Company name ABP International Inc.

Address 13988 Diplomat Drive Suite 180 Dallas TX 75234

ZIP Code 75234 E-mail

rmesser@abptech.com

USA Local

Representative Contact Person Mr. Robert Messer

Tel. 19728311600

Caution:

Any changes or modifications not expressly approved by the grantee of this device could void the

user's authority to operate the equipment.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth

for an uncontrolled environment. This equipment should be installed and operated with minimum

distance 20cm between the radiator & your body.

The antenna/transmitter should be kept at least 20 cm away from human body.

External Power Supply ErP Information

1 2 3 4 5 6 7 8 9

A Manufacturer CWT CWT CWT CWT CWT APD APD APD APD

B Address No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No.5, Lane 83,

Lung-Sou St.,

Taoyuan City

330, Taiwan

No.5, Lane 83,

Lung-Sou St.,

Taoyuan City

330, Taiwan

No.5, Lane 83,

Lung-Sou St.,

Taoyuan City

330, Taiwan

No.5, Lane 83,

Lung-Sou St.,

Taoyuan City

330, Taiwan

2ABB012F UK 2ABB018F UK 2ABL024F UK

2ABL030F UK

2ABN036F UK

WA-12M12FG

WB-18D12FG WA-24Q12FG WA-36A12FG

C Model identifier 2ABB012F EU 2ABB018F EU 2ABL024F EU

2ABL030F EU

2ABN036F EU

WA-12M12FK

WB-18D12FK WA-24Q12FK WA-36A12FK

D Input voltage 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V

Input AC frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60HzE Output voltage DC 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V

F Output current 1.0A 1.5A 2.0A 2.5A 3.0A 1.0A 1.5A 2.0A 3.0A

G Output power 12.0W 18.0W 24.0W 30.0W 36.0W 12.0W 18.0W 24.0W 36.0W

H Average active

efficiency 84.9% 86.2% 87.6% 87.8% 89.8% 83.7% 85.4% 88.6% 88.2%

I Efficiency at low load

10% 73.6% 78.0% 81.3% 83.3% 83.7% 74.5% 80.5% 86.4% 85.4%

J No-load power

consumption 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W

External power supply (Power Adapter) information. For more update, please visit www.draytek.com.

1. Package Content .................................................................................................. 1

2. Panel Explanation................................................................................................. 2

2.1 Vigor2866ac / Vigor2866 ax........................................................................................................... 2

2.2 Vigor2866Vac/Vigor2866FVax ................................................................................................... 6

3. Hardware Installation ........................................................................................... 9

3.1 Network Connection................................................................................................................... 9

3.2 Wall-Mounted Installation......................................................................................................... 10

4. Software Configuration.......................................................................................11

4.1 Quick Start Wizard for Network Connection..............................................................................11

5. Customer Service............................................................................................... 17

Be a Registered Owner.................................................................................................................. 17

Firmware & Tools Updates............................................................................................................. 17

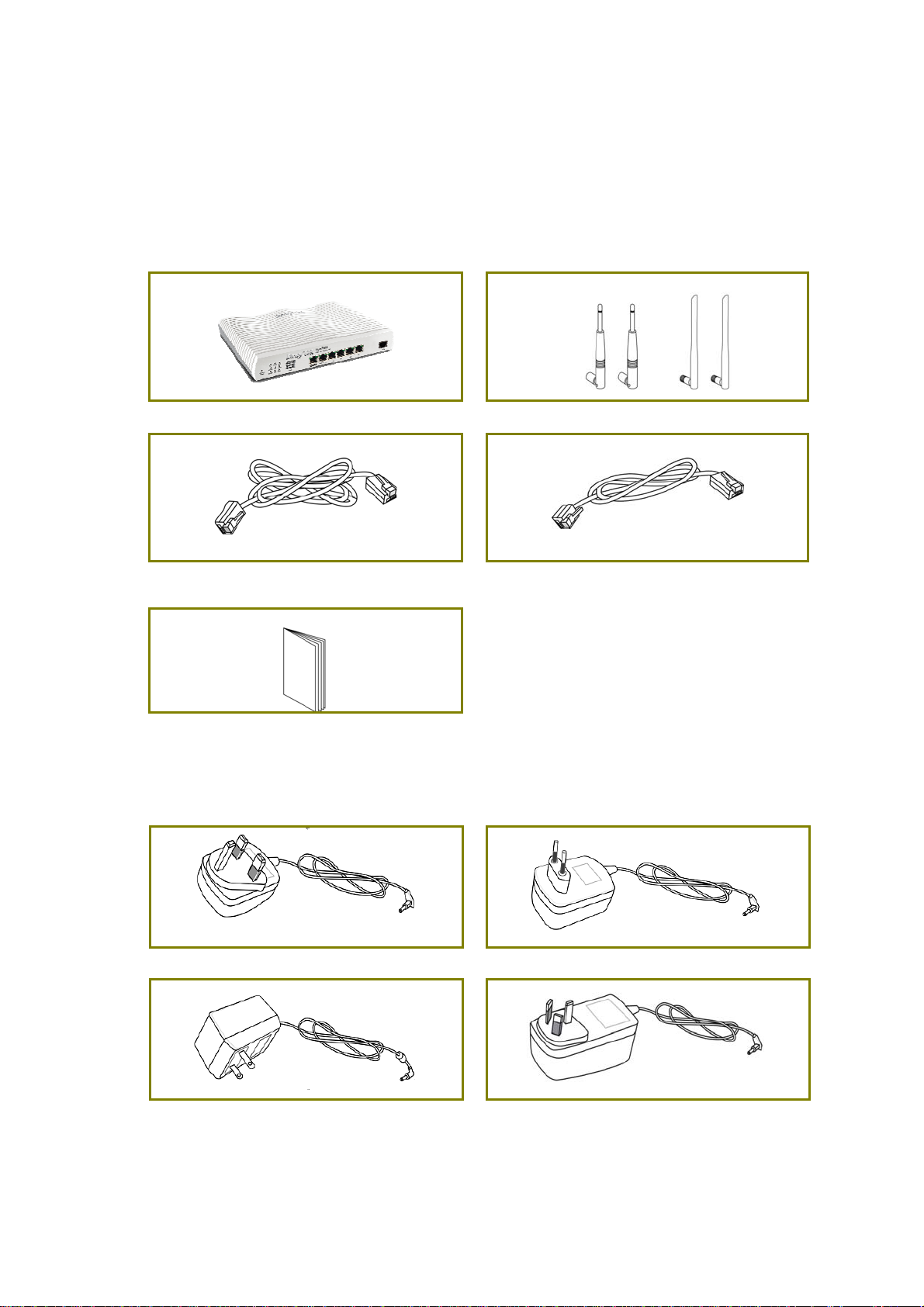

Take a look at the package content. If there is anything missed or damaged,

please contact DrayTek or dealer immediately. Besides, the content is subject to

the real package.

Vigor Router Antenna (wireless models)

RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable or RJ-11 to RJ-45

Cable

Quick Start Guide

The type of the power adapter depends on the country that the router will be

installed. * The maximum power consumption is 28 Watt.

UK-type Power Adapter EU-type Power Adapter

USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter

No. LED Status Explanation

Off The router is powered off.

ACT Blinking The router is powered on and running normally.

On Internet connection is ready.

Off Internet connection is not ready.

WAN2 Blinking The data is transmitting.

On The QoS function is active.

QoS Off The QoS function is inactive.

On USB device is connected and ready for use.

Off No USB device is connected.

USB Blinking The data is transmitting.

On The router is ready to access Internet through DSL

link.

DSL Blinking Slowly: The DSL connection is ready.

Quickly: The connection is training.

On The Web Content Filter is active. (It is enabled

from Firewall >> General Setup).

WCF Off WCF is disabled.

On 2.4G/5G: Wireless access point with bandwidth of

2.4GHz/5GHz is ready.

WLAN: Wireless access point is ready.

Off Wireless function is disabled.

2.4G/5G

Blinking

It will blink slowly while wireless traffic goes

through.

ACT and WLAN LEDs blink quickly and

simultaneously when WPS is working, and will

return to normal condition after two minutes. (You

need to setup WPS within 2 minutes.)

On The DMZ function is enabled.

Off The DMZ function is disabled.

(1)

DMZ Blinking The data is transmitting.

WAN2 / P6

On The port is connected.

Off The port is disconnected.

Left LED Blinking The data is transmitting.

On The port is connected with 1000Mbps.

Right LED Off The port is connected with 10/100Mbps.

LAN P1-P5

On The port is connected.

Off The port is disconnected.

Left LED Blinking The data is transmitting.

On The port is connected with 1000Mbps.

(2)

Right LED Off The port is connected with 10/100Mbps

Otros manuales para Vigor2866 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Draytek

Draytek

Draytek VigorPro 5300 Manual de usuario

Draytek

Draytek Vigor2130 Series Manual de usuario

Draytek

Draytek Vigor2762 series Manual de usuario

Draytek

Draytek Vigor2920 Series Manual de usuario

Draytek

Draytek VigorPro 5510 Series Manual de usuario

Draytek

Draytek Vigor 2200E-Plus Manual de usuario

Draytek

Draytek Vigor2600Ge Manual de referencia

Draytek

Draytek Vigor 3100 Series Manual de usuario

Draytek

Draytek VigorFly 210 Manual de usuario

Draytek

Draytek Vigor2920 Series Manual de usuario

Draytek

Draytek Vigor2132 Series Manual de usuario

Draytek

Draytek Vigor 2930 Manual de usuario

Draytek

Draytek Vigor2760 Delight Manual de usuario

Draytek

Draytek Vigor3900 Series Manual de usuario

Draytek

Draytek Vigor Router 11ax Series Manual de usuario

Draytek

Draytek Vigor2600 Manual de usuario

Draytek

Draytek Vigor2765 Series Manual de usuario

Draytek

Draytek Vigor2135 Series Manual de usuario

Draytek

Draytek Vigor2600VG Manual de usuario

Draytek

Draytek Vigor 2110 Manual de usuario

Draytek

Draytek Vigor2765 Series Manual de usuario

Draytek

Draytek Vigor2710 Series Manual de usuario

Draytek

Draytek Vigor 2132 Series Manual de usuario

Draytek

Draytek Vigor2765 Series Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
