Draytek Vigor2760Vn Manual de usuario

Vigor2760 Series Quick Start Guide

Vigor2760 Series Quick Start Guide ii

Vigor2760 Series Quick Start Guide

iii

Vigor2760 Series

High Speed VDSL2 Router

Quick Start Guide

Guide Version: 1.0

For updates and support, visit www.draytek.co.uk

May 2014 / Firmware V3.7.5.1

Note: Product specification is subject to continuous evolution which may

not always be reflected in current documentation. For the formal specification

of your product, please refer only to the web site at www.draytek.co.uk

Vigor2760 Series Quick Start Guide

Declarations

is protected by copyright. No part may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language without written

permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

Microsoft & Windows are a registered trademarks of Microsoft Corp.

Apple, iOS and Mac OS are registered trademarks of Apple Inc.

Other products may be trademarks of their respective manufacturers.

Safety Instructions, Warranty & Updates

Safety Instructions

Read the installation guide thoroughly before you set up the router.

The router is a complicated electronic unit that may be repaired only be

authorized personnel. Do not try to open or repair the router yourself.

Do not place the router in a damp or humid place, e.g. a bathroom.

Do not stack the router or obstruct its ventilation..

The router should be used within a temperature range of +5 to +40C and

not exposed to heat sources or direct sunlight.

Do not run any LAN cables outdoors or to external buildings.

Keep the packaging out of reach of children.

When you want to dispose of the router, please follow local regulations

on conservation of the environment.

arrant

We warrant to the original end user (purchaser) that the router will be free

from any defects in workmanship or materials for a period of two (2) years

from the date of purchase from the dealer. Please keep your purchase receipt

safely as proof of purchase. During the warranty period, and upon proof of

purchase, should the product have indications of failure due to faulty

workmanship and/or materials, we will, at our discretion, repair or replace the

defective products or components, without charge for either parts or labour, to

whatever extent we deem necessary to re-store the product to proper operating

condition. Any replacement will consist of a new or re-manufactured

functionally equivalent product of equal value, and will be offered solely at

our discretion. This warranty will not apply if the product is modified,

misused, tampered with, damaged by an act of God, or subjected to

abnormal/unapproved working conditions. The warranty does not cover the

bundled or licensed software of other vendors. Defects which do not

significantly affect the usability of the product will not be covered by the

warranty. We reserve the right to revise the manual and online documentation

and to make changes from time to time in the contents hereof without

obligation to notify any person of such revision or changes. Warranty service

is ‘RTB’ (return to base), not advance replacement or on-site and in all cases

provided through the distribution chain through which the product was

supplied and only to the intended locale. You can subscribe to VigorCare

within 30 days of purchase – see www.draytek.co.uk/vigorcare

oin the UK

mailing list Users in the UK & Ireland can sign up to our mailing list which goes out 4-6

times per year with products news, updates, hints & tips and offers. For

details, please visit www.draytek.co.uk/mailing-list

mware & Tools

Updates Due to the continuous evolution of DrayTek technology and emerging risks,

router firmware updates may be issued. Please consult the DrayTek web site

for more information on newest firmware, tools and documents.

www.draytekco.uk (For users and products in the UK/Ireland)

Vigor2760 Series Quick Start Guide ii

European Community Declarations

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, HuKou, HsinChu Industrial Park, Hsin-Chu, Taiwan 303

Product: Vigor2760 Series Router

DrayTek Corp. declares that Vigor2760 Series complies with R&TTE Directive 1999/5/EEC, the

requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC, EN55022/Class B and

EN55024/Class B and Low Voltage (LVD) Directive 2006/95/EC complying with EN60950-1.

This product is designed for POTS, xDSL and 2.4GHz WLAN network for UK/Ireland. Please refer to the

web site (www.draytek.co.uk) for latest specification and compatibility for your product.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a different circuit to the the receiver.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device may accept any interference received, including interference that may cause undesired

operation.

This equipment must be installed and operated in accordance with provided instructions and the antenna(s)

used for this transmitter must be installed to provide a separation distance of at least 20 cm from all

persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

End-users and installers must be provided with antenna installation instructions and transmitter operating

conditions for satisfying RF exposure compliance.

Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment including the usage on unauthorised accessories.

Please visit http://www.draytek.com/user/SupportDLRTTECE.php#

Vigor2760 Series Quick Start Guide

iii

1. Introduction ........................................................................................1

1.1 Front Panel & Connectors .............................................................................. 2

1.2 Package Contents (Accessories).................................................................... 5

2. Installing Your Router ........................................................................6

2.1 Hardware Installation...................................................................................... 6

3. Quick Setup ........................................................................................8

3.1 Accessing the Web User Interface (WUI) ....................................................... 8

3.2 Configuring WAN1 for Internet Access ........................................................... 9

3.3 Configuring WAN2 for Internet Access ......................................................... 12

3.4 Configuring WAN3 for Internet Access ......................................................... 14

4. Troubleshooting ...............................................................................15

4.1 Check the Hardware connection................................................................... 15

4.2 Check your computer’s Network Connection Settings.................................. 16

For Windows............................................................................................ 16

For Mac OS.............................................................................................. 18

4.3 Pinging the router from your computer ......................................................... 19

For Windows............................................................................................ 19

For Mac OS (Terminal)............................................................................ 19

4.4 Check the ISP Settings on the router............................................................ 20

4.5 Problems with 3G/4G Network Connection .................................................. 20

Check if the router’s USB LED is on........................................................ 20

USB LED lit but no network connection................................................... 20

3G/4G Connection Speed........................................................................ 21

4.6 Restoring back to Factory Default Settings................................................... 21

4.7 Getting further help....................................................................................... 23

5. Additional Feature Setup.................................................................23

6. Keep Up to Date with Our Mailing List ...........................................23

7. Firmware Updates ............................................................................23

Vigor2760 Series Quick Start Guide

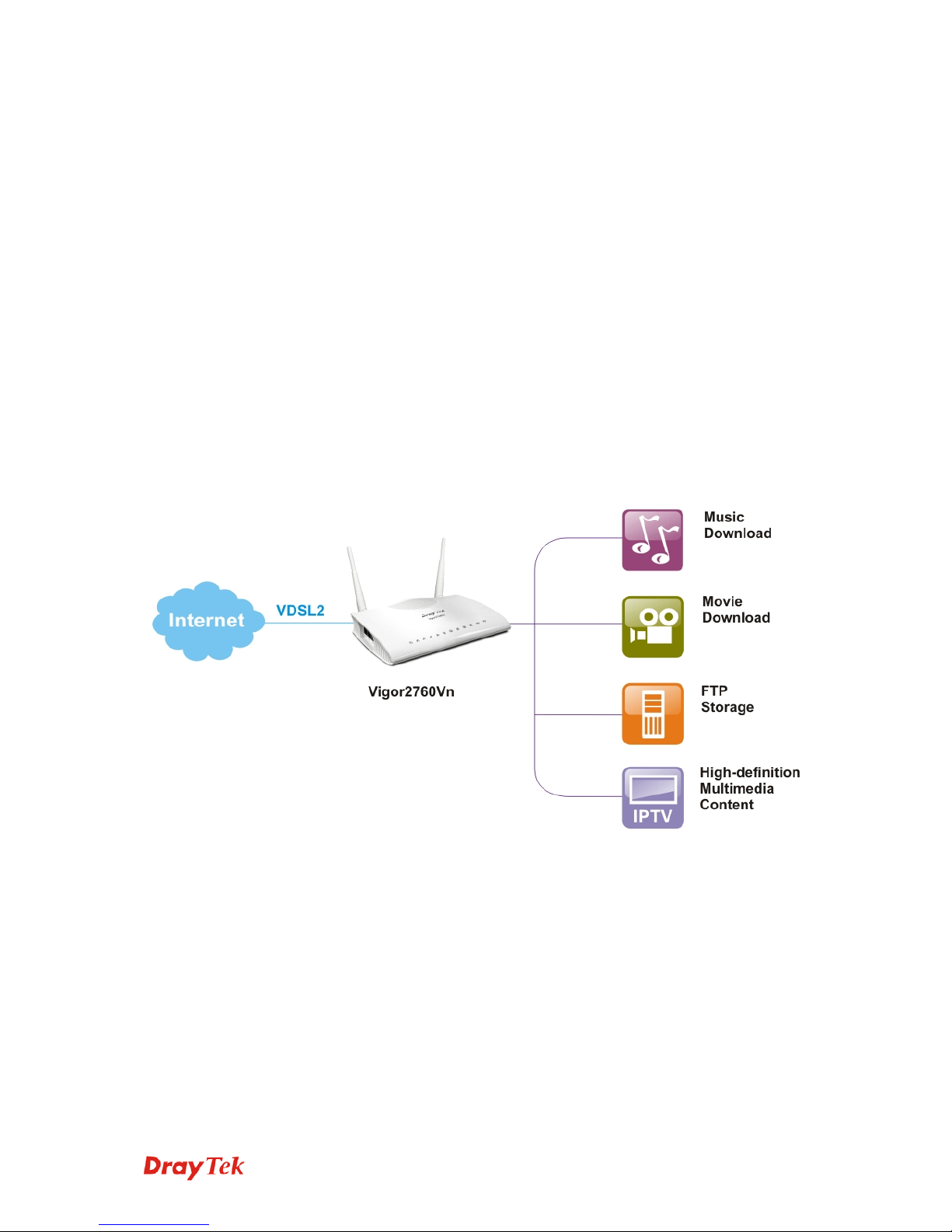

The Vigor2760 series is a router/firewall supporting ADSL, VDSL or

Ethernet-fed WAN technologies, ideal to allow later migration or

standardization on a single model regardless of your Internet connectivity

The Vigor 2760 series includes 802.11n Wireless LAN (n models) with

multiple security methods to help protect your network. The Vigor 2760Vn

also includes phone ports for connectivity of a phone to make use of

Voice-over-IP (VoIP) services for low-cost calls over the Internet

(compatible SIP/VoIP provider required).

With the high throughput performance, Quality of Service assurance and

web content filtering features provided by the Vigor2760 series, you can

simultaneously use bandwidth-intensive applications, such as video

streaming, online gaming, and Internet telephony / access.

The Vigor2760 supports up to 2 outgoing (dial-out to HQ) VPN tunnels

using advanced protocols such as IPSec with AES/3DES for encryption and

MD5/SHA-1 for authentication allowing connectivity to your main office.

In addition, the Vigor 2760 series supports two USB interfaces for

connecting a shared USB printer, a USB memory device for sharing files or

compatible 3G/4G cellular dongle for Internet backup.

Vigor2760 Series Quick Start Guide 2

LED Status Explanation

Blinking The router is running normally.

ACT Off The router is powered off.

On A PSTN phone call is active on a

connected telephone handset.

LINE

(Vigor 2760Vn only) Off There is no active PSTN phone call.

On The phone on this port is off-hook.

Off The phone on this port is on-hook.

Phone1/Phone2

(Vigor 2760Vn only) Blinking A phone call is ringing.

On (Green) The wireless access point is ready.

Blinking

(Green) The data is transmitting via wireless

connection.

Blinking

(Orange) Blinks with one second cycle for two

minutes. The WPS function is active.

Wireless LAN

On/Off/WPS

(Vigor 2760n and

Vigor 2760Vn only) Off Wireless access is turned off.

On The xDSL port is connected.

Slow Blink The router is ready to connect.

xDSL (Green) Fast Blink The router is trying to connect to

Internet or synchronize with the line.

On The port is connected.

LAN 1/2/3/4

Blinking Data is transmitting.

USB1/2

On A USB device is connected and active.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Draytek

Draytek

Draytek Vigor2760 Manual de usuario

Draytek

Draytek Vigor 2104 Manual de usuario

Draytek

Draytek Vigor3912 Series Manual de usuario

Draytek

Draytek Vigor2912 Series Manual de usuario

Draytek

Draytek Vigor2760 Manual de usuario

Draytek

Draytek Vigor2962 Series Manual de usuario

Draytek

Draytek Vigor2760 Delight Manual de usuario

Draytek

Draytek Vigor 3300 Series Manual de usuario

Draytek

Draytek Vigor2866 Series Manual de usuario

Draytek

Draytek Vigor 2710e Manual de usuario

Draytek

Draytek Vigor2952 Series Manual de usuario

Draytek

Draytek Vigor2920n Manual de usuario

Draytek

Draytek Vigor Router 11ax Series Manual de usuario

Draytek

Draytek Vigor 2710 Manual de usuario

Draytek

Draytek Vigor2865ac-B Manual de usuario

Draytek

Draytek Vigor 2950Gi Guía de referencia

Draytek

Draytek Vigor2762 series Manual de usuario

Draytek

Draytek Vigor 2927 Series Manual de usuario

Draytek

Draytek Vigor 2200E-Plus Guía de referencia

Draytek

Draytek Vigor 2762 Series Manual de usuario

Draytek

Draytek Vigor3300V+ Manual de usuario

Draytek

Draytek Vigor2925 Series Manual de usuario

Draytek

Draytek Vigpr2500 Manual de usuario

Draytek

Draytek Vigor2920 Series Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
