Dräger Alcotest 5000 Manual de usuario

Alcotest®5000

en Instructions for use cs Návod k použití

ru Руководство по

эксплуатации hu Használati útmutató

hr Upute za uporabu uk Інструкція зексплуатації

sl Navodilo za uporabo bs Uputstva za upotrebu

sk Návod na použitie

Content

1 Safety-related information . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Conventions used in this document . . . . . . . . . . . . . . . . . . .5

3 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.1 What’s in the box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.2 Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4 Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.1 Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4.2 Preparation for use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4.3 Performing the measurement. . . . . . . . . . . . . . . . . . . . . . .11

4.4 Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

4.5 Passive and manual tests. . . . . . . . . . . . . . . . . . . . . . . . . .13

5 Setting up the instrument . . . . . . . . . . . . . . . . . . . . . . . . . .14

5.1 Switching the instrument on and off . . . . . . . . . . . . . . . . . .14

5.2 Mounting the wrist strap . . . . . . . . . . . . . . . . . . . . . . . . . . .14

5.3 Mounting a telescope bar . . . . . . . . . . . . . . . . . . . . . . . . . .14

5.4 Inserting or replacing the batteries . . . . . . . . . . . . . . . . . . .15

5.5 Funnel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

6 Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

6.1 Menu items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

6.2 Quitting the submenu or menu . . . . . . . . . . . . . . . . . . . . . .17

Product name 3

Content

7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

8 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

8.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

8.2 Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

8.3 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

8.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

10 Order list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Safety-related information

1 Safety-related information

Before using this product, carefully read the instructions for use.

Only trained and competent personnel are permitted to inspect,

repair and service the product. Dräger recommend a Dräger

service contract for all maintenance activities and that all repairs

are carried out by Dräger.

The user must fully understand and strictly observe the

instructions. Use the product only for the purposes specified in the

intended use section of this document.

Liability for proper function or damage

The liability for the proper function of the instrument is irrevocably

transferred to the owner or operator if the instrument is improperly

serviced or repaired by personnel not employed or authorized by

Dräger Safety or if the instrument is used in a manner not conforming

to its intended use.

Dräger cannot be held responsible for damage caused by non-

compliance with the recommendations given above.

The warranty and liability provisions of the terms of sale and delivery

of Dräger are not affected by the recommendations given above.

Dräger Safety AG & Co. KGaA

Conventions used in this document

2 Conventions used in this document

The following alert messages are used in this document to provide and

highlight areas of the associated text that require a greater awareness

by the user. A definition of the meaning of each alert message is as

follows:

CAUTION

Indicates a potentially hazardous situation which, if not avoided, could

result in physical injury. It may also be used to alert against unsafe

practices.

NOTICE

Indicates a situation which, if not avoided, could result in damage to

the product or environment.

Description

3 Description

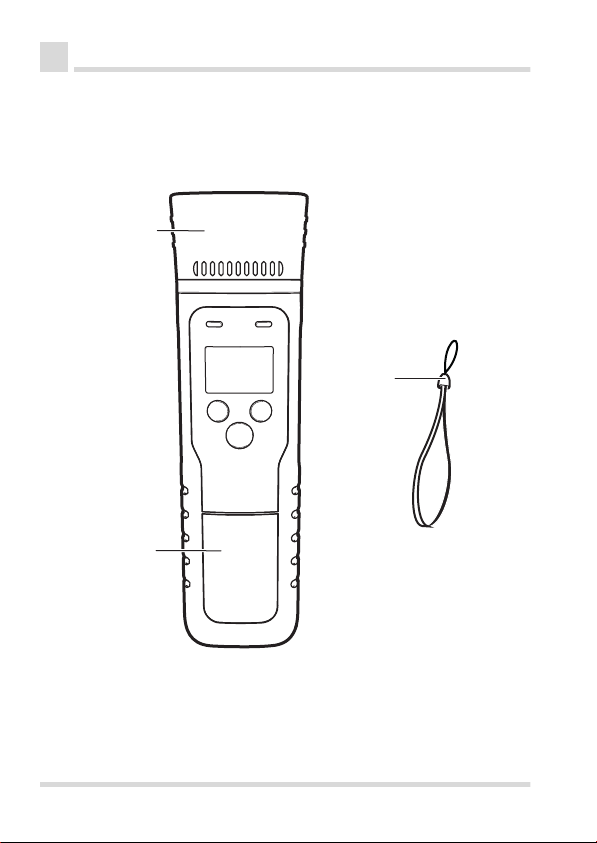

3.1 What’s in the box?

1 Dräger Alcotest®5000 (incl. 3 AA alkaline batteries)

2 Non-contact funnel (3 pcs)

3Wriststrap

Description

1Funnel

2LED (red, green)

3Display

4DOWN/MENU button

5OK button

6UP button

7USB communications socket for service only

8 Wrist strap eyelet

Use

3.2 Buttons

4 Use

For detecting alcohol in a person’s breath, in air over substances, or

ambient air (passive test). The measurement is used as an indication

for alcohol intoxication. No therapeutic or legal measures should be

initiated, based on the detection results.

Before starting the measurement the instrument has to be set up.

Inserting batteries (see page 15 section "Inserting or replacing the

batteries")

Fitting strap (Continue at 5.2 Mounting the wrist strap.)

Mounting funnel (Continue at 5.5 Funnel.)

NOTICE

The measurement is used as an indication for alcohol intoxication. No

therapeutic or legal measures should be initiated based on the

detection result.

Button Function

Switching on and off the instrument and confirming

entries or selected functions. In further text OK.

Accessing the menu and navigating down in the menu

and skipping between digit positions. In further text

DOWN or MENU.

Navigating up in the menu, skipping between digit

positions. In further text UP.

Use

4.1 Prerequisites

NOTICE

Avoid taking the samples in the draft of wind. The test result could be

affected.

4.1.1 Adequate breath sample

The test person should breathe regularly and calmly before the

sample is taken.

The test person must be capable of exhaling the minimum breath

volume.

For a valid test, the exhaling breath must constantly flow for at

least 1 second (factory settings).

The distance between the funnel and the test person’s mouth must

be approx. 2-3 cm.

4.1.2 Waiting time after the last drink

Maintain a waiting time of at least 10 minutes after drinking

alcohol!

Rinsing the mouth with water or non-alcoholic drinks does not

reduce this waiting period!

Residual alcohol in the mouth or aromatic drinks (e.g. fruit juice),

mouth sprays containing alcohol as well as medicines can distort

the measurement.

00833785

Use

4.1.3 Initial start-up

A setup wizard is opened when the instrument is switched on for the

first time.

The following settings are made using the setup wizard:

Language

Date

Time format

Time

All settings can be changed later on via menu.

NOTICE

Loss of pre settings. If the batteries are removed longer than

5 minutes, the date and time have to be set again.

4.2 Preparation for use

1. Make sure the batteries are charged and inserted.

2. Make sure a clean funnel is attached.

3. Make sure the instrument is held tightly and safely by using the

wrist strap or telescope bar properly.

4. Switch on the instrument by pressing OK (see page 14 section

"Switching the instrument on and off").

If the instrument is ready for measurement, an empty bar is shown

in the display.
