Setup and Installation Manual

Vitalert 3000 Series

Monitoring Systems

RETURN TO CD-ROM TABLE OF CONTENTS

VITALERT 3000 SERIES

SETUP AND INSTALLATION

TABLE OF CONTENTS

Section 1 Introduction

Introduction ................................................................ 1-1

Warnings, Cautions, and Notes ................................................. 1-1

Section 2 Setup & Installation

Overview ................................................................. 2-1

Equipment/Accessory Checklist ................................................. 2-1

Installing the Vitalert 3000 Series Monitor .......................................... 2-1

Configuring Default Values ..................................................... 2-2

Connecting the Vitalert 3000 Series to a Computer ................................... 2-3

Connecting the Vitalert 3000 Series to a Vitalert 2000 ................................. 2-3

Connecting the Vitalert 3000 Series to a Narkomed 2C ................................ 2-3

Connecting the Vitalert 3000 Series to a Narkomed 2B ................................ 2-4

Connecting the Vitalert 3000 Series to the O.R. Data Manager ........................... 2-4

Connecting the External Sensors ................................................ 2-5

Installing the Oximeter Sensor .................................................. 2-6

Connecting the Noninvasive Blood Pressure Cuff Hose ................................ 2-7

Installing the Gas Analyzer Sample Line ........................................... 2-8

Section 3 Routine Maintenance

Overview ................................................................. 3-1

Cleaning and Sterilization ..................................................... 3-1

Replacing the Water Trap Reservoir .............................................. 3-2

Main Maintenance Screen ..................................................... 3-2

Accessing the Maintenance Screens ............................................. 3-3

PMS Screen ............................................................... 3-4

SpO2Maintenance Screen ..................................................... 3-5

NIBP Maintenance Screen ..................................................... 3-6

Sample Line Flow Maintenance Screen ........................................... 3-7

Gas Analyzer Accuracy Test .................................................. 3-10

Gas Analyzer Maintenance Screen .............................................. 3-11

Tilt Bezel Friction Adjustment .................................................. 3-13

Completion of Routine Maintenance Checklist ...................................... 3-14

Section 4 Return Instructions

Repacking Guidelines ........................................................ 4-1

RETURN TO CD-ROM TABLE OF CONTENTS

Section 1

Introduction

Introduction This manual provides the basic information needed to setup and install a

Vitalert 3000 Series monitor. The setup must be performed by or under the

direct supervision of an authorized North American Dräger representative.

The instructions are divided into the following sections:

Section 2 contains an equipment and accessory checklist, followed by

complete procedures for installing the monitor, connecting it to anesthesia

machines and other equipment, and connecting external sensors.

Section 3 contains cleaning and replacement procedures and instructions on

use of the Vitalert 3000 Series maintenance screen.

Section 4 contains repacking instructions.

Warnings, Cautions,

and Notes All parts of this manual contain warning and caution statements about the

Vitalert 3000 Series monitor.

•Warning statements are used in this manual with procedures that, if not

performed correctly, could result in personal injury.

•Caution statements are used in this manual to alert service personnel to

the possibility of equipment damage if a procedure is not performed

correctly.

•Note statements are used in this manual to clarify information that may

not be readily obvious, such as secondary cause and effect.

1-1

RETURN TO CD-ROM TABLE OF CONTENTS

Section 2

Setup and Installation

Overview This section contains an equipment checklist along with all the steps

necessary for the installation and connection of the Vitalert 3000 Series

monitor and external sensors.

Equipment/

Accessory

Checklist

Remove the Vitalert 3000 Series monitoring system and accessories from

the container. Use the checklist below to make sure the following articles

were included in the container:

1 Vitalert 3000, 3100, 3200, or 3300 monitor

1 Power cable

1 Data cable (DB9/DB9)

1 Vitalert 3000 Series Operator’s Manual

Respiratory Accessories:

1 Gas sample line

1 Adapter/filter

1 Water trap reservoir

1 Six-foot exhaust hose

1 Scavenger adapter assembly

2 Air filters

Pulse Oximetry Accessories (models 3000, 3200)

1 Patient cable with pre-amp

1 Finger probe

Noninvasive Blood Pressure Accessories (models 3100, 3200)

1 Cuff extension hose

1 Adult cuff

Installing the

Vitalert 3000 Series

Monitor

Installing the Vitalert 3000 Series requires approximately 13.5 by 17 inches

of shelf space. The shelf should be capable of supporting at least 35

pounds.

NOTE: The Vitalert 3000 Series monitor is equipped with a universal

power supply for 100-240 VAC primary electrical power. The

supplied power cord comes with a 117 VAC hospital grade

plug. If a different plug is needed, an appropriate connector

must be installed on the cord by a qualified electrician.

Attach one end of the power cable to the receptacle on the rear panel. The

other end of the Vitalert 3000 Series power cable must be plugged into a

grounded outlet.

CAUTION: The Vitalert 3000 Series may have a leakage current of up to

50 µA. When plugged into the convenience receptacle of

another device, the monitor may contribute up to 50 µAto

the total system chassis leakage current of that device.

2-1

RETURN TO CD-ROM TABLE OF CONTENTS

Section 2

Setup and Installation

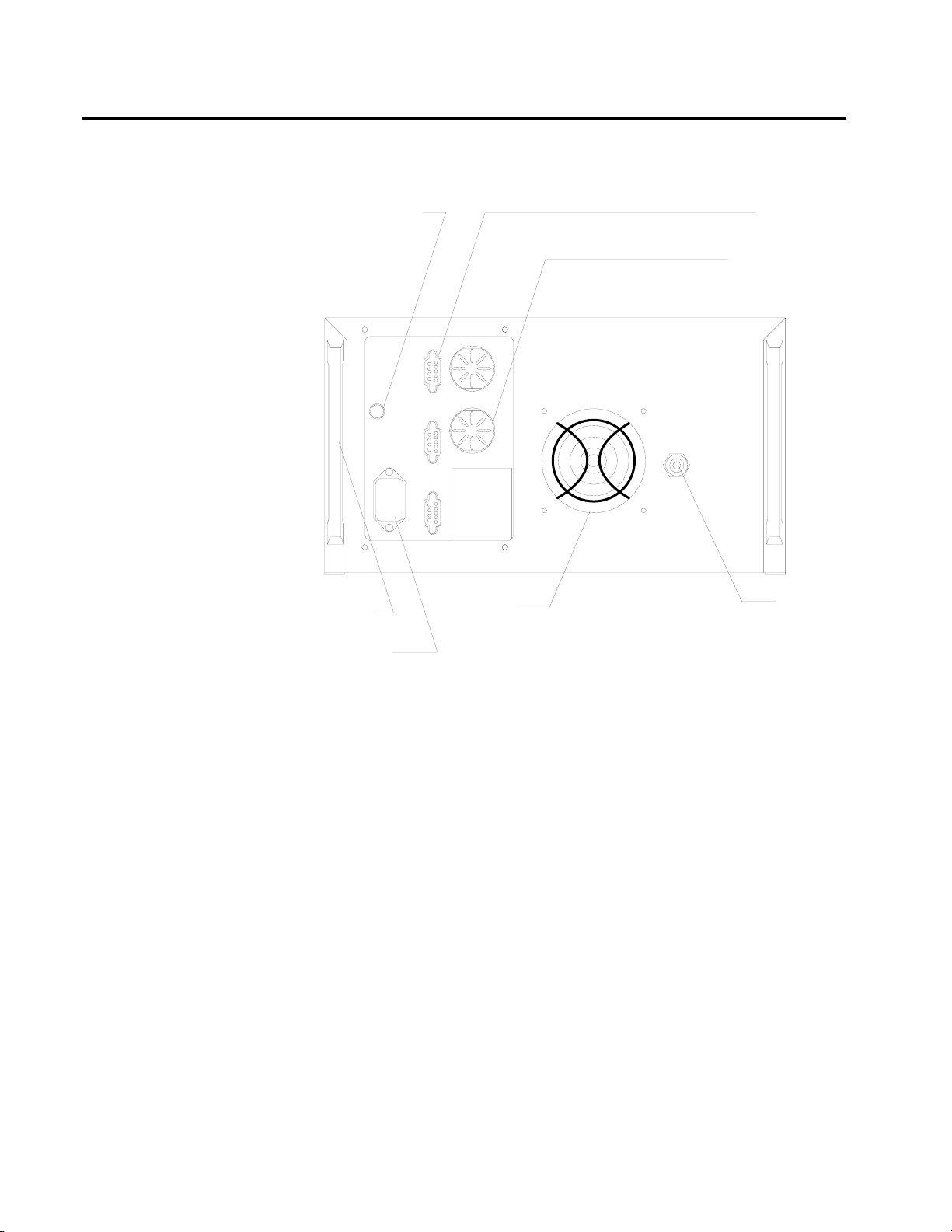

The back panel of the Vitalert 3000 Series is shown in the figure below.

CIRCUIT BREAKER

HANDLE (2X)

POWER CABLE

TERMINAL

EXHAUST

OUTPUT

FAN

SPEAKERS (2X)

DB9 SERIAL

PORTS (3X)

SU30027

PORT B

PORT C

PORT A

CONNECT TO RECEPTACLE MARKED

"HOSPITAL GRADE" ONLY

VITALERT 3000

Configuring Default

Values All system settings on the Vitalert 3000 Series, including alarm limits,

Datascan settings, units of measure, etc., are initially configured with

factory default values. Initial setup of the machine should include

configuring all of the system settings and the monitor setup values.

In addition to the template that contains the factory default alarm limit

settings, the monitor can store eight additional templates in its memory for

later selection. As part of your installation procedure, configure the

Standard Site Defaults; these settings become the default alarm limit values

upon power-up for all subsequent cases. For complete information on

templates, see the Vitalert 3000 Series Operator’s Manual.

2-2

RETURN TO CD-ROM TABLE OF CONTENTS

Section 2

Setup and Installation

Connecting the

Vitalert 3000 Series

to a Computer

To interface the Vitalert 3000 Series to a computer (with RS-232 serial Port),

contact North American Dräger for technical support.

Connecting the

Vitalert 3000 Series

to a Vitalert 2000

To connect the Vitalert 3000 Series to a Vitalert 2000:

1. Connect one end of a Vitalink data cable to a serial port on the rear

panel of the Vitalert 3000 Series monitor.

2. Connect the other end of the data cable to the serial port on the back of

the Vitalert 2000 (see Vitalert 2000 Operator’s Manual).

3. Secure all connections with the captive screws provided.

4. Configure the Vitalert 3000 Series’ serial port, via the Serial Ports

System Configuration screen, for the following parameters:

BAUD RATE: 9600

DATA BITS: 8

PARITY: NONE

STOP BITS: 1

PROTOCOL: VITALINK

5. Configure the port of the Vitalert 2000 for the same parameters given in

step 4 (see Configuration section of the Vitalert 2000 Operator’s Manual).

Configure the RTS/CTS as OFF in the communication port

configuration screen of the Vitalert 2000.

Connecting the

Vitalert 3000 Series

to a Narkomed 2C

To connect the Vitalert 3000 Series to a Narkomed 2C anesthesia system:

1. Connect one end of a Vitalink data cable to Port C on the rear of the

Vitalert.

2. Connect the other end of the cable to Port A or Port B on the rear of

the Narkomed 2C (see the Narkomed 2C Setup and Installation Manual

and the Narkomed 2C Operator’s Manual).

3. Secure all connections using the captive screws provided.

4. Configure the Vitalert’s Port C, via the Serial Ports System

Configuration screen, for the following parameters. To ensure proper

communication, the port must be configured exactly as shown below.

BAUD RATE: 9600

DATA BITS: 8

PARITY: NONE

STOP BITS: 1

PROTOCOL: VITALINK

2-3

RETURN TO CD-ROM TABLE OF CONTENTS

Section 2

Setup and Installation

5. Configure the port on the Narkomed 2C for the same parameters given

in step 4 (see Invoking the Serial Ports Screen in the Narkomed 2C

Operator’s Manual).

Connecting the

Vitalert 3000 Series

to a Narkomed 2B

To connect the Vitalert 3000 Series to a Narkomed 2B anesthesia system:

1. Connect one end of a Vitalink data cable to Port C on the rear of the

Vitalert.

2. Connect the other end of the cable to Port A on the rear of the

Narkomed 2B (see the Narkomed 2B Operator’s Manual).

3. Secure all connections using the captive screws provided.

4. Configure the Vitalert’s Port C, via the Serial Ports System

Configuration screen, for the following parameters. To ensure proper

communication, the port must be configured exactly as shown below.

BAUD RATE: 1200

DATA BITS: 8

PARITY: NONE

STOP BITS: 1

PROTOCOL: VITALINK

5. Configure Port A of the Narkomed 2B for the same parameters given in

step 4 (see the Configuration section of the Narkomed 2B Operator’s

Manual).

Connecting the

Vitalert 3000 Series

to the O.R. Data

Manager

To connect the Vitalert 3000 Series to the O.R. Data Manager:

1. Connect one end of a Vitalink data cable to a serial port on the rear of

the Vitalert.

2. Connect the other end of the cable to the Vitalink port on the rear of

the O.R. Data Manager (see the O.R. Data Manager Setup and Installation

Manual).

3. Secure all connections using the captive screws provided.

4. Configure the Vitalert’s serial port, via the Serial Ports System

Configuration screen, for the following parameters.

BAUD RATE: 9600

DATA BITS: 8

PARITY: NONE

STOP BITS: 1

PROTOCOL: VITALINK

2-4

RETURN TO CD-ROM TABLE OF CONTENTS

Tabla de contenidos

Otros manuales de Instrumento de medición de Dräger

Dräger

Dräger Alcotest 6510 Manual de usuario

Dräger

Dräger X-AM 2500 Manual de usuario

Dräger

Dräger X-am 5600 Manual de usuario

Dräger

Dräger P7-TD Manual de usuario

Dräger

Dräger Pac 3500 Manual de usuario

Dräger

Dräger X-dock 5300 Manual de usuario

Dräger

Dräger MP04551 Manual de usuario

Dräger

Dräger P7-TD Manual de usuario

Dräger

Dräger 5603121 Manual de usuario

Dräger

Dräger FG7000 Manual de usuario

Dräger

Dräger 68 01 933 Manual de usuario

Dräger

Dräger X-zone 5000 Manual del propietario

Dräger

Dräger Polytron 8000 Series Manual de usuario

Dräger

Dräger X-AM 2500 Manual de usuario

Dräger

Dräger Multi-PID 2 Manual de usuario

Dräger

Dräger Alcotest 6000 Manual de usuario

Dräger

Dräger Interlock 7500 DVI Manual de usuario

Dräger

Dräger X-am 1/2/5000 Manual de usuario

Dräger

Dräger Pac 7000 Manual de usuario

Dräger

Dräger Aerotest Alpha Manual de usuario

Dräger

Dräger JM-103 Manual de usuario

Dräger

Dräger Polytron 5000 Manual de usuario

Dräger

Dräger Pac III Series Manual de usuario

Dräger

Dräger X-am 1700 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
