Dometic FlyTec FT200 Manual de usuario

FlyTec FT200

Flyscreen for sliding doors

Installation and Operating Manual. . . . . . . . 8

Insektenschutz für Schiebetüren

Montage- und Bedienungsanleitung . . . . . 16

Moustiquaire pour portes

coulissantes

Instructions de montage

et de service . . . . . . . . . . . . . . . . . . . . . . . . .24

Protección contra insectos para

puertas corredizas

Instrucciones de montaje y de uso . . . . . . .33

Proteção contra insetos para portas

deslizantes

Instruções de montagem e manual de

instruções . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Zanzariera per porte scorrevoli

Istruzioni di montaggio e d’uso . . . . . . . . .50

Hor voor schuifdeuren

Montagehandleiding en

gebruiksaanwijzing. . . . . . . . . . . . . . . . . . . 58

Net til skydedøre

Monterings- og betjeningsvejledning. . . . 66

Insektsskydd för skjutdörrar

Monterings- och bruksanvisning . . . . . . . . 74

Insektsbeskyttelse for skyvedører

Monterings- og bruksanvisning . . . . . . . . . 81

Hyttyssuoja liukuoviin

Asennus- ja käyttöohje . . . . . . . . . . . . . . . . 88

Москитная сетка для сдвижных

дверей

Инструкция по монтажу и эксплуатации . 95

Ochrona przed insektami dla drzwi

przesuwnych

Instrukcja montażu i obsługi. . . . . . . . . . . 104

Protihmyzová sieťka pre posuvné

dvere

Návod na montáž a uvedenie

do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 113

Síť proti hmyzu na posuvné dveře

Návod k montáži a obsluze . . . . . . . . . . . 121

Rovarvédő tolóajtókhoz

Szerelési és használati útmutató . . . . . . . 128

WINDOWS & DOORS

BLINDS

FT200-IO-16s.book Seite 1 Montag, 15. Januar 2018 2:19 14

FT200-IO-16s.book Seite 2 Montag, 15. Januar 2018 2:19 14

Dometic FlyTec FT200

C = 15 mm

A =

18 mm

B = 3 mm

≥ 20 mm

40 mm

FT200-IO-16s.book Seite 3 Montag, 15. Januar 2018 2:19 14

Dometic FlyTec FT200

FT200-IO-16s.book Seite 4 Montag, 15. Januar 2018 2:19 14

Dometic FlyTec FT200

FT200-IO-16s.book Seite 5 Montag, 15. Januar 2018 2:19 14

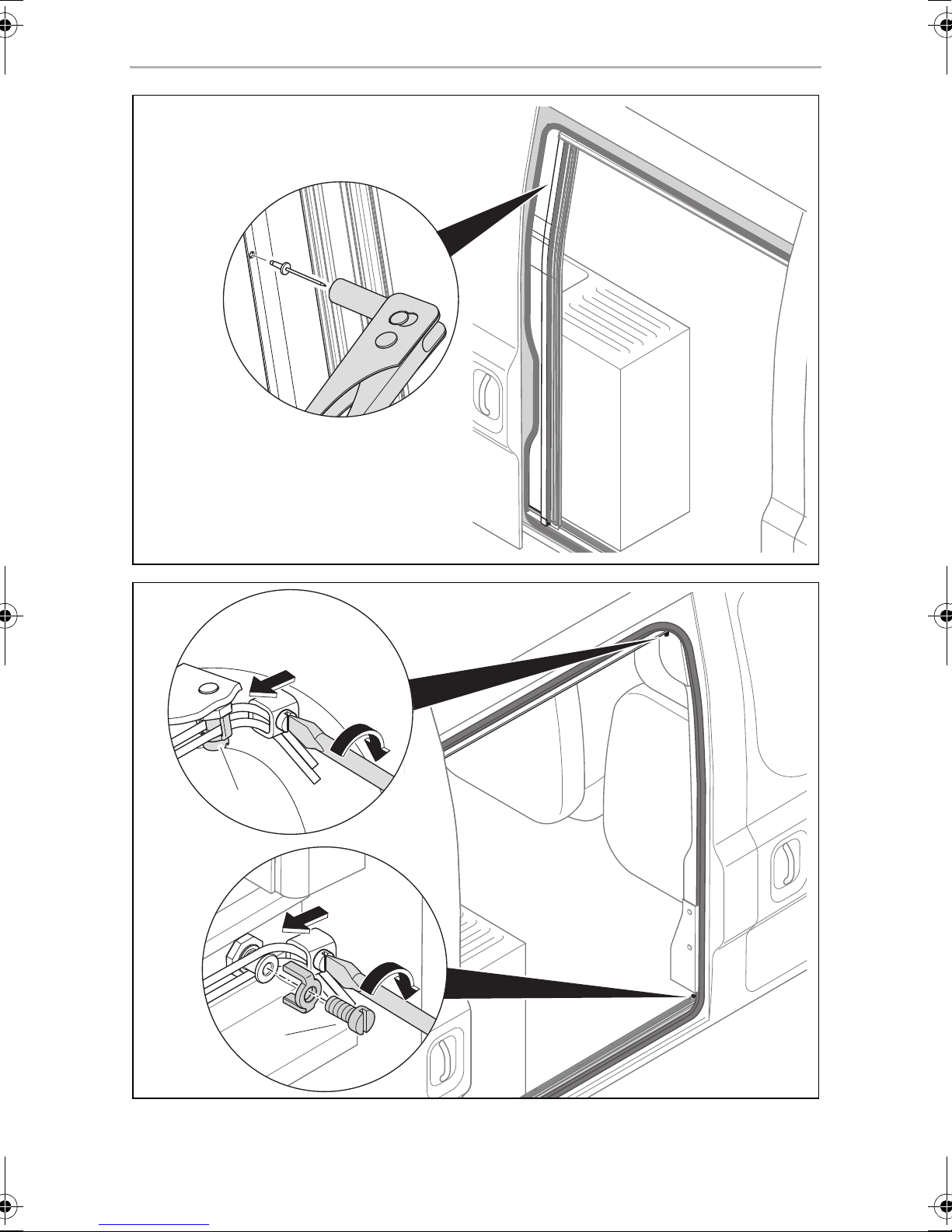

Dometic FlyTec FT200

FT200-IO-16s.book Seite 6 Montag, 15. Januar 2018 2:19 14

Dometic FlyTec FT200

FT200-IO-16s.book Seite 7 Montag, 15. Januar 2018 2:19 14

Explanation of symbols Dometic FlyTec FT200

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

5 Installing the flyscreen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

6 Using the flyscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

9 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

10 Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

1 Explanation of symbols

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

FT200-IO-16s.book Seite 8 Montag, 15. Januar 2018 2:19 14

Dometic FlyTec FT200 Safety instructions

2 Safety instructions

Please observe the safety instructions and stipulations issued by the vehicle

manufacturer and service workshops.

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

ANOTICE!

•If you do not have sufficient technical knowledge for installing

components in vehicles, you should have a specialist install the fly-

screen in your vehicle.

•Check whether the dimensions of the flyscreen fit your vehicle.

•Installation of the flyscreen requires two people.

3Scopeofdelivery

The screws for fastening on the vehicle are not included in the scope of delivery.

No. in

fig. 1,

page 3

Quantity Description

1 1 Skirting board

2 1 Cassette profile with flyscreen and guide cables

3 1 C pillar cover

4 7 Blind rivet (4 x 8 mm with stainless steel mandrel)

5 1 Fastening screw M5 x 30 mm and M5 nut

6 1 Guide rail above

7 1 Safety clip and screw M2.5 x 6

8 1 Deflection screw M4 with safety clip and screw M2.5 x 6

– Installation and operating manual

FT200-IO-16s.book Seite 9 Montag, 15. Januar 2018 2:19 14

Intended use Dometic FlyTec FT200

4 Intended use

The Dometic FlyTec FT200 is a flyscreen for sliding doors on camper vans which can

be slid or folded horizontally. For available versions see the table, page 15.

5 Installing the flyscreen

5.1 Notes on installation

•Before installing the flyscreen, check whether any vehicle components could be

damaged by the installation of the flyscreen (such as cupboards).

•For safety reasons, note the location of existing wiring harnesses, wires and other

components within the installation area, in particular those which are not visible,

when installing the flyscreen (when drilling or screwing, etc.).

5.2 Preparing the vehicle

Measuring the opening (fig. 2, page 3)

Please observe the following instructions when measuring:

•The installation opening should not have been made smaller through added

strips, coverings, fixtures, etc.

•The installation opening must have the minimum width of X and minimum height

of Y:

•Behind the rear sealing of the door (1), there needs to be a minimum of 40 mm

space for the flyscreen to be installed.

•There needs to be a space with a width of A = 18 mm between the outer edge of

the bodywork floor (4) and fitted cabinets (2) (e.g. kitchen).

FlyTec version (ref. no.) Minimum width X Minimum height Y

9104117297 and 9104117296 1298 mm 1765 mm

9104117387 and 9104117388 1128 mm 1492 mm

FT200-IO-16s.book Seite 10 Montag, 15. Januar 2018 2:19 14
