1168 Wireless Smoke/CO/Low Temp Combo Detector Installation and Programming Guide 1

ABOUT THE 1168

The 1168 Wireless Smoke/CO/Low Temp Detector features multi-criteria smoke sensing

using a combination of photoelectric, heat, IR ﬂame ﬂicker, and carbon monoxide

indicators. The 1168 reports ﬁre, CO, and low temp alarms to the control panel. Use the

onboard wireless transmitter to connect the 1168 with DMP1100Series Wireless Receivers.

INDICATOR LEDS

The 1168 has a multi-color top LED that

indicates the state of the device:

• GREEN—Supervisory indication; blinks

during power on, reset, and during

normal operation

• AMBER—Signal maintenance and

trouble events

• RED—Alarm (Smoke/CO/Low Temp)

Indicator lights on the side alarms (initiating

detector only):

• RED—Smoke

• BLUE—CO

POWER SUPPLY

The 1168 is powered by four 3.0V lithium

batteries. Battery life expectancy for the

unit is at least three years under normal

conditions.

VOICE ANNUNCIATION

The 1168 audibly announces alarm and

maintenance requirements, enhancing

occupant understanding and evacuation.

TAMPER MAGNET

The 1168 features a tamper magnet which

sends a trouble message to the panel if the

detector is removed from the mounting

base.

CADENCE SYNCHRONIZATION

The 1168 provides cadence synchronization

with other 1168 or 1164 units on the system.

LOW TEMP SENSOR

The 1168 includes a low temperature

sensor that causes an alarm when inside

temperature falls below 41°F (5°C).

1168 Wireless Smoke/CO/Low Temp Detector Installation and Programming Guide2

1168 FEATURES

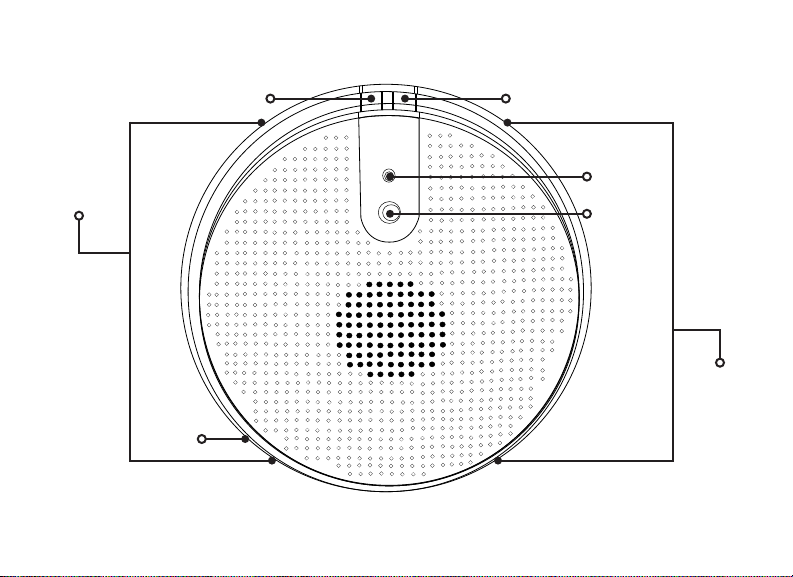

Figure 1: 1168 Features

CO Test Button Smoke Test Button

Indicator

LED

IR Flame

Detector

Indicator

Lights

CO Entry

Port

Indicator

Lights

1168 Wireless Smoke/CO/Low Temp Combo Detector Installation and Programming Guide 3

PROGRAM THE 1168

When programming an 1168 Wireless Smoke/CO/Low Temp Detector, refer to the

appropriate panel programming guide as needed.

PROGRAMMER MENU

Enter 6653 (PROG) at the keypad to enter the PROGRAMMER

menu.

ZONE INFORMATION

Press CMD until ZONE INFORMATION displays. Press a select

key or area to enter the menu.

ZONE NUMBER

Enter the zone number. Press CMD.

Note: The 1168 takes up to three zone numbers (Smoke,

CO, Temp). The zone numbers must be consecutive.

ZONE NAME

Denote the zone name as a ﬁre zone. Press CMD.

ZONE TYPE

Press any select area. Press CMD to move to the next set of

menu options. Select FI (ﬁre) as the ZONE TYPE.

PROGRAMMER

ZONE INFORMATION

ZONE NO:

* UNUSED *

ZONE TYPE

FI PN EM SV

1168 Wireless Smoke/CO/Low Temp Detector Installation and Programming Guide4

FIRE BELL OUT

Default is 0. Press CMD.

NEXT ZONE

At the NEXT ZONE? prompt, select NO.

WIRELESS

At the WIRELESS? prompt, select YES.

Note: If you are programming the 1168 onto a zone that

can be either hardwired or wireless, then this prompt

appears. If the zone you are programming is wireless-only,

then the prompt does not appear.

SERIAL NUMBER

Enter the eight-digit SERIAL #: - found on the device and press

CMD.

CONTACT TYPE

Enter the CONTACT type as FIRE and press CMD.

FIRE BEL OUT: 0

NEXT ZONE? NO YES

WIRELESS? YES

TRANSMITTER

SERIAL #: -

CONTACT: FIRE

1168 Wireless Smoke/CO/Low Temp Combo Detector Installation and Programming Guide 5

SUPERVISION TIME

Enter the SUPVSN TIME, and press CMD.

NEXT ZONE

At the NEXT ZONE? prompt, select YES.

ZONE NUMBER

Enter the zone number. This number must be consecutive

with the previous zone. For example, if 500 was entered for

Fire,501 should be entered here. Press CMD.

ZONE NAME

Denote the zone name as a carbon monoxide (CO) zone. Press

CMD.

ZONE TYPE

Press any select area. Press CMD three times to move to the

last set of menu options. Select CO (carbon monoxide) as the

ZONE TYPE.

FIRE BELL OUT

Default is 0. Press CMD.

SUPVSN TIME: 240

NEXT ZN? YES

ZONE NO:

* UNUSED *

ZONE TYPE

CO IN

FIRE BEL OUT: 0

1168 Wireless Smoke/CO/Low Temp Detector Installation and Programming Guide6

NEXT ZONE

At the NEXT ZONE? prompt, select NO.

WIRELESS

At the WIRELESS? prompt, select YES.

Note: If you are programming the 1168 onto a zone that

can be either hardwired or wireless, then this prompt

appears. If the zone you are programming is wireless-only,

then the prompt does not appear.

SERIAL NUMBER

Enter the eight-digit SERIAL #: - found on the device and press

CMD.

CONTACT TYPE

Enter the CONTACT type as CO and press CMD.

SUPERVISION TIME

Enter the SUPVSN TIME, and press CMD.

NEXT ZONE? NO YES

WIRELESS? YES

TRANSMITTER

SERIAL #: -

CONTACT: CO

SUPVSN TIME: 240
