DMP Electronics 865 Manual de usuario

865 STYLE W/X NOTIFICATION

MODULE

Installation Guide

DESCRIPTION

AUX

PWR

TRBL

BELL

SILENCE

BELL POWER

GROUNDED

AT PANEL

NORMAL

MODEL 865

GND

FAU LT

GND

ALARM

INPUT

BELL

PWR +

INPUT

BELL

PWR -

INPUT

BELL A+

OUTPUT

BELL A-

OUTPUT

BELL B+

OUTPUT

BELL B-

OUTPUT

BELL

TRBL

BELL

TRBL

The 865 NAC module provides

Style W or X supervision for

ground faults, opens, and shorts

on notiﬁcation appliance circuits

connected to ﬁre alarm control

panels. The 865 is suitable for use

with 2 or 4-wire circuits.

The module also includes a Trouble

LED, Ground Fault LED, and a set of

Normally Closed Trouble contacts

to indicate o normal conditions.

Additionally, the module includes

a Bell Silence switch for use during

testing or service.

Connect a maximum 5 Amp,

12 or 24 VDC regulated, power

limited power supply listed for Fire

Protective Signals to the module to

support alarm power requirements

beyond the panel alarm output

capacity.

Compatibility

• XT30/XT50 Series panels

• XR150/XR550 Series panels

What is Included?

• One 865 NAC Module

• One Model 308 10k Ohm Resistor

with Leads

• Hardware Pack

1MOUNT THE MODULE

Themodule can be mounted in a

DMP enclosure using the standard

3-hole mounting pattern. Refer

to Figure 2 as needed during

installation.

1. Hold the plastic standos

against the inside of the

enclosure side wall.

2. Insert the included Phillips

head screws from the

outside of the enclosure into

the standos. Tighten the

screws.

3. Carefully snap the module

onto the standos.

WIRE THE MODULE

2Caution: Disconnect all power from the panel before wiring

the module. Failure to do so may result in equipment damage

or personal injury.

For power connections, use 22 AWG or larger wire. Refer to

Figure 3 and Figure 4 when wiring themodule.

1. Connect module Terminal 1 to panel Terminal 7.

2. Connect module Terminal 2 to panel Terminal 10.

3. Connect module Terminal 3 to panel Terminal 5.

4. Wire power supply positive to module Terminal 4.

5. Wire power supply negative to module Terminal 5.

6. If powering the NACs from the control panel, connect a

jumper between module Terminals3 and 4 and between

Terminals 2 and 5. For supervised circuits, ground fault is

detected at 0 (zero) Ohms.

7. For Style W connections, wire module Terminals 6-11

as shown in Figure 3. Install the included 10k Ohm EOL

resistor across Bell Output A + and Bell Output A –.

8. For Style X connections, wire module Terminals 6-11 as

shown in Figure 4. Trouble contacts are connected to a

zone on the panel to indicate NAC trouble or ground faults.

The common relay is rated 30 VDC @ 1 Amp, resistive.

9. For Style W and Style X circuits, install a jumper on the

Bell Ground Header. The jumper also disables the alarm

bell output in the event of a ground fault on either side of

the notiﬁcation circuit.

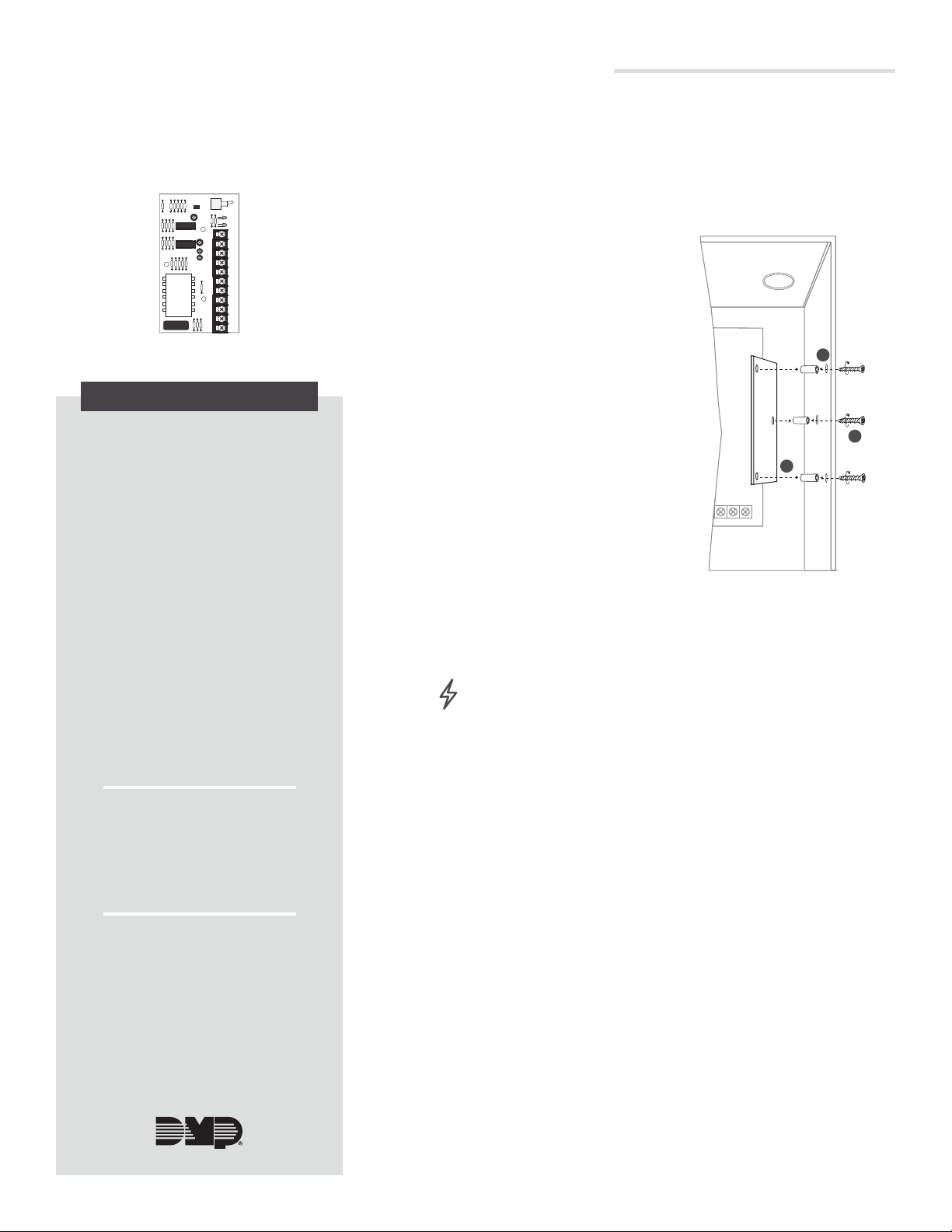

Figure 1: 865 Module

Figure 2: Stando and Module

Installation

BACK

Designed, engineered, and

manufactured in Springﬁeld, MO

using U.S. and global components.

LT-0179 1.02 20145

865 STYLE W/X

NOTIFICATION MODULE

Speciﬁcations

Operating Voltage

Terminal 1 9.6 to 14.2VDC

Operating Current

Terminal 1 26mA idle and 85mA in alarm

Terminal 3 33mA max

Max Alarm Current

Terminal 4 30VDC @ 5Amps with listed power supply

Ordering Information

865 Style W/X Notiﬁcation Module

Accessories

308 10k Ohm Replacement Resistor

Compatibility

XT30/XT50 Series Panels

XR150/XR550 Series Panels

Certiﬁcations

California State Fire Marshal (CSFM)

New York City (FDNY COA #6167)

Underwriters Laboratory (UL) Listed

ANSI/UL 1023 Household Burglar Alarm System Units

ANSI/UL 864 Fire Protective Signaling Systems

AUX

PWR

TRBL

BELL

SILENCE

BELL POWER

GROUNDED

AT PANEL

NORMAL

MODEL 865

GND

FAULT

GND

ALARM

INPUT

BELL

PWR +

INPUT

BELL

PWR -

INPUT

BELL A+

OUTPUT

BELL A-

OUTPUT

BELL B+

OUTPUT

BELL B-

OUTPUT

BELL

TRBL

BELL

TRBL

INTRUSION • FIRE• ACCESS• NETWORKS

2500 North Partnership Boulevard

Springﬁeld, Missouri 65803-8877

800.641.4282 | DMP.com

ADDITIONAL INFORMATION

Wiring Speciﬁcations

DMP recommends using 18 or 22 AWG for all LX-Bus and Keypad Bus connections. The maximum wire distance between

any module and the DMP Keypad Bus or LX-Bus circuit is 10 feet. To increase the wiring distance, install an auxiliary

power supply, such as a DMP Model 505-12. Maximum voltage drop between a panel or auxiliary power supply and any

device is 2.0 VDC. If the voltage at any device is less than the required level, add an auxiliary power supply at the end of

the circuit.

To maintain auxiliary power integrity when using 22-gauge wire on Keypad Bus circuits, do not exceed 500 feet. When

using 18-gauge wire, do not exceed 1,000 feet. Maximum distance for any bus circuit is 2,500 feet regardless of wire

gauge. Each 2,500 foot bus circuit supports a maximum of 40 LX-Bus devices.

For additional information refer to the LX-Bus/Keypad Bus Wiring Application Note (LT-2031) and the 710 Bus Splitter/

Repeater Module Installation Guide (LT-0310).

Bell Silence Switch

A bell silence toggle prevents the indicating device from sounding during a system test. When the Bell Silence position

is selected, a 15-second delay occurs before the module bell trouble contacts open. After testing, return the bell silence

switch to the Normal position to return the module to normal operation.

LED Operation

• Trouble: Lights during an open, short, or short-to-ground on the indicating circuit.

• Ground Fault: Lights during a short-to-ground on the indicating circuit.

AUX

PWR

TRBL

BELL

SILENCE

BELL POWER

GROUNDED

AT PANEL

NORMAL

MODEL 865

2-WIRE

(STYLE W)

GND

FAULT

GND

ALARM

INPUT

BELL

PWR +

INPUT

BELL

PWR -

INPUT

BELL A+

OUTPUT

BELL A-

OUTPUT

BELL B+

OUTPUT

BELL B-

OUTPUT

BELL

TRBL

BELL

TRBL

To Panel Terminal 7

To Panel Terminal 10

To Panel Terminal 5

From Power Supply +

From Power Supply –

–

To Bell Output A –

To Bell Output A +

To N/C Trouble Contact

Bell Silence Toggle

Bell Ground Header

Trouble and Ground Fault LEDs

10k Ω EOL

Optional Jumpers

AUX

PWR

TRBL

BELL

SILENCE

BELL POWER

GROUNDED

AT PANEL

NORMAL

MODEL 865

4-WIRE

(STYLE X)

GND

FAULT

GND

ALARM

INPUT

BELL

PWR +

INPUT

BELL

PWR -

INPUT

BELL A+

OUTPUT

BELL A-

OUTPUT

BELL B+

OUTPUT

BELL B-

OUTPUT

BELL

TRBL

BELL

TRBL

To Panel Terminal 7

To Panel Terminal 10

To Panel Terminal 5

From Power Supply +

From Power Supply -

To Bell Output A +

To Bell Output A –

To Bell Output B +

To Bell Output B –

To N/C Trouble Contact

–

Bell Silence Toggle

Bell Ground Header

Trouble and Ground Fault LEDs

Optional Jumpers

Figure 3: Style W Wiring Connections Figure 4: Style X Wiring Connections
