Displays2go TVM110B Manual de usuario

TVM110B

Landscape VESA Max 800*600

Portrait VESA Max.400*600

46-110"

76-152cm

Max

125kg

[275Ibs]

WARNING

Do not begin the installation until you have read and understood the instructions and

warnings contained in this installation sheet. If you have any questions regarding any of the

instruction or warning, please contact your local distributor.

This mounting bracket was designed to be installed and utilized ONLY as specified

in this manual. Improper installation of this product may cause damage or serious

injury.

This product should only be installed by someone of good mechanical ability with

basic building experience and full understanding of this manual.

Make sure that the supporting surface will safely support the combined load of the

equipment and all attached hardware and components. Never exceed the maximum load

capacity. If mounting to wood wall studs, make sure that mounting screws are anchored

into the center of the studs. Use of a stud finder is highly recommended.

Always use an assistant or mechanical lifting equipment to safely lift and position

equipment.

Tighten screws firmly, but do not over tighten. Over tightening can damage the items,

greatly reducing their holding power.

NOTE:Read the entire instruction manual before you start installation and assembly.

2PCS 1PCS 1PCS 1PCS

Landscape Installation

VESA MAX 800X600

600

800

www.displays2go.com

12 3 4

A C D

E F G

M6X15

4PCS

M5X15

4PCS

M8X15

4PCS

M10X15

4PCS

10X70

8PCS

12X70

8PCS

4PCS

M10

12PCS

8mm

1PCS

6mm

1PCS

5mm

1PCS

17mm

1PCS

14mm

1PCS

4mm

1PCS 15X 8X15

4PCS

www.displays2go.com

Solid Brick and Concrete Block Mounting

Use a level to create an even line and a drill

to make pilot holes. Ensure the concrete is

at least 70mm deep.

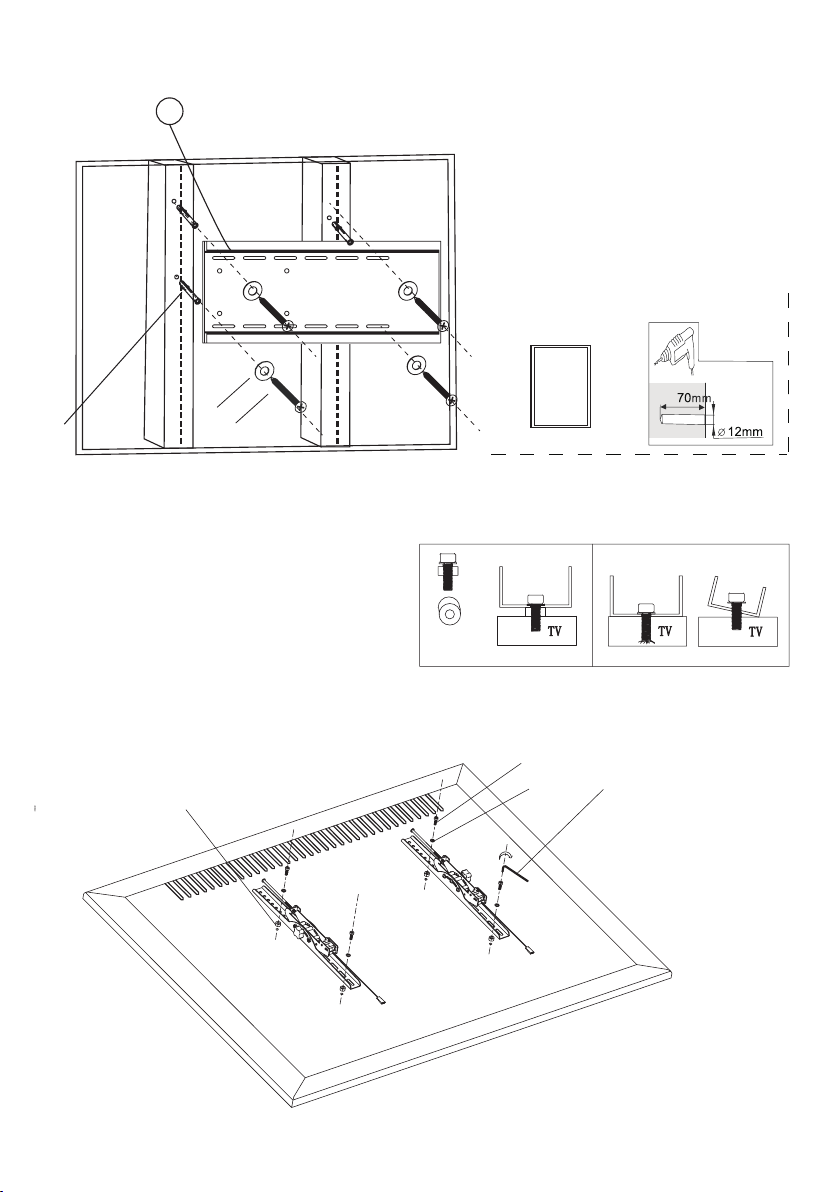

Wood Stud Wall Mounting

Installed on the wall

www.displays2go.com

Use of a stud finder is highly

recommended when mounting to a wall

with wood studs. Use a level to create an

even line and a drill to make pilot holes.

Ensure the studs are at least 70mm deep.

www.displays2go.com

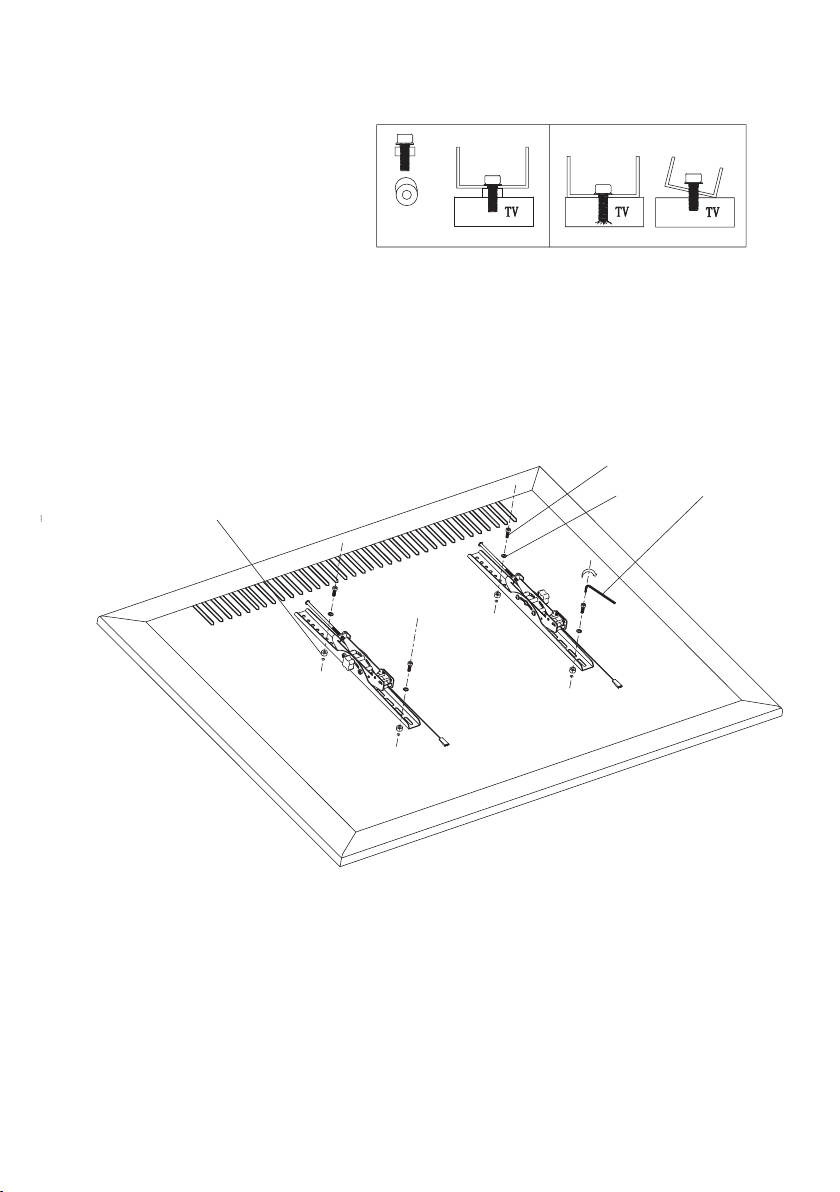

Use included spacers if you have a

recessed back TV.

WALL

Level the flat screen by adjusting

M8x200mm level adjustment screw

Hook screen onto the wall plate

FLAT SCREEN

LATERAL ADJUSTMENT

BY HAND

www.displays2go.com

Wire Locking System

V E S A M A X 4 0 0 X 6 0 0

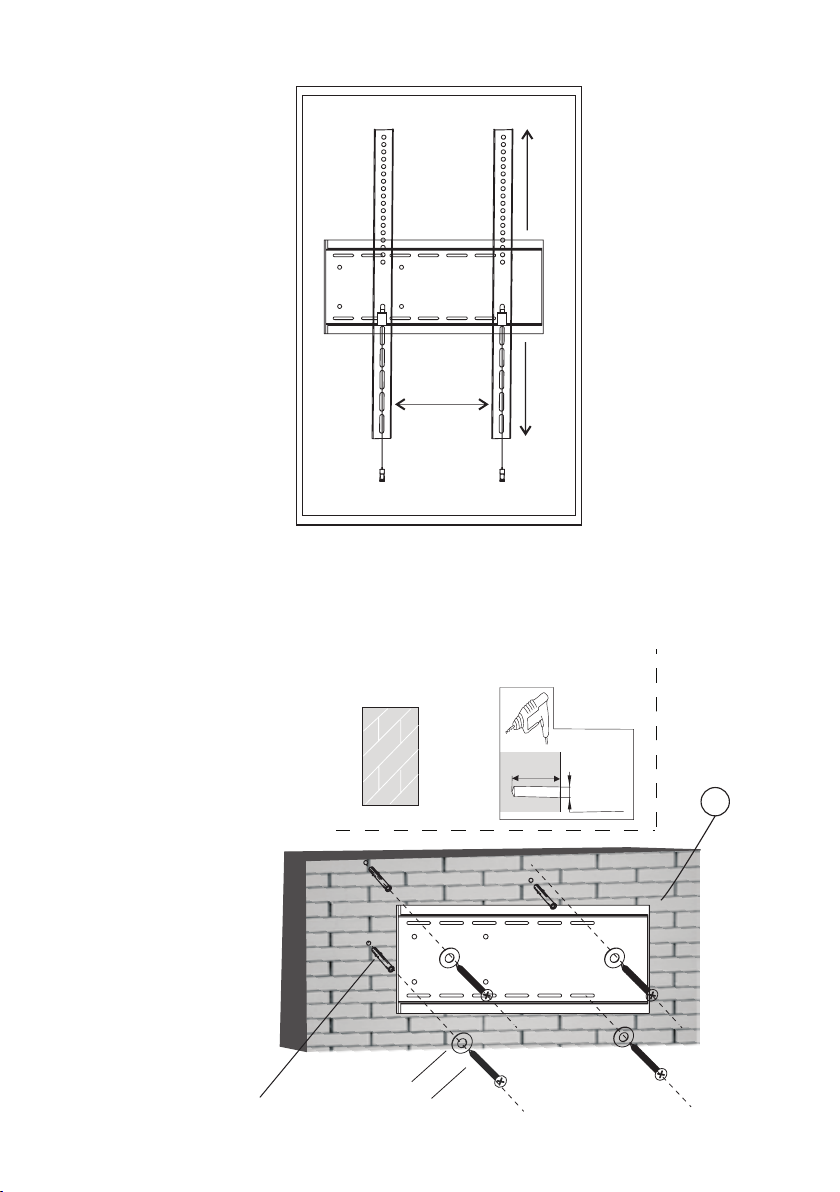

1B Portrait Installation

70mm

Φ12mm

Mount to the concrete wall

400

600

www.displays2go.com

Solid Brick and Concrete Block Mounting

Use a level to create an

even line and a drill to

make pilot holes.

Ensure the concrete is

at least 70mm deep.

CDB

Use included spacers if you have a

recessed back TV.

Wood Stud Wall Mounting

Installed on the wall

www.displays2go.com

Use of a stud finder is highly

recommended when mounting to a

wall with wood studs. Use a level

to create an even line and a drill to

make pilot holes. Ensure the studs

are at least 70mm deep.

CDB

WALL

Level the flat screen by adjusting

M8x200mm level adjustment screw

Hook screen onto the wall plate

LATERAL ADJUSTMENT

BY HAND

FLAT SCREEN

www.displays2go.com

Wire Locking System
