Displays2go CDSTAND2BK Manual de usuario
LEFT VIEW
Lower Left Tube
LEFT VIEW
Upper Left Tube
Lower Right Tube
BACK VIEW
RIGHT VIEW
Upper Right Tube
BACK VIEW
RIGHT VIEW
D1 D2
C2C1
2
2
3a 3b
A
A. Instructions 1
B. Metal Base 1
C1. Lower Round Tube (Left) 1
C2. Lower Round Tube (Right) 1
D1. Upper Round Tube (Left) 1
D2. Upper Round Tube (Right) 1
E. Tube Connector 2
F. Pan Head Screw 12
B
C1
C2
F
E
D1
D2
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE START THE ASSEMBLING.
FLAT BASE TV STAND
Parts
55 Broadcommon Road Bristol, RI 02809, USA Phone: 1-800-572-2194 1-401-247-0333 (Int'l) Fax: 1-401-247-0392
1
1
Open small box, lay out 4 long Tubes (C1, C2, D1, D2) on a flat surface. See picture below to
identify where each tube goes to (upper or lower, left or right).
A
B
C1
C2
F
E
D1
D2
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE START THE ASSEMBLING.
FLAT BASE TV STAND
Parts
55 Broadcommon Road Bristol, RI 02809, USA Phone: 1-800-572-2194 1-401-247-0333 (Int'l) Fax: 1-401-247-0392
1
1
CAUTION: 1. METAL BASE IS HEAVY! AT LEAST 2 PEOPLE SHOULD LIFT/MOVE TO PREVENT ANY
PHYSICAL INJURY FROM MISHANDLING.
2. ALWAYS PLACE THE UNIT ON A HARD, FLAT SURFACE. DO NOT PLACE THE UNIT IN
WHERE IT MAY BE IMPACTED OR MOVED. FAILURE TO DO SO COULD CAUSE SEVERE
BODILY INJURY.
Tighten 4 Screws (Part F) against the
surface of lower poles with hex key.
Insert Tube Connectors (Part E) into the
Fixed Lower Tubes. Hold it in place when
lining up holes. (Align with the top holes on
Lower Tubes)
Insert Upper Tubes (Part D) intoTube
Connectors from above. The holes should
line up with the holes on Connectors.
Fasten 4 Screws (Part F) with hex key.
Ensure the 2 slot cutouts are facing
the same direction as other cutouts
on the Lower Tubes.
Insert Lower Tube into the upright on
the Metal Base.
Ensure slot cutouts on uprights
and Lower Tubes align with
each other.
Holes at top of Lower Tubes should
face outward, to align with the holes on
Tube Connectors. (See STEP 4)
Before assembling, remove packing materials.
Carefully place the Metal Base (Part B) on a
hard, flat ground.
Fix Lower Tubes by tightening 4 screws at
bottom of the TV Stand.
Fix Tube Connector (Part E) on top of the
Lower Tube.
Insert Upper Tubes with Connectors.
Insert 4 Screws (Part F) through Lower
Tubes into Connectors. Fasten screws
with hex key.
E
B
F
C1
C2
D1
D2
If securing the whole unit to the floor,
use hardware through 4 corner holes
to fix the base.
ALL SCREWS MUST BE SECURELY TIGHTENED BEFORE USING TV STAND.
FLAT BASE TV STAND
55 Broadcommon Road Bristol, RI 02809, USA Phone: 1-800-572-2194 1-401-247-0333 (Int'l) Fax: 1-401-247-0392
2
3
4
5
2
Still have questions? No worries. If you’re confused during any step, just call the number located at the
bottom of the Instruction pages. Our friendly representative will be more than happy to assist you.

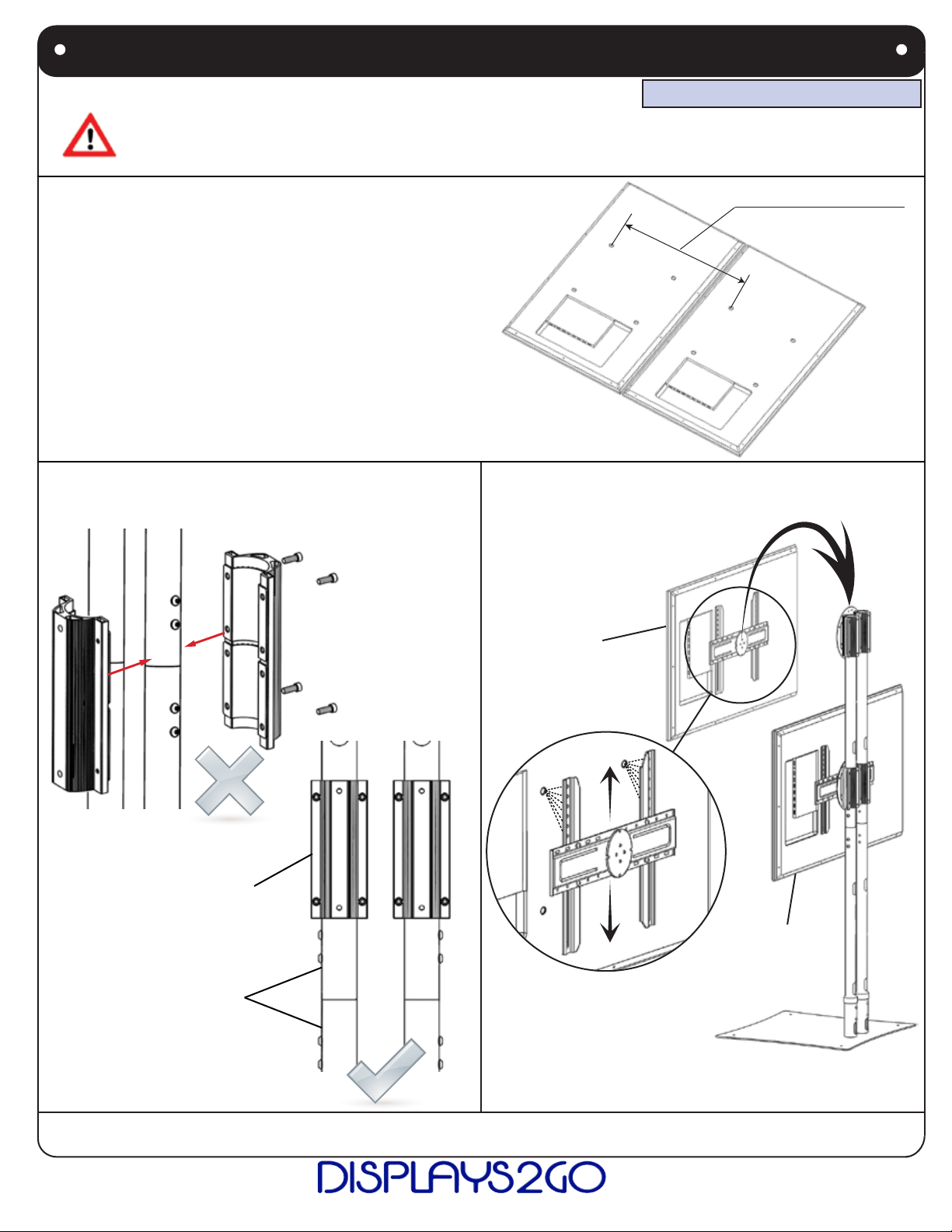

Distance between 2 TVs
Extrution
Tube
1. Before starting, measure and calculate the minimum
distance between 2 TVs while hanging on FLTBSPTBBK,
without interfering with each other.
2. Avoid fastening Extrutions at the joint area of 2
Tubes, where screws could interfere with the Extru-
sions.
3. Hang the lower TV first, then the upper one. It
could be difficult to hang the lower TV last as there
might not be enough room.
* TIPS:
Adjust Extrution up and down as
needed for desired result.
NOTE:
(1) FLTBSPTBBK can hold dual flat TVs up to 70”, depending
on different layouts and orientation.
(2) TVs can not be rotated while 2 TVs are hung on the stand at
the same time.
(3) Image on the right shows 2 same size TVs, which the height
is the minimum distance required. STEP 1. must be done if
hanging 2 different size TVs, or hanging any 2 TVs at different
orientations.
FLAT BASE TV STAND
For 2 TVs hanging ONLY
55 Broadcommon Road Bristol, RI 02809, USA Phone: 1-800-572-2194 1-401-247-0333 (Int'l) Fax: 1-401-247-0392
CAUTION: 1. AT LEAST 2 PEOPLE SHOULD LIFT/HANG TVs.
2. BE CAREFUL IF USE LADDERS OR STANDING ABOVE THE GROUND.
3. DO NOT ADJUST THE POSITION OF EXTRUSION WHEN TV IS ON THE BRACKET.
4. DO NOT USE CASTERS. HOLES IN THE BASE ARE FOR MOUNTING ONTO FLOOR ONLY.
2nd operation
Hang Upper TV
1st operation
Hang Lower TV
* TIPS:
It is easier to accomplish this task
by increasing the gas between 2
TVs.
Bracket mounted on TV can be
adjusted up and down to best fit
and locate both TVs on the stand.
3
Still have questions? No worries. If you’re confused during any step, just call the number located at the
bottom of the Instruction pages. Our friendly representative will be more than happy to assist you.
