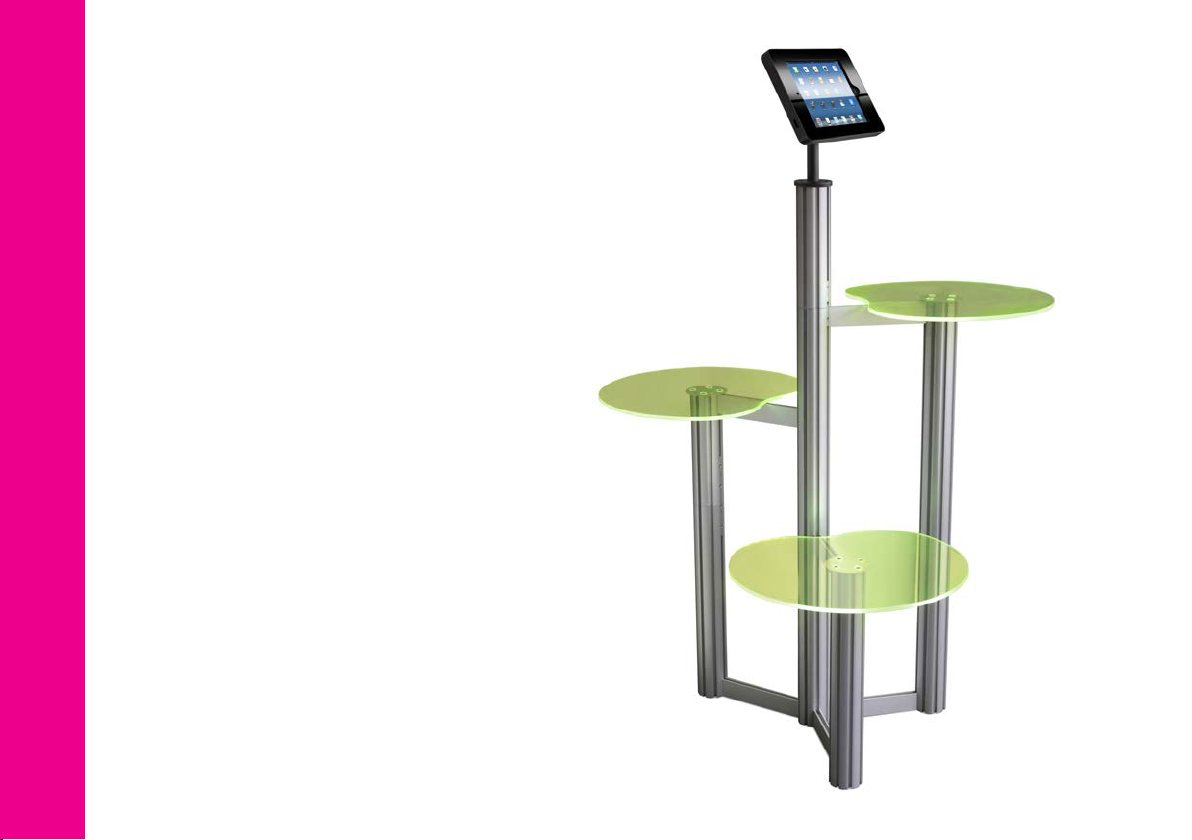

Displays2go IPDTBL3 Manual de usuario

iPad IPDTBL3

Assembly Instructions

1

Carefully lay all posts horizontally on floor. Insert 4 foot screws

into 4 posts except 1m post with connector bars.

WARNING – Dome-headed

chrome nuts behind enclosure

housing must not be adjusted.

3Feed figure-8 head of

power lead through

bottom of post and

profiles assembly, leaving

approximately 1m of

cable at bottom.

4Stand post and profiles

assembly upright ensuring

lead is kept clear of foot

screws.

Take 265mm post and slot clamp of three 220mm profiles into

desired channels for display. Ensure bottom of profiles are flush

with bottom of post and tighten grub screws to secure in position.

If you are not using cable management for charging, please

carefully stand post and profiles assembly upright and proceed to

Stage 6

2

5

Feed figure-8 head of power lead through 1m post at connector

bar end, so it protrudes from top of post.

Loosen and slide connector bars halfway out of 1m post. Tighten

grub screws of connector bars positioned in post channel to secure

6

7

Connect the 1m and 265mm posts by locating connector bars into

channels and sliding together. Tighten remaining grub screws to

affix.

With countersunk holes in the Podium tops uppermost, align with

holes of circular plates and fixings in the top of remaining small,

medium and large posts. Fully insert 4 screws in each to secure.

8

9

Starting with the smallest Podium table, position and slot clamp of one

220mm profile into post channel. Tighten grub screw to attach. Repeat

process for medium and large Podium tables.

11

Plug figure-8 head into USB Power Adapter (supplied with Apple

iPad).

Position remaining 220mm profiles between posts near underside

of Podium tops. Insert clamps into channels and secure by

tightening grub screws.

If you are not using cable management for charging, please

proceed to Stage 17.

10

13

Lift fascia out of enclosure. Insert cable (supplied with Apple iPad)

allowing 10cm to remain “free” at charge/sync connector end by

gently pressing into retaining moulding.

12

Unlock the iPad enclosure by inserting key into security lock and

rotate ‘QUARTER TURN ONLY’ clockwise or counter-clockwise

through 90 degrees which releases the locking pin. Return key back

to original position to remove.

15

Plug cable into USB Power Adapter.Feed USB end of charge/sync cable through middle of enclosure,

below pin, so it protrudes from bottom of support column.

14

17

Align first 2 holes of the iPad holder to the threads of the post.

Insert and tighten screws to secure. Rotate iPad holder through 90º,

aligning remaining 2 holes to threads of post. Insert and tighten

screws to secure.

Position black mains cable into internal post channel, and carefully

slide USB Power Adapter inside post so the USB head of charge/sync

cable is below upper edge of post.

16
