REGULATORY FACTORS

WIRELESS REMOTE CONTROL

This device complies with Part 15 of FCC Rules. Operation is subject to the following two

conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

Changes or modifications to this device may void your authority to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the use is encouraged to try to correct

the interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experience radio/TV technician for help.

SAFETY INSTRUCTIONS

You must keep safety in mind while using this device. Keep these

and any other instructions for future reference.

INSTALLATION

Observe Warnings: Carefully follow all warnings on the device

and in the operating instructions.

Heat: DO NOT place the device near heat sources such as radiators, stoves, heat

registers, or other appliances that produce heat.

CARE AND USE

Cleaning: DO NOT use liquid, abrasive, solvent, or aerosol cleaners. Use a damp cloth

for cleaning.

When Not in Use: Remove the batteries if this device is to be

left unattended or unused for a long period of time.

Refer servicing to qualified personnel when a solid object

or liquid has fallen onto or into the device.

DO NOT attempt to service this device. Refer all

servicing to qualified personnel. Opening covers other

than the battery cover will void the warranty.

inside_front_cover_dishpvr.fm Page 0 Tuesday, February 11, 2003 2:17 PM

121716 1

CONTENTS OF THIS USER GUIDE

Remote Control Basics....................................... 2

Remote Control Batteries.................................... 2

Remote Control Signals: UHF and IR ................. 3

Install an Attenuator............................................ 4

Remote Control Modes ....................................... 5

Remote Control Setup ........................................6

Set Up the Remote Control................................. 6

SettingUptoControlOtherDevices....6

Scan for Device Codes.........................7

Check the Device Codes......................8

Change the Address ........................................... 9

Switch Between TV and Device

Volume Control.................................................. 10

Remote Control Buttons................................... 11

Control the Receiver ..........................................11

Control a TV (or a Second TV).......................... 17

Control a VCR (Second VCR or a DVD Player) 20

Control a Cable TV Box .................................... 22

Control a Tuner or Amplifier.............................. 24

Device Codes ....................................................26

TV Codes..........................................................26

VCR Codes.......................................................28

Cable TV Box Codes......................................... 29

DVD Player Codes............................................ 30

Tuner/Amplifier Codes.......................................30

Troubleshoot the Remote Control ...................31

Limited Warranty ...............................................33

If You Need Help................................................35

Index...................................................................36

text_dishpvr.fm Page 1 Friday, February 28, 2003 1:22 PM

2 121716

REMOTE CONTROL BASICS

This remote control gives you easy access to all the features

of a DISH Network satellite TV receiver and lets you control PVR

features of a DISH Network DishPVR satellite receiver. These PVR

features let you record programming with full digital quality,

without a VCR.

You can set up the remote to control the satellite TV receiver and up to

three other devices. These devices can be a TV, a VCR or DVD player,

and a third device.

REMOTE CONTROL BATTERIES

The remote control requires AAA batteries.

When you replace old batteries, you should

replace all of the batteries. Use batteries of

thesamekind,for example, alkaline or

carbon zinc, and don’t mix batteries of

different kinds. Alkaline batteries last longer.

1. Press down on the battery cover’s

top latch and lift the cover off.

2. Take out all of the old batteries.

3. Put the new batteries in. Make sure

you match the plus (“+”) ends with the

plus markings on the battery case.

4. Fit the battery cover’s bottom tab

back into the slot at the bottom of the

battery case, and snap the cover back

into place.

text_dishpvr.fm Page 2 Friday, February 28, 2003 1:22 PM

121716 3

REMOTE CONTROL SIGNALS: UHF AND IR

Theremotecontrolusesboth Ultra High Frequency (UHF) radio

signals and Infrared (IR) light signals to control the receiver

but uses only IR signals to control other devices.

•IR signals travel only short distances (40 feet or less),

and can’t go through walls or other solid objects.

You must point the remote control right at the device

you want to control, with no objects to block the signal path.

•UHF signals travel long distances (100 feet or more) and can

go through walls and other solid objects. Because UHF signals

travel so far, the receiver may respond to signals from other

nearby remote controls. To handle this problem, see Change the

Address on page 9. If this doesn’t work, see Install an Attenuator

on page 4.

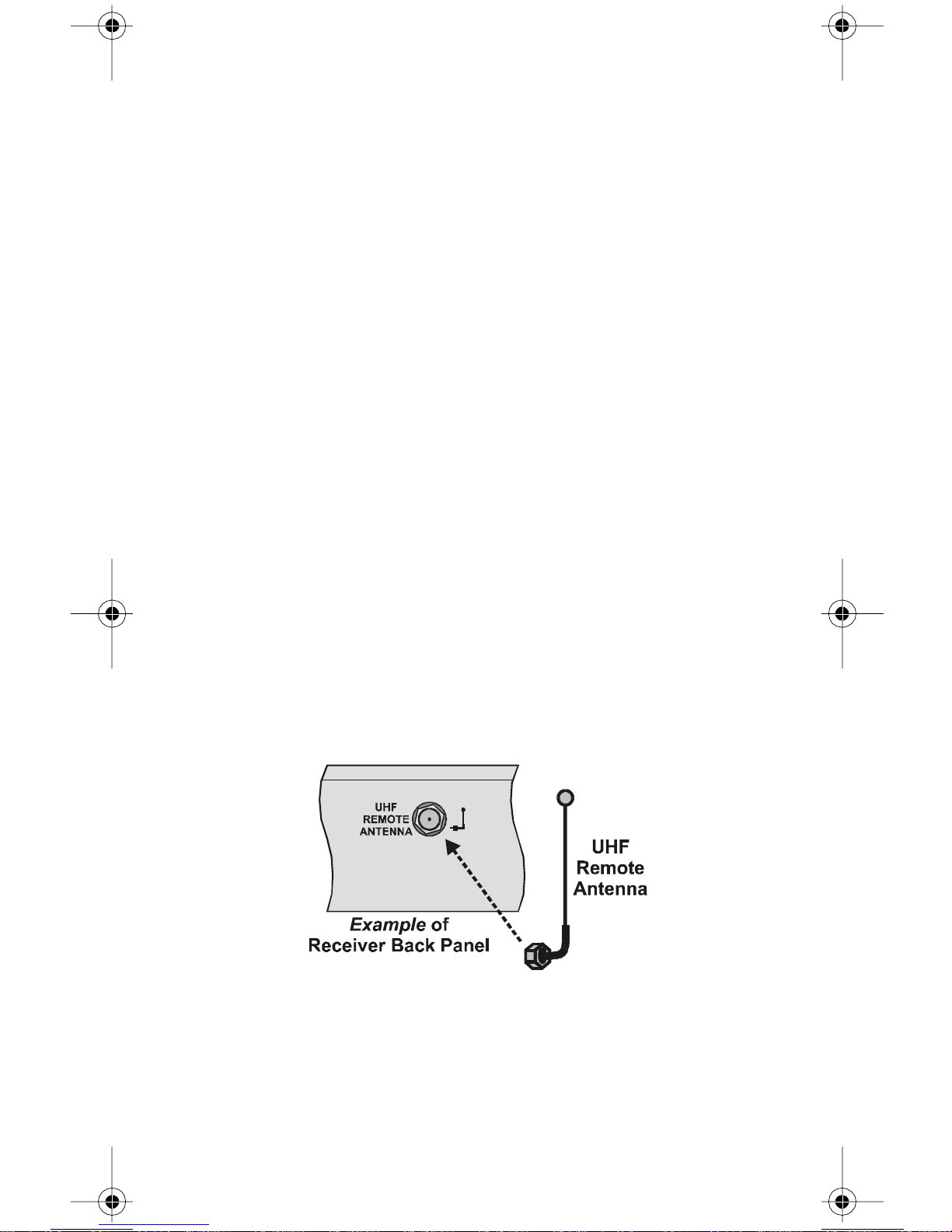

•You need to attach the UHF remote antenna to the receiver’s

back panel UHF REMOTE ANTENNAinput so you can use the

UHF capabilities of the remote (as shown in the diagram below).

Note: Set the antenna straight up so you can use the remote

from as far away as possible. Don’t let the antenna touch

anything.

Note: If you don’tattach the antenna, you can still use the remote

to control the receiver at short distances. This is because

the remote sends both IR and UHF signals to the receiver.

text_dishpvr.fm Page 3 Friday, February 28, 2003 1:22 PM

4 121716

INSTALL AN ATTENUATOR

Stray UHF signals can block signals from the remote control

to the receiver. To prevent blocks, you can install a 10 dB attenuator

(you can buy one from a consumer electronics parts store).

Note: This will help keep out stray UHF signals, but also cut down

how far away you can use the remote control.

1. Take the UHF antenna off

of the receiver’s back panel

UHF REMOTE ANTENNA

input.

2. Put a 10 dB attenuator onto the

UHF REMOTE ANTENNA

input.

3. Put the UHF antenna onto the

attenuator.

text_dishpvr.fm Page 4 Friday, February 28, 2003 1:22 PM

121716 5

REMOTE CONTROL MODES

REGULAR MODES

You can set the remote to four different modes to control the receiver

or other devices.

Set up the remote to control a device like a TV or a VCR. See Set Up

theRemoteControlon page 6 for what to do.

Note:Theremotecomesalready set up to control the receiver, unless

you have changed the address on your receiver.

Use the remote control’s mode buttons, SAT (“satellite” receiver), TV,

VCR (for a VCR or a DVD player), and AUX (“auxiliary,” for a cable

TV box, a tuner, a second TV, a second VCR, a DVD player, or an

audio amplifier) to set the remote to the right mode for the device. To

change the mode, press the button for the device you want the remote

to control. The mode button stays lit for two seconds to show you’ve

set the remote to that mode.

LIMITED MODE

You can program your remote control in limited mode to keep from

accidentally changing the channel on your TV or VCR. When you use

the remote to control your TV in limited mode, you will only be able to

use the POWER,MUTE,andVOLUME buttons. Also, when you use

the remote to control your VCR in limited mode, you will only be able

to use the POWER and VCR function buttons. Set Up the Remote

Control on page 6 has a step that tells the remote control to go into

limited mode.

Note: Limited mode is not used with cable boxes or amplifiers.

text_dishpvr.fm Page 5 Friday, February 28, 2003 1:22 PM

6 121716

REMOTE CONTROL SETUP

SET UPTHEREMOTE CONTROL

On the next few pages we tell you how to set up the remote to control

a TV, a VCR, or other devices.

When you get the remote it’s already set up to control the

receiver, unless you have changed the address on your

receiver. However, you must set up the remote to control

theTVbeforeyoucanusetheMUTE and VOLUME

buttons. To set up the remote control, you can either

follow the directions in Setting Up to Control Other

Devices below or Scan for Device Codes on page 7.

SETTING UPTOCONTROL OTHER DEVICES

You can set up the remote to control other devices using the device

codes listed on page 26. Here’s what to do:

1. Use the device’s buttons or its remote control to turn the

device on.

2. Find the brand name of the device in the tables starting on

page 26.

If the brand isn’t listed, see Scan for Device Codes on page 7.

3. Press and hold the mode button for the device you want

the remote to control, for about three seconds. When all the

other mode buttons light up, let go of the mode button - that

mode button should now be flashing.

For example, hold the TV mode button for a TV until all of the

other mode buttons light. When you let go, the TV mode light

will flash.

4. Only for the AUX mode,usetheNUMBER PAD to enter 0for

a second TV, or 1for a second VCR, or 2for a tuner, amplifier,

or cable box.

For any other mode, skip to step 5.

5. Use the number buttons to enter one of the

device codes from the table.

6. Only for limited mode,press1.

Note: If you want to use all of the remote

control’s features in TV mode, reprogram the

remote control following these instructions

but skip this step.

text_dishpvr.fm Page 6 Friday, February 28, 2003 1:22 PM

121716 7

7. Press the POUND (#) button. If you entered the code

correctly, the mode button flashes three times.

8. Press the blank POWER button to test if the code

works for the device. If it does, the device should

turn off.

9. Turn the device back on and try some other buttons

to make sure they work. Sometimes, the blank POWER button

works when other buttons don’t. If the code works for other

buttons, stop here.

10.If the code you entered doesn’t work, do steps 3 through 9 again

with another device code from the tables.

11.If you cannot find a code that works, try Scan for Device Codes

below.

SCAN FOR DEVICE CODES

If the code for your device is not listed in the tables starting on page 26,

use this procedure to scan the remote control’s memory for the device

code. Here’s what to do:

1. Use the device’s buttons or its remote control to turn the

device on.

2. Press and hold the mode button for the device you want the

remote to control, for about three seconds. When all the other

mode buttons light up, let go of the mode button - that mode

button should now be flashing.

For example, hold the TV mode button for a TV until all of the

other mode buttons light. When you let go, the TV mode light

will flash.

3. Only for the AUX mode, use the number buttons

to enter 0for a second TV, 1for a second VCR,

or 2for a tuner, amplifier, or cable box. Then press

the STAR (*) button.

For any other mode, skip to step 4.

text_dishpvr.fm Page 7 Friday, February 28, 2003 1:22 PM

8 121716

4. Press the blank POWER button.

5. Press the UP or DOWN ARROW button until

the device turns off. You will have to do this

repeatedly to scan through all codes.

Note: Do not press the ARROW buttons too

quickly because you could skip over the code

for your device.

Note: The mode button for the device will flash rapidly eight

times when you’ve scanned all the codes for that device.

6. If the remote reaches the correct code, the device

turns off. When this happens, press the POUND (#)

button to store the code in the remote.

7. Press the blank POWER button to turn the device

back on.

8. Try some other buttons to make sure they work.

Sometimes, the blank POWER button works

when other buttons don’t.

CHECK THE DEVICE CODES

You can find out what device code you’ve set for each remote control

mode. Here’s what to do:

1. Press and hold the mode button for the device you want the

remote to control, for about three seconds. When all the other

mode buttons light up, let go of the mode button - that mode

button should now be flashing.

For example, hold the TV mode button for a TV until all of the

other mode buttons light. When you let go, the TV mode light

will flash.

2. Press the POUND (#) button twice. The mode button

flashes the number for each digit of the device code,

with a pause between the groups of flashes. A quick

flash is for zero. For example, if the code is 570, the

mode button flashes five times, pauses, flashes seven times,

pauses, and flashes once quickly.

text_dishpvr.fm Page 8 Friday, February 28, 2003 1:22 PM

Tabla de contenidos

Otros manuales de Mando a distancia de Dish Network

Dish Network

Dish Network ViP 922 Slingloded DVR Manual de usuario

Dish Network

Dish Network 135331 Manual de usuario

Dish Network

Dish Network ViP 211 Series Manual de usuario

Dish Network

Dish Network 52.0 Manual de usuario

Dish Network

Dish Network 40.0 Manual de usuario

Dish Network

Dish Network 159263 Manual de usuario

Dish Network

Dish Network 54.0 Manual de usuario

Dish Network

Dish Network Platinum 121716 Manual de usuario

Dish Network

Dish Network 176842 Manual de usuario

Dish Network

Dish Network 20.0 Manual de usuario

Dish Network

Dish Network 129418 Manual de usuario

Dish Network

Dish Network 54.0 Manual de usuario

Dish Network

Dish Network 301 IR 123271 Manual de usuario

Dish Network

Dish Network Platinum PVR Remote Control Manual de usuario

Dish Network

Dish Network SoloDVR ViP 612 Manual de uso y mantenimiento

Dish Network

Dish Network 54.0 Manual de usuario

Dish Network

Dish Network Platinum Plus 121150 Manual de usuario

Dish Network

Dish Network 20.0 Manual de usuario

Dish Network

Dish Network Duo ViP 222 Manual de usuario

Dish Network

Dish Network 20.1 Manual de usuario

Dish Network

Dish Network 52.0 Manual de usuario

Dish Network

Dish Network 40.0 Manual de usuario

Dish Network

Dish Network 6.3 Manual de usuario

Dish Network

Dish Network Digital PVR Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
