Standard Configuration

What is Included

■A control module

■A pair of two-button remote transmitters

■A Stinger®Doubleguard®dual-output shock sensor (on-board

the control module)

■A back-up battery siren

■Two back-up battery siren keys

■The red status LED indicator light

■A push-button Valet®switch

■A mercury tilt switch

■Failsafe®Starter Kill (on-board the control module)

Important Information

Congratulations on the purchase of your state-of-the-art security

system. This system has been designed to provide years of trouble-

free operation. This guide should help you to get the most out of

your system, so please take the time to review it thoroughly prior

to using the system.

The system requires no specific maintenance. Your remote is

under normal use. The remotes are disposable, so after the battery

System Maintenance

runs out, you can simply throw the transmitter away and replace

it with a new one.

Your warranty card must be returned. If the warranty card is not

returned, you do not have a warranty. It is also necessary to keep

your receipt, which reflects that the product was installed by an

authorized dealer. Make sure that you receive the warranty card

from your dealer.

IMPORTANT! This unit and its components are water resistant, not

waterproof; so the warranty is void if the product has been damaged as

a result of prolonged water exposure or submersion.

This device complies with Part 15 of FCC rules. Operation is subject

to the following conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference re-

ceived, including interference that may cause undesired operation.

Caution: Changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to

operate this device.

FCC/ID Notice

Your Warranty

Transmitter Functions

The receiver uses a computer-based Learn Routine to learn the

transmitter buttons. This makes it possible to assign different

transmitter buttons to different receiver functions. The transmitter

initially comes programmed with Standard Configuration, but may

also be customized by an authorized dealer. The buttons indicated

in the instructions in this manual correspond to a Standard

Configuration transmitter.

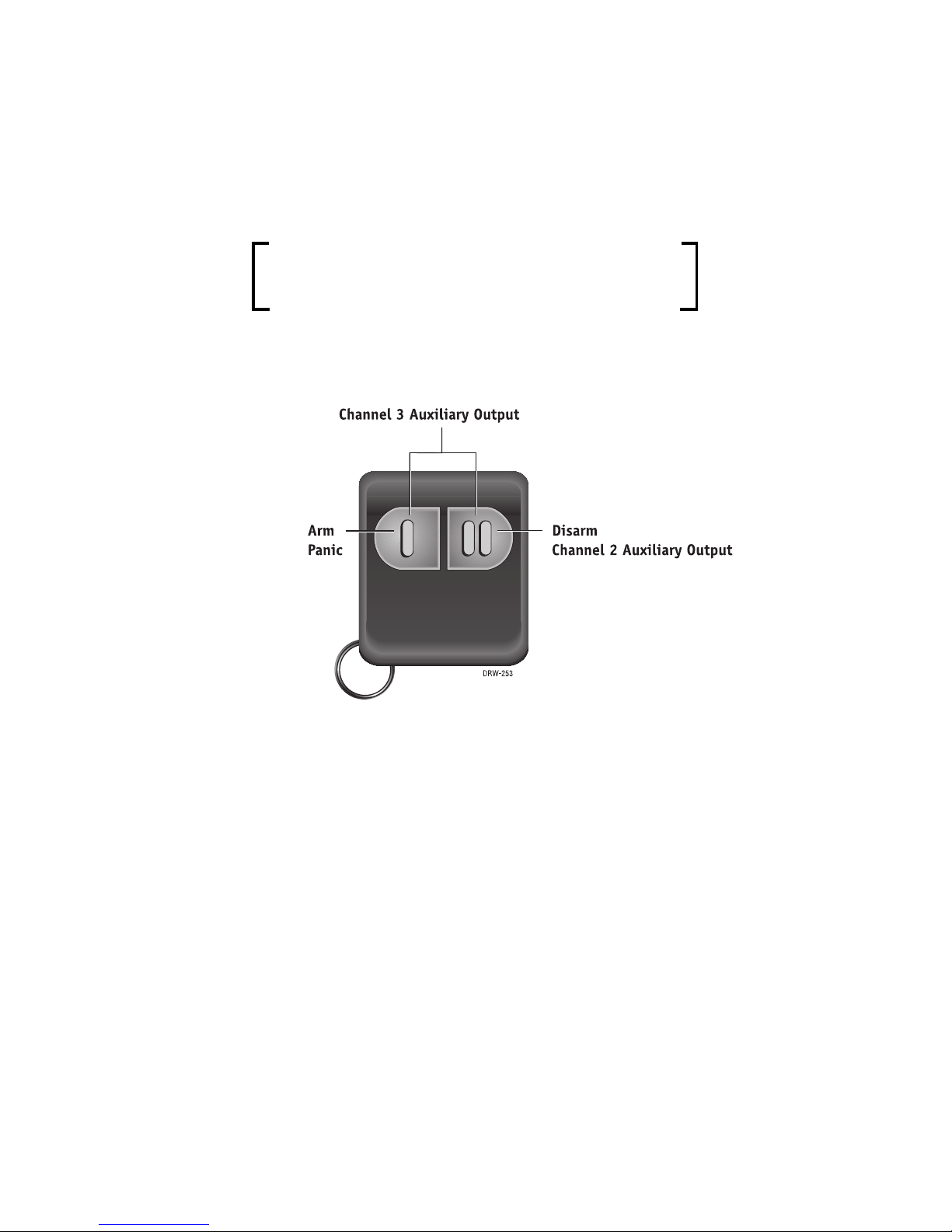

Button

The arming and panic functions are controlled by . To arm the

system press this button for one second. To activate the panic

function, press and hold this button for 1.5 seconds.

Button

The disarm function and an optional auxiliary convenience or

expansion function are controlled by . To disarm the system

press this button for one second. To activate the auxiliary function,

press and hold this button for 1.5 seconds.

This auxiliary output controls _____________________________.

and Buttons

Another optional auxiliary convenience or expansion function can

be activated by pressing and simultaneously.

This auxiliary output controls _____________________________.

Standard Configuration

Using Your System

The transmitter buttons indicated in this guide correspond to the

standard transmitter configuration. Remember, this is not the only

way your transmitter may be set up.

You can activate, or arm, the system by pressing on your

transmitter for one second. When the system arms, you will hear a

short siren sound, or chirp, and see the lights flash once.

While the system is armed, the status LED will flash approximately

once per second, showing that the system is actively protecting

your vehicle. If you hear a second chirp after arming and see the

status LED flashing in groups, refer to the Diagnostics section of

this guide. This extra chirp is called Bypass Notification.

The system also can be programmed to arm itself automatically

(called passive arming). If the system is programmed for passive

arming, it will automatically arm 30 seconds after the ignition is

turned off. Whenever the system is in its 30-second passive-

arming countdown, the status LED will flash twice as fast as it

does when the system is armed. At the 30-second point, the siren

will chirp to indicate that the system is armed.

NOTE: Some faulty zones may prevent the system from passively arming.

(See Arming Diagnostics and Table of Zones sections of this guide.)

Additionally, each time a sensor is triggered during the passive arming

countdown, the 30-second countdown starts over.

Arming

When armed, your vehicle is protected in the following ways:

■Light impacts will trigger the Warn Away®signal. When

triggered, the siren will chirp and the parking lights will flash

for a few seconds.

■Heavy impacts will trigger the system. The full trigger

sequence is 30 or 60 seconds of constant siren and flashing

parking lights.

■If the tilt switch is triggered or the ignition is turned on while

the system is armed, the full trigger sequence will activate.

■The starter kill prevents the vehicle’s starter from cranking.

Multi-Level Security is a feature that is only available when using

a Standard Configuration transmitter (see Transmitter Functions

section of this guide). Multi-Level Security Arming allows you to

select which of the security system's inputs or sensors will be

active and which will be bypassed at the time that the system is

armed (see Table of Zones section of this guide). Pressing

again within five seconds of arming the security system will acti-

vate the Multi-Level Security Arming feature. Each time is

pressed again, a different security level is selected. The different

security levels can be selected as follows:

■Pressing one time: The siren chirps once. The system is

armed.

■Pressing a second time within five seconds: The siren

chirps twice followed by a long chirp. Zone Two is now bypassed.

Multi-Level Security Arming

Otros manuales para MERLIN 2000

Tabla de contenidos

Otros manuales de Alarma de coche de Directed Electronics

Directed Electronics

Directed Electronics PS-7870TWE-FM Manual de usuario

Directed Electronics

Directed Electronics 551R Series Manual de usuario

Directed Electronics

Directed Electronics Viper 571XV Manual de usuario

Directed Electronics

Directed Electronics Vehicle Security System 3901V Manual de usuario

Directed Electronics

Directed Electronics 6000 Manual de usuario

Directed Electronics

Directed Electronics Model 3000 ESP Manual de usuario

Directed Electronics

Directed Electronics AM1 Manual de usuario

Directed Electronics

Directed Electronics Hornet 742T Manual de usuario

Directed Electronics

Directed Electronics 732T Manual de usuario

Directed Electronics

Directed Electronics 791XV Manual de usuario

Directed Electronics

Directed Electronics Viper 211HV Manual de usuario

Directed Electronics

Directed Electronics Concept 650 Manual de usuario

Directed Electronics

Directed Electronics PYTHON 480XP Manual de usuario

Directed Electronics

Directed Electronics Clifford RS2.1 Manual de usuario

Directed Electronics

Directed Electronics 690XV Manual de usuario

Directed Electronics

Directed Electronics Hornet 740T Manual de usuario

Directed Electronics

Directed Electronics Python 533 Manual de usuario

Directed Electronics

Directed Electronics G436S 5220XS Manual de usuario

Directed Electronics

Directed Electronics Avital Manual de usuario

Directed Electronics

Directed Electronics 3000 Manual de usuario

Directed Electronics

Directed Electronics Cyber 76XV Manual de usuario

Directed Electronics

Directed Electronics 550ESP Manual de usuario

Directed Electronics

Directed Electronics Python 990 Manual de usuario

Directed Electronics

Directed Electronics Viper 140 HF Manual de usuario

Manuales populares de Alarma de coche de otras marcas

Clifford

Clifford 3606X Manual de usuario

Ultra Start

Ultra Start 2500M SERIES Manual de usuario

Ultra Start

Ultra Start 650 Series Manual de usuario

Audiovox

Audiovox Prestige Platinum+ APS-511C Manual de usuario

Sparkrite

Sparkrite SRA8 Manual de usuario

Viper

Viper 4708V Manual de usuario

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manual

Falcon

Falcon Predator XL3 Guía del usuario

Audiovox

Audiovox Auto Security XR91 Instrucciones de funcionamiento

Clifford

Clifford Sabre II Manual de usuario

CrimeStopper

CrimeStopper CS-8717 Guía de inicio rápido

Ultra Start

Ultra Start 450 SERIES Manual de usuario

Scytek electronic

Scytek electronic Vectra X3 Manual de usuario

Excalibur

Excalibur AL-1860-EDPB Manual de usuario

Clifford

Clifford CYBER 2 Manual de usuario

Gemini

Gemini 7057 Manual de usuario

FlashLogic

FlashLogic FLRSBA PRESTIGE Manual de usuario

Magicar

Magicar FAI-440 Manual de usuario
