Owner’s Manual
Model
V1525BT
V1525RT
7208630100R03
IMPORTANT SAFETY INFORMATION: Always read this manual rst before
attempting to install or use this replace. For your safety, always comply with all
warnings and safety instructions contained in this manual to prevent personal
injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com
2 www.dimplex.com
Table of Contents
Always use a qualied technician or
service agency to repair this replace.
!NOTE: Procedures and
techniques that are considered
important enough to emphasize.
CAUTION: Procedures and
techniques which, if not carefully
followed, will result in damage to the
equipment.
WARNING: Procedures and
techniques which, if not carefully
followed, will expose the user to
the risk of re, serious injury, or
death.
Welcome & Congratulations ..................3
IMPORTANT INSTRUCTIONS ................4
Fireplace Installation ........................7
Wall Mounting Instructions ....................8
Built-In Instructions .........................11
Bathroom Installation .......................13
Operation ................................14
Maintenance .............................16
Warranty ................................18
Replacement Parts .........................20
3
Welcome & Congratulations
Thank you and congratulations for
choosing to purchase an electric
replace from Dimplex, the world
leader in electric replaces.
Please carefully read and save
these instructions.
CAUTION: Read all instructions
and warnings carefully before starting
installation. Failure to follow these
instructions may result in a possible
electric shock, re hazard and will
void the warranty.
Please record your model and serial
numbers below for future reference:
model and serial numbers can
be found on the Model and Serial
Number Label of your replace.
Model Number
Label
Serial Number
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
① Read all instructions before
using this appliance.
② The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least 3 feet (0.9m) from the front
of the unit and keep them away
from the sides and rear..
③ Extreme caution is neces-
sary when any heater is used by
or near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the fireplace
when not in use.
⑤ Do not operate any heater
after it malfunctions. Disconnect
power at the service panel and
have the heater inspected by a
reputable electrician before reus-
ing.
⑥ Do not operate any unit with
a damaged cord or plug, or if the
IMPORTANT INSTRUCTIONS
heater has malfunctioned, or if
the electric replace has been
dropped or damaged in any man-
ner, contact Dimplex Technical
Service at 1-888-346-7539.
⑦ Do not use outdoors.
⑧ Never locate heater where it
may fall into a bathtub or other
water container.
⑨ Do not run the cord under
carpeting (for units supplied with
a cord). Do not cover cord with
throw rugs, runners or the like.
Arrange cord away from traf-
c area and where it will not be
tripped over.
⑩ To disconnect the unit, turn
the controls off, then remove the
plug from the outlet or switch off
at main power supply panel if the
unit is hardwired.
⑪ Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑫ To prevent a possible re, do
not block air intake or exhaust in
any manner.
⑬ All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
5
SAVE THESE INSTRUCTIONS
gasoline, paint, or ammable
liquids are used or stored.
⑭ Do not modify the replace.
Use it only as described in this
manual. Any other use not rec-
ommended by the manufacturer
may cause re, electric shock or
injury to persons.
⑮ To reduce the risk of electric
shock, this appliance has a polar-
ized plug (one blade is wider than
the other). This plug will t in a
polarized outlet only one way. If
the plug does not t fully in the
outlet, reverse the plug. If it still
does not t, contact a qualied
electrician to install the proper
outlet. Do not change the plug in
any way.
⑯ Always plug heaters directly
into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑰ Do not burn wood or other
materials in the replace.
⑱ Do not strike the glass front.
⑲ Always use a certied electri-
cian for build-in hard-wired instal-
lation.
⑳ Always use properly grounded,
fused and polarized outlets.
㉑ Disconnect all main power
supply (unplug the unit or switch
off at main service panel) before
performing any cleaning, mainte-
nance or relocation of the unit.
㉒ Do not operate the replace
without the glass assembly and/
or frame.
㉓When transporting or stor-
ing the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
㉔ Do not put combustible mate-
rial, liquid or small articles such
as sand inside glass assembly.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
6 www.dimplex.com
CAUTION: This equipment has
been tested and found to comply with
the limits for Class B digital device,
pursuant to part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, the user is encouraged to try to
correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and the receiver.
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician
for help.
Operation is subject to the following
two conditions: (1) this device may
not cause interference and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
IMPORTANT INSTRUCTIONS
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types - may
explode or leak causing injury.
!NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.
7
Fireplace Installation
Figure 1
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of re, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of re,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of re, do not store or use gaso-
line or other ammable vapors or
liquids in the vicinity of the heater.
!NOTE: A 15amp, 120-volt cir-
cuit is required. A dedicated cir-
cuit is preferred but not essential
in all cases. A dedicated circuit
will be required if, after installa-
tion, the circuit breaker trips or
the fuse blows on a regular basis
when the heater is operating. Ad-
ditional appliances on the same
circuit may exceed the current
rating of the circuit breaker.
WARNING: The In-Stud
replace is wall mountable and
can be build-in the wall space 16”
(406 mm) over-center between
2” (51 mm) x 4” (102 mm) wall
studs. Follow the installation in-
structions for either wall mount or
built-in mounting; failure to do so
may cause damage or injury.
!NOTE: Remove glass as-
sembly before installing re-
place on or into a wall.
CAUTION: High temperature,
risk of re, keep electrical
8 www.dimplex.com
Fireplace Installation
Figure 2
cords, drapery, furnishings,
and other combustibles at
least 3 feet (0.9 m) from the
front of the heater.

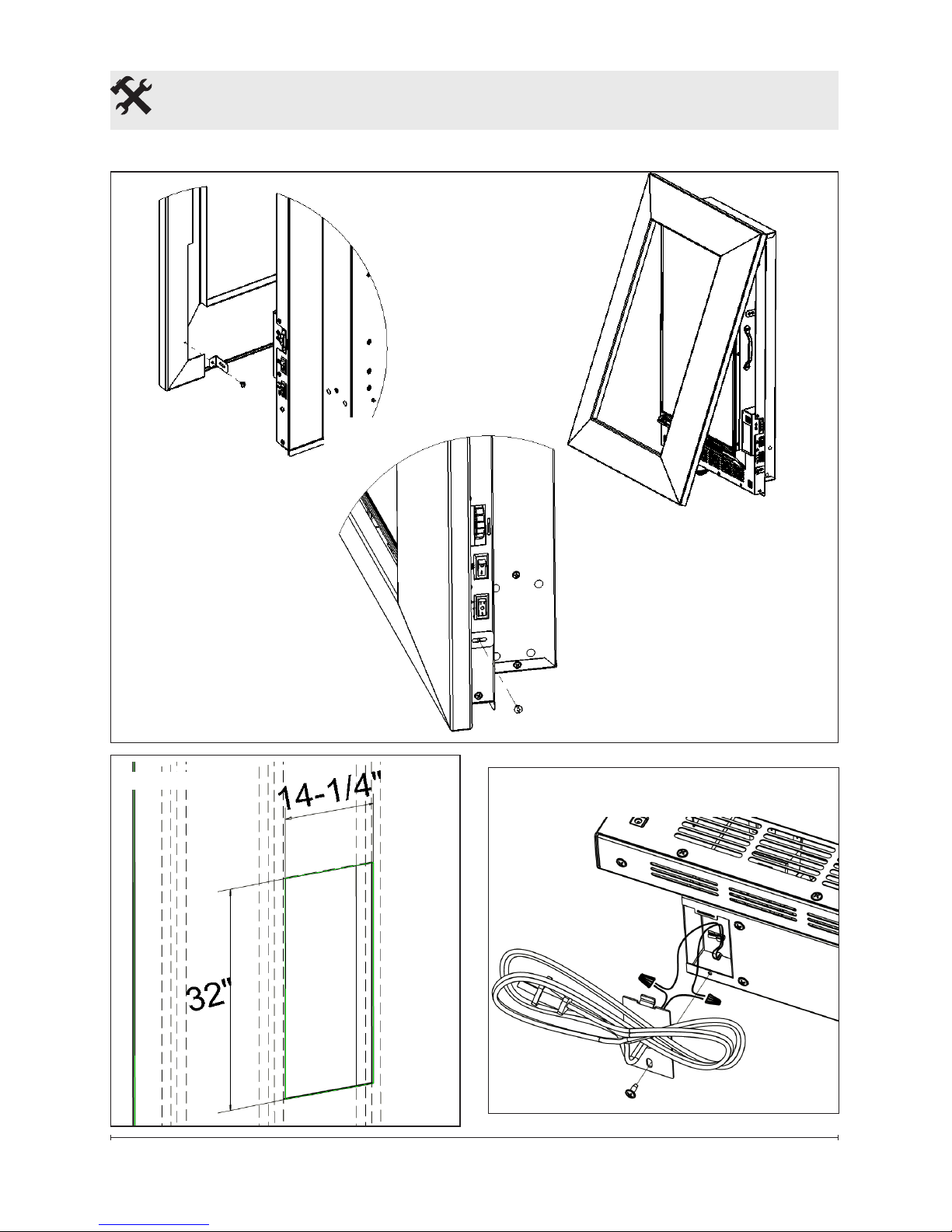

1. Remove screws securing
glass assembly on the mount-
ing tabs. (Figure 1)
2. Use both handles on the
sides of the glass assembly,
lift and remove the assembly
from the replace.
3. Please glass assembly with
it’s back facing down on a at
surface.
Wall Mounting Instructions
1. Leave the trim uninstalled
until step 9.
2. Select a location for the
replace, preferably above
an electrical outlet and there
must be at least one wall stud
behind for the replace to
mount onto. The bottom of
the unit must be a minimum
of 4” (102 mm) space above
the oor (mounting holes
29.5” (750 mm) minimum
above the oor). Access
to the electrical outlet must
be maintained. Ensure the
installation meets the national
and state/provincial electrical
codes.
!NOTE: It is recommended
that the bottom of the unit not be
mounted higher than 48” (122 cm)
from the ground to maintain an
optimized viewing angle of the
ame.
CAUTION: The replace must
be mounted at two points, one of
which must be on a wall stud.
WARNING: High temperatures
may be generated under certain
abnormal conditions. Do not
partially or fully cover or obstruct
the front of this heater. Bottom
of unit must be a minimum of 4”
(102 mm) above oor or any sur-
face such as a tabletop to ensure
9
Air
Circulation
Figure 3
Fireplace Installation
adequate ventilation through air
intake located at the bottom of the
replace. (Figure 3)
3. With a wall stud nder, locate
the center of the wall stud,
drive a wood screw into stud
and leave approximately 1/8”
(3 mm) exposed threads for
the replace to hang on.
4. The second mounting point
should be picked such that it
is farthest (to the left or right)
relative to the rst one among
the seven keyholes (A to G
shown in gure 2) on the re-
place for wall mounting, these
keyholes are 2” (51 mm)
apart. For example, if you
plan to use hole B as the rst
mounting hole, the second
mounting hole must be G.
Other available combinations
are A-G, C-G, A-F, A-E, A-D
and D-G.
5. Mark the second mounting
screw location; ensure that
is level with the rst with the
help of the provided bubble
level and the replace itself.
Screw the threaded drywall
anchor in the drywall with a
Philip’s head screwdriver until
the head is at against the
wall surface. Caution should
be taken when using a power
tool to install a threaded
drywall anchor as the drywall
may distort, tear or slightly
buckle as a result of over-
torque.
6. With a Philip’s head screw
driver, screw that drywall
anchor screw into the dry-
wall anchor already in the
wall, leave about 1/8” (3 mm)
exposed threads for mounting
the replace.
7. With the glass assembly tak-
en off, mount the rebox onto
the two mounting screws.
8. Tighten both mounting screws
with a screwdriver. Be cau-
tion not to over tighten the
one mated with the drywall
10 www.dimplex.com
Fireplace Installation
1. Install supplied
brackets as shown on
both sides of frame
3. Secure frame on
replace with supplied
self-tapping screws
2. Install frame on to
replace
Figure 4
Figure 5 Figure 6
Otros manuales para IN-STUD V1525BT
3
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Chimenea de interior de Dimplex
Dimplex
Dimplex MULTI-FIRE SL PLF3614-XS Manual de usuario
Dimplex
Dimplex EF2570G Manual de usuario
Dimplex
Dimplex DFI2310 Manual de usuario
Dimplex
Dimplex Montclair Manual de usuario
Dimplex
Dimplex Prism 50 Manual de usuario
Dimplex
Dimplex Revillusion SWD20-AU Manual de usuario
Dimplex
Dimplex DFO2307 Guía de inicio rápido
Dimplex
Dimplex BFSL33 Manual de usuario
Dimplex
Dimplex purifire DF3220 Sseries Manual de usuario
Dimplex
Dimplex Michigan Fire MCN20 Manual de usuario
Dimplex
Dimplex ORVIETO MCFP15O Manual de usuario
Dimplex
Dimplex ELECTRALOG DF203A Manual de usuario
Dimplex
Dimplex DFB8842 Manual de usuario
Dimplex
Dimplex OAKHURST OKT20 Manual de usuario
Dimplex
Dimplex Optiflame MiniMozart FGA15E Manual de instrucciones
Dimplex
Dimplex Opti-V PGF10 Manual de usuario
Dimplex
Dimplex WBK20 Manual de usuario
Dimplex
Dimplex SP620 Manual de usuario
Dimplex
Dimplex DF1870L Manual de usuario
Dimplex
Dimplex Romero de Luxe Manual de usuario
