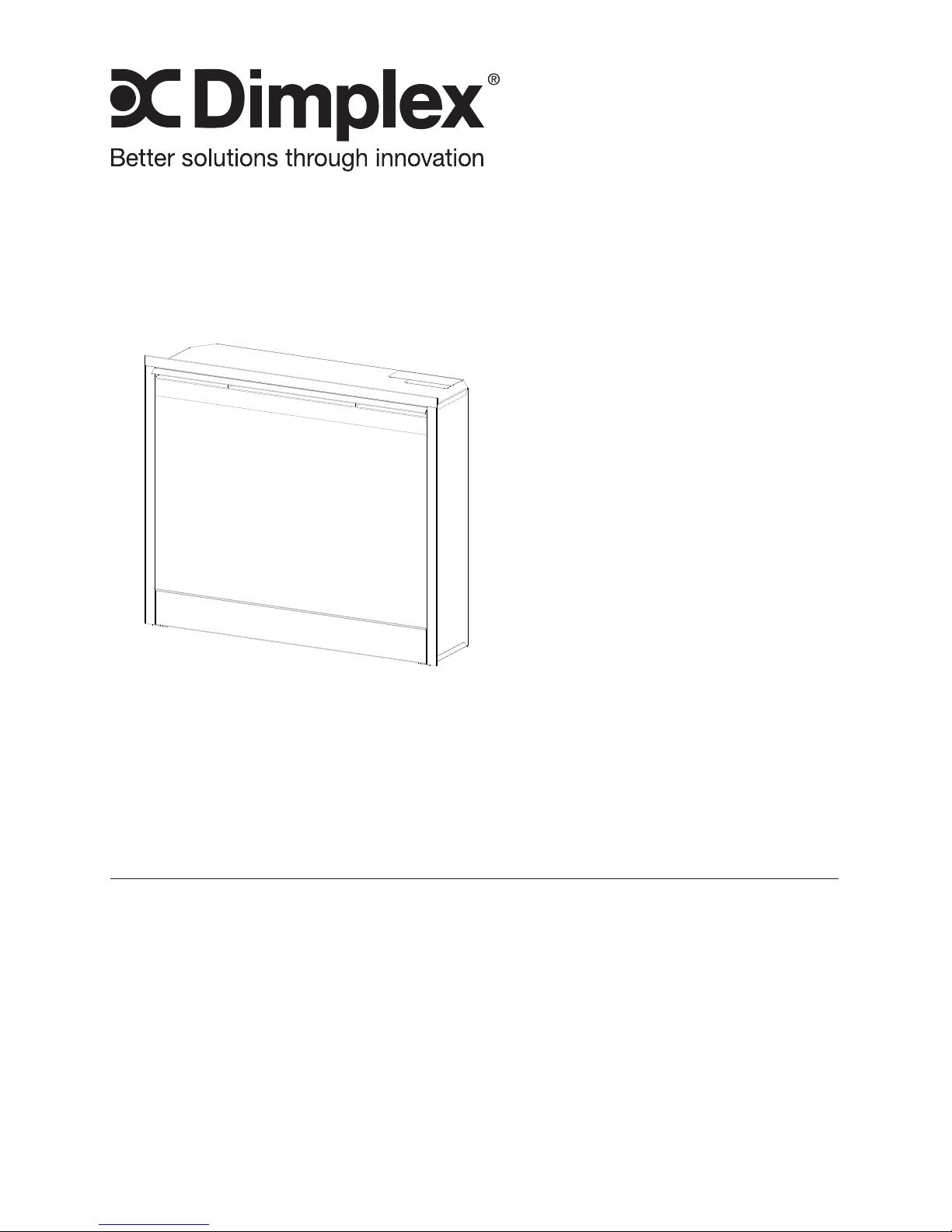

Dimplex BF8000ST Manual de usuario

Owner’s Manual

Model

BF8000ST

7208680300R04

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this replace. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this replace.

!NOTE: Procedures and

techniques that are considered

important enough to

emphasize.

CAUTION: Procedures

and techniques which, if not

carefully followed, will result in

damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations ................3

IMPORTANT INSTRUCTIONS ...............4

Fireplace Installation ......................6

Operation ..............................10

Maintenance ...........................11

Warranty ...............................14

Replacement Parts .......................17

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an electric

replace from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label of your replace.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

S E R IAL No.

MODE L

MOD.

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

①Read all instructions before

using the electric replace.

② The heater is hot when in use.

To avoid burns, do not let bare

skin touch hot surfaces. The trim

around the heater outlet becomes

hot during heater operation.

③ Extreme caution is neces-

sary when any heater is used by

or near children or invalids and

whenever the unit is left operating

and unattended.

④ Always unplug the electric

replace when not in use.

⑤Do not operate any heater

after it malfunctions. Disconnect

power at the service panel and

have the heater inspected by a

reputable electrician before reus-

ing.

⑥ Do not operate any unit with

a damaged cord or plug, or if the

heater has malfunctioned, or if

the electric replace has been

dropped or damaged in any man-

ner, contact Dimplex Technical

IMPORTANT INSTRUCTIONS

Service at 1-888-346-7539.

⑦ Do not use outdoors.

⑧ Never locate heater where it

may fall into a bathtub or other

water container.

⑨ Do not run the cord under

carpeting. Do not cover cord with

throw rugs, runners, or the like.

Arrange cord away from traf-

c area and where it will not be

tripped over.

⑩ Do not locate the heater

immediately below a xed socket-

outlet.

⑪ To disconnect the unit, turn

the controls off, then remove the

plug from the outlet.

⑫Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or re, or

damage to the heater.

⑬ To prevent a possible re, do

not block air intake or exhaust in

any manner.

⑭ All electrical heaters have

hot and arcing or sparking parts

inside. Do not use in areas where

gasoline, paint, or ammable

liquids are used or stored.

SAVE THESE INSTRUCTIONS

⑮ Do not modify the electric

replace. Use it only as described

in this manual. Any other use not

recommended by the manufactur-

er may cause re, electric shock

or injury to persons.

⑯ Always plug heaters directly

into a wall outlet/receptacle.

Never use with an extension cord

or relocatable power tap (outlet/

power strip).

⑰ Do not burn wood or other

materials in the electric replace.

⑱ Do not strike the replace

glass.

⑲ Always use a certied electri-

cian should new circuits or outlets

be required.

⑳Always use properly ground-

ed, fused and polarized outlets.

㉑ Disconnect all power supply

before performing any cleaning,

maintenance or relocation of the

unit.

㉒When transporting or storing

the unit and cord, keep in a dry

place, free from excessive vibra-

tion and store so as to avoid dam-

age.

!NOTE: Changes or modica-

tions not expressly approved by

the party responsible for compli-

ance could void user's authority to

operate the equipment.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com

Fireplace Installation

WARNING: Ensure the power

cord is not installed so that it is

pinched or against a sharp edge

and ensure that the power cord is

stored or secured to avoid trip-

ping or snagging to reduce the

risk of re, electric shock or injury

to persons.

WARNING: Construction

and electrical outlet wiring must

comply with local building codes

and other applicable regulations

to reduce the risk of re, electric

shock and injury to persons.

WARNING: Do not attempt

to wire your own new outlets or

circuits. To reduce the risk of

re, electric shock or injury to

persons, always use a licensed

electrician.

WARNING: To reduce the risk

of re, do not store or use gaso-

Figure 1 27 ⅜”

(695 mm)

22 ⅞”

(580

mm)

23 ½”

(596 mm)

8 ¾”

(222 mm)

26 ¼”

(663 mm)

line or other ammable vapors or

liquids in the vicinity of the heater.

CAUTION: Clearance for air

circulation beneath the re-

place insert is provided by two

rubber feet.

Do not install the replace

insert directly on carpet or

similar surfaces which may

restrict air circulation.

CAUTION: If installing the

replace in a carpeted area, place

a one-piece, solid, at surface

under the replace. Ensure that

both of the feet rest securely on

this surface.

!NOTE: The dimensions of the

replace with the trim are 27

⅜ in. (695 mm) wide x 23 ½ in.

(596 mm) high x 8 ¾ in. (222

mm) deep. Dimensions without

trim are 26 ¼ in. (663 mm)

Figure 3Figure 2

Foam

Block

Cable

Ties

Front

Glass

Trim

Track

wide x 22 ⅞ in. (580 mm) high

x 8 ¾ in. (222 mm) deep. The

replace does not require any

additional venting (Figure 1).

Fireplace Assembly

The only assembly required is

to slide the front glass onto the

replace and install hardware to

keep it in place.

1. Remove replace and glass

carefully from the carton,

discard the plastic bag and

foam packaging.

2. Remove the foam block from

within the replace (Figure 2).

3. Using side cutters or scissors,

cut and remove the two cable

ties as shown in Figure 1 and

Fireplace Installation

remove the cardboard that

protects the log set.

4. Remove the right hand side

trim by removing four Phillips

screws at the side of the

replace.

5. Place the Front Glass onto

the track of the replace

(Figure 3) and slide it along

the front until it reaches the

far left of the unit.

6. Re-attach the right hand trim

piece using the four Philips

screws from step 4.

Mantel Installation

Install the replace assembly

into the mantel (refer to mantel

assembly instructions).

8 www.dimplex.com

Fireplace Installation

!IMPORTANT: If not using a

Dimplex mantel, the replace

must be installed in an

enclosure with the following

MINIMUM dimensions (Figure

4).

New Wall Construction

7. Mark the desired location on

the oor.

8. Use studs to frame an

opening of 26 ¾ in. (679 mm)

wide x 23 ⅛ in. (587 mm)

high x 9 in. (229 mm) deep.

9. Plug the unit into a 15 Amp,

120 Volt outlet.

!NOTE: A 15 Amp, 120 Volt

circuit is required. A dedicated

circuit is preferred but not

essential in all cases. A

dedicated circuit will be

required if after installation

the circuit breaker trips or

fuse blows on a regular basis

when the heater is operating.

Additional appliances on the

same circuit may exceed the

current rating of the circuit

breaker.

Option #1: The power cord can

be run from behind the trim and

along the wall to an outlet near

the replace.

Option #2: A new outlet can

be installed inside the framing

construction.

Existing Fireplace

1. Seal all drafts and vents

with a non-brous insulation

material to prevent any

chimney debris from falling

onto the replace. Do

not install into an existing

replace that is prone to

dampness.

2. Cap the top of the chimney

ue to prevent rain from

entering.

3. Plan your electric power

supply.

4. The power cord can run along

the front of the hearth to an

outlet near the replace.

For Bathroom Use

If this unit is installed in a

bathroom it must be protected

by a GFI receptacle or circuit.

If receptacle is used it must be

readily accessible. To prevent

electrical shock this unit is an

electrical appliance that is not

watertight and must be installed

as to prevent water from entering

unit. This must be installed away

from showers, tubs, etc. Never

26 ¾”

(679 mm)

23 ⅛”

(587 mm)

9”

(229 mm)

Figure 4

Fireplace Installation

locate replace where it may

fall into a bathtub or other water

container. High temperatures

may be generated under certain

abnormal conditions. Do not

partially or fully cover or obstruct

the front of this heater.

BLOWER

MOTOR

CUT-OUT

THERMOSTAT

ELEMENTS M

SPEED

CONTROL

HEATER ON-OFF

MAIN ON-OFF

FLICKER

MOTOR

DIMMER

UPPER

LIGHTS

LOWER

LIGHTS

Wiring

10 www.dimplex.com

Operation

WARNING: This electric

rebox must be properly installed

before it is used.

Manual Controls

The controls for the replace are

behind the access panel located

at the bottom of the replace

(Figure 5).

A. On/Off Switch

The On/Off Switch supplies power

to all replace functions.

B. Flame Action Control

Turn the ame action control knob

to adjust the ame speed to the

desired level.

C. Interior Light Control

Turn the interior light control

knob to increase or decrease the

brightness of the interior light.

D. Heater Thermostat Control

To adjust the temperature to your

Figure 5

CA D E

individual requirements, turn the

thermostat control clockwise all

the way to turn on the heater.

When the room reaches the

desired temperature, turn the

thermostat knob counter clock-

wise until you hear a click. Leave

in this position to maintain the

room temperature at its setting.

For additional heat, turn clockwise

until you hear the click again and

the heater will turn on. To turn the

heater off, rotate the knob fully

counter clockwise.

E. Heat On/Off Switch

Turns heat on or off.

!NOTE: The heater on your

replace may emit a slight, harm-

less odor when rst used. This

odor is a normal condition caused

by the initial heating of internal

heater parts.

Otros manuales para BF8000ST

Tabla de contenidos

Otros manuales de Chimenea de interior de Dimplex

Dimplex

Dimplex 3 Step E Manual de usuario

Dimplex

Dimplex DWOP20R Manual de usuario

Dimplex

Dimplex DF2426 Manual de usuario

Dimplex

Dimplex DF3003 Manual de usuario

Dimplex

Dimplex DF2550-EU Manual de usuario

Dimplex

Dimplex DF2010-EU-E Manual de usuario

Dimplex

Dimplex CAS400LNH-INT Manual de usuario

Dimplex

Dimplex Conner CNR15-AU Manual de usuario

Dimplex

Dimplex Indoor Electric Fireplace Manual de usuario

Dimplex

Dimplex 500002573 Manual de usuario

Dimplex

Dimplex Wesley Side Control Manual de usuario

Dimplex

Dimplex DFO2307 Guía de inicio rápido

Dimplex

Dimplex DF2010-EU Manual de usuario

Dimplex

Dimplex CAMBRIDGE STANDARD Manual de usuario

Dimplex

Dimplex EWT SP16-LED Manual de usuario

Dimplex

Dimplex ELECTRALOG DF203A Manual de usuario

Dimplex

Dimplex Opti-Suite2Go2 Manual de usuario

Dimplex

Dimplex DFG2562 Manual de usuario

Dimplex

Dimplex DF3033ST Manual de usuario

Dimplex

Dimplex Elda Fire ELD20 Manual de usuario

Dimplex

Dimplex XHD23L-INT Manual de usuario

Dimplex

Dimplex DF3003 Manual de usuario

Dimplex

Dimplex Osbourne Manual de usuario

Dimplex

Dimplex DF2608-AU Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
