Owner’s Manual

Model

DF2000L

DF2000CR

6908890459

6908890559

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this replace. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

For service questions, please call Dimplex at 1-888-346-7539.

For sales inquiries, please call Sylvane at 1-800-934-9194 or visit

sylvane.com.

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this electric replace.

!NOTE: Procedures and

techniques that are

considered important

enough to emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result

in damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations .................3

IMPORTANT INSTRUCTIONS ...............4

Fireplace Installation .......................7

Operation ................................9

Maintenance ............................11

Warranty ...............................12

Replacement Parts ........................14

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an electric

replace from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-346-7539

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

S E R IAL No.

MODE L

MOD.

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

① Read all instructions before

using this heater.

② This heater is hot when in use.

To avoid burns, do not let bare

skin touch hot surfaces. The trim

around the heater outlet becomes

hot during heater operation.

WARNING: High temperatures

may be generated under

certain abnormal conditions.

Do not partially or fully cover

or obstruct the front of this

heater.

③ Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the unit is left operating

and unattended.

④ Always unplug the heater

when not in use.

⑤ Do not operate any heater

with a damaged cord or plug, or if

the heater has malfunctioned, or if

it has been dropped or damaged

in any manner. Contact technical

service at 1-888-346-7539.

IMPORTANT INSTRUCTIONS

⑥ Do not use outdoors.

⑦ This heater is not intended for

use in bathrooms, laundry areas

and similar indoor locations.

Never locate this heater where

it may fall into a bathtub or other

water container.

⑧ Do not run cord under

carpeting. Do not cover cord with

throw rugs, runners, or the like.

Arrange cord away from trafc

area and where it will not be

tripped over.

⑨ To disconnect heater, turn

controls to off, then remove plug

from outlet.

⑩Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or re, or

damage the heater.

⑪ To prevent a possible re, do

not block air intakes or exhaust

in any manner. Do not use on

soft surfaces, like a bed, where

openings may become blocked.

⑫ All electrical heaters have

hot and arcing or sparking parts

inside. Do not use in areas where

gasoline, paint, or ammable

liquids are used or stored or

SAVE THESE INSTRUCTIONS

where it will be exposed to

ammable vapors.

⑬ Do not modify the heater.

Use it only as described in

this manual. Any other use

not recommended by the

manufacturer may cause re,

electric shock, or injury to

persons.

⑭ To reduce the risk of electric

shock, this heater has a polarized

plug (one blade is wider than

the other). This plug will t in a

polarized outlet only one way.

If the plug does not t fully in

the outlet, reverse the plug.

If it still does not t, contact a

qualied electrician to install the

proper outlet. Do not change

the plug in any way. Always plug

heaters directly into a wall outlet/

receptacle. Never use with an

extension cord or relocatable

power tap (outlet/power strip).

⑮ Do not burn wood or other

materials in the Compact

Fireplace.

⑯ Do not strike the front glass.

⑰Always use a certied

electrician should new circuits or

outlets be required.

⑱ Always use properly

grounded, fused and polarized

outlets.

⑲ Disconnect all power supply

before performing any cleaning,

maintenance or relocation of the

heater.

⑳ When transporting or storing

the heater and cord, keep in a

dry place, free from excessive

vibration and store so as to avoid

damage.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com

IMPORTANT INSTRUCTIONS

WARNING: Remote control

contains small batteries. Keep away

from children. If swallowed, seek

medical attention immediately.

WARNING: Do not install battery

backwards, charge, put in re or mix

with used or other battery types - may

explode or leak causing injury.

!NOTE: Changes or modications

not expressly approved by the party

responsible for compliance could

void user's authority to operate the

equipment.

!NOTE: This equipment has been

tested and found to comply with

the limits for Class B digital device,

pursuant to part 15 of the FCC

Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential

installation. This equipment

generates, uses and can radiate

radio frequency energy and, if not

installed and used in accordance with

the instructions, may cause harmful

interference to radio or television

reception, which can be determined

by turning the equipment off and

on, the user is encouraged to try to

correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between

the equipment and the receiver.

• Connect the equipment into an

outlet on a circuit different from

that to which the receiver is

connected.

• Consult the dealer or an

experienced radio/TV technician

for help.

Operation is subject to the following

two conditions: (1) this device may

not cause interference and; (2) this

device must accept any interference,

including interference that may cause

undesired operation of the device.

Fireplace Installation

WARNING: Ensure the power

cord is not installed so that it is

pinched or against a sharp edge

and ensure that the power cord is

stored or secured to avoid tripping

or snagging to reduce the risk

of re, electric shock or injury to

persons.

WARNING: Construction

and electrical outlet wiring must

comply with local building codes

and other applicable regulations

to reduce the risk of re, electric

shock and injury to persons.

WARNING: Do not attempt

to wire your own new outlets or

circuits. To reduce the risk of re,

electric shock or injury to persons,

always use a licensed electrician.

!NOTE: A 15 Amp, 120 Volt

alternating current (VAC) circuit

is required. A dedicated circuit

is preferred but not essential in

all cases. A dedicated circuit will

be required if, after installation,

the circuit breaker trips or fuse

blows on a regular basis when the

heater is operating. Additional

appliances on the same circuit

may exceed the current rating of

the circuit breaker.

Glass Installation

1. Unpack the rebox and the

front glass.

2. Remove the glass retaining

bracket from one side of the

rebox. (Figure 1)

3. Slide the glass into the glass

support track on both the top

and the bottom, until it is fully

inserted.

4. Replace the glass retaining

bracket.

Fireplace Installation

1. Make sure the units 3-Posi-

tion switch is switched OFF

(refer to operating instruction

section).

2. Plug the unit directly into a 15

Amp/120 VAC outlet.

Figure 1

8 www.dimplex.com

Mantel Installation

For use with a new or existing

mantel. Depending on the avail-

able space within the mantel cav-

ity, the unit can be secured to the

mantel at the bottom side or back.

Remove the screw on the bottom

ange in the most appropriate

place for securing and using the

provided L-bracket and the screw

that was removed attach the re-

box to the mantel. (Figure 2)

!NOTE: There are no guide

holes provided for the L-Brackets

in the mantel.

If not installing the unit into a Dim-

plex mantel the required opening

dimensions of the replace are:

21 ¼ in. (540 mm) wide x 21 ⅝ in.

(550 mm) high x 7 ¼ in. (184 mm)

deep (Figure 3).

The rebox is to be installed

from the front of the mantel and

inserted so that the anges are

ush against the front surface of

the mantel.

Fireplace Installation

Figure 3

21 ¼ in.

(540 mm)

21 ⅝ in.

(550 mm)

7 ¼ in.

(184 mm)

Figure 2

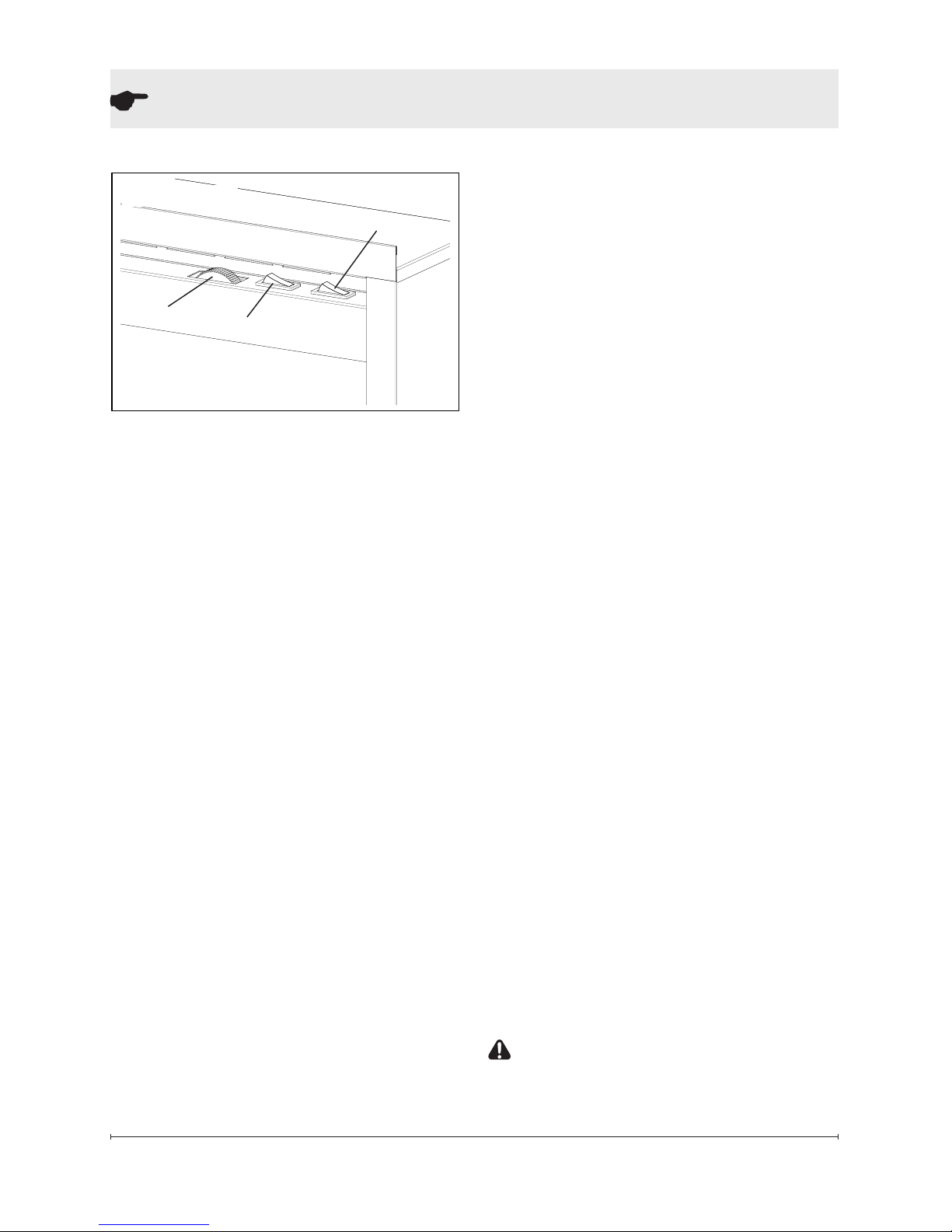

Figure 4

Operation

The controls are located on the

upper right of the replace. (Fig-

ure 4)

A. 3-Position Switch

The switch has two ON positions

marked with " I" and " II " . The

" I" position is for manual opera-

tion. In this position the built-in

remote control is by-passed.

The " II " position is for operating

the unit with the provided remote

control.

When in the " II " position the unit

is operated with the ON and OFF

buttons of the remote control.

When the switch is in the center

position the unit is off.

B. Heater ON/OFF Switch

The Heater ON/OFF Switch sup-

plies power to the heater fan and

the heater element. When the

switch is in the ON position the

heater operates if the thermostat

calls for heat.

!NOTE: The fan will continue

running even when the heater is

not, when the Heater Switch is in

the ON position.

C. Heater Thermostat Control

To adjust the temperature to your

individual requirements, turn the

thermostat control clockwise all

the way to turn on the heater.

When the room reaches the

desired temperature, turn the

thermostat knob counter clock-

wise until you hear a click. Leave

in this position to maintain the

room temperature at this setting.

For additional heat, turn clockwise

until you hear the click again and

the heater will turn on.

Resetting The Tempera-

ture Cutoff Switch

Should the heater overheat, an

automatic cut out will turn the

heater off and it will not come

back on without being reset. It

can be reset by switching the

3-Position Switch to OFF and

waiting 5 minutes before switch-

ing the unit back on.

CAUTION: If you need to con-

tinuously reset the heater, unplug

the unit and call technical support

10 www.dimplex.com

Button

Battery Cover

OFF

Button

Plastic Strip

Figure 5

Operation

at 1-888-346-7539.

!NOTE: The heater may emit

a slight, harmless odor when rst

used. This odor is a normal con-

dition caused by initial heating of

internal heater parts and will not

occur again.

Remote Operation

The replace is supplied with an

integrated On/Off remote control.

!NOTE: Ensure that the re-

place 3 position switch is set to

the remote control setting, "II". To

operate, push the ON button to

turn replace on, push the OFF

button to turn the replace off.

!NOTE: Before attempting any

operation with the remote control,

pull the plastic insulator strip out

from between the remote casing

and battery cover (Figure 5).

Remote Control Initialization/

Reprogram

In the event that your remote

control ceases to operate your

replace, follow these steps to

reinitialize the remote control and

the remote control receiver in the

replace:

1. Place the 3-Position Switch

(Figure 4A) in the OFF (“O”)

position.

2. Wait a minimum of 5 seconds

and then place the 3-Position

Switch in the Remote Control

position.

3. Within 10 seconds of chang-

ing the switch position, press

the ON button located on the

remote control (Figure 5).

This will synchronize the re-

mote control and the replace

receiver.

!NOTE: You will have only 10

seconds to perform this last step.

Failure to do so will result in these

steps needing to be followed

again.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Dimplex

Dimplex

Dimplex PF2325 Manual de usuario

Dimplex

Dimplex DC700 Manual de usuario

Dimplex

Dimplex Amesbury AME20 Manual de usuario

Dimplex

Dimplex BF SERIES Manual de usuario

Dimplex

Dimplex DFI2309 Manual de usuario

Dimplex

Dimplex DWF36-PG Manual de usuario

Dimplex

Dimplex XHD28L Manual de usuario

Dimplex

Dimplex MULTIFIRE DF3015 Guía de inicio rápido

Dimplex

Dimplex PF3033 Manual de usuario

Dimplex

Dimplex BLF50 Manual de usuario

Dimplex

Dimplex Auvergne Log 2920 Manual de usuario

Dimplex

Dimplex 6908760100 Manual de usuario

Dimplex

Dimplex DWF1203 Manual de usuario

Dimplex

Dimplex DF3033ST Manual de usuario

Dimplex

Dimplex Revillusion RBF30 Manual de usuario

Dimplex

Dimplex Opti-myst Manual de usuario

Dimplex

Dimplex Indoor Fireplace Manual de usuario

Dimplex

Dimplex Bari 2kW Optiflame Manual de usuario

Dimplex

Dimplex Exbury Manual de usuario

Dimplex

Dimplex SIL48 Manual de usuario

Dimplex

Dimplex BLF34 Manual de usuario

Dimplex

Dimplex Revillusion 20" Manual de usuario

Dimplex

Dimplex DF2426GB Manual de usuario

Dimplex

Dimplex Dakota DKT20 Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
