Owner’s Manual

Model

BF45DXP

BF39STP/DXP

BF33STP/DXP

7206360500R06

IMPORTANT SAFETY INFORMATION: Always read this manual ﬁrst

before attempting to install or use this ﬁreplace. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualiﬁed technician

or service agency to repair

this ﬁreplace.

!NOTE: Procedures and

techniques that are considered

important enough to emphasize.

CAUTION: Procedures and

techniques which, if not carefully

followed, will result in damage to

the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of ﬁre,

serious injury, or death.

Welcome & Congratulations ...................3

IMPORTANT INSTRUCTIONS .................4

Fireplace Installation ........................5

Operation..................................6

Maintenance...............................8

Accessories ..............................10

Warranty ................................11

Technical Support..........................13

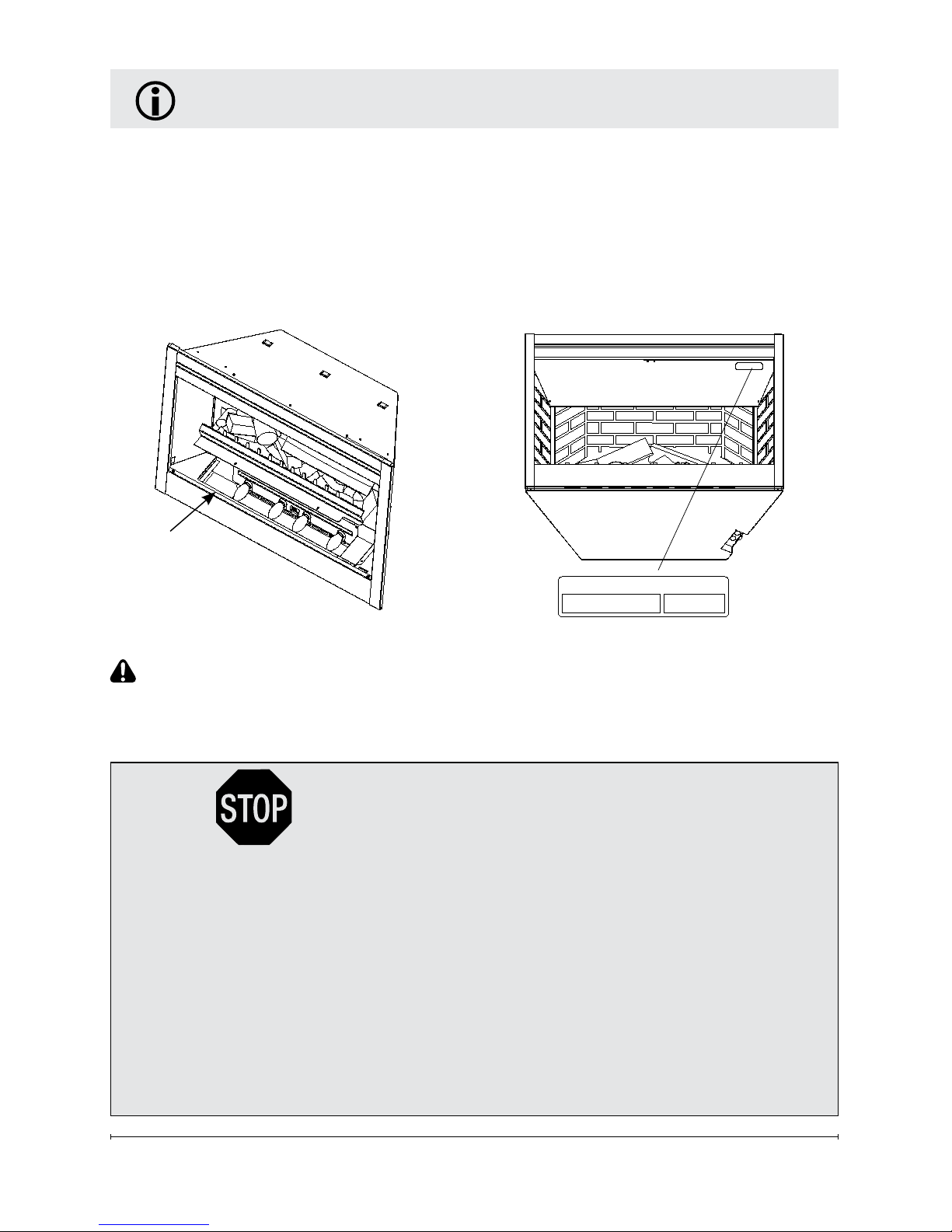

Welcome & Congratulations

Model Number ______________ Serial Number ______________

Model

Number

XXXXX

SERIAL No.

Thank you and congratulations for purchasing an electric ﬁreplace from

Dimplex. Please use our convenient online registration page to record

your model and serial numbers for future reference at

www.dimplex.com/register

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

In order to better serve you, please have your model and serial number

ready or register your product online before calling (See above)

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in

a possible electric shock, ﬁre hazard and will void the warranty.

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

①Read all instructions before

using this appliance.

②This ﬁreplace is hot when in

use. To avoid burns, do not let

bare skin touch hot surfaces.

The trim around the heater outlet

becomes hot during heater

operation. Keep combustible

materials, such as furniture,

pillows, bedding, papers, clothes,

and curtains at least 3 feet (0.9m)

from the front of the unit.

③ Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the ﬁreplace is left

operating and unattended.

④ Do not operate any heater after

it malfunctions. Disconnect power

at the service panel and have the

heater inspected by a reputable

electrician before reusing.

IMPORTANT INSTRUCTIONS

SAVE THESE INSTRUCTIONS

⑤Do not operate any unit with

a damaged cord or plug, or if

the heater has malfunctioned,

or if the electric ﬁreplace has

been dropped or damaged in

any manner, contact Dimplex

Technical Service at

1-888-346-7539.

⑥ Never locate this heater where

it may fall into a bathtub or other

water container.

⑦ Do not use outdoors.

⑧Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or fire, or

damage to the heater.

⑨ To prevent a possible fire, do

not block air intake or exhaust in

any manner.

⑩ All electrical heaters have

hot and arcing or sparking parts

inside. Do not use in areas where

gasoline, paint, or ﬂammable

liquids are used or stored

⑪ Do not modify this ﬁreplace.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

IMPORTANT INSTRUCTIONS

Use it only as described in

this manual. Any other use

not recommended by the

manufacturer may cause ﬁre,

electric shock or injury to persons.

⑫Do not burn wood or other

materials in this ﬁreplace.

⑬ Do not strike ﬁreplace glass.

⑭ Always use a certiﬁed

electrician for installation.

⑮ Disconnect all power coming

to ﬁreplace at main service panel

before performing any cleaning,

or maintenance.

⑯ When transporting or storing

the ﬁreplace, keep in a dry place,

free from excessive vibration and

store as to avoid damage.

!NOTE: Changes or modiﬁcations

not expressly approved by the party

responsible for compliance could

void user's authority to operate the

equipment.

Fireplace Installation

Bathroom Installation

This ﬁrebox must be protected

by a GFI circuit. If a receptacle is

used it must be readily accessible.

To prevent electrical shock this

unit is an electrical appliance that

is not watertight and must be

installed as to prevent water from

entering the unit. This unit must

be installed away from showers,

tubs, etc. Never locate ﬁreplace

where it may fall into a bathtub

or other water containers. Keep

towels and other combustible

materials 3 feet (0.9 m) away from

the front of the unit.

6 www.dimplex.com

Operation

Figure 1

WARNING: This electric ﬁrebox

must be properly installed before it

is used.

Manual Controls

(Figure 1)

The controls for the Electric

Fireplace are located at the bottom

right hand corner of the unit.

CAUTION: Ensure that the

Voltage Selector switch is set to

the appropriate voltage (115V

or 230V)

A. On/Off Switch

The on/off switch energizes the

ﬁrebox and ﬂame.

B. Mode Selector Switch

Select preferred feature:

• “o” for ﬂame only

• “-” for fan only/ﬂame

• “=” for heat/ﬂame

NOTE: The heater may emit

a slight, harmless odor when

ﬁrst used. This odor is a normal

condition caused by initial heating

of internal heater parts and will not

occur again.

C. Voltage Selector Switch

Needs to be set to reﬂect the

incoming voltage to the unit - 115V

or 230V.

Resetting The Temperature

Cutoff Switch

The heater on this ﬁreplace is

protected with a safety device to

prevent overheating. Should the

heater overheat, the Overheat

indicator will be activated

(Fig. 1), and an automatic cutout

will turn the heater off and it will

not come back on without being

reset. It can be reset by switching

Overheat

Indicator

Manual Controls

B. Mode

Selector Switch

A. On/Off

Switch

C. Voltage Selector

Switch

Operation

the On/Off switch to OFF and

waiting 5 minutes before switching

it to ON. The overheat cutout will

be triggered if the ﬁlter is dirty.

Follow ﬁlter maintenance.

CAUTION: If you need to

continuously reset the heater,

disconnect power and call

Dimplex customer service at

(1-888-346-7539).

Remote Controls

An optional remote control can be

purchased to operate the ﬁreplace

- BFRC-KIT. This will allow the

user the ability to toggle through

the stages of operation: Flames,

Flames/Fan, and Flames/Heat,

with a remote control.

Wall Mounted Controls

The ﬁreplace can be installed

with wall mounted controls. These

controls include wall switches

and thermostats. (see individual

installation guides for details)

1. Wall Mounted Switches

This model may be installed

so that a wall mounted switch

energizes the ﬁrebox and

ﬂame, (On/Off Switch must

be in the ON position). A

wall mounted switch may also

be used to override the ﬂame

image, (On/Off Switch must

be in the ON position in

coordination with any main

power wall mounted switch).

A wall mounted switch may

also be used to override the

heater option (Mode Selector

Switch must be in the “=”

position).

2. Wall Mounted Thermostat

This unit may be installed

so that a wall mounted

thermostat can adjust the heat

temperature to your individual

requirements. Please refer

to thermostat manufacturers

operation Instructions.

Mode Selector Switch must

be set to “=” for thermostat

to control heater/.

3. Wall Mounted Remote

Controls (WRCPF-KIT)

Dimplex manufactures a

optional wall mounted remote

control which allows the user

to fully control the ﬁreplace

from a central location with the

added functionality of a built in

thermostat.

8 www.dimplex.com

Maintenance

 WARNING: Disconnect power

and heater has cooled before

attempting any maintenance or

cleaning to reduce the risk of

ﬁre, electric shock or damage

to persons.

!NOTE: The ﬁreplace

should not be operated with

an accumulation of dust or dirt

on or in the unit, as this can

cause a build up of heat and

eventual damage. For this reason

the heater must be inspected

regularly, depending upon

conditions and at least at yearly

intervals.

Light Bulb Replacement

Light bulbs need to be replaced

when you notice a dark section

of the ﬂame or when the clarity

and detail of the log exterior

disappears. There are four bulbs

under the log set which generate

the ﬂames and embers.

Helpful Hints: It is a good idea to

replace all light bulbs at one time

if they are close to the end of their

rated life. Group replacement will

reduce the number of times you

need to open the unit to replace

light bulbs. Long life bulbs are

recommended to reduce the

frequency of bulb changes.

Light Bulb Requirements:

Quantity of 4 clear chandelier or

candelabra bulbs with an E-12

(small) socket base, 60 Watt

rating. Example: GE 60BC or

Philips 60CTC. DO NOT EXCEED

60 WATTS PER BULB.

CAUTION: When handling log

only apply force to the ember bed

section not directly to the logs.

To access the light bulb area

CAUTION: Allow at least 5

minutes for light bulbs to cool off

before touching bulbs to avoid

accidental burning of skin.

1. Open steel curtain (remove

glass doors if applicable).

2. Remove two screws on log

bracket and set aside

(Figure 2)

3. Pull front edge of plastic

ember bed or plastic grate

up and forward until rear

tab releases from the ledge

Screws

Figure 2

located at the bottom of

the partially reﬂective glass

(Figure 3).

!NOTE: Log set ﬁts tightly

into ﬁrebox, some force may be

necessary to remove.

4. Set logset in front of ﬁrebox.

5. Disconnect the logset LED

wire harness from unit

(Figure 4).

6. Examine the bulbs to

determine which bulbs require

replacement.

7. Unscrew bulbs counter

clockwise.

8. Insert new bulbs.

9. Re-connect the logset LED

wire harness to the unit.

10. Replace the log by inserting

the rear tab of the logset

under the back ledge of the

ﬁreplace and push down on

the front edge of the logset

until it snaps into place

(Figure 3).

11. Replace log grate using two

screws previously removed.

Maintenance

Side Section

Back

Ledge

Rear

Tab

Log

Ember

bed

Front

Edge

LED Wire

Harness

Figure 3

Figure 4

10 www.dimplex.com

Accessories

Please contact your local dealer

for genuine Dimplex accessories.

Example: glass door kits, brass

and stainless steel trims, remote

control kits, plug kits, and

cabinets designed to ﬁt your

ﬁreplace.

Partially Reﬂective

Glass Cleaning

The partially reﬂective glass is

cleaned in the factory during

the assembly operation. During

shipment, installation, handling,

etc., the partially reﬂective glass

surface may collect dust particles.

These can be removed by bufﬁng

lightly with a clean dry cloth.

To remove ﬁngerprints or other

marks, the partially reﬂective

glass can be cleaned with a

damp cloth using high quality

household glass cleaner. The

partially reﬂective glass should

be completely dried with a lint

free cloth. To prevent scratching,

do not use abrasive cleaners or

spray liquids on any surface.

Fireplace Surface Cleaning

Use warm water only to clean

painted surfaces of the Compact

Fireplace. Do not use abrasive

cleaners.

Servicing

Except for light bulb replacement

and cleaning described above, an

authorized service representative

should perform any other servicing.

Maintenance

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Dimplex

Dimplex

Dimplex BF33ST/DX Manual de usuario

Dimplex

Dimplex ELGAR EGR20 Manual de usuario

Dimplex

Dimplex Figaro FGA15 Manual de usuario

Dimplex

Dimplex COMPACT FIREPLACE Manual de usuario

Dimplex

Dimplex 23" Insert Fireplace DFPI2311 Guía de inicio rápido

Dimplex

Dimplex 7206560100R00 Guía de instalación

Dimplex

Dimplex Eltham Mantel 2kW Manual de usuario

Dimplex

Dimplex LKD20-AU Manual de usuario

Dimplex

Dimplex DFR2551G Manual de usuario

Dimplex

Dimplex DFI2309 Guía de inicio rápido

Dimplex

Dimplex BF33ST Guía de inicio rápido

Dimplex

Dimplex ENG56-400 Manual de usuario

Dimplex

Dimplex OS2527GB Manual de usuario

Dimplex

Dimplex Prism 50 Manual de usuario

Dimplex

Dimplex EF3003 Manual de usuario

Dimplex

Dimplex ELTHAM ETM20-AU Manual de usuario

Dimplex

Dimplex Rome Manual de usuario

Dimplex

Dimplex DF3003 Manual de usuario

Dimplex

Dimplex Ignite 50 Manual de usuario

Dimplex

Dimplex DWF1215B Manual de usuario

Dimplex

Dimplex NAVARRA NAV15P PEBBLE Manual del propietario

Dimplex

Dimplex Avola AVA20 Manual de usuario

Dimplex

Dimplex Wesley Side Control Manual de usuario

Dimplex

Dimplex DF2624L-INT Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
