These feet should only be used when it is not intended to fix the appliance to the wall.

NOTE :- When the feet have been fitted, the appliance MUST be positioned against a wall on

a firm surface before building in the storage heater bricks.

DO NOTATTEMPT TO MOVE THE HEATER, UNDER ANY CIRCUMSTANCES, ONCE

THE BRICKS ARE FITTED

INSTRUCTIONS FOR FITTING

OPTIONAL FLOOR STANDING FEET

MODELS: WMX/S718N, WMX/S724N, HSX/DA18N & HSX/DA24N ONLY

1. Remove the outer wrap packing of the heater, ensuring the end packing is left on the heater.

2. Rotate the heater so as it is upside down and the outer

front is facing away from the installer. See fig 1.

3. Place an M4 taptite screw as supplied in the fixing kit in

each of the drawn holes A and B. See fig 2A.

4. Tighten both the screws until they are approximately half

way into the base of the heater.

5. Taking one of the floor standing feet and viewing as

shown in fig 2B, rotate the foot to position Keyhole A

over the taptite screw located in hole A.

CONTENTS TOOLS REQUIRED

2 x Floor Standing Feet Pozi-drive Screwdriver

4 x No. 6 x 3/8” Self Tapping Screws Electric Drill

2 x M4 Taptite Screws

1 x 2.6mm Ø drill bit

KEYHOLE B

FIG. 2B TOP VIEW OF HEATER

FRONT OF HEATER

TOP VIEW OF FEET

FRONT OF FOOT

KEYHOLE A

FIG. 1 FRONT OF HEATER

FIG. 2A

TOP VIEW OF HEATER

FRONT OF HEATER A B

A B

83816 Issue 1 : 01.98

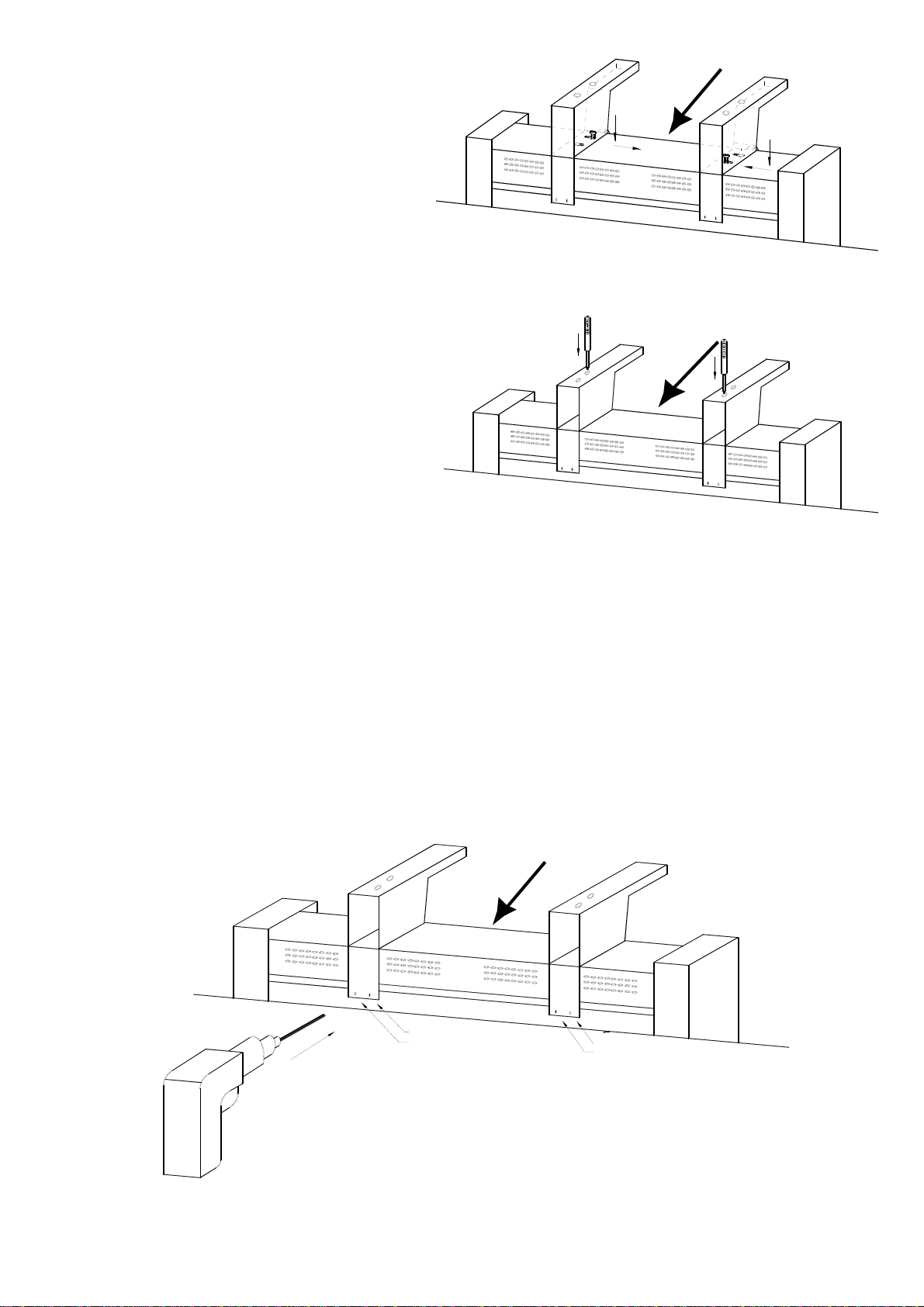

6. Slide the foot across until the

screw is located in the smaller

sectionofthekeyhole.Seefig 3A.

7. Using a pozi-drive screw driver,

locate the taptite screw through

the hole provided as shown in Fig

3B.

8. Note:At this stage thefeetmust

be parallel and pointing for-

wards. Tighten both screws se-

curely, ensuring they are located

correctly in the keyholes.

9. Observe holes C,D,E, and F as

shown in fig 4, at the rear fixing

bracket of the floor standing foot.

10. Taking the2.6mmdrill bit supplied

in the fixing kit, drill four holes

through the body of the heater us-

ing holes C,D,E and F as a tem-

plate. Do not allow the drill bit to travel more than 5mm into the heater. Please

ensure the heater is gripped firmly and the feet remain in position.

11. Secure the back of the feet to the heater by fixing the four No.6 x 3/8" self tapping

screws provided through the holes C,D,E and F.

12. With the feet securely fixed to the heater, rotate the heater onto its feet and then re-

move the side packing.

13. Cable entry may be effected from either the right or the left side of the unit, but the cable

should be routed around the back of the foot and then fed through the appropriate

retaining clips.

FIG. 4 FRONT OF HEATER

FIG. 3A

FIG. 3B

FRONT OF HEATER
