INSTRUCTION MANUAL

Installation and Operating

08/54284/0 ISSUE: 1 Series: B

PLXE Panel Heater

Models: PLX050E / PLX075E / PLX100E /

PLX125E / PLX150E / PLX200E / PLXC300E

*Note: PLXC300E features a slotted grille

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR

FUTURE REFERENCE. Note also the information presented on the appliance

IMPORTANT SAFETY ADVICE

When using electrical appliances, basic precautions should always be followed to reduce

the risk of ﬁre, electrical shock, and injury to persons, including the following:

IMPORTANT: The wall bracket supplied with the appliance must be used.

WARNING: DO NOT USE THIS HEATER IN THE IMMEDIATE SURROUNDINGS OF A

BATH, A SHOWER OR A SWIMMING POOL.

IMPORTANT: If the heater is installed in a room containing a bath or shower, it must

be installed so that switches and other controls cannot be touched by a person using

a bath or shower.

Do not use outdoors.

Do not locate the heater immediately below a ﬁxed socket outlet or connection box.

WARNING: In order to avoid overheating, do not cover the heater. Do not place material

or garments on the heater, or obstruct the air circulation around the heater, for instance

by curtains or furniture, as this could cause overheating and a ﬁre risk.

NEVER cover or obstruct in any way the heat outlet slots at the top of the heater or

the air inlet slots in the base of the heater.

The heater carries a warning ‘DO NOT COVER’ to alert the user to the risk of ﬁre that

exists if the heater is accidentally covered.

CAUTION: Some parts of this product can become very hot and cause burns. Particular

attention has to be given where children and vulnerable people are present.

This appliance can be used by children aged from 8 years and above and by persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/o the appliance

provided that it has been placed or installed in its intended normal operating position

and they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved. Children aged from 3 years and

less than 8 years shall not plug in, regulate and clean the appliance or perform user

maintenance.

Note that due care and consideration must be taken when using this heater in series

with a thermal control, a program controller, a timer or any other device that switches

on the heat automatically, since a ﬁre risk exists when the heater is accidentally covered

or displaced.

If the supply cord is damaged it must be replaced by the manufacturer or service agent

or a similarly qualiﬁed person in order to avoid a hazard.

WARNING: Servicing and product repairs should only be undertaken by the

manufacturers approved service agent or a similarly qualiﬁed person, using only exact

manufacturer approved spare parts.

WARNING: THIS APPLIANCE MUST BE EARTHED

The electrical installation must be carried out by a competent electrician, and be in strict

accordance with the current I.E.E. Regulations for Electrical Equipment in Buildings.

The wires in this mains lead are coloured in accordance with the following code:

GREEN AND YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE

The heater is ﬁtted with a length of ﬂexible cable type H05VV-F size 3 x 1.0mm2 for

connection to the ﬁxed wiring of the premises through a suitable connection box

positioned adjacent to the heater.

A means for disconnection must be incorporated in the ﬁxed wiring of the premises in

accordance with the wiring rules. The supply circuit to the heater must incorporate a

double pole isolating switch having a contact separation of at least 3mm.

DO NOT USE THIS HEATER IF IT HAS BEEN DROPPED.

DO NOT USE IS THERE ARE VISIBLE SIGNS OF DAMAGE TO THE HEATER.

USE THIS HEATER ON A HORIZONTAL SURFACE, OR FIX IT TO THE WALL AS

APPLICABLE.

WARNING:

Do not use this heater in small rooms when they are occupied by persons

not capable of leaving the room on their own, unless constant supervision is provided.

WARNING:

To reduce the risk of ﬁre keep textiles, curtains or any other ﬂammable

material a minimum distance of 1 metre from the air outlet.

Supplementary Earth Bonding

Should Equipotential Earth Bonding be required the earthing conductor in the supply

cord is deemed to provide the supplementary bonding connection (see Regulation

544.2.5, 17th Edition I.E.E. Wiring Regulations).

Please note that lit cigarettes, candles and oil burners, combined with the convection

eect of electric heaters can cause soot deposits to build up on the surface directly

above and to the sides of the heater. This is not a fault of the heater. Extensive burning

of candles or smoking in the operating environment of this product can produce heavy

discolouration within a few months of use.

Energy Related Product Directive

Model Identiﬁer(s):

PLX050E

PLX075E

PLX100E

PLX125E

PLX150E

PLX200E

PLXC300E

Height (mm) 430 430 430 430 430 430 430

Width (mm) 450 620 620 690 690 860 860

Depth (mm) 108 108 108 108 108 108 143

Technical Details

Product information according to Ecodesign Regulation (EU) 2015/1188

Model Identiﬁer(s):

PLX050E

PLX075E

PLX100E

PLX125E

PLX150E

PLX200E

PLXC300E

Heat Output

Nominal heat output Pnom 0.50kW 0.75kW 1.00kW 1.25kW 1.50kW 2.00kW 3.00kW

Minimum heat output

(indicative) Pmin N.A N.A N.A N.A N.A N.A N.A

Maximum heat output

Pmax,c

0.50kW 0.75kW 1.00kW 1.25kW 1.50kW 2.00kW 3.00kW

Auxiliary electricity consumption

At nominal heat output elmax 0.00 0.00 0.00 0.00 0.00 0.00 0.00

At minimum heat output elmin

0.00 0.00 0.00 0.00 0.00 0.00 0.00

In standby mode elSB

<0.0005 <0.0005 <0.0005 <0.0005 <0.0005 <0.0005 <0.0005

Type of heat output / room temperature control

Electronic heat charge control with

room and / or outdoor temperature

feedback

Yes

Other control options

Room temperature control, with

open window detection Yes

With adaptive start control Yes

Contact details

Glen Dimplex Heating and Ventilation

Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF

Tel: 0344 879 3588

This product meets the Ecodesign requirements for an electric storage local space heater. Commission

Regulation (EU) 2015/1188.

All Models

Controls

Digitally controlled, Electronic Thermostat accurate to (±0.2°C)

Timer modes:

7 Day Programmable User Timer, Out All Day, Home All Day,

Continuous heat modes:

Eco, Manual, Frost Protect, Runback

Additional Modes:

Away, Boost, Setback

Controller UI

• Graphical display with RGB backlight

• Capacitive buttons with audio feedback

• User replaceable battery (Coin-Type)

• Open window detection, Adaptive-start, Advance time period

• Wide SP range (7-30°C)

• Bluetooth for software updates

• Child Lock & Heater Lock (PIN-based)

Construction

• Durable epoxy-polyester powder coated steel casing with louvered forward facing grille

• Advanced controls with capacitive sense technology for total ﬂexibility of heating

*Note: PLXC300E features a slotted grille

Element Compact, ﬁnned, mineral ﬁlled sheathed element

Installation • H-frame wall bracket

Safety • Thermal cut-out. Auto reset type

• Overheat detection

IP Rating IP24

Battery

3V coin cell battery to backup real time clock. Battery life >5 years.

Supply

1.3 metres ﬁtted, 3 core for fused spur installation, 1/N/PE ~230-240 V, 50Hz

Class I, with earth wire

Colour / Finish Metal Chassis, Air Outlet Grille & Control Moulding - Trac White (RAL 9016)

Approvals CE, BEAB

Guarantee 2 years

Country of Origin United Kingdom

Manufacturer Glen Dimplex Heating & Ventilation

(GDC Group Ltd.)

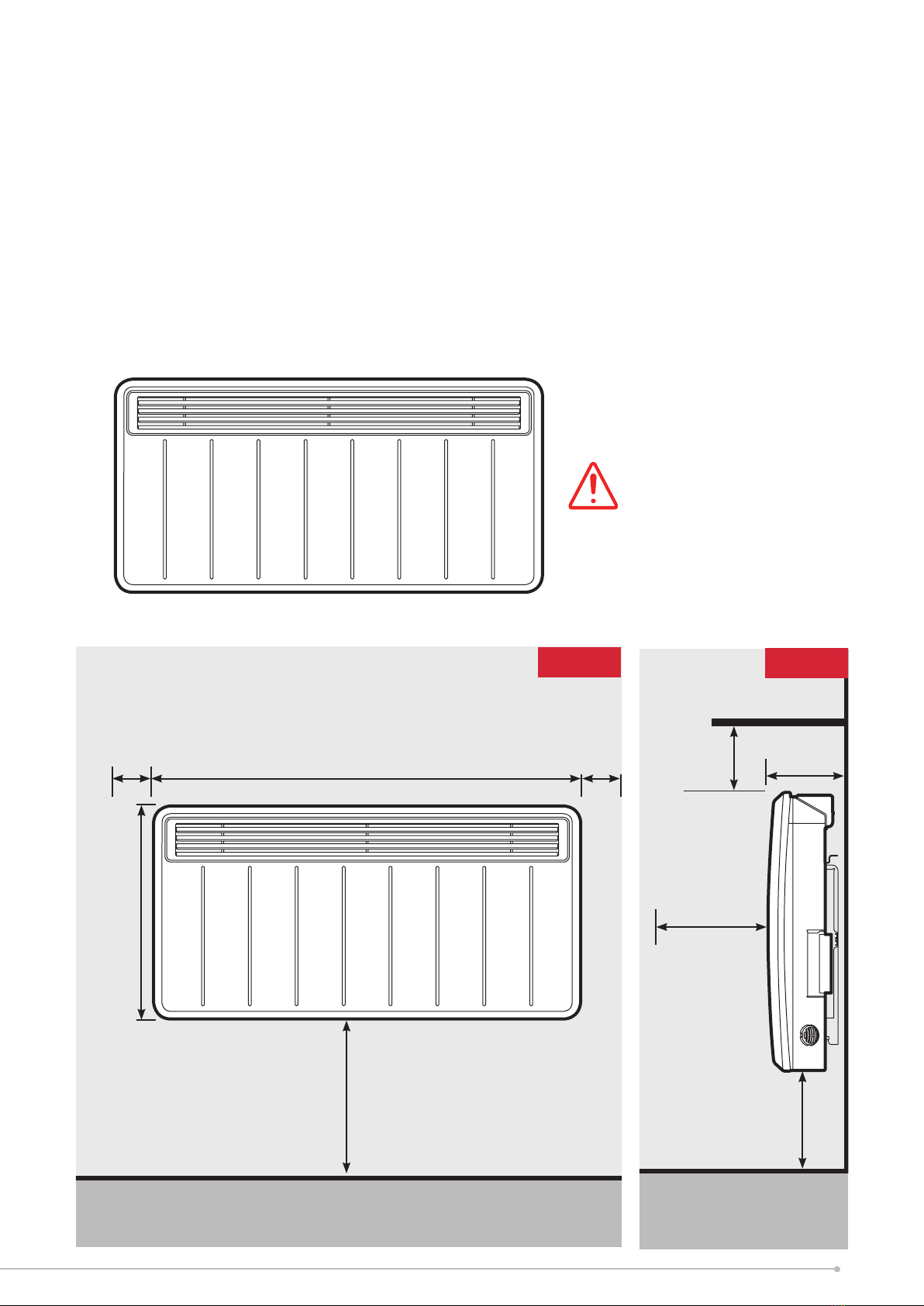

The heater is designed for wall mounting using the wall bracket supplied. It should only be

operated when in the upright position as shown - see Fig. 1 and Fig. 2. All models are splash

proof to IP24. Before connecting the heater check that the supply voltage is the same as that

stated on the heater.

General

Wall Mounting

IMPORTANT - The wall bracket supplied with the heater must be used and the heater must be installed in

the correct orientation. The ﬁxings should be used to secure the bracket to the particular wall on which the

heater will be installed. The heater should be positioned observing the minimum clearances stated around the

heater - see Fig. 2, Fig. 3 and Fig. 4.

‘A’

255

‘B’

Minimum

mount-

ing clear-

ance

Minimum mounting clearance

310

Fig. 2

To mount the heater to the wall:

1. Remove wall mounting bracket from the back of the heater by depressing the spring latch at the side of each

bracket - see Fig.2.

2. Fix the wall bracket securely to the wall through the four screw holes. Ensure only screw ﬁttings provided are

used for the particular wall type.

3. Present the heater to the wall bracket and engage bottom slots in the back with bracket hooks.

4. Press heater into locked position and ensure the clips on the top are engaged.

5. Remove protective ﬁlm from the user interface

WARNING:

This product is heavy and care

should be taken in installation

‘C’

150mm

(min)

150mm

(min)

‘D’

150mm

(min)

Fig. 3

300mm

150mm

(min) ‘E’

Shelf / Obstruction

Minimum front

clearance

*Please note correct product

orientation is with controller

facing top right side only

150mm

(min)

Fig. 4

A setup wizard will display when the product is powered on for

the ﬁrst time. This will set the following:

• Time, Date, Daylight Savings Time

• Sound On/O

For information on using the Heaters controls, refer to page 11.

The Heater will then take the User to the Home Screen with the

‘Out All Day’ Timer Mode active.

First Time Power-On

Important

During initial heat-up, some odour may be

emitted due to the newness of materials

used in manufacture. This is normal and will

disappear after a short period of use. It is

however advisable to keep the room well

ventilated.
