Digitus DS-40135 Manual de usuario

Audio Switch, 2x1

Manual

DS-40135

1.0Introduction

With the DIGITUS Audio Switch, you can connect up to two devices with a Toslink

connector (e.g. receiver, computer, games console such as PS3/PS4 or Xbox/Xbox

One, Blu-Ray player, Apple TV etc.) to one terminal device (sound bar, receiver,

speakers, HiFi system). Switching between the connected devices can be

performed manually using the selection buttons on the switch or alternatively using

the included remote control. What’s more, the 1-to-1 transmission ensures a brilliant

sound quality without static or distortion.

１

2.0Feature

•Connect up to 2 playback devices to your sound system

•Manual switching at the touch of a button or using the included remote control

•Lossless signal transmission without static or distortion

•Supports the S/PDIF standard for digital audio transmission

•Impervious to magnetic and electric interference

•Input: 2 x Toslink

•Output: 1 x Toslink

•Suitable for all devices with S/PDIF Toslink connector

•Power supply via supplied USB power cable

•Comfortable manual switching between the two channels at the touch of a

button using the “Select” button on the switch or using the remote control

•Supported audio formats: LPCM2.0/DTS/Dolby-AC3 and 5.1 Audio

•Cable range: up to 40 m to output source

•Surge protector

•Plug & Play Installation

•Status LEDs (connection indicator)

•Weight: 38 g

•Dimensions: 60.5 x 20.5 x 54 mm (WxHxD)

•Color: black

２

3.0Package Content

SPDIF/TOSLINK SWITCH

USB Power Cable

User Manual

Remote control

IR extender receiver

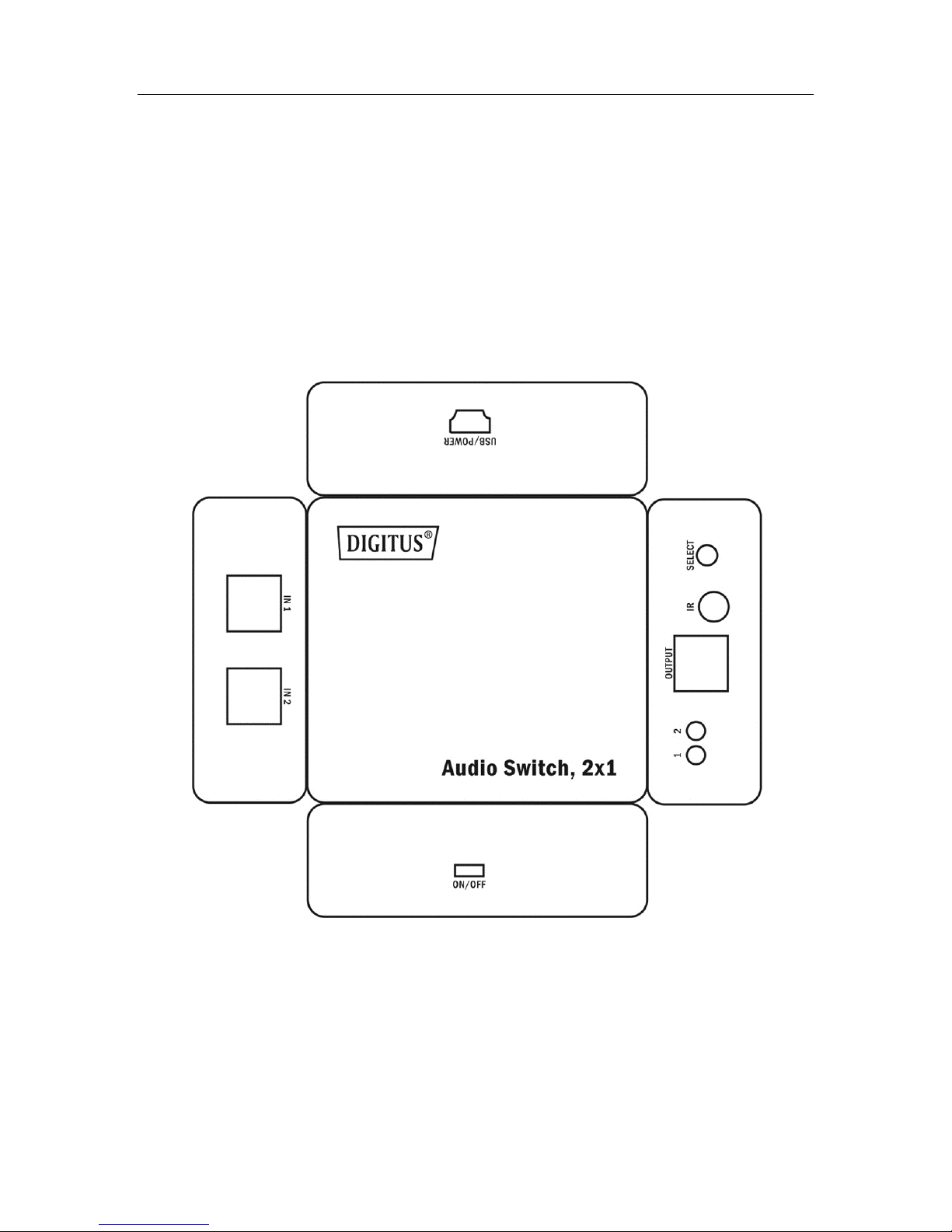

4.0Panel Description

３

5.0Connection and Operation

Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the

requirements of Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance. The

complete declaration of conformity can be requested by post under the below mentioned

manufacturer address.

Warning:

This device is a class B product. This equipment may cause some radio interference in living

environment. In this case, the user can be requested to undertake appropriate measures to

prevent interference.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany

Optical fiber Cable

Optical fiber Cable

Optical fiber Cable

AMPLIFIER
