Digitus DN-651148 Manual de usuario

4/8-port 10/100/1000BASE-

TX+1000Base-FX Industrial

Ethernet (PoE) Switch

Quick Installation Guide

DN-651148, DN-651149

DN-651150, DN-651151

DN-651152, DN-651153

Table of content

1. Overview ..................................................................................... 2

2. Features....................................................................................... 3

3. Specification ................................................................................ 3

4. Packages ...................................................................................... 7

5. Internal storage and forwarding mechanismSwitch Panel........... 8

6. Interface Definition.................................................................... 10

7. LED Indicator ............................................................................. 13

8. Installation caution.................................................................... 13

1. Overview

Industrial Ethernet switch with 4/8-Port 10/100/1000Mbps RJ45 +

1000Mbps SFP, the Product meet CE, FCC, RoHS standards. Network

switch has the operating temperature of -40°C ~ 80°C , has the super

firmness can adapt to all kinds of harsh environment, can also be

conveniently placed in the compact space of the control box. The

installation characteristics of the guide rail, wide temperature

operation, IP40 protection class housing and LED indicator light make

the switch a plug and play industrial grade device, providing a reliable

and convenient solution for users to network their Ethernet devices.

2. Features

Support long range transmission by fiber optical port.

Full working temp. -40～80 °C to ensure reliable data and long

working life

In line with industrial operating standards, the average trouble-

free work in more than 300,000 hours

Dual power input

Lightning Surge Protection (Power): 5000A (8/20μs)

DIN Rail and Wall mount support

Max. PoE 30W per port (DN-651149,DN-651151,DN-651153)

Support full duplex or half duplex mode, with automatic

negotiation capability

Network port support automatic cross identification

3. Specification

3.1 Standard: IEEE802.310BASE-T

IEEE802.3i 10Base-T;

IEEE802.3u; 100Base-TX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X; IEEE802.3x;

IEEE802.3af, IEEE802.3at (PoE Version)

3.2 Interface:

10/100/1000Mbps RJ45

1000Mbps SFP

3.3 Work environment:

Working: -40～80 °C

Storage: -40～80 °C

Relative Humidity: 5%~95 % (No condensation)

3.4 Spec table:

Model No

DN-651148

DN-651149

Network port

4x1000Mbps

SFP slot

2x 1000Mbps

PoE Spec.

IEEE802.3af/

IEEE802.3at

Power Pin

Assignment

1/2+;3/6-

Bandwidth

14G

Packet Buffer

Memory

1.2Mbit

Forwarding rate

10.5Mbps

Mac address table

Max. Frame Size

9000bytes

Power consumption

< 5 watts

ESD protection

contact 8KV, air 12KV

Surge protection

CM±4KV, DM±2KV

Enclosure

IP40

Power Supply

DC12-48V

DC48-57V

MTBF

300,000 hours

Working Temp.

-40 to 80C

Dimension (mm)

142.5x107.1x53

Weight (kg)

0.53

0.54

Model No

DN-651150

DN-651151

Network port

8x 1000Mbps

SFP slot

2x 1000Mbps

PoE Spec.

IEEE802.3af/

IEEE802.3at

Power Pin

Assignment

1/2+;3/6-

Bandwidth

20G

Packet Buffer

Memory

2Mbit

Forwarding rate

15Mbps

Mac address table

Max. Frame Size

9000bytes

Power consumption

< 3 watts

ESD protection

contact 8KV, air 12KV

Surge protection

CM±4KV, DM±2KV

Enclosure

IP40

Power Supply

DC12-48V

DC48-57V

MTBF

300,000 hours

Working Temp.

-40 to 80C

Dimension (mm)

142.5x107.1x53

Weight (kg)

0.6

0.62

Model No

DN-651152

DN-651153

Network port

8x 1000Mbps

SFP slot

4x 1000Mpbs

PoE Spec.

IEEE802.3af/

IEEE802.3at

Power Pin

Assignment

1/2+;3/6-

Bandwidth

52Gbps

Packet Buffer

Memory

4.1Mbit

Forwarding rate

38.7Mbps

Mac address table

Max. Frame Size

9000bytes

Power consumption

< 10 watts

ESD protection

contact 8KV, air 12KV

Surge protection

CM±4KV, DM±2KV

Enclosure

IP40

Power Supply

DC12-48V

DC48-57V

MTBF

300,000 hours

Working Temp.

-40 to 80C

Dimension (mm)

143.7x125x47.7

Weight (kg)

0.7

3.5 Power supply:

Input voltage:

DC12-48V (DN-651148, DN-651150, DN-651152)

DC48-57V (DN-651159, DN-651151, DN-651153)

Two-way power redundancy backup)

Access terminal: Rackmount kit

Support dual power redundancy

Support built-in over current 4.0A protection

Support reverse connection protection

3.6 Mechanical characteristic：

IP40 aluminum housing

DIN rail install

Natural cooling, no fan

3.7 Industrial standard:

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port:

±2kV

IEC61000-4-6 (CS): 3V (10 kHz-150 kHz); 10V (150 kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Frequency range：150kHz-80MHz

Impact: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

4. Packages

Industrial switch 1pcs

User manual 1pcs

Rackmount kit 1set

Terminal block 1pcs

5. Internal storage and forwarding mechanismSwitch Panel

Side panel: P1 and P2 are the number of connecting terminals, P+1

and P-1 are respectively to the positive and negative poles to be

connected; Earthing screw, used for earthing equipment.

Front panel: The yellow light on the port is the LINK light, which is on

when the connection is established and the data transmission is

flashing.

The green light is PoE light, which is only on when the switch port is

supplying power to the PD devices. Power indicator light is on when

connecting with Power.

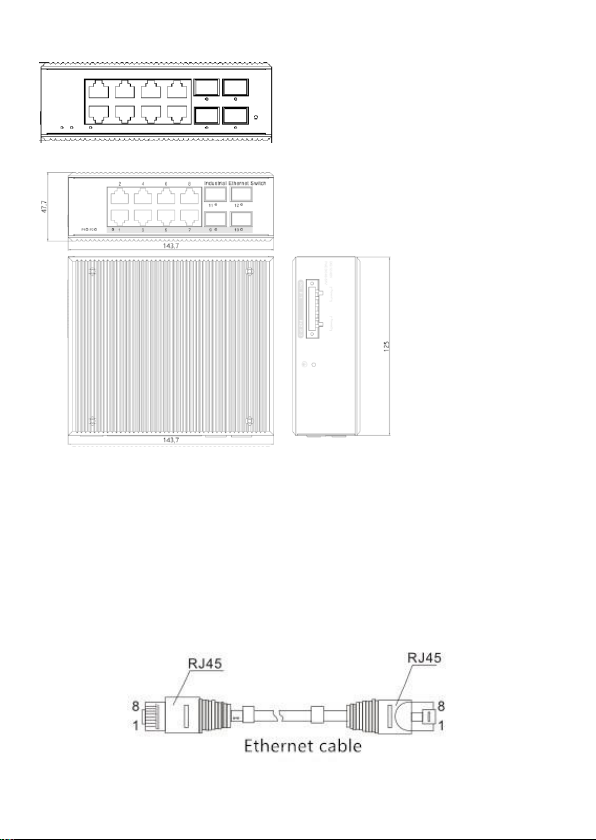

Switch size（mm）

DN-651148 / DN-651149

DN-651150 / DN-651151

DN-651152 / DN-651153

6. Interface Definition

6.1 10/100/1000Base-TX Ethernet interface:

This series of switches provides MDI/MDI-X self-identification with

cable support on all 10/100/1000Base-TX ports. In use, the Ethernet

port of the switch can be connected with other Ethernet terminal

devices through network cables (direct or cross). Please use Class 5

shielded twisted pair. The Ethernet port pin definition is shown in the

following figure:
