Digitus DA-70135-1 Manual de usuario

USB 2.0 Sharing Switch

User Manual

Model: DA-70135-1 & DA-70136-1

Getting started with USB 2.0 Sharing Switch

Thank you for choosing the USB 2.0 Sharing Switch.

Today, USB connections can be found in various devices, from PC cameras to

scanners, printers, Hubs, and KVM switches, As USB technology continues its

reign in the computer peripheral market, USB 2.0 Sharing Switches offer a

completely cost-effective solution for the small business and home user to

manage their network layout.

These sharing switches are ideal for multiple PCs to share one USB

device. The USB 2.0 sharing Switch has designed a user-friendly interface that

makes device sharing easier. No more extra complex driver download

procedures are necessary. Only a few clicks and you can start to explore the

USB adventures.

Installation

DA-70135-1

2 x USB B Type connectors connect to each PC and 1 USB A Type connector

attaches to the USB device(s).

Installation

DA-70136-1

4 x USB B Type connectors to each PC and 1 USB A Type connector attaches

to the USB device(s).

Software Installation

First insert the CD (AP Software) into your CD-ROM drive. The language dialog

box will pop up.

If installation does not start automatically, start Windows Explorer, navigate to

your CD-ROM drive and double-click the setup.exe file.

Confirm the English (or the required languages) is selected as the installed

language, and then click OK. The installation setting dialog box is displayed.

The default directory is C:\Program Files\USB Sharing. If the drive letter where

you would like to install is different from C, browse the drive instead. Click “Next”

to confirm the change.

When the Installation successful, the dialog is display, click “Finish” to close all

of the open windows, and then reboot your computer.

After your computer is rebooted, there will be as shortcut on your desktop

and a icon on the lower right corner of your screen.

Operation

It is important for end users to realize that storage devices such as, external hard

drives, and printers, will continue to send signals back and forth to your

computer when ever they are connected. While this is happening, USB auto

sharing will be confused by this signal and an indication icon will appear red and

blinking. If you would like to have the controlling power of USB auto sharing

without device busy considerations, simply press “Ctrl” + F11. The confirmation

message will then pop up. Simply click “Yes” to confirm the switch.

You still can switch from one computer to another even though the application is

not installed (Mac Linux OS). When the LED light is lit that indicates the PCs are

already connected with the device. Please be aware that switching computers by

the panel Select button will force the device to switch with the computer.

Note: Please refer to read me file for more detail if you have other

questions.

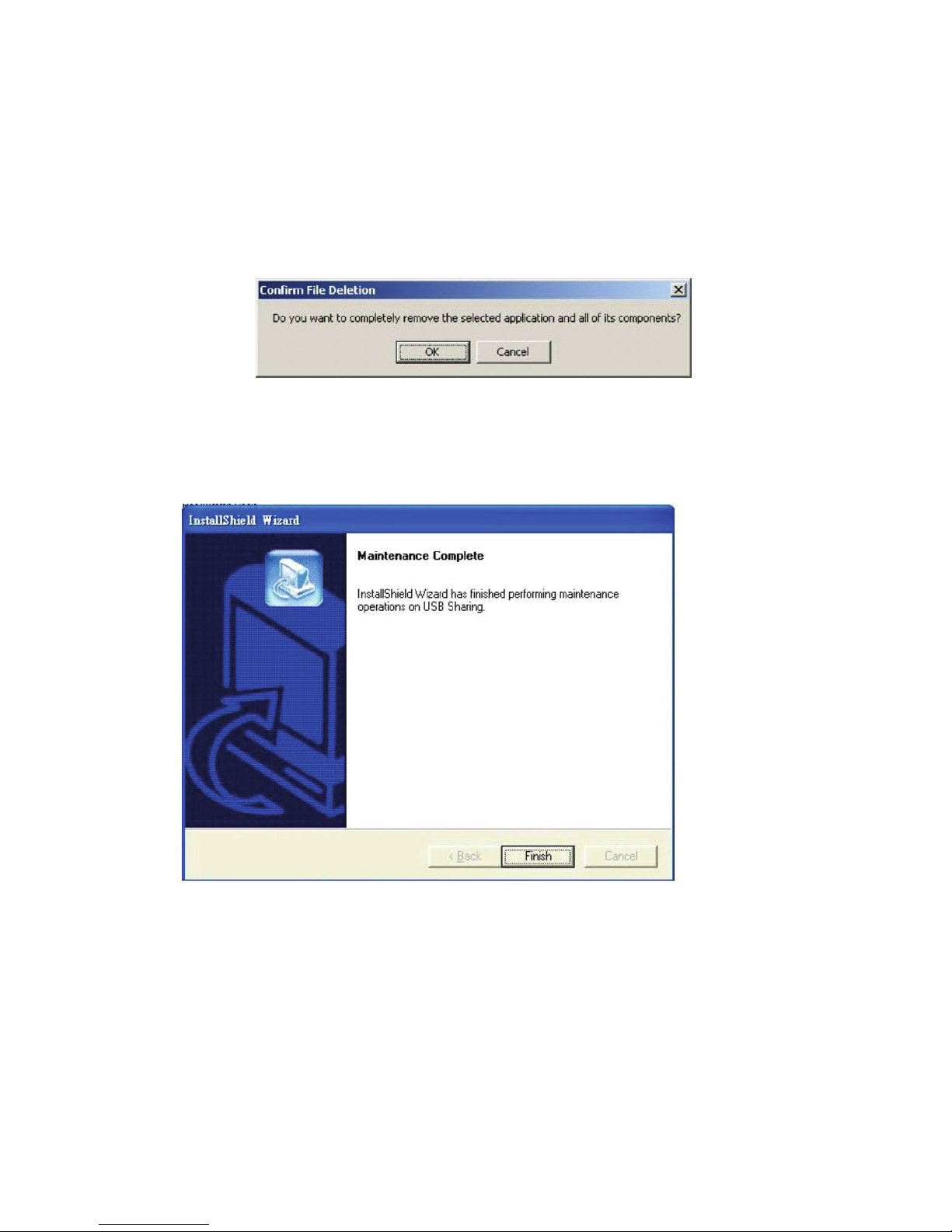

Software Un-installation

1. In order to completely remove the software application from your PC, please

insert the CD-ROM into your CD-ROM drive. Confirm the default language in

English and click OK. The file deletion dialog will appear and click OK to confirm.

2. Also, you can uninstall the software from “Add or Remove Programs” under

Control Panel. Click “Add or Remove” button and the Choose Setup Language

box will display. Confirm the default language in English and click OK. The file

deletion dialog box will appear and click OK to confirm.

Click “Finish” The software un-installation has been completed.
