Digitus Plug&View DN-16038 Manual de usuario

DIGITUS®Plug&View

IP Cameras

Quick Installation Guide.

(QIG)

Safety Precautions

Only use the Plug&View IP camera within the specified

temperature range for this camera

When not in use, store the product in a clean and dry place in

temperatures between 0°C and 40°C

Do not cover the camera

Do not let the camera come into contact with liquids (except

outdoor cameras with IP66 protective cover)

Plug&View IP cameras do not replace adult supervision.

Safeguard the health of your children, family members or pets by

regularly looking after them

Ensure that the indoor IP cameras are only used inside. These

cameras are not intended for outdoor use and can be damaged.

In this case use the specified outdoor models

Install the Plug&View IP cameras in close proximity to an easily

accessible wall outlet. Ensure that the power cord is not under

tension or stretched

Position the Plug&View IP cameras within the range of your Wi-Fi

router and ensure that there are no obstacles between camera

and router, which could interfere with the Wi-Fi signal

Protect the Plug&View IP cameras from electrical and other HF

devices generating interferences (microwaves, mobile phones,

etc.)

Keep camera, network cable and power cord outside the reach of

children, since these components can be dangerous

Only use the supplied power adapter.

Never try to repair Plug&View IP cameras yourself. Repair and

maintenance work must be carried out by specialists.

In case of problems contact our customer service.

Observe all applicable laws regarding camera monitoring. The

Plug&View IP cameras are intended for private use at home.

Inform your family members, relatives and domestic helpers in

your household with regard to video monitoring. Ensure that

public areas and your neighbors’ properties cannot be seen.

Personal Information

Read and accept the privacy policy for using the DIGITUS®

Plug&View systems under http://plug-view.com/privacy-policy-

for-platform-apps/.

Select a password with a high degree of safety for your

Plug&View account to protect it from unauthorized access.

The password should contain at least 8 characters; we

recommend case-sensitive letters and alphanumeric characters.

Furthermore, the standard password of the camera should be

changed to avoid unauthorized access here as well.

Live stream, push notification and further services are

available via a cloud server. Despite backup solutions, system

stability and bandwidth management the uninterrupted

availability of the system cannot be guaranteed.

What's in the box

1 x Plug&View IP camera

1 x Power supply with cable

1 x Quick Installation Guide

1 x CD with utilities

Optional:

1 x Ethernet cable

1 x Ceiling/Wall mount

1 x Removable antenna*

*The following cameras are equipped with a removable antenna:

DN-16029, DN-16039, DN-16043, DN-16048, DN-16049

Thank you for choosing a Plug&view IP-camera, which can be up-

and-running quick and easy without complicated network settings.

Install MicroSD Card

DIGITUS®indoor Plug&View cameras can be equipped with a

microSD card for recording.

Check installation option by means of the installation illustration.

DN-16047

Install the SD card as

illustrated, with the

golden contacts

towards the camera

lens.

DN-16046

Install the SD card as

illustrated, with the

golden contacts

towards the camera

lens.

DN-16029

Install the SD card as

illustrated, with the

golden contacts up.

Camera Connections

LAN:

Connect the camera to the

LAN port of your router.

Reset:

Press and hold the Reset

button for 10 seconds after

starting the camera to reset the

camera to default settings.

Power:

Connect the supplied power

cord to supply the camera with

power.

MicroSD:

Insert a microSD card for local

storage.

Mic:

Microphone (Audio In).

Audio output:

Connect an external speaker

via the 3.5mm audio cable.

WPS:

Press and hold the WPS button

for 3 seconds after starting the

camera to activate WPS mode.

Alarm:

Pin1: Alarm input

Pin2: Ground

Pin3: Not in use

Pin4: NO

Antenna port

WPS button

Network port

DC SV power supply

Reset

Alarm input/output

MicroSD card slot

udio outpu

Network port

Audio output

WPS DC 5V power supply

MicroSD card

slot

MicroSD card slot

Reset

DC 5V power suppl

Camera Connections

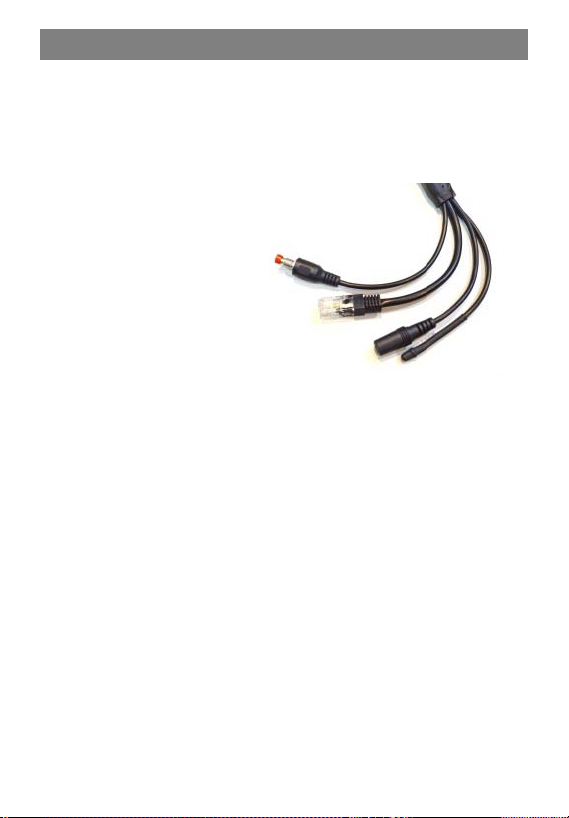

DIGITUS®outdoor Plug&View cameras are equipped with a special

cable.

Check installation option by means of the installation illustration.

Reset button:

Press and hold this

button for 10 seconds

after the camera is

connected and ready-

to-use. This resets the

camera to default

settings.

Network cable:

Connect the network

cable to you router on

the network to establish

Internet connection.

DC 12V power

connection:

Connect the external

power adapter to

supply the camera with

power.

LED status indicator:

The blue LED status

indicator shows if the

camera is supplied with

power.

For models DN-16039, DN-16043 and DN-16048 power can be

supplied directly to the camera via the network cable in connection

with a PoE injector or PoE switch.

Lens Settings

DN-16039

DN-16043

You can adjust focus

and sharpness via

manual controls.

Use the camera live

image to adjust

focus and

sharpness as

required.

Set focus (angle)

Set sharpness

Set focus (angle)

Set sharpness

1. Preparation

Before you can use your IP camera, some preparations must be

taken care of.

Connect antenna

Plug the wireless antenna into the connector and tighten the

mounting bolts.

Insert SD-card

The Plug&View IP cameras support MicroSD cards with up to 32

GB storage capacity, which you can buy at your resellers. Pictures

or videos taken with your IP camera are then stored on this card.

If your camera has an external port and does not have existing

internal memory, insert your MicroSD card into the corresponding

slot until it firmly snaps into place.

Connect power supply

Plug the cable of the enclosed power supply into the "Power"

connection of the camera.

Connect camera to router (e.g. AVM Fritz!Box,

Telekom Speedport etc.)*

Connect one end of the supplied network cable to the LAN port of

the camera. Connect the other end of the network cable to one of

the connectors marked as 'LAN' on the back of your router. Some

routers have only one LAN connection, others have multiple

connections. Your router must have a working Internet connection.

*You can skip this point with the access point mode of the cameras.

For DN-16047 this point must be skipped.

2. Setting up the Plug&View User Account

In order to use your Plug&View camera and to have a video image

at any time and anywhere, you need to register your camera in a

Plug&View user account. The setup and control can both be done

from your Smartphone/tablet as well as from a PC.

2.1 Create a user account with your

Smarthpone/tablet

If you have an Apple

iOS device, then you will find our "DIGITUS

Plug&View" App in the Apple App Store

. For Smartphones and

tablets running on Google Android OS you can find our "DIGITUS

Plug&View"-App in the Google™ Play Store.

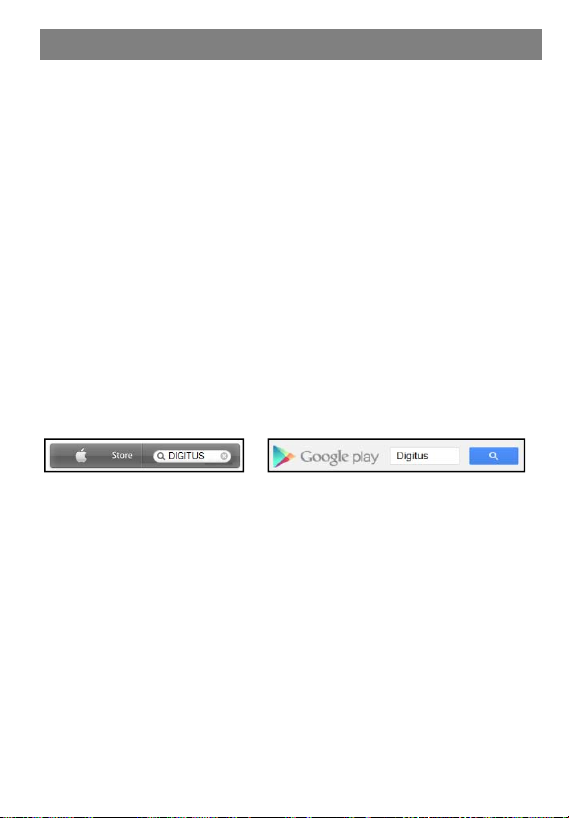

In the search field of the respective App Stores

enter "Digitus" or

"DIGITUS Plug&View".

Apple App Store

Google™ Play
