1. Introduction:
DIGITUS Plug&View series of IP cameras offers P2P Cloud service to avoid those complicated
network setting for camera installation. All you need is just “Plug&View” with the 3 simple steps.
2. Package Content:
-IP camera x 1
-Power supply x 1
-Ethernet cable x 1
-Support CD x 1
-Mounting accessory x 1
3. Installation Procedures:
3.1 Getting connected
1. Power on the camera and connect the Ethernet cable from the camera to the router.
Please make sure that the router is setup to be able to access Internet.
2. Open a browser (Internet Explorer, Google Chrome, Mozilla Firefox...) and key in
http://mydigitus.net/ to access DIGITUS Plug&View Website.
Please login your account and password if you already have a Google Account (gmail
account). Otherwise, please create a new Google account.
3
Alternatively you can also download “DIGITUS Plug&View” APP from APP store or
Google Play and execute this APP from your mobile devices and login the account and
password instead of using browser.
3. With browser, please key in the MAC address and Activation code as shown on the 1st page
of the QIG to add camera under your account. After press “Apply”, it will show “Success”.
Alternatively the easiest way to add camera without key-in long numbers is using the smart
phone to scan the QR code on the 1st page of this QIG using “DIGITUS Plug&View” APP from
your mobile devices.
After adding the camera, now you can have live-view anytime anywhere.
3.2 Getting connected wirelessly
Wireless (WiFi) connection between IP cameras and Wireless router / Access point is also
available with the following procedures.
4. After completing Step 1 ~ 3 for wired connection with Ethernet cable, login into
http://www.mydigitus.net/ and click the setting icon to enter camera user interface.
Then you will enter the Web User Interface of the cameras.
Please key in “admin” for the account and password to log in.
4
5. Go to “Parameter” => “Network”. Change NetMode to “WiFi” and enable “DHCP”.
Press “scan” to search the Wireless router or Access point in the environment and select the
desired wireless device to connect.
Please key in the password of the wireless router / Access Point.

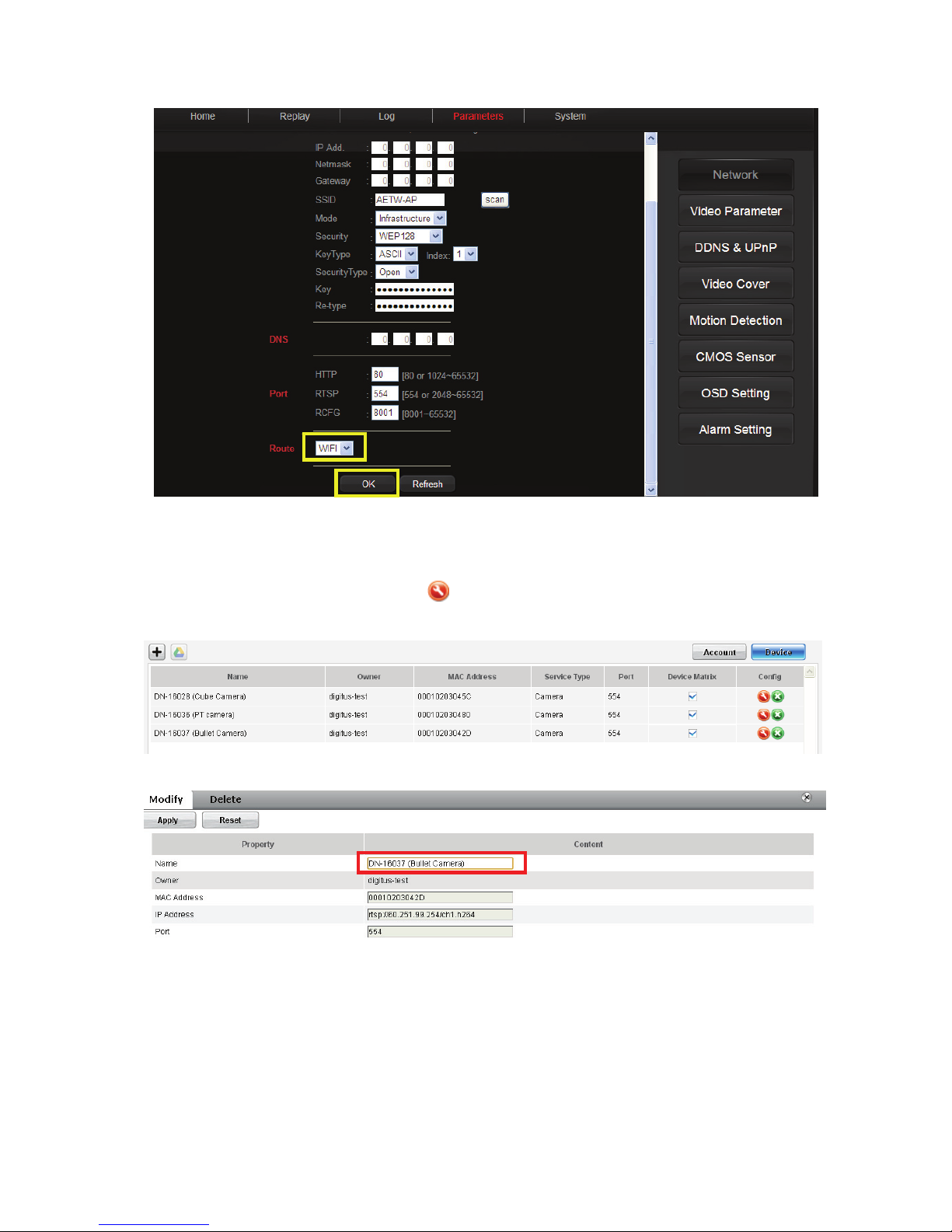

6. Change Route to “WiFi” and press “OK” to take effect of the new WiFi setting. Then close this
camera user interface window and unplug the Ethernet cable. Now you can access the
camera wirelessly via Plug&View APP or through http://mydigitus.net
5
4.0 Change Device Name
Go to Settings and click Config button to lead to a Modify page for each camera. You may
change the name to any desired description.
6
5.0 Tool bar description
Tool bar is located on the up-right-side of each IP cam media screen to foster
an easy management at your preference.
5.1 Light Signal
Green Signal
When you read the green light that means the IP cam is online and on air, therefore,
its video is successfully displayed on the screen.
Yellow Signal
When you read the yellow light that means the IP cam is online but not yet on air,
therefore, its video is not displayed on the screen.
Red Signal
When you read the red light that means the IP cam is offline, therefore,
the screen is blank.
5.2 Full Screen
Full screen button is to lead you to a new screen layer where the video is displayed
in full screen for the clearer vision and event play back function.
5.3 Live View & PTZ
“Live view” button is to view the selected IP cam’s media in a timely manner. You may
also select to view the different camera’s media from the “camera list” displayed on the
left-hand side of the screen. Click the arrow buttons and to select more IP
cams from the list.
Click located on the top-right hand side of the screen to exit the full screen function, or
click located on the right-bottom side of the screen to get back to the matrix view
page.
7
You may click to reload the live view media if you encounter problem getting it. Each
selected camera’s configuration can be accessed by clicking on the right-bottom
side of the screen.
When the selected IP cam supports PTZ function, its PTZ control panel will be displayed
for you to manage camera angle on the right-bottom side of the screen. Otherwise, the
panel will be displayed in grey to indicate it is not functioning. Each angle adjustment
requires one click to make. is to back to the original setting position, while is
to zoom in the camera, and is to zoom out.
5.4 Play Back
“Play back” function is only supported when IP cam is embedded with SD card for
media recording. All the recorded events can be retrieved from the blue mark displayed in
timeline.
8
All recorded events are stored and marked in the timeline as in blue tag. You may
manage to view them in different time length: by clicking hour, day or week located on the
top-left hand side of the timeline.
The detailed recorded clips will be displayed when mouse over on the blue tag and the
tag turned to be in orange. You can the select a specific clip to review at your wish.
While playing back the selected media clip, you may also manage it to be stopped,
paused, move one clip forward or backward from the media control panel. Or, you may
also drag the progress bar cursor to the specific playing point at your preference.
9
5.5 Cloud
“Cloud” is utilized as a backup service to copy those video clips stored in camera’s SD
card and save on to your personal Google Drive. Before you can review the clips stored in
this “Cloud” service, you need to have a Google account and sign in.
Setting
Setting button is to lead you to that specific IP cam’s setting web UI.
Mute
Mute or un-mute buttons are used to control whether the users would like to hear
the voice receiving via camera or not.
Refresh
Refresh button is for you to refresh or reload the IP cam video.
10
Remove
Remove button is the button for you to remove this specific IP cam media in
Overview page.
6.0 Camera User Interface
After entering Camera User Interface from DIGITUS Plug&View website through setting icon
, please key in “admin” for the Username and Password to login.
At the first viewing of the IP camera, the browser will prompt the users to install the OCX
component.
Note: If the users didn’t install the ‘OCX’ before, please click the link on the page: ‘Please install
the ActiveX widget RSAV.exe’. Or directly in the upper right corner to download OCX
