Digitus DS-55506 Manual de usuario

HDMI Extender Set,

4K/60Hz, 70 m

Manual

DS-55506

Table of Contents

1. Introduction ............................................................................2

2. Main Features .........................................................................3

3. Package Contents ....................................................................3

4. Specification............................................................................4

5. Operating Controls and Functions............................................5

5.1 Transmitter Panel...................................................................5

5.2 Receiver Panel........................................................................7

5.3 IR Pin Definition .....................................................................8

6. Application Example..............................................................10

1. Introduction

The DIGITUS HDMI Extender Set enables HDMI signal transmission

over a distance of up to 70 m (4K/30Hz). The extender set supports

UHD resolution (4K2K/60 Hz, 4:4:4, 18 Gbps) over a CAT 6/7/8 cable

(60m distance). Thanks to PoC, only one unit needs to be supplied

with power by an external power adapter. HDR, HDCP support as

well as automatic EDID detection are also included as features. Using

the HDMI loop-out to the transmitter unit, a local monitor can be

connected in order to monitor the output to the receiver.

2. Main Features

•HDMI 2.0

•Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cable

•18 Gbps video bandwidth

•Supports 4K2K/60 Hz, 4:4:4

•HDCP 2.2 / 1.4

•Maximum transmission distance: 70 m

•PoC (Power over Cable) - Only the unit requires an external

power adapter

•Automatic EDID detection

•HDR support

•HDMI loop-out / output – Connection of local monitor to the

source device

3. Package Contents

•1x Transmitter unit

•1x Receiver unit

•1x IR transmission cable (1.5 m)

•1x IR receiver cable (1.5 m)

•1x Power adapter (DC 12V/1A, 1.15 m)

•4x Mounting plate

•1x User manual

4. Specification

Technical

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2 / HDCP 1.4

Video Bandwidth

18Gbps

Video Resolution

Up to 4K60Hz 4:4:4

Color Space

RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV

4:4:4

Color Depth

8/10/12-bit (1080P60Hz, 4K30Hz,

4K60Hz YCbCr 4:2:2/4:2:0)

8-bit (4K60Hz 4:4:4 )

HDMI Audio

Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital,

Dolby TrueHD, Dolby Digital Plus (DD+),

DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

ESD Protection

Human body model

±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connections

Transmitter

Inputs: 1x HDMI Type A [19-pin female]

1x SERVICE

[Micro USB, Update port]

Outputs: 1x HDMI Type A [19-pin female]

1x IR OUT

[3.5mm Stereo Mini-jack]

1x CAT OUT [RJ45, 8-pin female]

Receiver

Inputs: 1x IR IN [3.5mm Stereo Mini-jack]

1x CAT IN [RJ45, 8-pin female]

1x SERVICE

[Micro USB, Update port]

Outputs: 1x HDMI Type A [19-pin female]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

Transmitter / Receiver:

61mm [W] x 88mm [D] x 18mm [H]

Weight

Transmitter: 160g, Receiver: 155g

Power Supply

Input: AC 100 - 240V 50/60Hz

Output: DC 12V/1A

Power Consumption

3.84 W

Operating

Temperature

32 - 104°F / 0 - 40°C

Storage

Temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

Resolution /

Distance

4K60 -

Feet / Meters

4K30 / 1080P -

Feet / Meters

CAT5e

164ft / 50m

CAT6/6a/7

197ft / 60m

230ft / 70m

HDMI IN/OUT

10ft / 3m

30ft / 10m

The use of “Premium High Speed HDMI” cable is highly

recommended

5. Operating Controls and Functions

5.1 Transmitter Panel

No.

Name

Function description

HDMI OUT

HDMI loop output port, connect to

HDMI display device such as TV or

Projector with an HDMI cable.

HDMI IN

HDMI input port, connect to HDMI

source device such as DVD or PS4

player with an HDMI cable

CAT OUT

Connect to CAT IN port on the receiving

end with a CAT6 cable.

Power Indicator

Lamp (Green)

The lamp will illuminate when the

transmitter is powered on.

Data signal

Indicator Lamp

(Orange)

The lamp will illuminate when the

transmitter and the receiver have

signal transmission.

SERVICE port

For firmware updated use.

IR OUT

Connect to wideband IR Blaster cable.

The IR signal is from the IR IN port of

the receiver

DC 12V

Plug DC 12V/1A power supply into the

unit and connect the adapter to an AC

outlet.

(Note: The extender supports PoC

function, it means that either

transmitter or receiver is powered

supply by 12V/1A power adapter, the

other doesn’t need power supply.)

5.2 Receiver Panel

No.

Name

Function description

HDMI OUT

HDMI output port, connect to HDMI

display device such as TV or Projector

with an HDMI cable

CAT IN

Connect to CAT OUT port on the

transmitter end with a CAT6 cable.

Power Indicator

Lamp (Green)

Connect to CAT IN port on the receiving

end with a CAT6 cable

Data signal

Indicator Lamp

(Orange)

The lamp will illuminate when the

transmitter and the receiver have

signal transmission

SERVICE port

For firmware updated use

IR IN

Connect to wideband IR Receiver cable.

The IR signal will send to the IR OUT

port of the transmitter

DC 12V

Plug DC 12V/1A power supply into the

unit and connect the adapter to an AC

outlet.

(Note: The extender supports PoC

function, it means that either

transmitter or receiver is powered

supply by 12V/1A power adapter, the

other doesn’t need power supply.)

5.3 IR Pin Definition

IR Receiver and Blaster pin’s definition as below:

IR RECEIVER

IR BLASTER

IR Blaster

Signal

Power

IR Receiver

IR Signal

Power

Grounding

The following is IR system diagram about IR cable use method.

DVD

IR receiver cable

IR blaster cable

DVD remote

CAT 5e/6 cable

Note: IR remote sends signal distance for 0~5meters / 0~8 meters,

and angle is plus-minus45 degrees / vertical direction

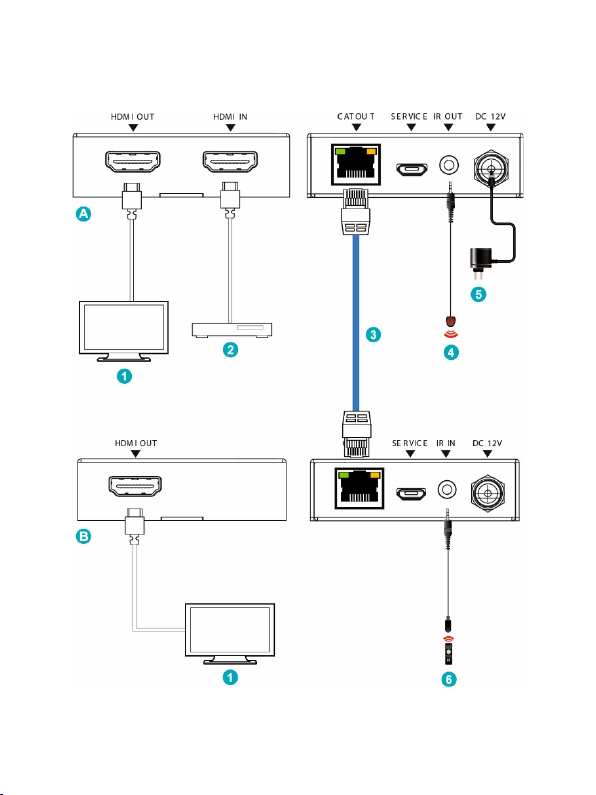

6. Application Example
