Digitus DA-71546 Manual de usuario

M.2 NVMe + M.2 SATA SSD Docking

Station with SD Express Card

Reader, USB-C™

Quick Installation Guide

DA-71546

Package content:

•1 x M.2 NVMe + M.2 SATA SSD Docking Station with SD Express Card

Reader, USB-C™

•1 x USB-A power adapter

•1 x USB-C™ connecting cable, 80 cm

•1 x USB-C™ to USB A connecting cable, 80 cm

•1 x Quick start guide

Description

The 3-in-1 Docking Station from DIGITUS® can accommodate M.2 SSDs in

NVMe o r S ATA technology; an SD Express 7.1 card reader with the highest

data transfer rates is also integrated. Manage M.2 data carriers with up to

4 TB per slot and additionally SD.

Feature Benefits

•1 x M.2 Box for NVMe SSDs (B+M-Key / M-Key)

•Plug and Play, no driver installation required

•1 x M.2 Box for SATA SSDs (B+M-Key)

•1 x SD Express 7.1 memory card reader / 1000 MB/s max.

•High data transfer rate of up to 10 Gbps (U.A.S.P + T.R.I.M support)

•Supports cards NVMe & SATA SSDs up to 4 TB capacity

•Supported formats: 2242, 2260, 2280 & 22110

•Can be used as a storage medium for up to 10 TB in total

•USB-C™ connection: USB 3.2 Gen2

•Ideal storage extension for notebooks, PCs, gaming consoles, TVs, NAS

or routers (USB-C™)

Product Details

Technical Speciﬁcation

Interface:

Type-C to M.2

Support SSD:

B+M Key(SATA)；M-key/B+M key(NVMe)

Support SD:

SD Express and down compatibility

USB peed:

10 Gbps

Rating:

5V, 3A

Feature:

External storage and SD card reader

Compatible:

Windows XP/7/8/8.1/10, MAC OS

Unit size:

79(L)X76(W)X18(H)MM

LED:

Power(green),disks(white),SD(white)

PC Type-C

Power Type-C

Power switch

B+M Key SATA M2

M-key NVMe M2

Disk LED

SD memory LED

SD express slot

Power LED

Attention

Check the connector icon and SSD label match before

assembling SSD, cannot work if assemble wrong SSD

1. SATA connector workable to B+M key SATA SSD only

2. NVMe connector workable to M-key NVMe and B+M key NVMe

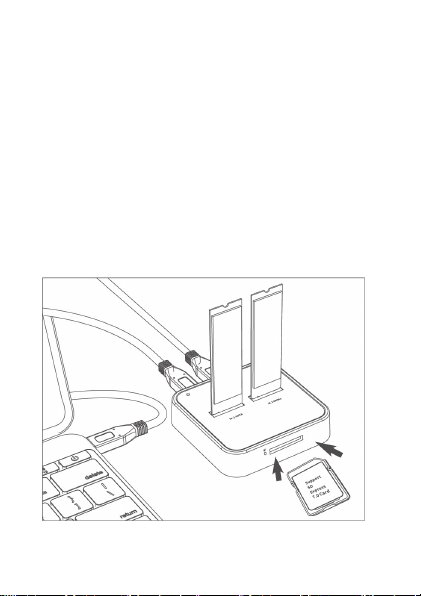

PC mode (Read and Write)

1. External storage

•Insert M.2 SSD to correct SSD slot

•Connect USB cable with docking and PC/NB

•Connect power type C with docking and AC adapter

•Press power switch one time, power and disks LED will

illuminate following

2. SD card reader

•Insert SD memory card to slot

•Connect USB cable with docking and PC/NB

•Connect power type C with docking and AC adapter

•Press the power switch one time, then SD LED will

illuminate following

New hard drive format

1. View “computer-Manage-Disk Management” to ﬁnd the new disk.

2. Right click the “Disk 1” then click “New Simple Volume”.

3. According to the instruction, choose the size of partition

then click “Next” to ﬁnish.

4. Then you can ﬁnd the new hard disk in the “computer”,

it’s ready to be use.

Disclaimer:

The product name and brand name may be registered trademark of related

manufacturers.TM and ® may be omitted on the user manual. The pictures on the user

manual are just for reference, and there may be some slight difference with the real

products.

We reserve the rights to make changes without further notice to a product or system

described herein to improve reliability, function or design.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the

shipping content. If the Declaration of Conformity is missing, you can request it by post under

the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513

Lüdenscheid

Germany
