Digital Watchdog DWC-D362D Manual de usuario

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Indoor Dome Camera

DWC-D362D

DWC-D362DIR

User Manual

02222012

PRECAUTIONS

FCC COMPLIANCE

WARNING : Changes or modifications are not expressly approved by the manufacturer.

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning :

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface :

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC rules. These limits are designed to Provide reasonable protection against harmful

interference. when the equipment is operated in a residential environment. This equipment generates, uses,

and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction

manual, it may cause harmful interference to radio communications.

Table of Contents

Introduction

Installation

Camera OSD Menu and Glossary

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Included Accessories

Easy Installations

Base Installations

Connecting to Monitors

Adjusting the Camera

4-5

14-17

19-20

Adjusting the 3-Axis Gimbal 13

FEATURES*

DWC-D362D

Sharp 1/3” CCD

540 TV Lines

2.8 ~ 11mm Varifocal Auto Iris Lens

Electronic Day and Night

DRC (Dynamic Range Compressor)

HME (Highlight Masking Exposure)

SLC (Side Light Compensation)

AGC / BLC / AWB

Mirror Image Control

RS485 Built-In (Optional)

Programmable Privacy Zone (4) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

Video Test Output Included

FEATURES*

DWC-D362DIR

Sharp 1/3” CCD

540 TV Lines

2.8 ~ 11mm Varifocal Auto Iris Lens

85ft Range IR with Intelligent Camera Sync

Electronic Day and Night

DRC (Dynamic Range Compressor)

HME (Highlight Masking Exposure)

SLC (Side Light Compensation)

AGC / BLC / AWB

Mirror Image Control

RS485 Built-In (Optional)

Programmable Privacy Zone (4) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

Video Test Output Included

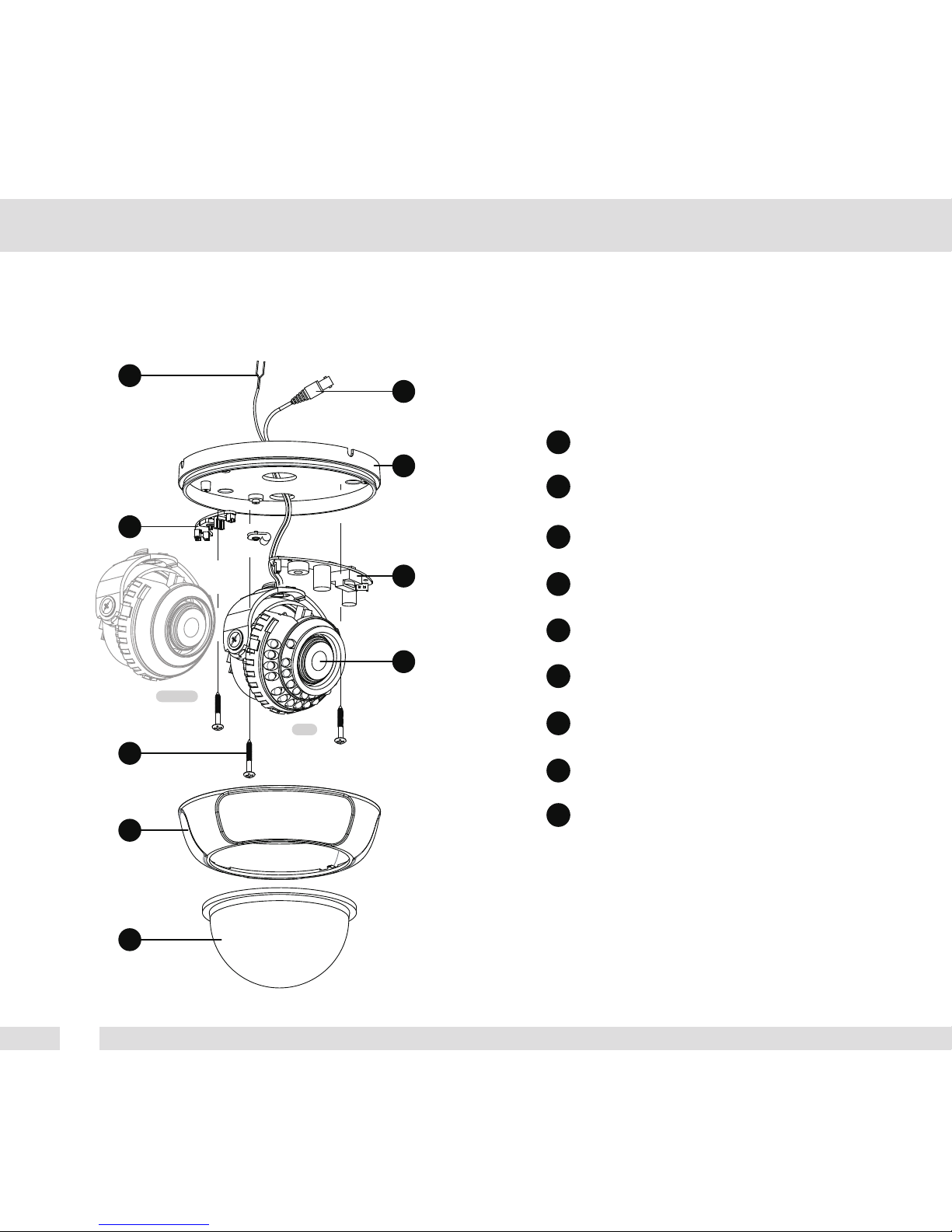

PART & DESCRIPTIONS*

1Lens

4Upper case

5Bubble

2Power Input Connctor

12VDC/24VAC Dual Voltage

3Video Output Connector - BNC

6Control board

7Power board

Mounting screw

8Bottom case

No IR

DIMENSIONS IN MILLIMETERS*

10.1

(0.4”)

39.4

(1.6”)

82.3

(3.24”)

Ø118.0

(Ø 4.65”)

Ø118.0

(Ø 4.65”)

Ø89.0

(Ø 3.5”)

Ø20.0

(Ø 0.79”)

Ø14.5

(Ø 0.57”)

3- Ø4.5

(3- Ø0.18”)

INSTALLATION*

Included with Value Line Indoor Dome Camera

1. User Manual

2. Mounting Template

1 2

3 4

Ø15.0

Ø20.0

Ø118.0

Ø5.0

Mounting template

PD79

3. Second Video Jack

4. Mounting Screw (3)

EASY INSTALLATION*

Remove the Dome Cover

Before you can mount or adjust your PD79,

you must remove the dome cover. Insert a

coin or screwdriver in the slot on the dome

cover, then twist to pry the dome cover

from the camera base.

Install the Enclosure Cover

Dome Cover

Camera Base

To install the dome cover, align the dome cover

with the camera base and push until

it securely snaps into place.

BASE INSTALLATION*

1.Pull wires through and make connections,

Refer to page 11. Use mounting template to

mount camera with dry wall mounts and wood

screws.

2. Adjust the camera’s pan,tilt and zoom.

See page 13 for details.

3. Use the joystick to adjust the OSD menu.

See page 14~17 for details. 4. Attach the camera housing to the

junction box using the assembly scrws.
