Digital Watchdog PTZ39X Manual de usuario

Super Speed Dome

PTZ Outdoor Dome Camera

Version 1.00

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

User’s Manual

PTZ39X

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

This symbol indicates that dangerous voltage

consisting a risk of electricshock is present within

this unit.

This exclamation point symbol is intended to alert the

user to the presence of important operating and

maintenance (servicing)instructions in the literature

accompanying the appliance

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (BACK). THERE ARE NO

USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

To prevent damage which may result in ﬁre or electric shock hazard, do not expose this appliance to

rain or moisture.

1. Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet. Using any

other adapter could cause ﬁre, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre, electric

shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal

heat generation or ﬁre.

4. Securely plug the power cord into the power receptacle. Insecure connection may cause ﬁre.

5. When installing the camera, fasten it securely and ﬁrmly. A falling camera may cause personal injury.

6. Do not place conductive objects (e.g. screw drivers, coins, metal things, etc.) or containers ﬁlled

with water on top of the camera. Doing so may cause personal injury due to ﬁre, electric shock,

or falling objects.

7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre or electric shock.

8. If any unusual smells or smoke come from the unit, stop using the product. In such case,

immediately disconnect the power source and contact the service center. Continued use in such

a condition may cause ﬁre or electric shock.

9. If this product fails to operate normally, contact the nearest service center. Never disassemble or

modify this product in any way.

10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause ﬁre or

electric shock.

11. When ambient temperature is below the freezing point, the dome cover will frost and the power.

will fail. In this case, install or reboot the system, and the frost will disappear 3 hours after turning

on the power.

[Note that the lowest guaranteed operating temperature is -45°C/-49°F without wind.]

WARNING

Safety Information

1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject

to excessive vibration or magnetic interference.

2. Do not install in a location subject to high temperature (over 50°C), low temperature (below -10°C),

or high humidity. Doing so may cause ﬁre or electric shock.

3. If you want to relocate the already installed product, be sure to turn o the power and then move

or reinstall it.

4. Remove the power plug from the outlet when there is a lightning. Neglecting to do so may cause

ﬁre or damage to the product.

5. Keep out of direct sunlight and heat radiation sources. It may cause ﬁre.

6. Install it in a place with good ventilation.

7. Avoid aiming the camera directly towards extremely bright objects such as the sun, for this may

damage the CCD image sensor.

8. The camera shall not be exposed to dripping or splashing, and no objects ﬁlled with liquids, such as

vases, shall be placed on the camera.

9. The main plug used to disconnect the device shall stay readily operable at any time.

CAUTION

WARNING

1. Read these instructions.

2. Keep these instructions.

3. Regard all warnings.

4. Follow all instructions.

5. Do not use this camera near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatuses that

produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong is provided for your safety. If the provided

plug does not t into your outlet, consult an electrician for a replacement.

10. Protect the power cord from being walked on or pinched particularly at or near plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specied by the

manufacturer or sold with the camera.

13. Unplug this camera when a cart is used. Use caution when

moving the cart that contains the camera to avoid injuries that can result from the camera

falling over.

14. Refer all servicing to qualied service personnel. Servicing is required when the camera has

been damaged in any way, such as power supply cord or plug is damaged, liquid has spilled on

the the camera, objects have fallen into the camera, the camera has been exposed to rain

or moisture, the camera does not operate normally, or the camera has dropped.

Safety Instructions

Contents

Features

Product & Accessories

Parts Name

Safety Information

Safety Instructions

INTRODUCTION

DIP Switch Setup

Installation

Cabling

INSTALLATION

Check Points before Operation

Functions

OSD Display of Main Screen

General Rules of Key Operation for Menu

OSD - ROOT MENU & SYSTEM INFORMATION

OSD - DISPLAY SETUP > CAMERA ID

OSD - DISPLAY SETUP > PRIVACY ZONE

OSD - MOTION SETUP

OSD - FUNCTION SETUP > PRESET SETUP

OSD - FUNCTION SETUP > SCAN SETUP

OSD - FUNCTION SETUP > PATTERN SETUP

OSD - FUNCTION SETUP > GROUP SETUP

OSD - FUNCTION SETUP > SCHEDULE SETUP

OSD - CAMERA SETUP > WB SETUP

OSD - CAMERA SETUP > AE SETUP

OSD - CAMERA SETUP > SPECIAL

OSD - INTELLIGENCE > MASK AREA

OSD - INTELLIGENCE > ALARM OUT

OSD - SYSTEM SETUP

OSD - SYSTEM INITIALIZE

OSD MENU

Dimension

Specification PTZ39X

SPECIFICATIONS

x39

Features

CAMERA SPECIFICATIONS

• CCD Sensor: EX-View HADTM CCD

•

Zoom Magniﬁcation: ×39 Optical, ×12 Digital Zoom

• Wide Dynamic Range

• Day & Night Function: ICR (IR Cut ﬁlter Removal)

• Various Focus Mode: Auto Focus/Manual Focus/

Semi-Auto Focus

• Independent or Global Camera Settings for Each

Preset Location

POWERFUL PAN/TILT FUNCTIONS

• Maximum 360°/SEC High Speed Pan/Tilt Motion

• Vector Drive Technology: Pan/Tilt Motions are

accomplished in the shortest path. As a result,

time to target view is reduced dramatically and

the video on the monitor is very natural to watch.

• Ultra low speed (0.05°/SEC) enables operator to

locate camera to desired target view with accuracy

and ease.

• Zoom-Proportional Pan/Tilt speed helps operator

to move the camera easily.

PRESET, PATTERN, SCAN, GROUP, PRIVACY

ZONE, SCHEDULE, AND MORE...

• Maximum 127 presets are assignable. Each of

them have independent characteristics, such as

white balance, auto exposure, label, alarm

input/output, etc.

• Maximum 8 set of scans can be stored. This

enables user to move camera repetitively between

two preset positions with designated speed.

• Maximum 4 patterns can be recorded and played

back. This enables the camera to follow any

trajectory operated by the joystick as closely as

possible.

• Maximum 8 set of group actions can be stored.

This enables the camera to move repetitively

between diﬀerent combination of preset, pattern,

or scan. A group is composed of maximum 20

entities of preset, pattern, or scan.

•

Maximum 8 privacy zones can be set up to protect

privacy of other people.

• 7 rules of schedule can be assigned by day and

time. Appropriate actions (such as home, preset,

scan, pattern, and group) can be deﬁned for each

rule. Also, it is possible to use weekday and all days

to simplify the rule.

PTZ (PAN/TILT/ZOOM) CONTROL

• With RS485 communication, a maximum of 255

cameras can be controlled at the same time.

• Auto, Pelco-D, Pelco-P, Samsung, Panasonic, Kalatel,

AD(American Dynamics) protocol can be selected

as a control protocol in the current version of

ﬁrmware.

OSD(ON-SCREEN DISPLAY) MENU

• OSD Menu is provided to display the status of

camera and to conﬁgure the functions interactively.

•

Camera ID, Pan/Tilt/Zoom/Direction

, Alarm Input/

Output, Date/Time, Current Temperature, and

Preset are displayed on screen.

• Each display item can be turned on or oﬀ

independently.

ALARM I/O FUNCTIONS

• 8 alarm sensor inputs and 4 relay output are

available.

• To reject external electric noise and shock perfectly,

alarm sensor input is decoupled with photo coupler.

• The signal range of sensor input is from DC 5.0 to

12.0 volts to adopt various applications.

• If an external sensor is activated, camera can be set

to move to the corresponding preset position.

•

Relay outputs can be assigned to work with a certain

preset.

RESERVED PRESETS FOR SPECIAL PURPOSE

• Most of camera settings are directly changed by

calling reserved presets, not entering into OSD

menu. For more information, refer to “Reserved

Presets”(page 18) of this manual.

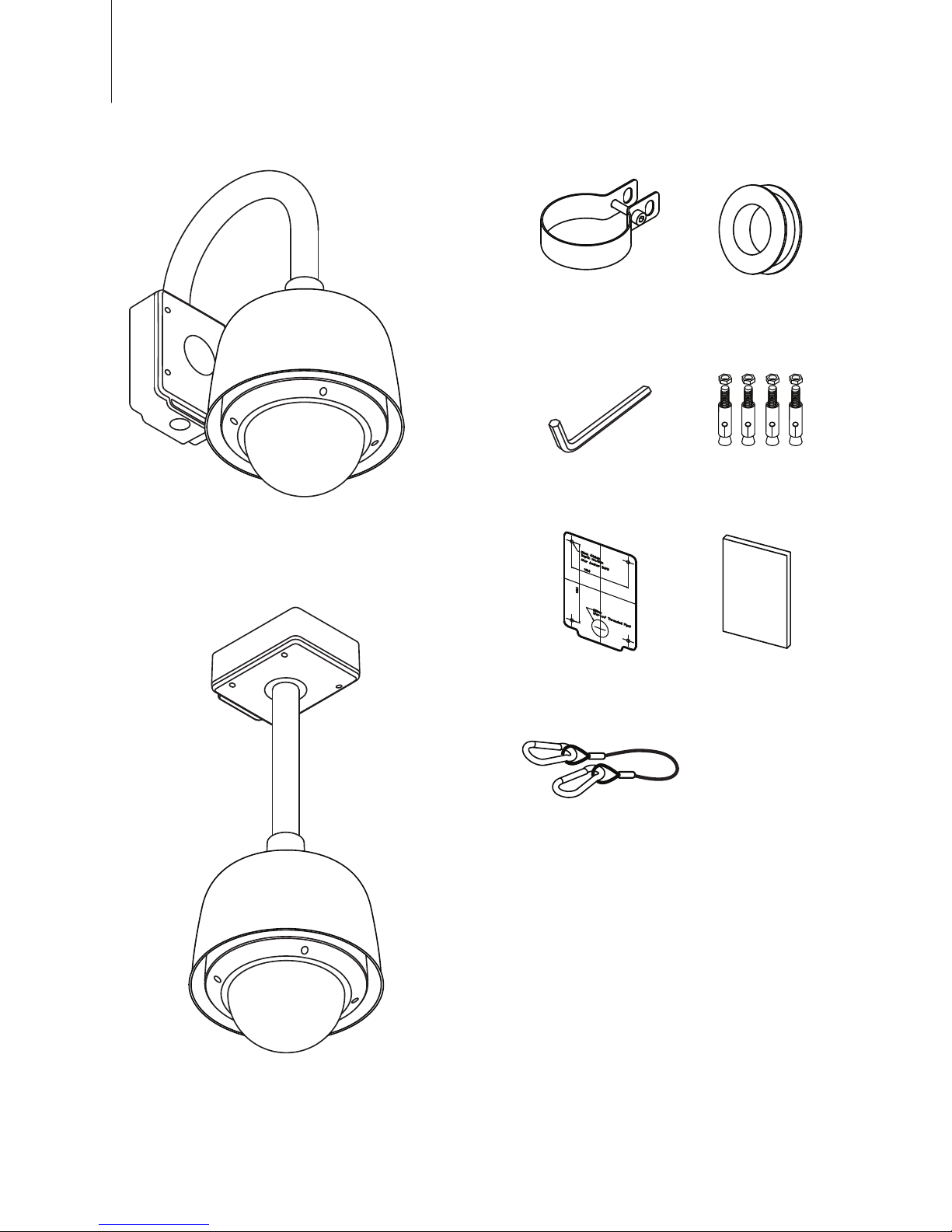

Product & Accessories

Wall Mount

Pendant Mount

Housing Safety

Cable Hanger

Waterproof Tape

Hole Template

Hexagonal Wrench

User’s Manual

Anchor Bolt (4pcs)

Safety Wire

102.0

142.0

User’s Manual

Product Accessories

Part Name

Wall or Pendant Mount Bracket

The Wall or Pendant Mount Bracket is used to

install the camera onto the wall or ceiling. It

includes a built-in junction box.

Th junction box accommodates the inner box.

Sunshield & Upper Housing

PTZ Mechanism

Dome Safety Wire

Dome Cover

Inner Box

Housing Safety

Cable Hanger

Wall Mount Bracket

Pendant Mount Bracket

Inner Box

The inner box has many important roles. On top of the

box, there are dip switches and terminal locks for

power supply, video, audio, alarm input and alarm

output.

Sunshield & Upper Housing

The Sunshield protects the bubble dome cover from

sun rays and rainfall. The upper housing, which

is attached to the sunshield, accommodates the PTZ

mechanism. Also, the upper housing will be connected

to both the mounting brackets and the dome cover.

Dome Cover

Do not detach the protection vinyl from dome cover

until the installation process is completed. The vinyl

will protect the dome cover from scratches and dust.

The dome cover has a built-in fan and heater to

remove moisture from the bubble dome.

DIP Switch Setup

Before installing the camera,

you should first set the DIP Switch

to configure the Camera ID

(Communication Protocol).

Inner Box

1. Communication Protocol Setup

Congure the appropriate protocol using the

DIP switch combination.

- If you set the protocol as AUTO, camera will

automatically recognize the type of protocol

being used; however, this will not recognize

the AD protocol.)

If you want to control the camera using the DVR

or a system

keyboard, the protocol must be.

identical to the camera protocol. Otherwise, you

ill not be able to control the camera.

- If you change the camera protocol by adjusting

the

DIP switch, the change will be eective after

you reboot the camera.

Protocol Setup Baud Rate Setup RS-485

Termination Resistor

21 3 4 5 6 7 8

8J 21 3 4 5678

AUTO- Factory Default

8J 21 3 4 5678

PELCO-D

8J 21 3 4 5678

PELCO-P

8J 21 3 4 5678

SAMSUNG

8J 21 3 4 5678

PANASONIC

8J 21 3 4 5678

GE(Kalatel)

8J 21 3 4 5678

AD (American Dynamics)

DIP Switch Setup

2. Communication Baud Rate Setup

Select the appropriate Baud Rate using the

following DIP switch combination.

4. Camera ID Setup

The ID number of camera is set using

binary

number.

The examples are shown below.

Inner Box

3. RS-485 Termination Resistor

- Pin 8 is used to turn ON / OFF the

the

RS-485 termination.

Normally, it should be set as OFF.

- When you have trouble with long daisy chain

style connection, turn ON this termination

switch for the last camera.

8J 21 3 4 5678

2400 BPS

8J 21 3 4 5678

4800 BPS

8J 21 3 4 5678

9600 BPS - Factory Default

8J 21 3 4 5678

19200 BPS

38400 BPS

8J 21 3 4 5678

8J 21 345678

Pin 1 2 3 4 5 6 7 8

1 2 4 8 16 32 64 128ID Value

ex) ID=5

ex) ID=10

OFF

If you want to control a certain camera, you must

match the Camera ID with the CAM ID setting

of your DVR or keyboard controller.

- The range of Camera ID is 0~255. Factory default

of Camera ID is 1.

Tabla de contenidos

Otros manuales de Cámara de seguridad de Digital Watchdog

Digital Watchdog

Digital Watchdog MEGApix DWC-MF5Wi4TWDMP Manual de usuario

Digital Watchdog

Digital Watchdog STAR-LIGHT DWC-D4283WD Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-VA853WTIR Manual de usuario

Digital Watchdog

Digital Watchdog MEGAPIX DWC-MT94WI36T Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-V7553W Manual de usuario

Digital Watchdog

Digital Watchdog Starlight DWC-B6563DIR Manual de usuario

Digital Watchdog

Digital Watchdog MEGApix DWC-MD421TIR Manual de usuario

Digital Watchdog

Digital Watchdog DWC-HD321M4TIR Manual de usuario

Digital Watchdog

Digital Watchdog STAR-LIGHT DWC-D4283WTIR Manual de usuario

Digital Watchdog

Digital Watchdog Snapit DWC-V4363D Manual de usuario

Digital Watchdog

Digital Watchdog DWC-T8553TIR Manual de usuario

Digital Watchdog

Digital Watchdog Starlight V1363TIR Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-V6563WTIR Manual de usuario

Digital Watchdog

Digital Watchdog MEGAPIX DWC-MT95WW28TW Manual de usuario

Digital Watchdog

Digital Watchdog STAR-LIGHT DWC-B7753TIR Manual de usuario

Digital Watchdog

Digital Watchdog B3252DIR Series Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-V6563WTIR Manual de usuario

Digital Watchdog

Digital Watchdog Starlight BL5363D Manual de usuario

Digital Watchdog

Digital Watchdog DWC-MVH2I4WV Manual de usuario

Digital Watchdog

Digital Watchdog MEGApix DWC-MVC8WiATW Manual de usuario

Digital Watchdog

Digital Watchdog B2373D Manual de usuario

Digital Watchdog

Digital Watchdog Starlight BL5363TIR Manual de usuario

Digital Watchdog

Digital Watchdog DWC-V1312XW Manual de usuario

Digital Watchdog

Digital Watchdog DWC-MB75Wi4TW Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
