DFI RPP051 Manual de usuario

M.2 E Key

M.2 B Key

(PCIe x1/USB 3.2 Gen1/ SATA 3.0)

10 2

M.2 B Key

(PCIe x2/USB 2.0/SATA 3.0)

DDR5 (SO-DIMM)

Top View

Bottom View

Board Layout

www.dfi.com

RPP051

Quick Reference

Quick Reference | RPP051

DP++

TDP Switch

2.5G LAN

USB3.2 Gen2

COM1

SIM Card Slot

eDP

DIO

SPI

Front Panel

RTC Battery

SMBus

USB2.0

12V DC IN

Buzzer

Front Audio

PIN Assignment

XSMBus (J5)

Pin Assignment

13VSB

2GND

3I2C0_CLK

4I2C0_SDA

5I2C0_INT

XRTC Battery (J1)

X12V DC IN (CN1)

Pin Assignment Pin Assignment

1RTC Signal 2GND

Pin Assignment Pin Assignment

1DC_IN 2GND

XFront Panel (J6)

Pin Assignment Pin Assignment

1SIO_PWSIN# 23V3SB

3GND 4SUS_LED#

5SYSRST# 6HD_LED#

Quick Reference | RPP051 3

XDIO (CN6)

Pin Assignment

1D_IOA7_C

2D_IOA6_C

3D_IOA5_C

4D_IOA4_C

5D_IOA3_C

6D_IOA2_C

7D_IOA1_C

8D_IOA0_C

95VSB

10 GND

XUSB2.0 (UBJ1)

Pin Assignment Pin Assignment

15V_USB2_56 25V_USB2_56

3USB2_4_C_N 4USB2_3_C_N

5USB2_4_C_P 6USB2_3_C_P

7GND 8GND

9X10 X

Quick Reference | RPP051 4

Pin Assignment Pin Assignment

1MDCD1# 2MSIN1

3MSOUT1 4MDTR1#

5GND 6MDSR1#

7MRTS1# 8MCTS1#

9MRI1# 10 X

XCOM1 (TSJ1)

XFront Audio (AUJ1)

Pin Assignment Pin Assignment

1MIC2_L 2AGND_AUDIO

3MIC2_R 4X

5LINE2_R 6MIC2-JD

7AGND_AUDIO 8X

9LINE2_L 10 LINE2-JD

Quick Reference | RPP051 5

XLAN1 (ETCN2)

XUSB3.0 (UBCN1)

Pin Assignment Pin Assignment

P1 XP2 X

P3 225_LAN2_MDIP3 P4 225_LAN2_MDIN3

P5 225_LAN2_MDIP2 P6 225_LAN2_MDIN2

P7 225_LAN2_MDIP1 P8 225_LAN2_MDIN1

P9 225_LAN2_MDIP0 P10 225_LAN2_MDIN0

L1 225_LED2_LINK_ACT# L2 3V3SB

L3 225_LED2_1000# L4 225_LED2_2500#

Pin Assignment Pin Assignment

15V_USBA_12 2USB2_1_C_N

3USB2_1_C_P 4GND

5USB3_1_C_RXN 6USB3_1_C_RXP

7GND 8USB3_1_C_TXN

9USB3_1_C_TXP 10 5V_USBA_12

11 USB2_2_C_N 12 USB2_2_C_P

13 GND 14 USB3_2_C_RXN

15 USB3_2_C_RXP 16 GND

17 USB3_2_C_TXN 18 USB3_2_C_TXP

Quick Reference | RPP051 6

XDP++ (CN11)

Pin Assignment

1DPA_LANE0_P_C

2GND

3DPA_LANE0_N_C

4DPA_LANE1_P_C

5GND

6DPA_LANE1_N_C

7DPA_LANE2_P_C

8GND

9DPA_LANE2_N_C

10 DPA_LANE3_P_C

11 GND

12 DPA_LANE3_N_C

13 DPA_AUX_SEL_COM

14 DP2_CEC

15 DPA_CLK_AUXP

16 GND

17 DPA_DATA_AUXN

18 DPA_HPD_R

19 GND

20 3V3

Quick Reference | RPP051 7

Pin Assignment Pin Assignment

1X21 LVDS_PANEL_PWR

2+12V 22 LVDS_PANEL_PWR

3+12V 23 LVDS_PANEL_PWR

4+12V 24 GND

5+12V 25 eDPB_AUXN

6X26 eDPB_AUXP

7X27 GND

8DIMMING_1 28 eDPB_LANE0_C_P

9BLONOFF_1 29 eDPB_LANE0_C_N

10 eDP_GND 30 GND

11 eDP_GND 31 eDPB_LANE1_C_P

12 eDP_GND 32 eDPB_LANE1_C_N

13 eDP_GND 33 GND

14 eDP_HPD_CON_1 34 eDPB_LANE2_C_P

15 GND 35 eDPB_LANE2_C_N

16 GND 36 GND

17 GND 37 eDPB_LANE3_C_P

18 GND 38 eDPB_LANE3_C_N

19 X39 GND

20 LVDS_PANEL_PWR 40 X

XeDP (CN30)

Quick Reference | RPP051 8

DFI reserves the right to change the specifications at any

time prior to the product's release. This QR may be based

on the product’s revision. For more documentation and

drivers, please visit the download page at www.dfi.com/

downloadcenter, or via the QR codes to the right.

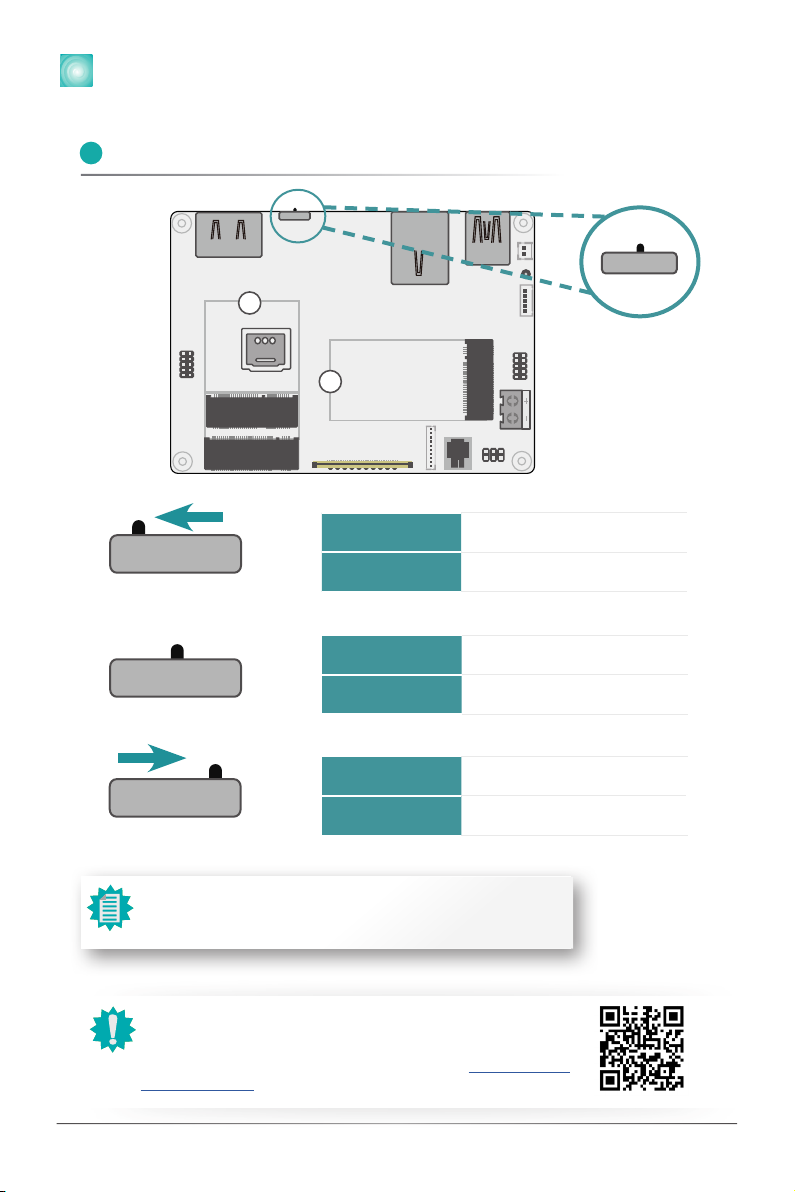

Switch Setting

XTDP Switch Setting (J3)

Switch Setting TDP - Max Assured Power

Note HW only, BIOS invalidate

Switch Setting TDP - Base Power

Note Both HW/BIOS is validate

Switch Setting TDP - Min Assured Power

Note HW only, BIOS invalidate

Note:

To enable the latest setting, please reset to validate.

M.2 E Key

M.2 B Key

(PCIe x1/USB 3.2 Gen1/ SATA 3.0)

10 2

M.2 B Key

(PCIe x2/USB 2.0/SATA 3.0)

Quick Reference | RPP051 9
