DFI GM341-GHF Manual de usuario

GM341-GHF

Gaming Computing System

User’s Manual

A50110941

2User's Manual | GM341-GHF

This publication contains information that is protected by copyright. No part of it may be re-

produced in any form or by any means or used to make any transformation/adaptation without

the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no

representations or warranties with respect to the contents or use of this manual and specifi-

cally disclaims any express or implied warranties of merchantability or fitness for any particular

purpose. The user will assume the entire risk of the use or the results of the use of this docu-

ment. Further, the manufacturer reserves the right to revise this publication and make changes

to its contents at any time, without obligation to notify any person or entity of such revisions

or changes.

Changes after the publication’s first release will be based on the product’s revision. The website

will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and

are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-

able protection against harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

3User's Manual | GM341-GHF

Table of Contents

About this Manual.................................... 4

Warranty ................................................. 4

Static Electricity Precautions ..................... 4

Safety Measures....................................... 4

Safety Precautions ................................... 5

About the Package................................... 5

Before Using the System .......................... 5

Chapter 1 - Introduction........................... 6

Overview.................................................................................6

Key Features ...........................................................................6

Specifications...........................................................................7

Getting to Know the GM341-GHF..............................................8

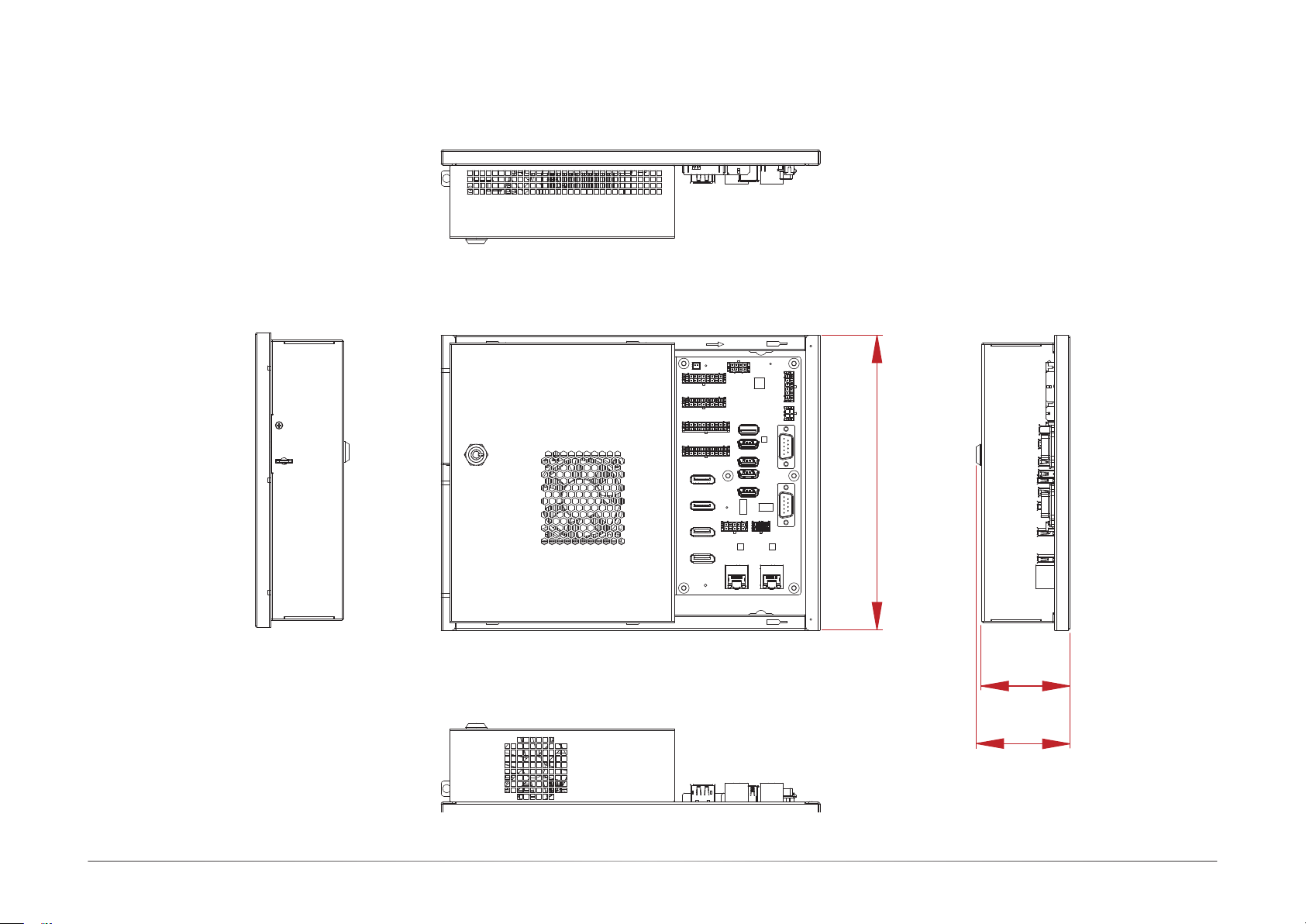

Mechanical Dimensions ............................................................9

Chassis Dimension ..................................................................9

Chapter 3 - Installing Devices................... 11

Connecting the I/O Board ...................................................... 11

Powering on the System and Connecting the Display............... 11

Removing the Chassis Cover................................................... 12

Installing the SODIMM ........................................................... 12

Installing an M.2 card ............................................................ 13

Installing a SATA DOM ...........................................................13

Chapter 4 - Jumper Settings..................... 14

Clear CMOS Data ................................................................... 14

FPGA Programming Mode Select............................................. 14

MCU Programming Mode........................................................ 15

Chapter 5 - Ports and Connectors............. 16

Audio Ports.............................................................................. 16

USB Ports................................................................................ 17

DC-in...................................................................................... 17

COM Ports ............................................................................... 18

RJ45 LAN Ports ........................................................................ 19

Intrusion Doors........................................................................ 19

Display Outputs ....................................................................... 20

Digital Inputs/Outputs .............................................................. 20

Expansion Connectors............................................................... 22

CPU/System Fan Connector ....................................................... 22

LEDs....................................................................................... 23

Battery ................................................................................... 23

SATA (Serial ATA) Connectors .................................................... 24

LPC Connector ......................................................................... 24

5V DC-out ............................................................................... 25

Chapter 6 - Mounting............................... 26

Chapter 7 - BIOS Setup ........................... 27

Chapter 8 - Supported Software ............... 42

4User's Manual | GM341-GHF

Static Electricity Precautions

It is easy to inadvertently damage your PC, system board, components or devices even before

installing them in your system unit. Static electrical discharge can damage computer compo-

nents without causing any signs of physical damage. You must take extra care in handling

them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are

ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts

or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con

nectors by their ends.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servic-

ing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

About this Manual

An electronic file of this manual can be obtained from the DFI website at www.dfi.com. To

download the user’s manual from our website, please go to Support > Download Center. On

the Download Center page, select your product or type the model name and click "Search" to

nd all technical documents including the user's manual for a specic product.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product,

inability to use the product, unauthorized replacement or alteration of components and

product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper instal-

lation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-

stances, attempt to perform service, adjustments or repairs on the product, whether in or

out of warranty. It must be returned to the purchase point, factory or authorized service

agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequential damages to the

product that has been modified or altered.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other com-

ponents. Perform the upgrade instruction procedures described at an ESD worksta-

tion only. If such a station is not available, you can provide some ESD protection by

wearing an antistatic wrist strap and attaching it to a metal part of the system chas-

sis. If a wrist strap is unavailable, establish and maintain contact with the system

chassis throughout any procedures requiring ESD protection.

5User's Manual | GM341-GHF

About the Package

The package contains the following items. If any of these items are missing or damaged,

please contact your dealer or sales representative for assistance.

• GM341-GHF system unit

• Mounting screws for M.2 modules

• CD disk includes

- Manual

- Drivers

• Quick Installation Guide

The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For

more information about the standard package in your region, please contact your dealer or

sales representative.

Before Using the System

Before powering-on the system, prepare the basic system components.

If you are installing the system for the first time, you will need at least one of the following

internal components.

• Storage devices such as SATA DOMs and M.2 modules.

You will also need external system peripherals, which will normally include at least a keyboard,

a mouse and a video display.

Safety Precautions

• Use the correct DC input voltage range.

• Unplug the power cord before removing the system chassis cover for installation or servic-

ing. After installation or servicing, cover the system chassis before plugging the power cord.

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

• Keep this system away from humidity.

• Place the system on a stable surface. Dropping it or letting it fall may cause damage.

• The openings on the system are for air ventilation to protect the system from overheating.

DO NOT COVER THE OPENINGS.

• Place the power cord in such a way that it will not be stepped on. Do not place anything on

top of the power cord. Use a power cord that has been approved for use with the system

and that it matches the voltage and current marked on the system’s electrical range label.

• If the system will not be used for a long time, disconnect it from the power source to avoid

damage by transient overvoltage.

• If one of the following occurs, consult a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated the system.

- The system has been exposed to moisture.

- The system is not working properly.

- The system dropped or is damaged.

- The system has obvious signs of breakage.

• The unit uses a three-wire ground cable which is equipped with a third pin to ground the

unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does

not support this kind of plug, contact your electrician to replace the outlet.

• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use

liquid or spray detergents for cleaning.

6User's Manual | GM341-GHF

Chapter 1

Chapter 1 - Introduction

Chapter 1

Overview Key Features

Model Name GM341-GHF

Processor AMD®Ryzen™ V1000 Series, FP5 BGA

AMD®Ryzen™ R1000 Series, FP5 BGA

Audio Speaker and 5.1 Channel Audio Output

S/PDIF Digital Output

LAN Two LAN ports

COM One RS-232 (DB-9 connector)

One RS-232/422/485 (DB-9 connector)

One RS-232 (Tx, Rx)/ccTalk (pin headers)

Two RS-232 (Tx, Rx)/SAS/BACTA (pin headers)

Display Four DP

USB Two USB 3.0 and four USB 2.0 Type A ports

7User's Manual | GM341-GHF

Chapter 1

Processor System AMD®Ryzen™ Embedded V1807, Quad Core, 2MB Cache, 11 CU,

3.35GHz (3.8GHz), 35-54W

AMD®Ryzen™ Embedded V1756, Quad Core, 2MB Cache, 8 CU,

3.25GHz (3.6GHz), 35-54W

AMD®Ryzen™ Embedded V1605, Quad Core, 2MB Cache, 8 CU,

2.0GHz (3.6GHz), 12-25W

AMD®Ryzen™ Embedded V1202, Dual Core, 1MB Cache, 3 CU,

2.3GHz (3.2GHz), 12-25W

AMD®Ryzen™ R1000 Series

Memory Two 260-pin SODIMM up to 32GB

Dual Channel DDR4 3200MHz

Graphics • AMD®Radeon™ Vega Graphics

• Supported codecs:

OpenGL 4.5, DirectX 12, OpenCL 2.1

HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG,

HEVC/H265, VP8, VP9

HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

• Display interfaces:

4 x DP++ ( with V1000 series processors) or 3 x DP++ (with

R1000 series processors)

DP: resolution up to 4096x2160 @ 60Hz

Audio 5.1 Channel Audio Output

S/PDIF Digital Output

Stereo 10W+10W Class D Audio AMP Output

Storage/Expansion • 2 x SATA 3.0 (up to 6GB/s) with 7-pin VCC Support

• 1 x M.2 M Key (2280, PCIe x2, only available with Ryzen™

V1000 series processors)

Ethernet 2 x Realtek 8119 or 8111HN (optional) Gigabit Ethernet Controller

Specications

Note:

*The mount kit is not supported in the standard model. Please contact your sales

representative for more information.

Power • 12V DC-in (4-pin Vertical Connector)

Environment • Temperature

- Operating: 0oC ~ 45oC

- Storage: -20oC ~ 85oC

• Relative Humidity

- 5 to 90% RH (non-condensing)

Vibration • Operation:

IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test

Random, 1Grms @ 5~500 Hz, 30min.

• Non-Operation:

IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test

Sweep sine, 3Grms @ 10~500Hz, 30min.

Shock • Operation:

IEC 60068-2-27 Test Ea: Shock test

Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

• Non-Operation:

IEC 60068-2-27 Test Ea: Shock test

Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

Construction

• Aluminum + Metal Aluminum

Mounting

•

Wall mount (*)

Dimensions (W x H x D) • 270mm x 63mm x 210mm (10.63" x 2.48" x 8.27")

Weight • TBD

OS Support Windows 10 (64-bit)

Ubuntu 16.04LTS (64-bit)

I/O Ports and LED

Indicators

• LEDs

- 1 x Power LED

- 1 x HDD LED

• I/O Ports

1 x RS-232 (DB-9 connector)

1 x RS-232/422/485 (DB-9 connector)

1 x RS-232 (Tx, Rx)/ccTalk (pin header)

2 x RS-232 (Tx, Rx)/SAS/BACTA (pin header)

2 x USB 3.0

4 x USB 2.0

Digital I/O

DI: 1~32

DO: 1~32

Intrusion detection

doors: 1~8

• Button

Power Button

Reset Button

8User's Manual | GM341-GHF

Chapter 1

Getting to Know the GM341-GHF

Chapter 1

Front View Speaker and 5.1 ch audio

Connects an audio I/O module to the 4-pin speaker connector for stereo (10W+10W) speak-

ers and 5.1 ch audio connector for audio sound systems; there is also an S/PDIF digital audio

connector.

Digital I/O

32 digital inputs via 2x10 micro-fit connector

32 digital outputs via 2x9 micro-fit connector

LAN Ports

Connect the system to a local area network.

DC-in

DC 12V power input via a 4-pin connector.

DP Ports (DP 0~3)

Connect the DisplayPort of a display device.

USB 2.0 & 3.0 Ports

4 USB 2.0 ports and 2 USB 3.0 ports (one in the I/O area and the other in the system area

protected by a cover)

COM ports

COM1 (DB-9): connects RS232/RS422/RS485 devices.

COM2 (DB-9): connects RS232 devices.

COM3: connects RS232 with Tx/Rx/GND or ccTalk

COM4/5: connects RS232 with Tx/Rx/+12V/-12V/GND

Power LED

Indicates the status of the system.

HDD LED

Indicates the status of the storage device.

Power Button

Press to power on or off the system.

Reset Button

Press to reset the system.

Intrusion Doors Connectors

6 doors via a 2x4 micro-fit connector

1 door via a 2-pin box header in the I/O area

1 door via a 2-pin box header in the protected system area

Digital inputs/outputs

(from top to down):

Digital input 1~16

Digital input 17~32

Digital output 1~16

Digital output 17~32

Door 1~6

5.1 ch audio

Speaker

COM 1

(RS232/RS422/RS485)

COM 2 (RS232)

COM 3 RS232

(Tx/Rx/GND) or ccTalk

LAN 1 LAN 2

4-pin DC-in

DP 0

DP 1

DP 2

DP 3

Door 7

iButton

COM 4/5 RS232

(Tx/Rx/12V/-12V/GND)

Power LED

HDD LED

Power Button

Reset Button

S/PDIF

USB Ports

(from top to down):

USB 2_4

USB 2_3

USB 2_2

USB 2_1

USB 3_2

9User's Manual | GM341-GHF

Chapter 1

Mechanical Dimensions

Chassis Dimension

270.00

200.00

63.00

67.00

Rear View

Right View

Top View

Left View

Front View

10User's Manual | GM341-GHF

Chapter 2

Preparing the System

Before you start using the system, you need the following items:

• SATA DOMs or M.2 modules

• USB keyboard

• USB mouse

• CD-ROM drive (for installing software/drivers)

• Screwdriver

• Memory modules

Installing Devices

The following devices can be installed in the system.

• Memory modules

• SATA DOMs

• M.2 modules

Configuring the BIOS

To get you started, you may need to change configurations such as the date, time and the pri-

ority of boot devices.

1. Power on the system.

2. After the memory test, the message “Press DEL to run setup” will appear on the screen.

Press the Delete key to enter the BIOS setup utility.

Installing a Operating System

Most operating system software can be installed using a DVD (and DVD burner) or bootable

USB drive.

Please refer to your operating system manual for instructions on installing an operating system.

Installing the Drivers

The system comes with a software package including drivers. These drivers must be installed to

provide the best system performance. Refer to the Supported Software Chapter for instructions

on installing drivers.

Chapter 2 - Getting Started

Chapter 2

Otros manuales para GM341-GHF

Tabla de contenidos

Otros manuales de Hardware de computadora de DFI

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
