EC900-8MM / EC910-8MM

Quick Installation Guide

Package Contents

• 1 System unit

• 1 10-Pole Terminal Block for RS-422/4-bit DIO

• 1 2-Pole Terminal Block for RS-485

• 2-Pole Terminal Block for Power Input

• DIN Rail Bracket/Screw Pack

• Quick Installation Guide

Model for EC900-8MM

2Quick Reference | EC900-8MM / EC910-8MM

Product Overview

EC900-8MM

Front View

Left View

123

456

Status LED

Reset Button

COM (RS485)

LAN 1 & LAN 2 USB 2.0

DC IN

HDMI

A terminal block:

RS422 (4-pin)

Digital IO (4-pin)

Power (1-pin)

Ground (1-pin)

345

Rear View

Right View

910

Antenna Hole

DIN-rail Mount

3Quick Reference | EC900-8MM / EC910-8MM

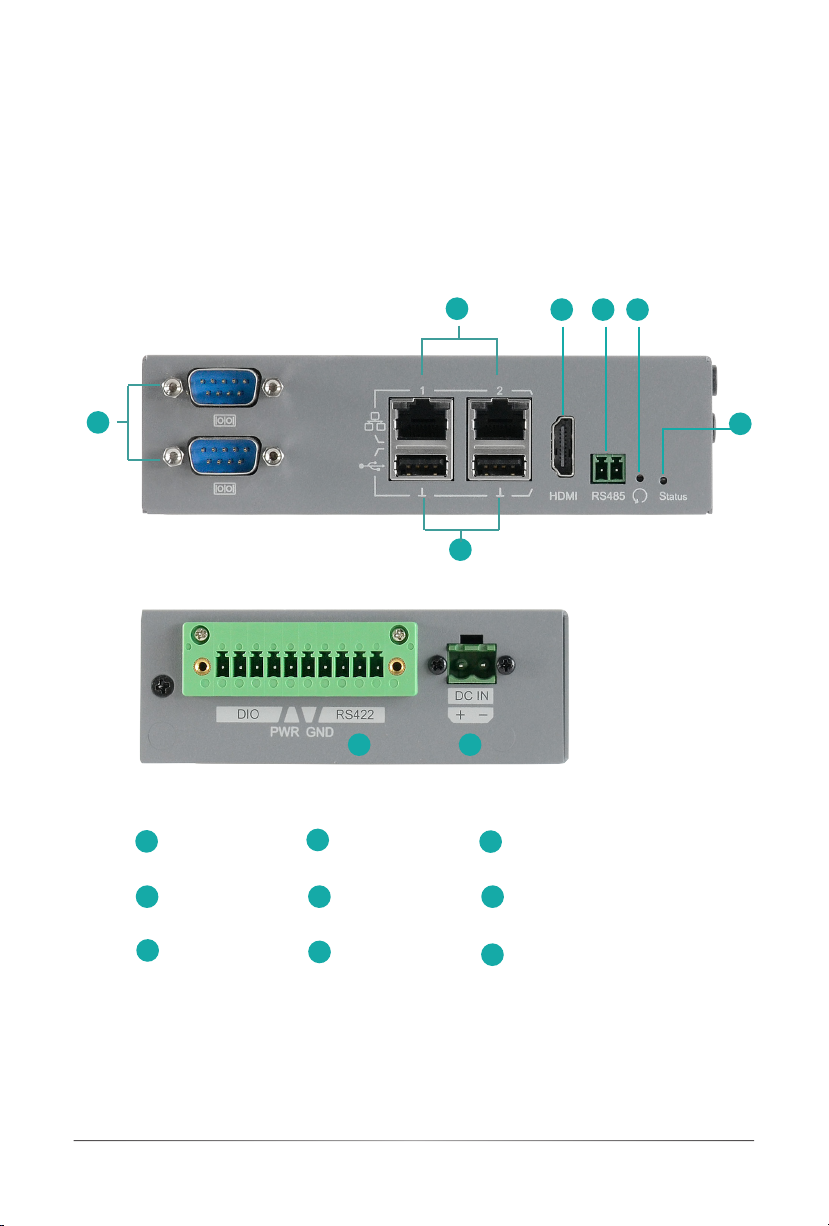

EC910-8MM

Front View

Left View

Status LED DC IN

A terminal block:

RS422 (4-pin)

Digital IO (4-pin)

Power (1-pin)

Ground (1-pin)

2456

123

456

Reset Button

COM (RS485)

HDMI

COM LAN 1 & LAN 2

USB 2.0

4Quick Reference | EC900-8MM / EC910-8MM

Rear View

Right View

10 11

Antenna Hole

DIN-rail Mount

Quick Reference | EC900-8MM / EC910-8MM 5

Removing the Chassis Cover

Please observe the following guidelines and follow the instructions to open the system.

1. Make sure the system and all other peripheral devices connected to it have been

powered off.

2. Disconnect all power cords and cables.

Step 1:

The 2 screws on the both sides of the system are used to secure the cover to the chassis.

Remove the screws and put them in a safe place for later use.

Step 2:

Slide the cover to open the system.

Quick Reference | EC900-8MM / EC910-8MM 6

Installing an M.2 Card

Please follow the steps below to install the card into the socket.

Step 1:

Insert the card into the socket at an angle while making sure the notch and key

are perfectly aligned

Step 2:

Press the end of the card far from the socket down until against the stand-off.

Step 3:

Screw tight the card onto the stand-off with a screw driver and a stand-off screw

until the gap between the card and the stand-off closes up. The card should be

lying parallel to the board when it’s correctly mounted.

M.2 Module M.2 Socket

Key

Stand-off

Notch

M.2 Module M.2 Socket

Key

Stand-off

Notch

M.2 Module M.2 Socket

Key

Stand-off

Notch

M.2 Module M.2 Socket

Key

Stand-off

Notch

M.2 Sockets

Quick Reference | EC900-8MM / EC910-8MM 7

Before installing the antenna, please make sure that the following safety cautions are

wellattended

1. Make sure the PC and all other peripheral devices connected to it has been

powered

down

2. Disconnect all power cords and cables.

Step 1:

There are antenna holes reserved on the right side of the system and by default

covered by rubber plugs. Please remove the plug prior to installing an antenna.

Step 2:

Connect the internal cable to the board's antenna connector, screw the antenna

connector through the antenna hole with washers and nuts, and screw on the

antenna as illustrated below.

Antenna ConnectorCableModule Connector NutWasher

Chassis Wall Antenna

Installing an Antenna

Quick Reference | EC900-8MM / EC910-8MM 8

Mounting Options

Quick Reference | EC900-8MM / EC910-8MM 9

The system features DIN-rail mount chassis that facilitates fast installation of the EC900-

8MM/EC910-8MM to a DIN rail.

The DIN Rail mount kit includes the following:

• Din-rail mount bracket

• 2 screws

Step 1:

Use the provided mounting screws to attach the din-rail mount bracket to the top side of

the system.

Step 2:

Install the sytem onto the rail.

Jumper Settings

XIOJP1

2-4 On: VCCP 5V (Default)

6 5

2 1

6 5

2 1

3-5 On: DIO 5V (Default)

1-3 On: DIO 3V3 (Default)

2-4 On: VCCP 3V3 (Default)

Quick Reference | EC900-8MM / EC910-8MM 10
