DEVOLA DVC1500W Manual de usuario

Wall Mounted Panel Heater

Operating Instructions

Model

1.5kW Panel Heater

2.0kW Panel Heater

FOR INDOOR USE ONLY

BEFORE INSTALLING OR USING THIS PRODUCT

THE INTRUCTIONS SHOULD BE READ CAREFULLY

Save this booklet for future reference

WARNING! To reduce the risk of fire, electric shock, or personal injury,

read all the instructions before using this heater.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USING.

•WARNING: In order to avoid overheating, do not cover the heater.

•This appliance is not intended for use by children or persons with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that

they do not play with the appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

•This product was designed to be installed in a residential capacity for indoor use

only. Please do not use the product for any other purpose.

•Do not use this heater in the immediate surroundings of a bath, shower or swimming

pool. If installed in a bathroom then the control panel must be impossible to reach by

persons in the bath/shower.

•The electrical installation must be carried out by a qualified electrician in accordance

with the local regulations.

•The heater is fitted with a length of flexible cable for connection to the fixed wiring of

the premises through a suitable connection box positioned adjacent to the heater.

The supply circuit must encompass a double pole isolating switch with a contact

separation of at least 3mm.

•Never cover or obstruct in any way the heat outlet slots at the top of the heater or

the air inlet slots in the base of the heater.

For your safety, this heater is fitted with a thermal cut-out. In the event that

the product overheats, the cut-out prevents excessive temperatures by

cutting the power to the heater.

WARNING: DO

NOT COVER

WHERE TO INSTALL THE HEATER?

nThis heater is designed to be installed for indoor use only.

nDo not locate the heater below a fixed socket outlet or connection box.

nComply with the minimum clearance distances as indicated in Fig. 1.

nIn humid areas such as bathrooms and kitchens, the connection box must be

installed at least 25cm above the floor.

nDo not install the heater in a draught likely to affect the control setting.

WARNING: the heater must not be installed in zone 1 of the bathroom.

The above sketch is provided for your information only. We advise you to contact a

qualified electrician for guidance.

HOW TO INSTALL THE WALL HEATER?

nThe wall brackets supplied with the heater must be used. The heater should be

positioned observing the minimum clearances stated around the heater – see Fig. 1

nFirst remove the wall bracket from the rear housing. Unscrew the 2 screws located

on the top of the 2 vertical bars of the wall bracket (See Step1). Then pull out the

top bar by pressing firmly both upper parts slotted into the rear housing (see fig 2)

nSlide down the wall bracket in order to remove it from the rear housing. (See fig 3)

nFix the wall bracket securely to the wall through the 4 screw holes provided.

nRaise the heater to upright position; Present the heater and engage 2 slots of the

bottom parts of the wall brackets in the wall heater’s rear enclosure then pull up the

heater. Then engage 2 slots of the upper parts of the wall bracket and tighten the 2

screws in order to lock the device.

STEP 1

STEP 2

STEP 3

OPERATION

Control Panel Instructions

nSymbol instruction

Symbol

Function

ON / OFF

MODE

Mode setting

“-“ key

“+” key

PROG MODE (set the heater with programs)

nHow to use

Turn on the main power by pressing the main switch to “I” position then the

display will flash three times, the LCD screen will display 7.0OC and (Anti-Frost

Mode).

1) MODE SELECTION

When the heater is on, press “MODE” button to cycle between the modes. There are

6 working modes: , , , , , .

- Comfort Mode: User defined temperature between 5°C ~ 35°C

- 1°C below the comfort mode temperature

- 2°C below the comfort mode temperature

- Eco Mode – 3.5°C below the comfort mode temperature

- Anti-Frost Mode – keeps temperature above 7°C

- Controlled by a 7 day user programmable timer

To set the Comfort Mode temperature, press mode until is displayed, then select

the desired temperature by pressing the +/- buttons. Once on the desired temperature,

wait 5 seconds and the “°C” symbol will flash to indicate the temperature is set.

2) PROGRAMMING THE TIMER (P Mode)

Set the mode to . The numbers 1-7 on the top left corner of the display

correspond to days of the week from Monday to Sunday. There are 24 symbols on

the lower half of the display which show the working mode setting for each hour of

the day. The symbols for each working mode are below:

Use the +/- keys to select the weekday. The symbol shows which day is selected,

then press “P” again to confirm the selection.

Now the clock will need setting. The hour digits will flash which can be adjusted using

the +/- keys. Press “P” again to confirm the hour, which will then cause the minute digits

to flash. Use the +/- keys to adjust the minutes and then press “P” again to confirm the

minutes.

Weekday setting from

Monday to Sunday

24 hours

setting

Working mode

setting for each

hour

Time

P7 day

timer mode

Once the time is confirmed, the first segment of the 24 hour symbols will flash,

indicating that the working mode for the first hour of the day (00:00 – 01:00) is being

programmed.

Press MODE repeatedly until the desired working mode symbol is shown for this time

period, then press the + key to continue to the next hour period. Repeat this process

until all 24 hour periods have been set.

Note: There are 4 pre-set 24 hour cycles which can be chosen by holding down

“MODE” for 3 seconds and using the +/- to select P1, P2, P3, P4.

P1# #

From#0#to#6#:#Eco#mode#

From#6#to#9#:#Comfort#mode#

From#9#to#17#:#Eco#mode#

From#17#to#24#:#Comfort#mode#

P2# #

From#0#to#6#:#Eco#mode#

From#6#to#9#:#Comfort#mode#

From#9#to#12#:#Eco#mode#

From#12#to#14#:#Comfort#mode#

From#14#to#17:#Eco#mode#

From#17#to#24#:#Comfort#mode#

P3#

From#0#to#8#:#Eco#mode#

From#8#to#24#:#Comfort#mode#

P4#

From#0#to#8#:#Comfort#-2#mode#

From#8#to#24#:#Comfort#mode#

Press “P” to save these settings for the selected day, and the symbol will move to the

next day. Repeat this programming for all 7 days.

When you finish setting the working mode for one week, press “P” again to go back to

the current working mode and the heater will start to work according to the program you

set.

MAINTENANCE

1. Before you clean the appliance, switch the heater off and wait until it has cooled

down.

2. Use a damp cloth to wipe off the fan heater housing.

3. Clean the upper and lower grilles of the unit periodically

4. Do not use water, detergents, abrasive cleaning liquids or chemical agents (Alcohol,

Gasoline etc.) to clean the appliance.

5. If the unit or power cord is damaged, stop using immediately and contact your

retailer. Never attempt to dismantle, repair or modify the unit by yourself.

BS PLUG

Wiring Instructions: Should it be necessary to change the plug please note the wires in

the mains lead are coloured in accordance with the following code:

BLUE - NEUTRAL

BROWN - LIVE

GREEN/YELLOW - EARTH

As the colours of the wires in the mains lead of this appliance may not correspond

with the coloured markings identifying the terminals in your plug, proceed as follows:

1. The BLUE wire is the NEUTRAL and must be connected to the terminal that is

marked with the letter Nor coloured BLACK.

2. The BROWN wire is the LIVE and must be connected to the terminal that is marked

with the letter Lor coloured RED.

3. Neither wire is to be connected to the terminal which is marked with the letter E

or earth symbol , coloured GREEN or GREEN/YELLOW.

4. Always ensure that the cord grip is positioned and fastened correctly.

If a 13A (BS 1363) fused plug is used it must be fitted with a 13A (BS 1362) fuse. If in

doubt consult a qualified electrician.

Wiring!for!a!13!Amp!

plug!(BS!1363)!

The!Earth!Terminal!

is!marked!with!the!

letter!E!or!Earth!

Symbol

SPECIFICATION

Voltage 220-240V~ 50Hz

The crossed out Wheelie Bin logo is used to highlight electrical products that should

not be disposed of with normal household waste. Please visit

www.recycle-more.co.uk to find where your nearest recycling point is and recycle this

product at the end of its life. For more information on disposal contact your local

authority.

Customer Services

Devola

97 Walsall Road

Birmingham

B42 1TX

Tel: 0800 043 4243

Website: www.devola.co.uk

Version 1/16

Wattage

Net Weight

Gross Weight

Panel Size cm

1.5kW Panel

6.2kgs

7.3kgs

82.1x 11.6x43.7

2.0kW Panel

8.6kgs

10.1kgs

103.2x 11.6x43.7

Tabla de contenidos

Otros manuales de Calentador de DEVOLA

DEVOLA

DEVOLA DVBH20W Manual de usuario

DEVOLA

DEVOLA DVSH2000B Manual de usuario

DEVOLA

DEVOLA 1.5KW GLASS PANEL HEATER Manual de usuario

DEVOLA

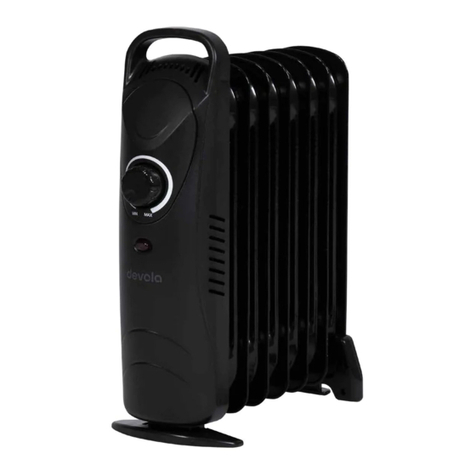

DEVOLA Core Mini Manual de usuario
