User Guide (English)

Introduction

DN-202WR is a wireless audio receiver with professional-grade audio

inputs. In conjunction with our DN-202WT wireless audio transmitter, this

lets you add wireless audio transmission to your audio system—reducing

cables and clutter without reducing sound quality.

Please see this guide’s Setup chapter to learn how to integrate DN-

202WR with your audio system.

Box Contents

DN-202WR User Guide

Power Adapter Safety & Warranty Manual

Support

For the latest information about this product (system requirements,

compatibility information, etc.) and product registration, visit denonpro.com.

Features

STATUS PAIR

DN-202WR

5V 3ADC

SIGNAL

2.4GHZ WIRELESS AUDIO RECEIVER

LEVEL

0dB

OUTPUT

UNBAL.UNBAL.

BAL.

4516 7887

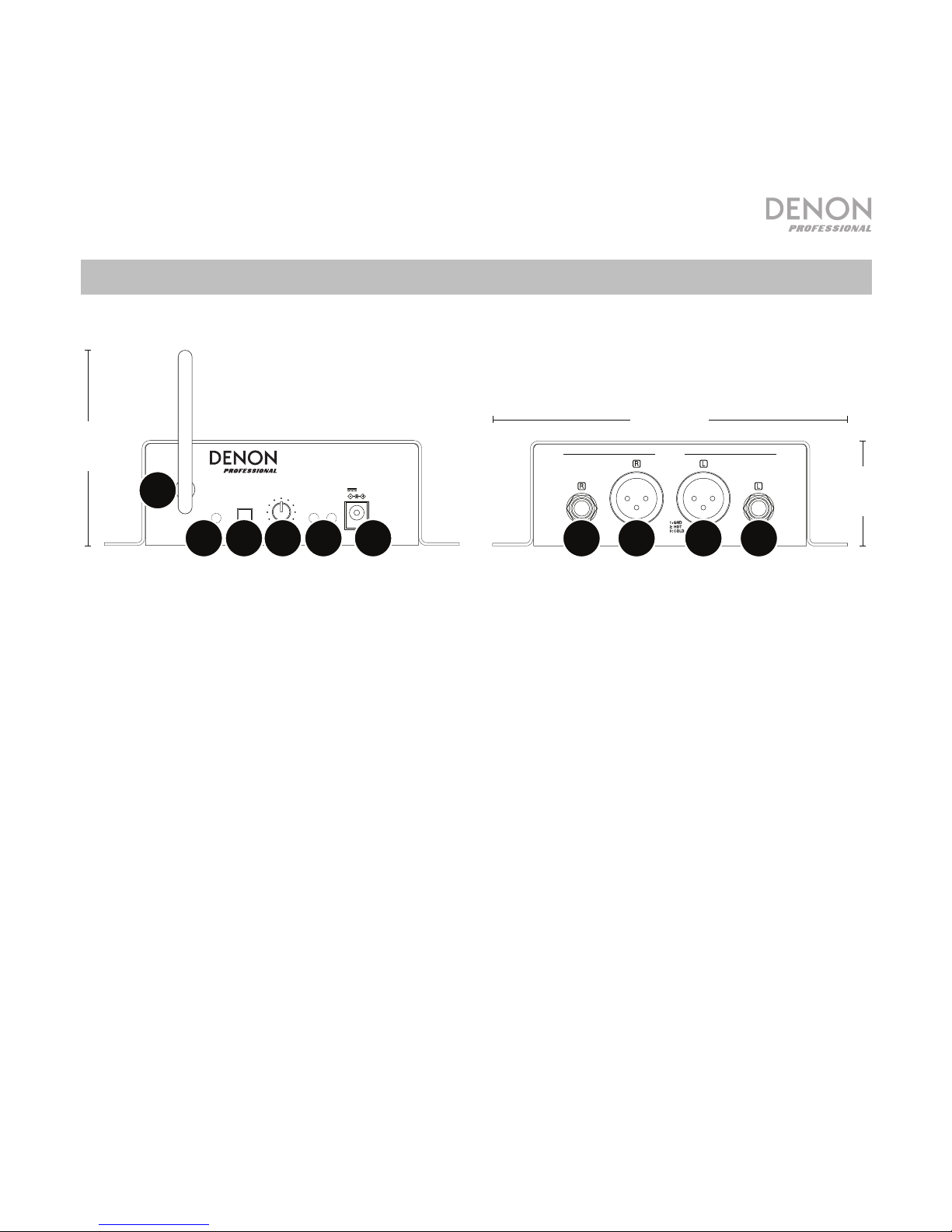

1. Power Input: Use the included power adapter to connect this input to

a power outlet. See Setup for more information.

2. Wireless Antenna: This antenna receives the audio signal from a

paired DN-202WT within range. DN-202WR has a range of 100 feet

(30.5 meters).

3. Pair Button: Press and hold this button for 3 seconds to make DN-

202WR available for pairing to a nearby DN-202WT. See Setup for

more information.

3.4”

(88mm)

5.8”

(149mm)

1.8”

(45mm)

4. Status Light: This LED indicates the DN-202WR’s pairing status:

•Flashing slowly (approximately once per second):DN-202WR is

not paired to a DN-202WT.

•Flashing quickly (approximately twice per second):DN-202WR

is “searching” for a DN-202WT.

•Solidly lit: DN-202WR is paired to a DN-202WT.

5. Level Knob: Turn this knob to set the volume of the audio signal sent

to the outputs.

6. Signal Lights: These LEDs light up when DN-202WR is receiving an

incoming audio signal from DN-202WT.

7. Outputs (Balanced XLR):Use XLR cables to connect these line-level

outputs to your audio source (loudspeakers, mixer, amplifier, etc.). See

Setup for more information.

8. Outputs (Unbalanced 1/4” /6.35mm):Use 1/4” (6.35 mm) cables to

connect these line-level outputs to your audio source (loudspeakers,

mixer, amplifier, etc.). See Setup for more information.

Note: For stereo operation, make sure the left (L) and right (R) inputs

are connected to left and right outputs, respectively.

Setup

For an example of how you could set up DN-202WR, please see the

Example diagram later in this section.

Items not listed under Introduction > Box Contents are sold separately.

Important:

For stereo operation, make sure left and right inputs are connected to left

and right outputs, respectively.

Make sure DN-202WR and DN-202WT are within 100 feet (30.5 meters) of

each other.

Do not use DN-202WR near a microwave oven, which can interfere with

the reception.

1. Use XLR cables or 1/4” (6.35mm) cables to connect DN-202WT’s

inputs (balanced or unbalanced) to your mixer, media player, or other

audio source.

2. Use the included power adapter to connect DN-202WT’s power

input to a power outlet. It will power on immediately.

3. Connect your mixer, media player, or other audio source to a power

outlet, and then power it on.

4. Use XLR cables or 1/4” (6.35mm) cables to connect your DN-202WR’s

outputs (balanced or unbalanced) to your loudspeakers, mixer,

amplifier, or other device that accepts line-level inputs (make sure this

device is powered off).

5. Use the included power adapter to connect DN-202WR’s power

input to a power outlet. It will power on immediately.

6. Connect your loudspeakers, mixer, amplifier, or other output device to

a power outlet, but do not power it on yet.

7. Press and hold the Pair button on DN-202WT for 3 seconds. Its

Status Light will start flashing rapidly.

8. Within approximately 15 seconds, press and hold the Pair button on

DN-202WR for 3 seconds. Its Status Light will start flashing rapidly.

If you need to pair multiple DN-202WR units to DN-202WT, do this

step with all of them within the 15 seconds.

9. Wait until the Status Lights on both DN-202WT and DN-202WR are

solidly lit (not flashing), indicating that they are paired.

10. Power on your loudspeakers, mixer, amplifier, or other output devices.

You can now use DN-202WT and DN-202WR to play audio wirelessly.

Example:

INPUT

UNBAL.UNBAL.

BAL.

OUTPUT

UNBAL.UNBAL.

BAL.

Items not listed under Introduction > Box Contents are sold separately.

PA loudspeakers Loudspeakers

Microphones

DN-202WT

DN-202WR

Mixer

Troubleshooting

If you encounter a problem, try doing these things first:

•Make sure all cables and other connected devices are properly and

securely connected.

•Make sure you are using DN-202WR as described in this User Guide.

•Make sure your other devices or media are working properly.

•If you believe DN-202WR is not working properly, check the following

table for your problem and solution.

Problem: Solution: Please see:

Power does not

turn on.

Make sure DN-202WR’s power input is

properly connected to a power outlet

using the included power adapter.

Setup

DN-202WR does

not produce any

sound, or the sound

is distorted.

Make sure all cable and device

connections are secure and correct.

Make sure none of the cables are

damaged.

Make sure the settings on your

loudspeaker, mixer, etc. are correct.

Setup

Problem: Solution: Please see:

DN-202WR does not

pair to a DN-202WT

or is having trouble

maintaining a

connection.

Make sure the power inputs of the DN-

202WR and DN-202WT are properly

connected to power outlets using the

included power adapters.

Make sure the DN-202WR and DN-

202WT are within 100 feet (30.5 meters)

of each other.

If possible, remove any obstructions

between DN-202WR and DN-202WT.

If possible, power off or remove any

nearby devices that transmit on a 2.4

GHz frequency. These devices can

cause interference.

Setup

Guía del usuario (Español)

Introducción

El DN-202WR es un receptor de audio inalámbrico con salidas de grado

profesional. En conjunción con nuestro transmisor inalámbrico DN-

202WT, le permite añadir la transmisión inalámbrica de audio a su sistema

de audio —reduciendo los cables y la aglomeración de equipos sin

reducir la calidad del sonido.

Consulte el capítulo Instalación de esta guía para aprender a integrar el

DN-202WT con su sistema de audio.

Contenido de la caja

DN-202WR Guía del usuario

Adaptador de corriente Manual sobre la seguridad y garantía

Soporte

Para obtener la información más reciente acerca de este producto

(requisitos de sistema, información de compatibilidad, etc.) y registrarlo,

visite denonpro.com.
