Denon AVR-X3000 Manual de usuario

AVR-X3000

INTEGRATED NETWORK AV RECEIVER

Getting Started

Erste Schritte/ Mise en route/ Guida introduttiva/ Antes de empezar/ Aan de slag/ Att komma igång/ Начало работы/ Skrócona instrukcja obsługi

English

DEutsch

Français

italiano

EsPaÑol

nEDErlanDs

sVEnsKa

РУССКИЙ

PolsKi

Thank you for choosing a Denon AV receiver. This guide

provides step-by-step instructions for setting up your AV

receiver.

If you have setup problems:

If you need additional help in solving problems, contact

Denon customer service in your area.

Welcome

What’s In the Box

Setup and

measurement

microphone

Remote control unit R03/AAA

batteries

Receiver Power cord

Cable label Safety

Instructions

Getting

Started

Owner’s

Manual

Required for setup

TV HDMI cable

Speaker systems

These drawings are for illustrative purposes only and may

not represent the actual product(s).

Before You Begin

1Installing batteries in

the remote control unit

R03/AAA

There are three steps to the setup process.

1Install batteries in the remote control unit

2Connect the receiver to your TV

3Follow the On-Screen Setup Assistant

Setup

2Connecting the receiver to your TV

nPlace the receiver near your TV.

Receiver

nConnect the receiver to your TV with

an HDMI cable.

CBL/

SAT 1 CBL/SAT

2 DVD

YPB/CB

DVD

PR/CR

DC12V 150mA MAX.

STRAIGHT CABLE

1 CBL/SAT 2 DVD 3 Blu-ray 6 CD

4 GAME

5 MEDIA PLAYER

3 Blu-ray

4 MEDIA PLAYER

1 CBL/SAT 2 DVD 5 CD

Blu-ray

CBL/SAT

AUDIO

TV CD

DVD

COAXIAL OPTICAL

AC IN

HDMI

RS-232C

REMOTE CONTROL

OUT

TRIGGER OUT

VIDEO COMPONENT VIDEO

AUDIO

DIGITAL AUDIO (ASSIGNABLE)

(ASSIGNABLE)

NETWORK (ASSIGNABLE)(ASSIGNABLE)

(ASSIGNABLE)

ZONE2

1 2

SUBWOOFER

FRONT

SURROUND BACKSURROUND

CENTER

PRE OUT

ANTENNA

COAX.

75Ω

ASSIGNABLE

IMPEDANCE : 6～16

SPEAKERS

FRONT FRONT SURROUND SURROUNDCENTER

SURROUND BACK

ZONE2

ARC

MONITOR

OUT

HDMI

(ARC)

HDMI IN

(ARC)

HDMI OUT

MONITOR

ARC

MONITOR

HDMI cable

Receiver (Rear panel)

nSelect the appropriate HDMI input

on your TV.

HDMI

INPUT

TV remote control unit

nTurn on the TV.

TV remote control unit

nTurn on receiver.

CBL/

SAT 1 CBL/SAT

2 DVD

YPB/CB

DVD

PR/CR

DC12V 150mA MAX.

STRAIGHT CABLE

1 CBL/SAT 2 DVD 3 Blu-ray 6 CD

4 GAME

5 MEDIA PLAYER

ZONE2

3 Blu-ray

4 MEDIA PLAYER

1 CBL/SAT 2 DVD 5 CD

Blu-ray

CBL/SAT

AUDIO

TV CD

DVD

COAXIAL OPTICAL

HDMI

RS-232C

REMOTE CONTROL

OUT

TRIGGER OUT

ARC

MONITOR

VIDEO COMPONENT VIDEO

AUDIO

DIGITAL AUDIO (ASSIGNABLE)

(ASSIGNABLE)

NETWORK

OUT

HDMI

(ASSIGNABLE)(ASSIGNABLE)

(ASSIGNABLE)

ZONE2

1 2

SUBWOOFER

FRONT

SURROUND BACKSURROUND

CENTER

PRE OUT

ANTENNA

COAX.

75Ω

ASSIGNABLE

IMPEDANCE : 6～16

SPEAKERS

FRONT FRONT SURROUND SURROUNDCENTER

SURROUND BACK

AC IN

Power cord

(supplied)

Connect to household

power outlet (AC 230 V, 50/60 Hz)

•Turn on receiver as shown below.

3Follow the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and conﬁguring your speakers and components to your Denon

receiver. Please use the remote control and follow the on-screen instructions.

Language Select

Please select a language...

English

Español

Français

Deutsch

Italiano

Nederlands

Svenska

Pусский

Polski

AV Receiver Setup Assistant

Proper configuration is essential to providing the best possible

sound and video experience. The Setup Assistant will walk you

through connecting your speakers and components to your

AV receiver.

Select “Next” to continue...

Cancel Next

The included CD-ROM contains an Adobe PDF version of the full owner’s manual for the AV receiver.

Please reference this manual for more details about the setup and operation of the receiver and it’s features.

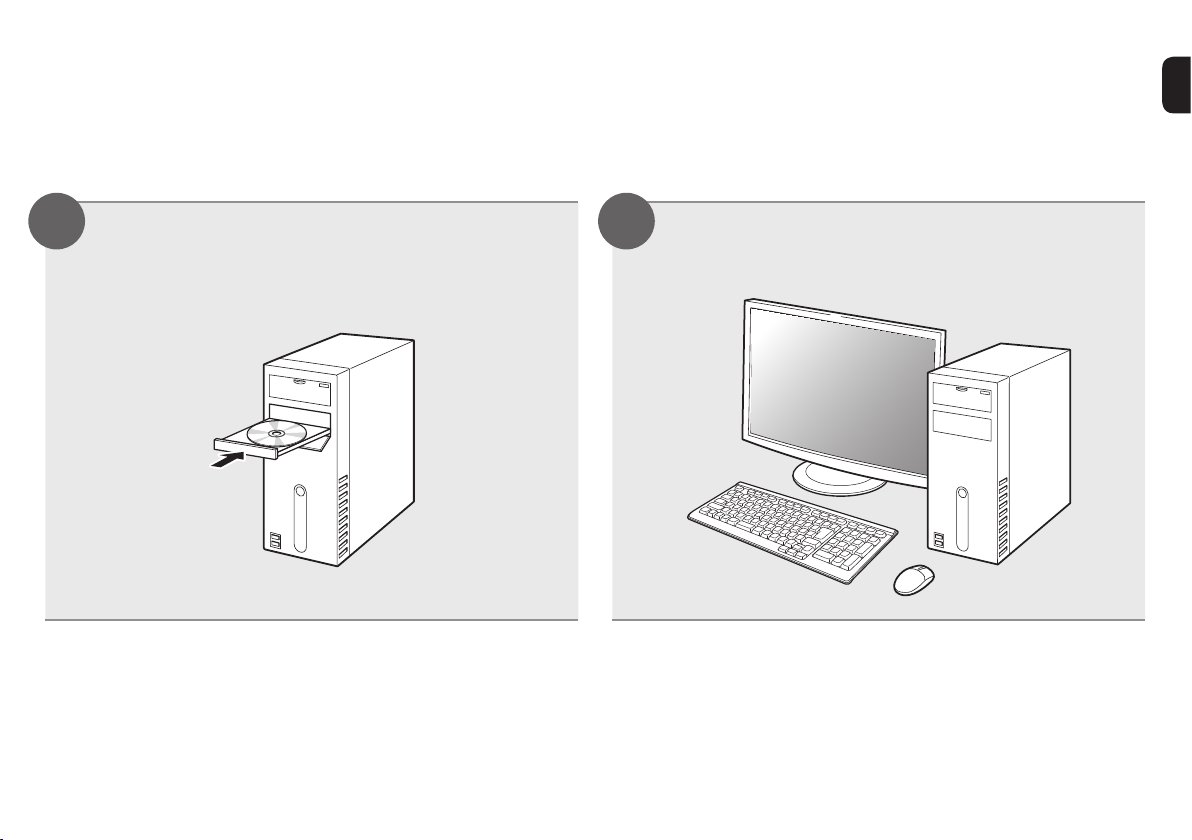

Insert the disc into your PC. Follow the screen or double click on the

PDF le.

1 2

Owner's Manual

www.denon.com

D&M Holdings Inc.

Printed in China 5411 11020 00AD
