AVR-X5200W

INTEGRATED NETWORK AV RECEIVER

Quick Start Guide

Read Me First....

Kurzanleitung / Guide de démarrage rapide / Guida di Avvio Rapido /

Guía de inicio rápido / Snelhandleiding / Snabbstartsguide /

Краткое руководство пользователя / Skrócona instrukcja obsługi

English

DEutsch

Français

italiano

EsPaÑol

nEDErlanDs

sVEnsKa

РУССКИЙ

PolsKi

Thank you for choosing a Denon AV

receiver. This guide provides step-by-

step instructions for setting up your AV

receiver.

Please do not return this unit to the

store – call for assistance.

If you need help… :

If you need additional help in solving

problems, contact Denon customer

service in your area.

www.denon.com

Welcome Before You Begin

Required for Setup

TV Speaker cables

HDMI cable Subwoofer cable Speaker systems

Optional

LAN cable Wi-Fi router

• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC

functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.

• These drawings are for illustrative purposes only and may not represent the actual product(s).

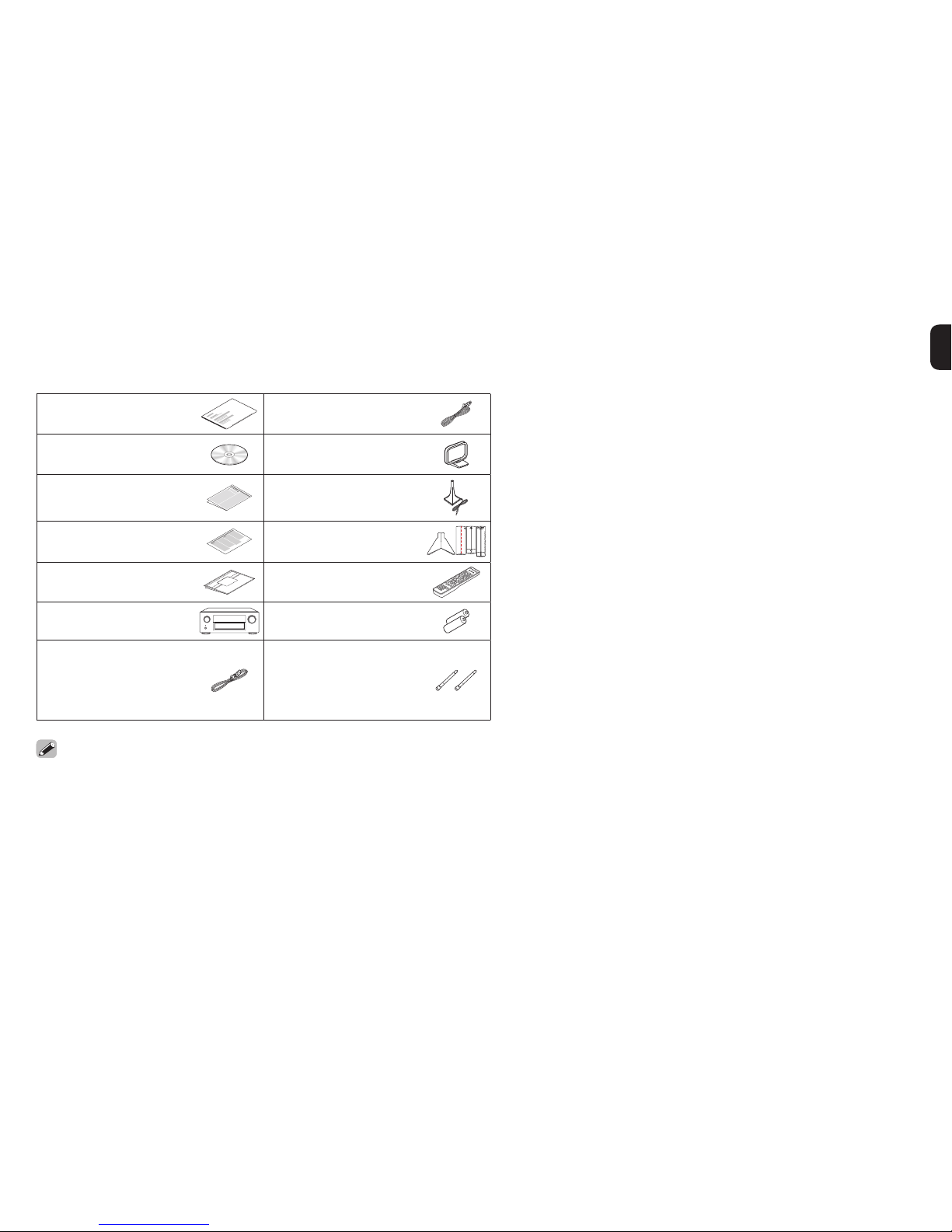

What’s In the Box

Quick Start Guide

FM indoor antenna

Owner’s Manual AM loop antenna

Safety Instructions Sound calibration

microphone

Notes on radio Sound calibration

microphone stand

Cable labels Remote control unit

Receiver R6P/AA batteries

Power cord External antennas

for Bluetooth/

Wireless

connectivity

The supplied Sound calibration microphone stand is convenient for use when

performing Speaker Calibration. Using your own tripod or the supplied Sound

calibration microphone stand enables settings to be automatically conﬁgured to

the optimum listening environment, providing exceptionally high performance.

Important: External Antennas

The removable external antennas are required for both

Bluetooth and Wireless network connectivity. Please make

sure to connect the antennas before attempting to use the

Bluetooth or Wi-Fi features of the AVR-X5200W.

nConnecting the external antennas for

Bluetooth/Wireless connectivity

For each of the two antennas:

Place the antenna evenly over the antenna terminal

located at the upper left or right corner of the rear panel.

Turn the antenna clockwise until it is fully connected. Do

not over tighten.

Rotate the antenna upwards for the best possible

reception.

PHONO

AUDIO

SIGNAL

GND

Bluetooth/Wi-Fi

ANTENNA

Denon Link HD

ANTENNA

1 CBL/SAT

CBL/SAT

2 DVD

AUDIO

6 MEDIA PLAYER

2 DVD

3Blu-ray

5 CD

4 GAME 1

CBL/SAT

2 DVD

2 DVD4 GAME

(ASSIGNABLE)

DIGITAL AUDIO

RS-232C

REMOTE CONTROL

TRIGGER OUT

(ASSIGNABLE)

VIDEO

COMPONENT VIDEO

VIDEO

COMPONENT VIDEO

MONITOR/ZONE2

MONITOR

ZONE23 Blu-ray

PB/CB

PR/CR

COAXIAL

OPTICAL

STRAIGHT CABLE

DC12V150mA MAX.

ZONE2ZONE3

FRONT

SURROUND

FRONT WIDE

CENTER

HEIGHT1

SURROUND BACKHEIGHT2

SUBWOOFER

NETWORK

PRE OUT

(ASSIGNABLE)

AUDIO

ASSIGNABLE ASSIGNABLE ASSIGNABLE

SPEAKERSIMPEDANCE : 4㹼16

AC IN

CBL

/SAT

DVD

Blu-ray

AUX2

GAME

MEDIA

PLAYER

(ASSIGNABLE)

HDMI

ARC

MONITOR1

ZONE2

MONITOR2

HDMI

CENTERSURROUND

SURROUND BACK

SURROUNDFRONT

SURROUND BACK

FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2

HEIGHT1 HEIGHT1FRONT

qwe

1Installing batteries in the

remote control unit

R6P/AA batteries

There are three steps to the setup

process.

1Installing batteries in the remote control unit

2Connecting the receiver

3Following the On-Screen Setup Assistant

Setup

2Connecting the receiver

2.1) Place the receiver near your TV and

connect the power cord.

Receiver

Power cord

(supplied)

Connect to household

power outlet

(AC 230 V, 50/60 Hz)

2.2) Connect to the network.

Wired LAN

When connecting cables (wired connection), connect a LAN

cable between your receiver and your network router.

PHONO

AUDIO

SIGNAL

GND

Bluetooth/Wi-Fi

ANTENNA

Denon Link HD

ANTENNA

1 CBL/SAT

CBL/SAT

2 DVD

AUDIO

6 MEDIA PLAYER

2 DVD

3 Blu-ray

5 CD

4 GAME1

CBL/SAT

2 DVD

2 DVD4 GAME

(ASSIGNABLE)

DIGITAL AUDIO

RS-232C

REMOTE CONTROL

TRIGGER OUT

(ASSIGNABLE)

VIDEO

COMPONENT VIDEO

VIDEO

COMPONENT VIDEO

MONITOR/ZONE2

MONITOR

ZONE23 Blu-ray

PB/CB

PR/CR

COAXIAL

OPTICAL

STRAIGHT CABLE

DC12V 150mA MAX.

ZONE2ZONE3

FRONT

SURROUND

FRONT WIDE

CENTER

HEIGHT1

SURROUND BACK HEIGHT2

SUBWOOFER

PRE OUT

(ASSIGNABLE)

AUDIO

ASSIGNABLE ASSIGNABLE ASSIGNABLE

SPEAKERS IMPEDANCE : 4㹼16

AC IN

CBL

/SAT

DVD

Blu-ray

AUX2

GAME

MEDIA

PLAYER

(ASSIGNABLE)

HDMI

ARC

MONITOR1

ZONE2

MONITOR2

HDMI

CENTER SURROUND

SURROUND BACK

SURROUNDFRONT

SURROUND BACK

FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2

HEIGHT1HEIGHT1FRONT

NETWORK

Internet Modem

Router

To WAN side

To LAN port

Wireless LAN

When connecting to wireless LAN (Wi-Fi), follow the

instructions in “Connecting the external antennas for

Bluetooth/Wireless connectivity” and connect the antennas.

PHONO

AUDIO

SIGNAL

GND

Bluetooth/Wi-Fi

ANTENNA

Denon Link HD

ANTENNA

1 CBL/SAT

CBL/SAT

2 DVD

AUDIO

6 MEDIA PLAYER

2 DVD

3 Blu-ray

5 CD

4 GAME1

CBL/SAT

2 DVD

2 DVD4 GAME

(ASSIGNABLE)

DIGITAL AUDIO

RS-232C

REMOTE CONTROL

TRIGGER OUT

(ASSIGNABLE)

VIDEO

COMPONENT VIDEO

VIDEO

COMPONENT VIDEO

MONITOR/ZONE2

MONITOR

ZONE23 Blu-ray

PB/CB

PR/CR

COAXIAL

OPTICAL

STRAIGHT CABLE

DC12V 150mA MAX.

ZONE2ZONE3

FRONT

SURROUND

FRONT WIDE

CENTER

HEIGHT1

SURROUND BACK HEIGHT2

SUBWOOFER

PRE OUT

(ASSIGNABLE)

AUDIO

ASSIGNABLE ASSIGNABLE ASSIGNABLE

SPEAKERS IMPEDANCE : 4㹼16

AC IN

CBL

/SAT

DVD

Blu-ray

AUX2

GAME

MEDIA

PLAYER

(ASSIGNABLE)

HDMI

ARC

MONITOR1

ZONE2

MONITOR2

HDMI

CENTER SURROUND

SURROUND BACK

SURROUNDFRONT

SURROUND BACK

FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2

HEIGHT1HEIGHT1FRONT

NETWORK

Router with

access point To WAN side

Internet Modem

2.4) Turn on the TV.

TV remote control unit

2.5) Select the appropriate HDMI input

on your TV.

HDMI TV/

VIDEO

INPUT or

TV remote control unit

2.3) Connect the receiver to your TV

with an HDMI cable.

PHONO

AUDIO

SIGNAL

GND

Bluetooth/Wi-Fi

ANTENNA

Denon Link HD

ANTENNA

1 CBL/SAT

CBL/SAT

2 DVD

AUDIO

6 MEDIA PLAYER

2 DVD

1 2

3 Blu-ray

5 CD

4 GAME1

CBL/SAT

2 DVD

2 DVD4 GAME

(ASSIGNABLE)

DIGITAL AUDIO

RS-232C

REMOTE CONTROL

TRIGGER OUT

(ASSIGNABLE)

VIDEO

COMPONENT VIDEO

VIDEO

COMPONENT VIDEO

MONITOR/ZONE2

MONITOR

ZONE23 Blu-ray

PB/CB

PR/CR

COAXIAL

OPTICAL

STRAIGHT CABLE

DC12V 150mA MAX.

ZONE2 ZONE3

FRONT

SURROUND

FRONT WIDE

CENTER

HEIGHT1

SURROUND BACK HEIGHT2

SUBWOOFER

PRE OUT

(ASSIGNABLE)

AUDIO

ASSIGNABLE ASSIGNABLE ASSIGNABLE

SPEAKERS IMPEDANCE : 4～16

AC IN

CBL

/SAT

DVD

Blu-ray

AUX2

GAME

MEDIA

PLAYER

(ASSIGNABLE)

HDMI

CENTER SURROUND

SURROUND BACK

SURROUNDFRONT

SURROUND BACK

FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2

HEIGHT1 HEIGHT1FRONT

NETWORK

ZONE2

MONITOR2

HDMI

ARC

MONITOR1

(ARC)

HDMI IN

MONITOR1

HDMI OUT

MONITOR

(ARC)

ARC

HDMI cable

Receiver (Rear panel)

2.6) Turn on the receiver.

•Press Xto turn on the receiver.

2.7) Verify the connection.

•Verify that you can see this screen on your TV.

AV Reciever Setup Assistant

Please select a language...

Deutsch

Français

English

Italiano

Español

Nederlands

Svenska

Pусский

Polski

If this screen is not displayed, please go back and

retry the steps again in the recommended sequence.

3Following the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and

conﬁguring your speakers and components to your Denon

receiver. Please use the remote control and follow the

on-screen instructions.

AV Reciever Setup Assistant

Please select a language...

Deutsch

Français

English

Italiano

Español

Nederlands

Polski

Pусский

Svenska
