Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Caps (silver) (x4)

USB cable

Remote control unit

(RC-1220) (built-in battery)

Power cord

Quick Start Guide Safety Instructions Notes on radio Warranty

(for North America model only)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality

0Equipped with a high-quality class D amplifier

The amplifier section incorporates Qualcomm® DDFATM technology

from Qualcomm. The output stage circuit has a discrete construction

which realizes higher S/N and lower distortion compared to

conventional class D amplifiers. Additionally, the high 50 W+50 W (4 Ω/

ohms) output which exceeds the size of the housing lets you enjoy

Denon’s ideal audio playback environment that delivers “delicate yet

powerful sound”.

Qualcomm DDFA is a product of Qualcomm Technologies International, Ltd. Qualcomm is

a trademark of Qualcomm Incorporated, registered in the United States and other countries,

used with permission. DDFA is a trademark of Qualcomm Technologies International, Ltd.,

registered in the United States and other countries, used with permission.

0High Bitrate and High Sampling with Advanced AL32 Processing

Plus

A high bitrate and high sampling has been achieved with Denon's

unique data interpolation algorithm. 16 bit audio signals are converted

to a high bitrate of 32 bit and 44.1 kHz sampling signals are up-sampled

by 16x to achieve smoother recreation of sound waves. Data

interpolation is also used, predicting interpolation points from a large

number of surrounding points to provide audio as close as possible to

the original sound. This elaborate restoration of data lost during digital

recording achieves fine, distortion-free rendering, accurate sound

localizing, rich bass and recreation that is faithful to the original sound.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

High performance

0Equipped with a USB-DAC function to support playback of high-

resolution sound sources

This unit supports the playback of high resolution audio formats such as

DSD (2.8/5.6/11.2 MHz) and PCM signals up to 384 kHz/32 bits.

It provides high quality playback of high resolution files into this unit from

a computer via USB-B connection.

0Compatible with a wide range of digital input equipment

This device is installed with two optical digital input interfaces and one

coaxial digital input interface to enable connection to a variety of TVs

and other digital input devices.

0Wireless connection with Bluetooth enabled devices (v p. 41)

You can connect Bluetooth enabled devices such as smartphones and

tablets with this unit to listen to music while browsing email and Web

sites in the Internet away from this unit. In addition, this unit supports

high quality audio codecs, aptX Low Latency and AAC, to enjoy music

and games with a powerful sound.

0NFC function included that enables one touch

connection (v p. 46)

You can just touch this unit with an NFC enabled smartphone or tablet

to turn on power to this unit and establish the Bluetooth connection.

0Supports vertical installation

This unit can be installed vertically or horizontally. The display

automatically rotates to match the installation orientation.

0System remote control

This unit comes with a system remote control that can also operate the

Denon's CD Player DCD-50.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Part names and functions

Front panel

w e t y

q r

APower operation button (X)

This turns the power on/to standby. (v p. 27)

The power status is indicated as follows.

0Power on: Display lit

0Standby: Display off

BProtection circuit indicator

This blinks when the protection circuit has operated.

0“Power does not turn on/Power is turned off” (v p. 56)

0“Protection circuit” (v p. 64)

CDisplay

This displays various pieces of information. (v p. 9)

DRemote control sensor

This receives signals from the remote control unit. (v p. 19)

EVolume control knob

This adjusts the volume level. (v p. 29)

FInput source switching button (q)

This switches input sources. (v p. 28)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

GHeadphones jack

Used to connect headphones.

When the headphones are plugged into this jack, audio will no longer

be output from the speaker terminals.

NOTE

0To prevent hearing loss, do not raise the volume level excessively when using

headphones.

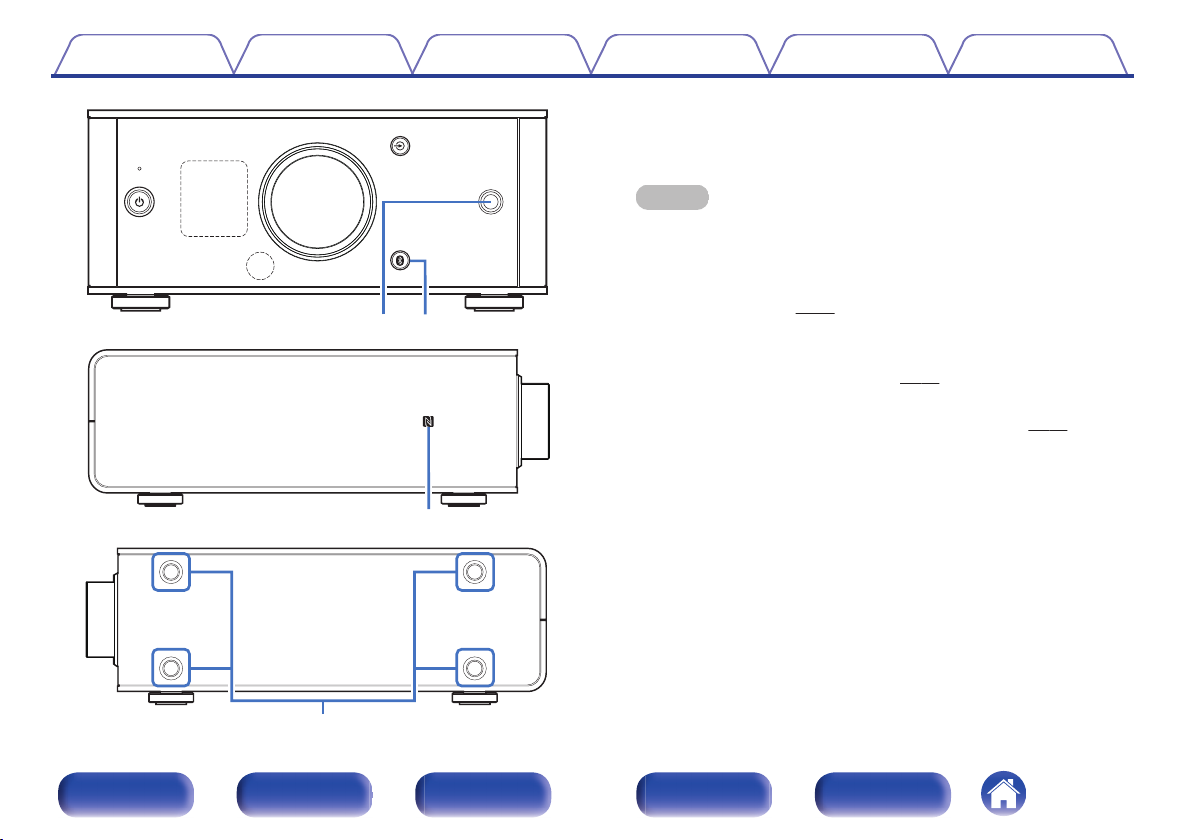

HBluetooth button (V)

This switches the input to Bluetooth. This is also pressed during the

pairing operation. (v p. 42)

IN-Mark (Q)

Touch this mark with a Bluetooth device that includes the NFC function

when pairing (registering) with it. (v p. 46)

JInstallation holes for vertical installation feet

These are used when the unit is installed vertically. (v p. 16)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Display

q w

㻝㻝㻚㻌㻞

AInput source indicator

The following is displayed depending on the selected input source.

USB-DAC

COAXIAL

OPTICAL-1 OPTICAL-2

AUX

Bluetooth

. .

BInformation display

Displays items such as information on the audio signal being input or

the name of a Bluetooth device.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Rear panel

r t

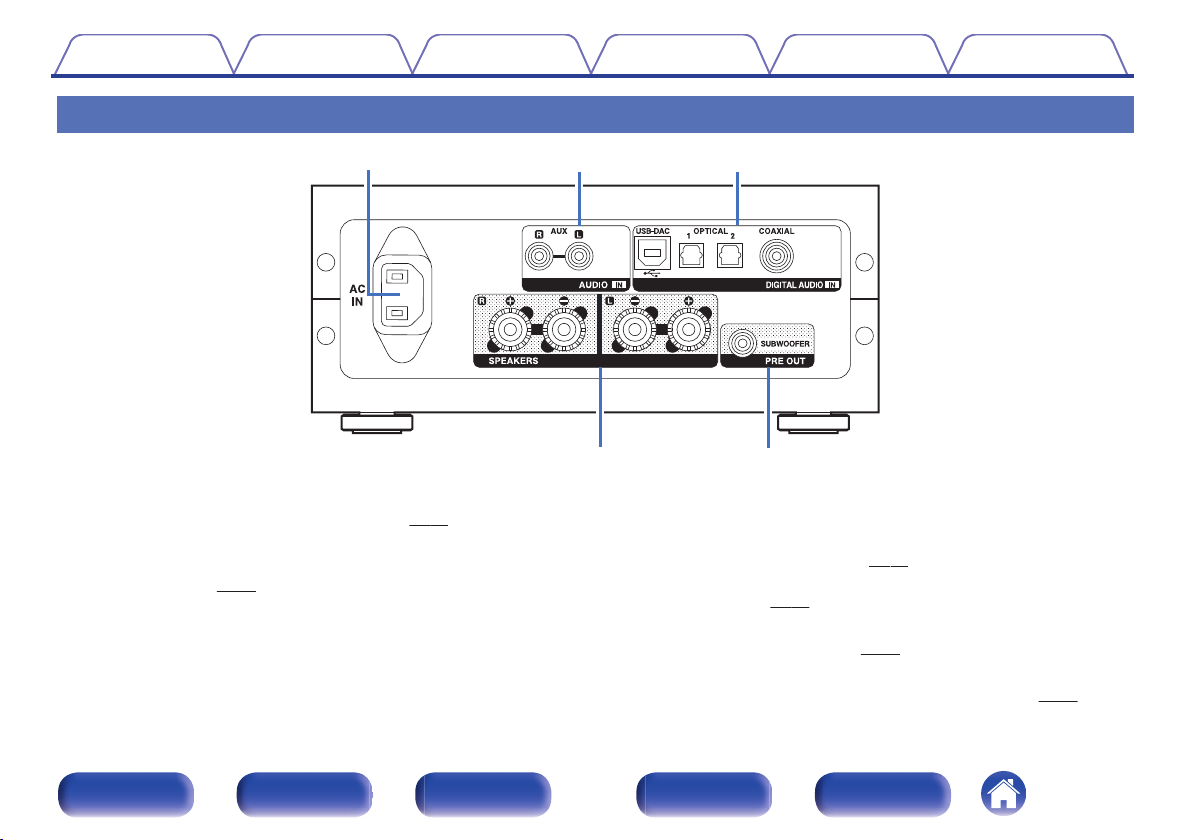

AAC inlet (AC IN)

Used to connect the supplied power cord. (v p. 25)

BAUX input connectors (AUDIO IN)

Used to connect devices equipped with analog audio connectors such

as CD players. (v p. 24)

CDIGITAL AUDIO IN connectors

Used to connect devices equipped with PC and digital audio output

connectors.

0“Connecting a PC or Mac” (v p. 22)

0“Connecting to a device with digital audio output

connectors” (v p. 23)

DSpeaker terminals (SPEAKERS)

Used to connect speakers. (v p. 21)

ESubwoofer terminal (PRE OUT)

Used to connect a subwoofer with a built-in amplifier. (v p. 21)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index
