DENON POA-A1HD control protocol

Ver. 1.0.7

Application model : POA-A1HD

Application terminal: RS-232C

Connector specification

Ⅰ. RS-232C

Connector type: DB-9pin female type, slave straight connection (DCE type)

( 1pin : GND , 2pin : TxD , 3pin : RxD , 5pin : Common(GND) , 4,6,7,8,9pin : NC )

Communication format:

Synchronous system : Tone step synchronization

Communication system : A half duplex

Communication speed : 9600bps

Character length : 8 bits

Parity control : None

Start bit : 1 bit

Stop bit : 1 bit

Communication procedure : Non procedural

Communication data length : 135 bytes (maximum)

- 2 -

Protocol specification

The following three data forms are defined.

COMMAND : The message sent to a system(POA) from a controller(Touch Panel etc.)

A command to a system is given from a controller.

EVENT : The message sent to a controller (Touch Panel etc.) from a system (POA)

The result is sent, when a system is operated directly and a state changes.

*The form of EVENT presupposes that it is the same as that of COMMAND.

**Refer to the following table for the contents of COMMAND and EVENT.

RESPONSE : The message sent to a controller (Touch Panel etc.) from a system (POA)

if the ‘request command’ (COMMAND+?+CR(0x0D)) has came from a controller.

The RESPONSE should be sent within 200ms of receiving the COMMAND.

*The form of RESPONSE presupposes that it is the same as that of EVENT.

Basic specification: The command by ASCII CODE, parameter expression

*ASCII CODE which can be used is from 0x20 to 0x7F: the alphabet and the number of 0-9, and space (0x20), some signs,

AND carriage return (0x0D) --- It is used only as a pause sign.

Command structure: COMMAND + PARAMETER + CR (0x0D)

COMMAND :ASCII CODE of 2 characters

PA :Power AMP（POA）Control

PARAMETER ：ASCII CODE (up to 25 characters)

EX.PWON ：Power On

Others

A) COMMAND is receivable also during transmission of EVENT.

B) The RESPONSE should be sent as opposed to the request command by all the commands with which an EVENT

exists not need to the another request commands.

C) Please set the input channel after setting the power amp.

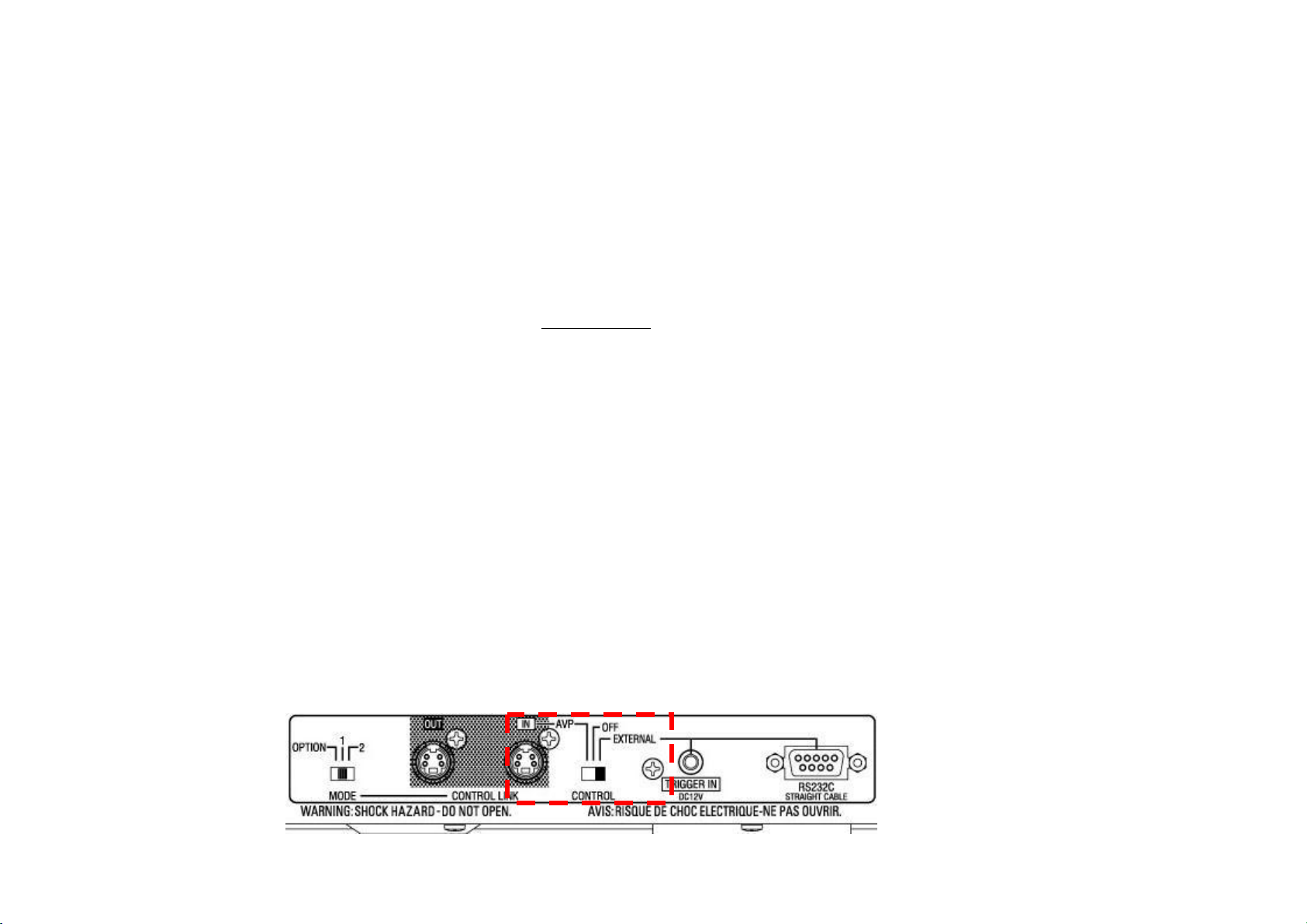

D) Please Power on it after making the CONTROL switch of POA-A1HD EXTERNAL

- 3 -

COMMAND and PARAMETER list

COMMAND PARAMETER function Example

PA PWON POA POWER ON/STANDBY change PAPWON<CR>

PWSTBY PAPWSTBY<CR>

PW? Return PW Status PAPW?<CR>

INL1OFF Input Channel L* Setting PAINL1OFF<CR>

INL1RCA PAINL1RCA<CR>

INL1XLR PAINL1XLR<CR>

INL2OFF PAINL2OFF<CR>

INL2RCA

PAINL2RCA<CR>

INL2XLR PAINL2XLR<CR>

INL3OFF PAINL3OFF<CR>

INL3RCA

PAINL3RCA<CR>

INL3XLR PAINL3XLR<CR>

INL4OFF PAINL4OFF<CR>

INL4RCA

PAINL4RCA<CR>

INL4XLR PAINL4XLR<CR>

INL5OFF PAINL5OFF<CR>

INL5RCA

PAINL5RCA<CR>

INL5XLR PAINL5XLR<CR>

INR1OFF PAINR1OFF<CR>

INR1RCA

Input Channel R* Setting

PAINR1RCA<CR>

INR1XLR PAINR1XLR<CR>

INR2OFF PAINR2OFF<CR>

INR2RCA

PAINR2RCA<CR>

INR2XLR PAINR2XLR<CR>

INR3OFF PAINR3OFF<CR>

INR3RCA

PAINR3RCA<CR>

INR3XLR PAINR3XLR<CR>

INR4OFF PAINR4OFF<CR>

INR4RCA

PAINR4RCA<CR>

INR4XLR PAINR4XLR<CR>

INR5OFF PAINR5OFF<CR>

INR5RCA PAINL2OFF<CR>

INR5XLR

PAINL2RCA<CR>

- 4 -

COMMAND PARAMETER function Example

PA IN? Return Channel setting PAIN?<CR>

INL1? PAINL1?<CR>

INL2? PAINL2?<CR>

INL3? PAINL3?<CR>

INL4? PAINL4?<CR>

INL5?

Return Channel L* setting

PAINL5?<CR>

INR1? PAINR1?<CR>

INR2? PAINR2?<CR>

INR3? PAINR3?<CR>

INR4? PAINR4?<CR>

INR5?

Return Channel R* setting

PAINR5?<CR>

AMPL12NRM PAAMPL12NRM<CR>

AMPL12BAP PAAMPL12BAP<CR>

AMPL12BTL

L1/L2 Power Amp setting

PAAMPL12BTL<CR>

AMPL34NRM PAAMPL34NRM<CR>

AMPL34BAP PAAMPL34BAP<CR>

AMPL34BTL

L3/L4 Power Amp setting

PAAMPL34BTL<CR>

AMPLR5NRM PAAMPLR5NRM<CR>

AMPLR5BAP PAAMPLR5BAP<CR>

AMPLR5BTL

L5/R5 Power Amp setting

PAAMPLR5BTL<CR>

AMPR12NRM PAAMPR12NRM<CR>

AMPR12BAP PAAMPR12BAP<CR>

AMPR12BTL

R1/R2 Power Amp setting

PAAMPR12BTL<CR>

AMPR34NRM PAAMPR34NRM<CR>

AMPR34BAP PAAMPR34BAP<CR>

AMPR34BTL

R3/R4 Power Amp setting

PAAMPR34BTL<CR>

AMP? Return Power Amp setting PAAMP?<CR>

AMPL12? PAAMPL12?<CR>

AMPL34? PAAMPL34?<CR>

AMPLR5? PAAMPLR5?<CR>

AMPR12? PAAMPR12?<CR>

AMPR34?

Return * Power Amp setting

PAAMPR34?<CR>

- 5 -

※ PAIN?<CR> ：RESPONSE becomes the following order.

State of input channel L1 –＞State of L2 -> State of L3 -> State of L4 -> State of L5 ->

State of R5 -> State of R4 -> State of R3 -> State of R2 -> State of R1

PAINL1xxx<CR> PAINL2xxx<CR>PAINL3xxx<CR>PAINL4xxx<CR>PAINL5xxx<CR>

PAINR5xxx<CR>PAINR4xxx<CR>PAINR3xxx<CR>PAINR2xxx<CR>PAINR1xxx<CR>

(xxx ; "OFF" or "RCA" or "XLR")

※ PAAMP?<CR> ：RESPONSE becomes the following order.

State of Power AMP channel L1/L2 -> State of L3/L4 -> State of L5/R5 ->

State of R4/R3 -> State of R2/R1

PAAMPL12xxx<CR> PAAMPL34xxx<CR>PAAMPLR5xxx<CR>PAAMPR34xxx<CR>PAAMPR12xxx<CR>

(xxx ; "NRM" or "BAP" or "BTL")

- 6 -

COMMAND PARAMETER function Example

MTON Meter setting on PAMTON<CR>

MTOFF Meter setting off PAMTOFF<CR>

MTLCHG Left Meter setting PAMTLCHG<CR>

MTCCHG Center Meter setting PAMTCCHG<CR>

MTRCHG Right Meter setting PAMTRCHG<CR>

MT? Return Meter setting PAMT?<CR>

MTO? Return Meter On/Off setting PAMTO?<CR>

MTL? Return Left Meter setting PAMTL?<CR>

MTC? Return Center Meter setting PAMTC?<CR>

MTR? Return Right Meter setting PAMTR?<CR>

※ PAMT?<CR> ：RESPONSE becomes the following order.

Return Meter On/Off setting PAMTxxx<CR> (xxx ; "ON" or "OFF")

Return Left Meter setting PAMTLx<CR> (x ; "1"～"4" or "NONE")

Return Center Meter setting PAMTxx<CR> (xx ; "L5" or "R5" or "CNONE")

Return Right Meter setting PAMTRx<CR> (x ; "1"～"4" or "NONE")

- 7 -

EVENT(or RESPONSE) and PARAMETER list

EVENT PARAMETER function example

PA PWON POA POWER ON/STANDBY change PAPWON<CR>

PWSTBY POA Standby status PAPWSTBY<CR>

PWPROTECT POA Protection status PAPW?<CR>

INL1OFF Input Channel L* Information PAINL1OFF<CR>

INL1RCA PAINL1RCA<CR>

INL1XLR PAINL1XLR<CR>

INL2OFF PAINL2OFF<CR>

INL2RCA

PAINL2RCA<CR>

INL2XLR PAINL2XLR<CR>

INL3OFF PAINL3OFF<CR>

INL3RCA

PAINL3RCA<CR>

INL3XLR PAINL3XLR<CR>

INL4OFF PAINL4OFF<CR>

INL4RCA

PAINL4RCA<CR>

INL4XLR PAINL4XLR<CR>

INL5OFF PAINL5OFF<CR>

INL5RCA

PAINL5RCA<CR>

INL5XLR PAINL5XLR<CR>

INR1OFF PAINR1OFF<CR>

INR1RCA

Input Channel R* Information

PAINR1RCA<CR>

INR1XLR PAINR1XLR<CR>

INR2OFF PAINR2OFF<CR>

INR2RCA

PAINR2RCA<CR>

INR2XLR PAINR2XLR<CR>

INR3OFF PAINR3OFF<CR>

INR3RCA

PAINR3RCA<CR>

INR3XLR PAINR3XLR<CR>

INR4OFF PAINR4OFF<CR>

INR4RCA

PAINR4RCA<CR>

INR4XLR PAINR4XLR<CR>

INR5OFF PAINR5OFF<CR>

INR5RCA PAINL2OFF<CR>

INR5XLR

PAINL2RCA<CR>

- 8 -

EVENT PARAMETER function example

PA AMPL12NRM PAAMPL12NRM<CR>

AMPL12BAP PAAMPL12BAP<CR>

AMPL12BTL

L1/L2 Power Amp Information

PAAMPL12BTL<CR>

AMPL34NRM PAAMPL34NRM<CR>

AMPL34BAP PAAMPL34BAP<CR>

AMPL34BTL

L3/L4 Power Amp Information

PAAMPL34BTL<CR>

AMPLR5NRM PAAMPLR5NRM<CR>

AMPLR5BAP PAAMPLR5BAP<CR>

AMPLR5BTL

L5/R5 Power Amp Information

PAAMPLR5BTL<CR>

AMPR12NRM PAAMPR12NRM<CR>

AMPR12BAP PAAMPR12BAP<CR>

AMPR12BTL

R1/R2 Power Amp Information

PAAMPR12BTL<CR>

AMPR34NRM PAAMPR34NRM<CR>

AMPR34BAP PAAMPR34BAP<CR>

AMPR34BTL

R3/R4 Power Amp Information

PAAMPR34BTL<CR>

PA MTON PAMTON<CR>

MTOFF

Meter Information

PAMTOFF<CR>

MTL1 PAMTL1<CR>

MTL2 PAMTL2<CR>

MTL3 PAMTL3<CR>

MTL4

Left Meter Information

PAMTL4<CR>

MTL5 PAMTL5<CR>

MTR5

Center Meter Information

PAMTR5<CR>

MTR1 PAMTR1<CR>

MTR2 PAMTR2<CR>

MTR3 PAMTR3<CR>

MTR4

Right Meter Information

PAMTR4<CR>

MTLNONE PAMTLNONE<CR>

MTCNONE PAMTCNONE<CR>

MTRNONE

No left meter selection

No center meter selection

No right meter selection PAMTRNONE<CR>
