HDMP-S100 Signage Player User’s Manual

Table of Contents

Introduction ..........................................................................English-2

Package Contents ...............................................................English-2

Additional Requirements......................................................English-2

Setting Up ............................................................................English-2

Power Up Messages............................................................English-3

Principle of Operation ..........................................................English-4

Configurable Options...........................................................English-4

Firmware Upgrade ...............................................................English-6

Technical Specification ........................................................English-7

Troubleshooting and FAQ....................................................English-8

Appendix A: HDMP-S100 Play List User Guide ..................English-9

Appendix B: Adfotain Central MZ User's Guide.................English-17

English-2

English

Introduction

The HDMP-S100 is a High Definition Digital Signage Player expansion module with simple

web management interface to deliver high definition (720p) digital signage contents over

any TCP/IP network. This expansion module must be plugged into the expansion bay of a

compatible display device designed to work with HDMP-S100.

The HDMP-S100 has additional functions to connect to peripheral devices via the USB

ports to facilitate interactivity. Utilization of the USB ports is for upgrade and configuration

only.

This documentation describes the basic operations of the device.

Package Contents

1. HDMP-S100 Digital Signage Player x 1

2. User’s Manual for HDMP-S100 Digital Signage Player x 1

Additional Requirements

You will need the following additional items to operate the HDMP-S100 Signage Player:

1. A 2.5” hard drive (default configuration) or a Compact Flash (CF) memory card

(optional).

2. An Ethernet connection to the Internet. DHCP (Dynamic Host Configuration Protocol)

service on the Ethernet connection is recommended. Please consult with your

network engineer if you are uncertain whether you have DHCP service.

Setting Up

1. Please ensure to turn off main power switch of the display and detach the power cord.

2. Remove the protective cover of the input slot that by loosening the thumbscrew.

3. Insert the expansion module with correct orientation (see illustration) and carefully

push in the module all the way with the faceplate flushed and aligned at the base.

(Expansion module will not be able to be inserted all the way in with wrong

orientation)

4. Tighten the thumbscrew.

5. Attach the power cord and turn on the main power switch on the back and switch on

the power key on the display or on the remote control, the expansion module will be

detected automatically by the display monitor.

6. The green color LED power indicator on the expansion module should be lit.

English-3

English

Warning:

1. The main power switch must be off and the power cord must be detached before

installation of the expansion module.

2. Do not pull out the expansion module when the display is in use, doing so may result

in damaging the expansion module and the display monitor permanently.

3. Installation of the expansion module must be done by a qualified technician and don't

touch these pin inside black connector to prevent ESD.

After installing the HDMP-S100 expansion module to the display, please follow the

instructions in the User’s Manual for setting up digital signage content management

services software resided in the module.

Power Up Messages

After turning on the display with the HDMP-S100 module installed, you should see the

following message appeared on the screen,

1. Startup logo on screen.

2. In a few seconds, you should see additional text information showing of the screen,

a. MAC address (unique network identifier of the HDMP-S100)

b. DHCP status (“NO DHCP” if DHCP service is not found)

c. IP address assigned by DHCP service (“169.254.1.1” if no DHCP service is

found)

d. Operation mode: LAN or WAN (Local Area Network or Wide Area Network)

mode. The factory default is set to WAN mode. Please follow the instructions if

other mode of operation is desired.

3. If you are in WAN mode, the Digital Signage Player will try to reach out and connect to

a designated server.

English-4

English

Principle of Operation

The HDMP-S100 Digital Signage Player is a hardware MPEG-1/2/4 video decoder with

network connectivity. Contents intended to be played on the HDMP-S100 Digital Signage

Player will need to be converted into MPEG-1/2/4 formats before they are played back.

When properly connected to a network (LAN or WAN) or via direct connection to a

personal computer with a network patch (cross-over) cable, the HDMP-S100 can be

configured with a standard web browser. Once configured, the device can,

1. Connect to an Adfotain Central Management Server (subscribed separately, fees may

apply, please refer to Appendix B) for global, hierarchical, web-based management

(WAN mode). By utilizing WAN mode operation, a robust and scalable digital signage

service can be setup under different network conditions (ie. Different network

infrastructure, locations, firewall settings), monitoring hardware heartbeat conditions

and managing schedules ensuring timely delivery of media contents.

2. Or, playback media contents with the built-in control scripts language (see Appendix A)

for small-scale digital signage needs (LAN mode). By using LAN mode operation, a

simple non-hierarchical type of digital signage network can be setup quickly with

simple scheduling and file management.

Configurable Options

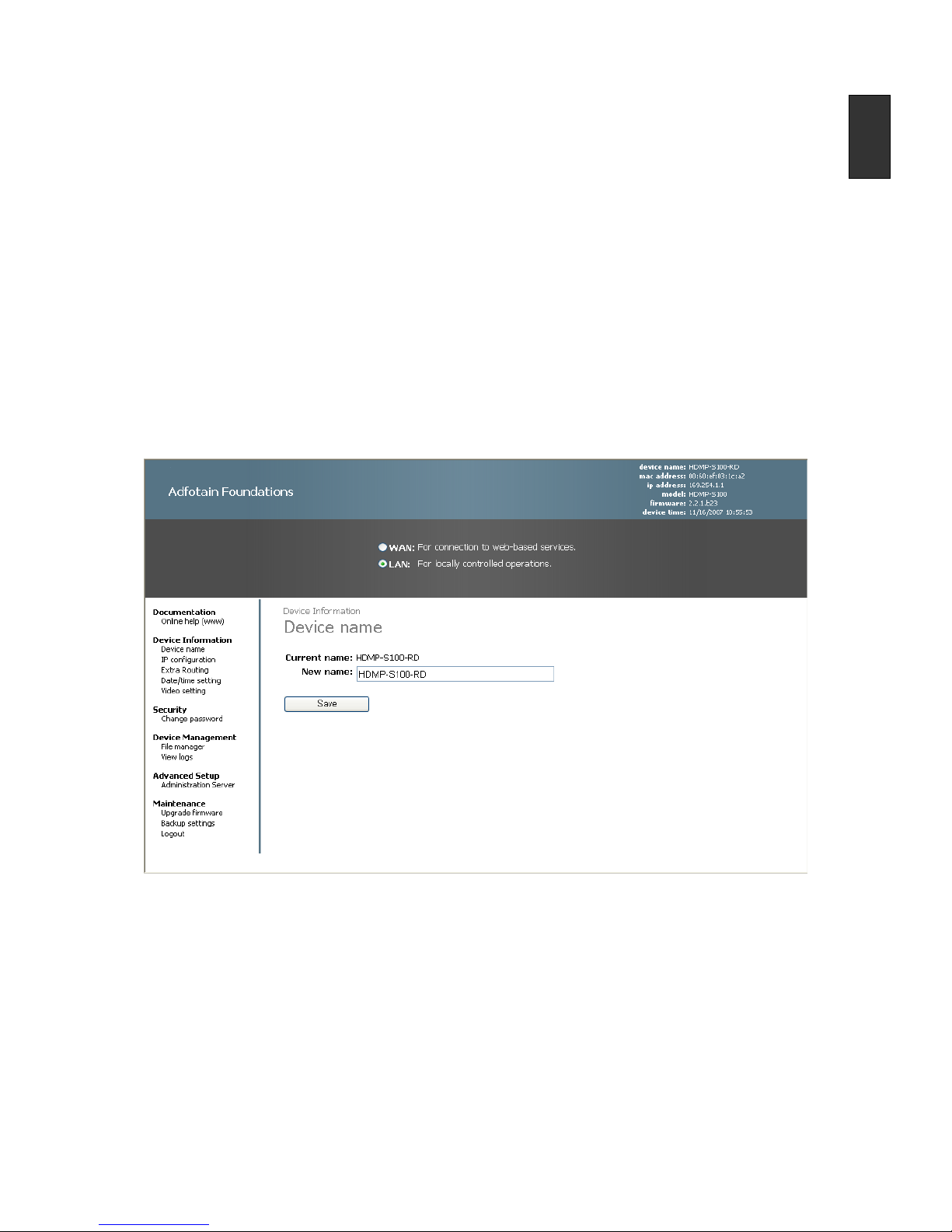

The HDMP-S100 has a built-in web interface allowing you to change configuration options

via a web browser. Key in IP address on web browser you can see below login page. The

default login account name is “admin” and the default password is “digiSignage” without

the quotation marks.

English-5

English

After logging in you should see a list of configurable options,

1. Device name (Used in UPnP – Universal Plug-and-Play detection)

2. IP configuration (DHCP, static, etc.)

3. Extra Routing (Setting five extra routing)

4. Date/Time Setting (Allows automatic adjustment of internal clock from time servers)

5. Video Setting (Logical and output resolution)

6. Change password

7. File manager (For LAN mode operation in file management)

8. View logs (Record play list status under LAN mode operation)

9. Administration Server (To access WAN mode Adfotain Central server)

10. Upgrade firmware

11. Backup setting (Save default setting parameter)

12. Logout

English-6

English

Firmware Upgrade

1. Please follow the instruction below carefully if a firmware upgrade is deemed

necessary by your authorized dealer or technical support.

2. After logging in the device web configuration page, switch the device to LAN mode.

3. Click on the “Upgrade firmware”, and browse for the firmware package file. The

firmware update can be obtained from your authorized dealer. Or please email to

vdservice@delta.com.tw to obtain the latest firmware.

4. The firmware upgrading progress will be shown on the screen.

Warning: Please ensure not to interrupt the upgrade process by keeping power on all the

time. Any interruption during the upgrade will cause the upgrade process to fail and

damage the system permanently.

English-7

English

Technical Specification

Processor Sigma Designs EM8621L

System Memory 64 MB DDR RAM

Operating System Kernel µCLinux Kernel

Max. Output Resolution 1920x1080@60Hz

Recommended Media

Resolution

1280x720(720p)

1024x768(XGA)

Supported Mass Storage* 2.5" Slim HDD (Default); 80G(max)

Compact Flash Card (Optional); 8G(max)

USB Connector USB 2.0 x 2 port (A type)

RJ-45 Jack IEEE 802.3 Ethernet 10/100 Base-T

Indicator Light Power On (Green LED)

Power Requirement DC-12V / 12W(max)

Operating Environment 0 ~ 40°C, 5% to 95% RH

Storage Environment -20 ~ 60°C, 5% to 95% RH

Dimensions (WxHxD) 212 x 150 x 40 (mm)

8.35” x 5.91” x 1.57”

Net weight 0.95 kg

2.09 lbs.

* Only one type of mass storage device can be installed and operated

English-8

English

Troubleshooting and FAQ

Setting Up

1. I do not see the green LED light go on when I plug the in module into the display.

a. Please check power connection and turn on the display power (please consult to

the User’s Manual of the display).

2. I see the green LED light on, but there is nothing shown on the screen.

a. Please make sure to switch to the correct input (ie. Input 1) for the display

monitor by toggling the “Input” button on the display or “Source” button on

remote control.

b. If this cannot be resolved, turn off the main system power on the back of the

display and turn it back on.

3. The video shown on the screen seems to be flashing, moving, or in the wrong color

(greenish).

a. This is often caused by incorrect output configuration. Please login to the system

and use the LAN mode configuration to set the device to the proper output

format.

b. If this cannot be resolved, turn off the main power from the back of the display,

remove the power cable and remove and reinstall the expansion module.

Content Authoring

1. How do I create and author content for portrait type of display (9:16 vertically

mounted)?

2. You need rotate the 9:16 picture or video counter clockwise 90 degrees into horizontal

layout before uploading it to the player.

3. If my authoring tool cannot produce MPEG-1/2/4 video, what is the recommendation?

4. Please produce Microsoft Windows WMV file format whenever possible for playback.

5. What is the recommended specification for the MPEG-1/2/4 video?

6. MPEG-1/2: 1280x780, 30 fps, 5 Mbps. MPEG-4: DivX (Advanced Simple Profile)

1280x720, 30 fps, 5 Mbps.
